Racing Battery Care: The Spec-Led Guide for AGM and Lithium Setups

Racing battery care starts with knowing that a resting voltage reading can mislead you. A battery that reads 12.6V at rest can still collapse to zero under starter load. The voltmeter says healthy, the car says nothing. That gap between open circuit voltage and loaded voltage is where vibration damage and sulphation hide, and an open circuit reading on its own catches neither.

Most racing battery failures are not manufacturing defects. They come from two avoidable decisions: charging with the wrong profile, and mounting without proper isolation. A standard lead acid battery from a road car will tolerate sloppy care for years. A motorsport battery will not.

This guide covers racing battery care end to end: from how race batteries differ from standard lead acid batteries, AGM and lithium chemistry, and charger pairing to storage between events, and FIA compliant isolation.

Racing Battery Vs. Standard Lead Acid Battery: What’s the Difference?

A racing battery is a different product to a standard lead acid battery, even when both use the same fundamental chemistry. The differences matter for how you charge, mount, and maintain it.

Most racing AGM batteries (Odyssey batteries, the dominant motorsport brand, included) use Thin Plate Pure Lead (TPPL) construction. Pure lead plates can be made thinner and packed denser than the lead alloy plates in a typical road battery. That delivers three things relevant to motorsport:

• Higher cranking current per kg. A racing battery weight is significantly lower than a standard lead acid battery of equivalent cranking capacity. Typical savings range from 30 to 50% on battery weight.

• Genuine dual purpose operation. Pure lead AGM cells handle both cranking duty and deep cycle work without the rapid capacity loss that kills standard SLI batteries.

• Vibration resistance. AGM construction immobilises the electrolyte in glass mat separators. Combined with internal plate locking, this protects the plates from cracking under race rate vibration.

Lithium iron phosphate (LiFePO4) batteries take the weight argument further. A lithium motorsport battery typically saves 9 to 18 kg over an equivalent AGM. They also hold voltage flatter under sustained load and recharge faster.

The trade off is care. Both AGM and lithium racing batteries are less tolerant of abuse than the lead acid battery in a daily driver. Wrong charger, deep discharge, parasitic drain from accessories, or poor mounting will all shorten life dramatically. None of these batteries are fit and forget components.

Match the Charger to the Battery Chemistry

AGM and lithium racing batteries need different charge profiles. Cross-using is a fast route to destroying both the battery and the warranty.

Where Standard Chargers Fail On AGM

Older unregulated chargers, and many cheap modern units, can hold output well above the safe charge ceiling on a low state of charge AGM. Odyssey TPPL AGM batteries need around 14.7V to fully charge. Voltages over 15.0V cause irreversible damage; gas vents through the one way safety valve and electrolyte loss is permanent.

Standard chargers also lack the constant voltage absorption stage AGM cells need to balance. They typically hold current too low for AGM's bulk acceptance rate, and the result is chronic undercharge and sulphation. Combined AGM and GEL profile chargers are common and quietly problematic: the firmware splits the difference between the two chemistries and most racing AGMs end up undercharged. Use a dedicated AGM profile, not a combined one.

Boost or jump start modes apply elevated voltage with no automatic transition to constant voltage. Running them on a battery already near full will overcharge it.

Why An AGM Charger Destroys A Lithium Battery

An AGM charger pushed onto a LiFePO4 battery will exceed the lithium termination voltage and creates a fire risk. Lithium needs a chemistry specific charger with the correct end of charge voltage and BMS handshake.

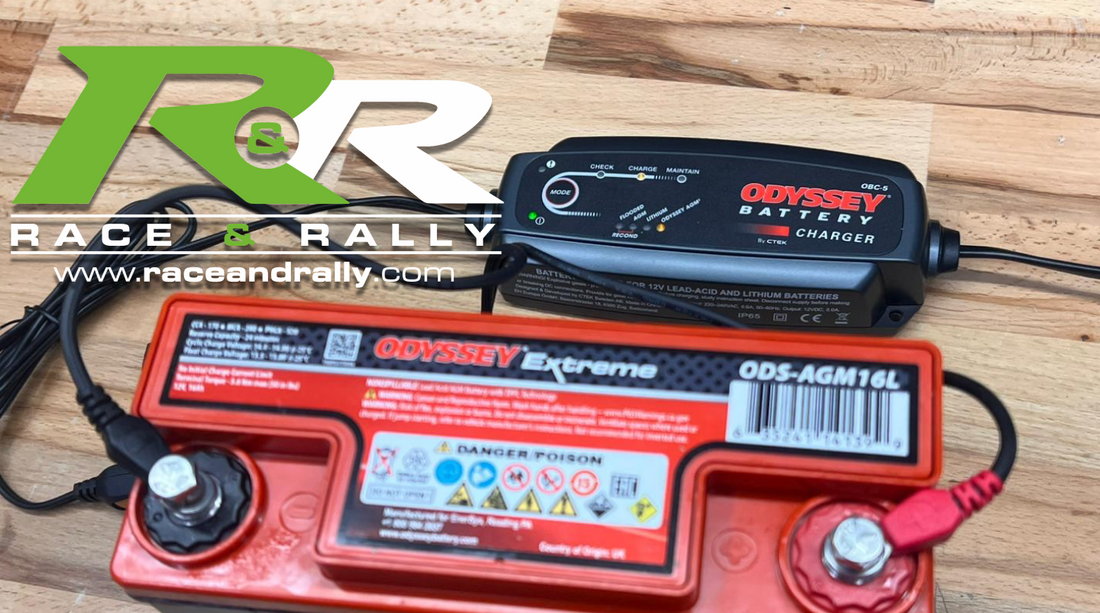

This is the charger we keep in stock for exactly this reason. The Odyssey 5A charger, developed by Odyssey with CTEK, carries separate profiles for AGM, flooded lead acid and lithium, so one unit covers both chemistries without compromise. Its AGM profile charges at the 14.7V an Odyssey TPPL battery needs to reach full charge, while its lithium profile uses a lower, lithium correct termination voltage that stays well clear of the danger zone. It’s compact and portable enough for the smaller batteries most racing applications use, and the same charger is offered in 15A and 25A versions for larger batteries or workshop use.

Match the charger to the chemistry, then match the chemistry to the application.

How Three Stage Charging Works

Three stage chargers handle the bulk, top up, and maintenance phases of charging with the correct voltage and current for each. Skip any stage and you lose capacity. The numbers below are for Odyssey TPPL AGM. Lithium charge profiles are different and must be set by the charger BMS.

Stage 1: Constant Current (CC, bulk). The charger pushes maximum amps until battery voltage hits 14.7V. This stage returns 70 to 80% of capacity. For optimum charging, current should be at least 40% of the battery's 10 hour rating (so a 60Ah AGM wants at least 24A in bulk). Current should never drop below 10% of the 10 hour rating. Typical duration is 2 to 5 hours depending on starting state of charge and charger output.

Stage 2: Constant Voltage (CV, absorption). Voltage holds at 14.7V while current tapers as the battery absorbs the final charge. This stage balances cells and finishes the top end of the chemistry. Current drops to 3 to 5% of the Ah rating before transition. Typical duration is 4 to 6 hours. Skipping or shortening absorption is the most common cause of capacity loss in race batteries, and exactly what cheap or generic chargers do.

Stage 3: Float (trickle). Voltage drops to 13.5V to 13.8V. Current is whatever the battery needs to offset self discharge. Safe to leave connected indefinitely. This is the stage you want during storage between events.

Voltage reference table (Odyssey TPPL AGM)

A note on the alternator. If your race car has an alternator fitted, verify its output sits between 14.1V and 14.7V. Below that, the battery never reaches full charge. Above, and you’re cooking it. Alternator output outside this range will void the warranty on most racing AGMs.

Vibration, Mounting and the Hidden Failure Mode

Race vibration cycles the plates inside the battery against the casing and against each other. Resonance at certain RPM bands amplifies the movement enough to crack lead grids and break the inter cell welds. Plates fracture, lose contact, and the battery can no longer deliver high current under load even though the chemistry is intact.

The diagnostic symptom is unmistakable: OCV reads a healthy 12V, you hit the starter, voltage collapses to zero. Internal connections have failed mechanically, not chemically. The battery is unrecoverable and needs replacing.

Mount specification is the cheapest way to protect against this. The rules:

• 10mm closed cell foam between the battery base and the mount

• Metal cradle, battery box, or strap clamp combined with the foam, never foam only or strap only

• No rubber straps as the sole restraint. Rubber acts as a spring at race rate frequencies and amplifies resonance rather than damping it

• Skip the tool chest matting. Too thin and too dense to absorb track rate vibration, gives a false sense of security on a battery being shaken to pieces internally

• Keep the battery away from hot air, corrosive fluids, and exhaust heat

A purpose built battery box adds a layer of containment, protects the battery cell, and meets most scrutineering requirements for saloon cars running the battery in the cockpit. If the battery passes a voltmeter check but fails under starter load, suspect vibration damage first.

Storing Between Events Without Destroying the Battery

When an AGM sits below full charge, lead sulphate crystals form on the plates. Soft sulphation in the early stage may reverse with a recovery cycle on a charger that supports one. Hard sulphation sets in after weeks to months at low state of charge, and once it does, the damage is permanent. The warranty will not cover it, and no recovery cycle will reverse it.

Capacity decline is measurable within two cycles under partial state of charge conditions. By cycle 30, the battery typically loses 10 to 30% of capacity, with no path back.

Parasitic Drain Is The Silent Killer

Anything in the vehicle with a constant 12V requirement when the ignition is off is a parasitic load: alarms, immobilisers, clocks, engine management modules, data loggers, GPS trackers, dash cameras, radio memory backups, and most aftermarket accessories. Cheap aftermarket alarms are common offenders, often pulling well over 100mA on their own.

Acceptable drain on a stored car is below 30mA. Anything over 100mA is a fault condition: alarm misbehaving, ECU not entering sleep mode, stuck relay. Diagnose it. A 150mA drain pulls a 60Ah AGM into hard sulphation territory inside a month.

The storage protocol is short. Treat it as a job to perform regularly, not occasionally:

1. Fully charge the battery after every event. No exceptions.

2. Connect to a float charger at 13.5V to 13.8V for any storage longer than two weeks.

3. If a float charger is not available, disconnect the negative terminal or open the battery isolator switch.

4. Recheck open circuit voltage monthly. Any reading below 12.6V means recharge immediately.

5. Check the terminals for corrosion before each event. Clean and protect with terminal grease.

Daily drivers rarely see these issues; the alternator handles routine battery maintenance. The battery in a track day or weekend race car does not get that luxury. Care becomes the responsibility of the owner, and the consequence of neglect shows up on the next event when the engine refuses to crank.

Hard sulphation is the most common warranty rejection reason on race AGMs, and the easiest failure mode to prevent.

Signs Your Racing Battery Needs Replacing

The failure modes below tell you what is wrong and what to do about it:

• OCV reads normal but voltage drops to near zero under starter load. This is vibration damage causing internal plate or weld failure, and the battery cannot be recovered. Replace it.

• Visible swelling, ballooning, or case distortion. This is overcharge damage. The safety valve is one way only, so once gas has vented, the electrolyte is gone for good. Remove the battery from service and do not attempt to recharge it.

• OCV below 9.0V on an Odyssey AGM. Per Odyssey spec, the battery is unrecoverable below this threshold. A smart charger refusing to start is verifying the diagnosis, not failing on you.

• Slow cranking, low capacity after a full charge, or cold cranking drop on a battery under two years old. All three point to the same underlying problem: chronic undercharge, hard sulphation, or vibration damage to internal components. A load test will tell you which, and a battery that fails the load test is finished regardless of the specific cause.

A voltmeter alone is not sufficient. The voltage displayed at rest tells you nothing about the battery under load, so a load tester is the only reliable way to verify condition.

• Strong sulphur smell during charging. Gassing from overcharge or recovery from deep discharge. Stop charging and inspect.

Battery Isolators, Parasitic Drain and FIA Compliance

A battery isolator does two jobs for a competition car: it stops parasitic drain between events, and it provides the master cut off required by scrutineering. Cheap units fail at both. Measured drain in the nominally off position can exceed 30mA on its own, which means the switch is attenuating rather than isolating, and the battery still sulphates between events.

FIA Appendix J, Article 253.13 requires the general circuit breaker to be accessible from inside and outside the cabin, and to isolate all electrical circuits (battery, alternator, ignition, lights, and controls) in a single action. The detail that catches people out is alternator load dump. Pulling the battery while the alternator is energised generates voltage spikes that can destroy the ECU and other vehicle electronics, and only quality isolators built for motorsport handle this safely by killing the engine first and disconnecting the battery a fraction of a second later.

The Armtech Hybrid Battery Isolator is a good example. It is described by the manufacturer as FIA and MSA compliant, with load dump protection built in. Look for 200A to 600A continuous rating and 1500A or higher surge handling. The price difference between a motorsport grade isolator and a generic kill switch is small, but the damage cost from a load dump event is not.

Lithium Racing Batteries: When to Switch

LiFePO4 batteries save 9 to 18 kg over an equivalent AGM, hold voltage flatter under load, and accept faster recharge between sessions on a track day. The trade offs are real and worth knowing before you commit:

• Chemistry specific charger required. An AGM charger on a lithium battery is a fire risk.

• Temperature limits. LiFePO4 should not be charged below 0°C, and most quality batteries include BMS protection against this.

• BMS is non-negotiable. A battery without a battery management system to handle cell balancing, overvoltage, undervoltage, and overcurrent will not last. Stick to manufacturers who build the BMS in.

• Check your regulations. Some race series require lithium batteries to sit in a sealed, vented container.

Final Thoughts

Racing battery care comes down to three habits: charge with the right profile, mount the battery so vibration cannot reach the plates, and isolate it properly between events. Get those three right and a good AGM or lithium battery will outlast the warranty without issues. Get them wrong and even the best motorsport battery becomes a consumable.

The voltage reference table is the single most useful thing to print and keep with your trolley charger. If the open circuit voltage ever reads below 12.6V after a full charge cycle, something in the chain is wrong, and the fix is always cheaper before the next event than after. If you need to replace any part of the setup, take a look at the full range at Race and Rally.

Frequently Asked Questions

Can I use a standard car charger on an AGM racing battery?

No. Standard chargers can hold output above 15V on a low SOC AGM, which damages the cells. Most also lack the constant voltage absorption stage AGM needs to balance, and cannot deliver the bulk current rate (40% of the 10 hour rating) that TPPL AGMs require for proper charging. Use a charger with a dedicated AGM profile.

How often should I charge my racing battery between events?

After every event. No exceptions. Race spec AGMs sulphate measurably within two cycles at partial state of charge, and capacity loss compounds quickly. If events are more than two weeks apart, connect a float charger at 13.5V to 13.8V or open the battery isolator to stop parasitic drain. Recheck OCV monthly during longer storage periods.

Can I use my AGM charger on a lithium racing battery?

Only if it has a lithium mode. Many chargers now include both AGM and lithium profiles, and on those you just select the lithium setting. What you must not do is run an AGM profile on a lithium battery, since AGM absorption at around 14.7V and float at 13.5V to 13.8V will both overcharge a LiFePO4 cell. Above 45°C surface temperature or 14.6V during charge you are into thermal runaway territory and a fire risk, so the charger also needs the correct BMS interface.

What is the difference between a racing battery and a standard car battery?

A racing battery is built around weight, vibration tolerance, and dual purpose (cranking and deep cycle) duty. Most use thin plate pure lead (TPPL) AGM construction or lithium iron phosphate chemistry. A standard lead acid battery in a road car prioritises cost and is built to handle short cranking pulses and steady alternator charging. It tolerates abuse but cannot match the cranking performance per kg, the vibration resistance, or the cycle life of a motorsport battery.
