Collection: 536 Series

Goodridge 536 and TF-TU25 series hoses are designed for low-pressure push-fit applications. The 536 features textile reinforcement and an abrasion-resistant outer cover, making it ideal for oil breather applications, while the TF-TU25 is cotton-reinforced with an oil-resistant inner lining and is suitable for fuel use. Both hoses are compatible with their respective push-fit fittings but are not suitable for in-cockpit use or vacuum systems.

Goodridge 536 and TF-TU25 series hoses are designed for ‘push fit’ applications. The 536 series is a textile-reinforced rubber hose with an abrasive-resistant synthetic rubber (Nitrile & PVC) cover. Ideal for low-pressure oil breather applications where the external stainless steel abrasive protection of the 200 series hose is not required. The 536 hose is not for ‘in cockpit’ use and not recommended for vacuum systems. Compatible with 536 ‘sure lock’ fittings. The TF-TU25 is a cotton-reinforced rubber hose with a synthetic rubber outer and oil-resisting compound inner. Ideal for use with low-pressure push-fit applications and safe to be used with fuel. Not for use ‘in cockpit’ and not recommended for vacuum systems. Compatible with push-fit hose tails.

Benefits

- Uninterrupted flow
- Burst pressure up to 1131 PSI / 78 Bar
- Temperature Resistance from -40°C to +100°C
- Bend radius down to 40.00mm (TF-TU25-04)

Features

- Smooth Bore
- Textile reinforced
- Rubber lined
- Synthetic rubber covering
- Andosied Aluminium fittings available in Traditional Red & Blue and Black for a more Classis look

NOT FOR USE 'IN COCKPIT'


Frequently Asked Questions

What applications can the 536 Series be used on?

The 536 series range of fittings and hosing can be used on the following applications:
- Oil
- Water
- Coolant
- Methanol
- *Fuel (Not suitable for use 'IN COCKPIT' and only compatiable with certtain fuel types)
- Air

Which hose do I need?

Goodridge 536 Series consists of two hoses to choose from; 536 (blue or black) and TF-TU25 series.

 Hose Series Construction SAE 100 R6 Compliant 536 'sure lock' fitting Push fit Compatible Air Oil Water Fuel

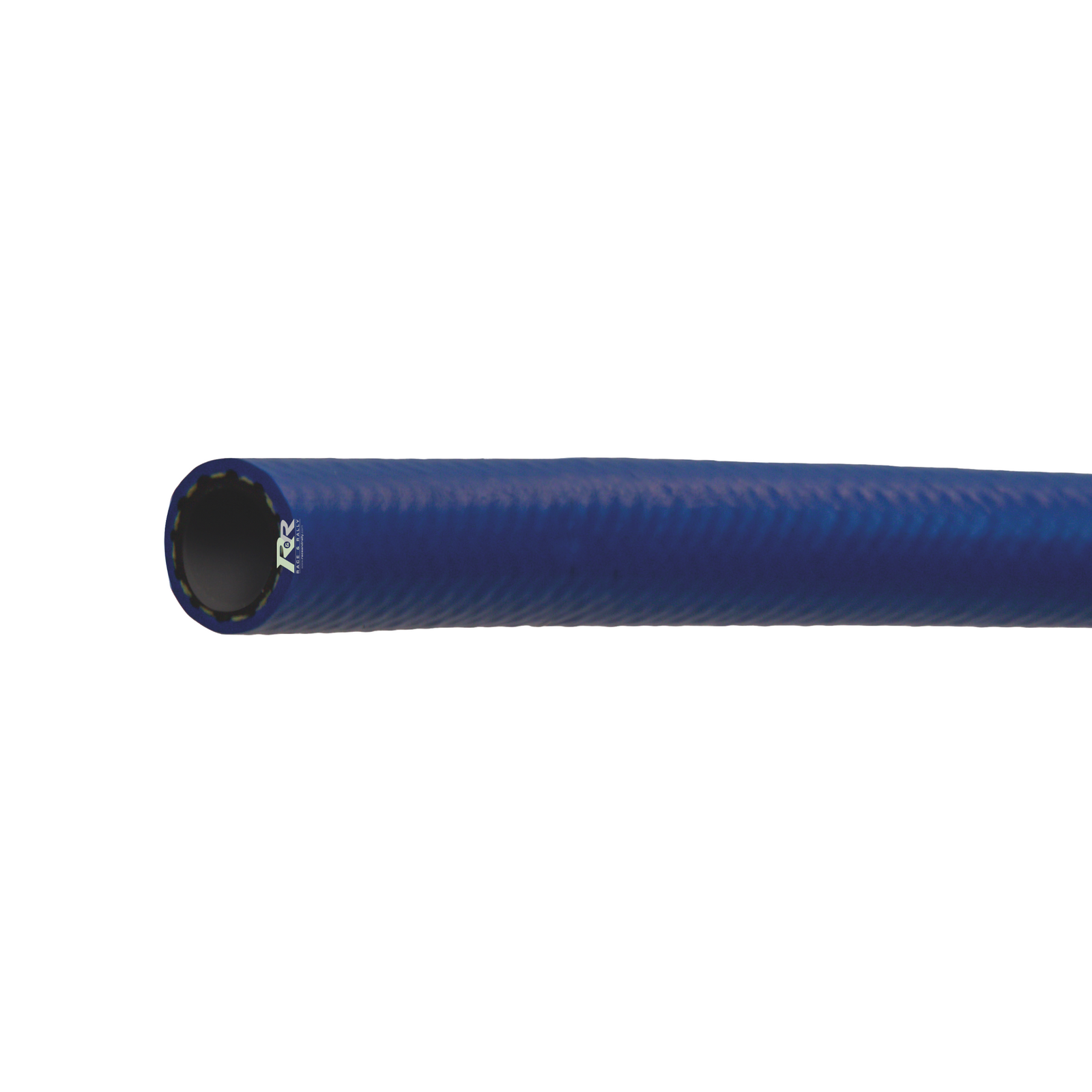

536 Series
  • Textile Reinforced Rubber
  • Elastomer Cover

X X X X X X

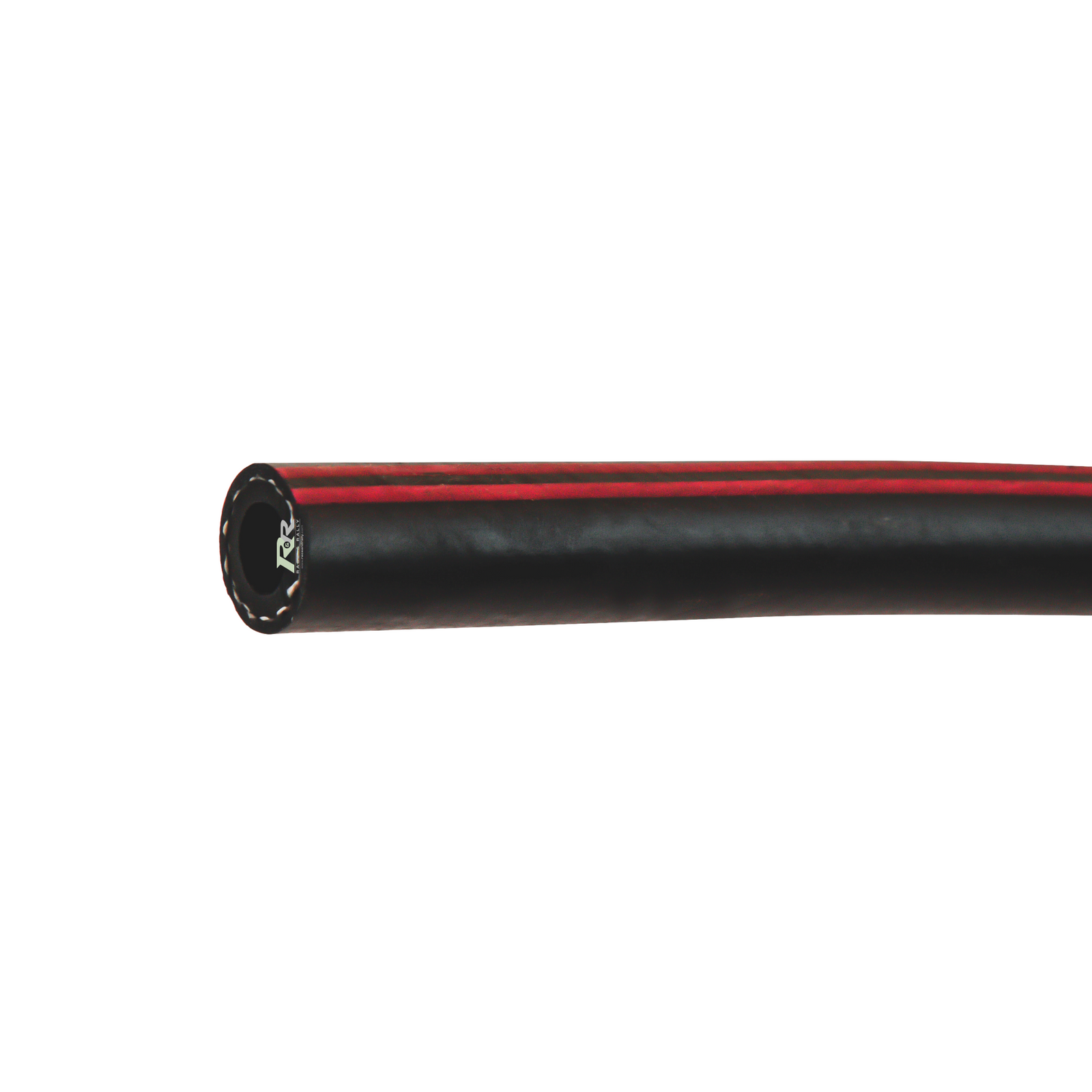

TF-TU25 Series
  • Cotton Reinforced Rubber
  • Black Synthetic Rubber Outer
  • Oil Resisting Rubber Compound Inner
X
X


X


What fittings can I use?

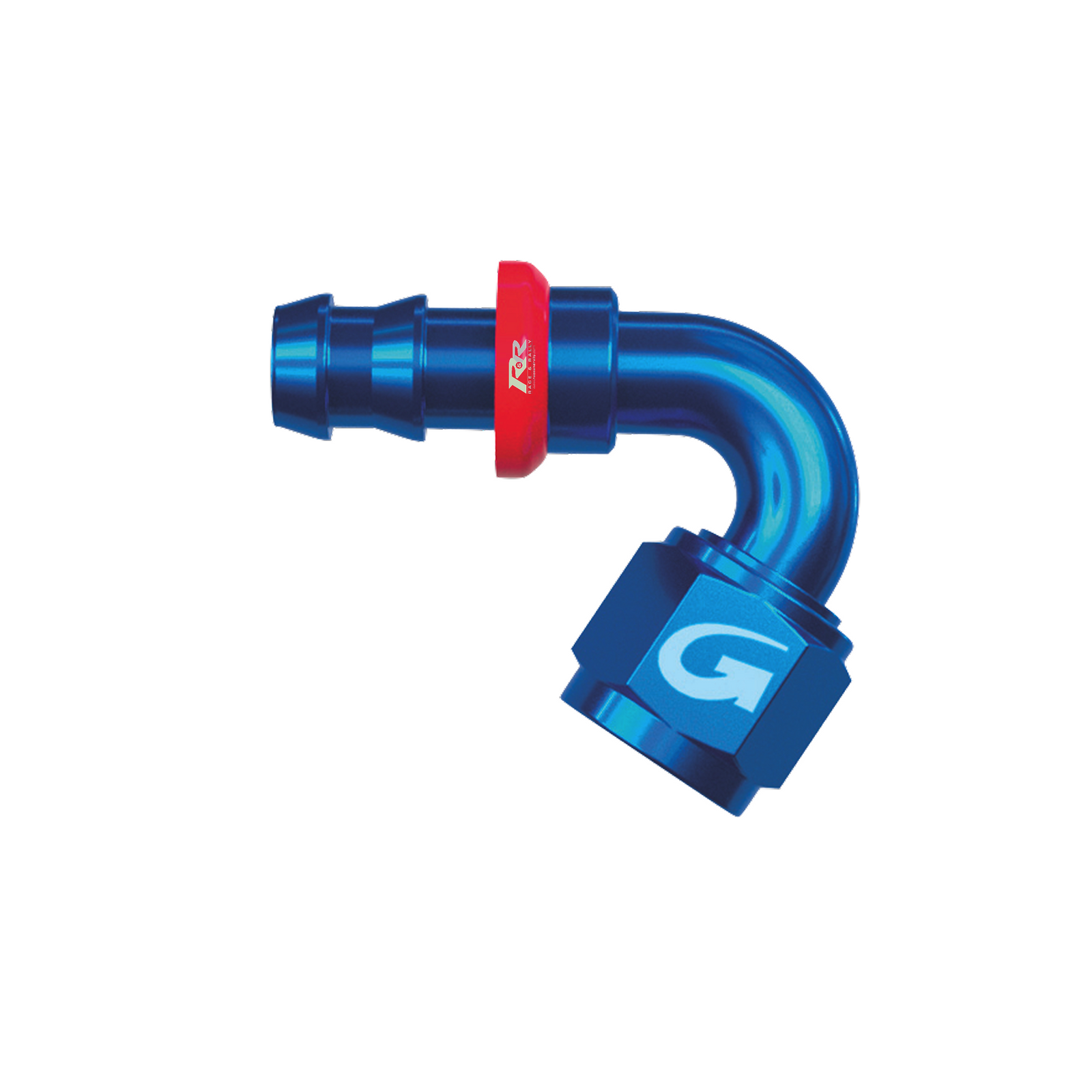

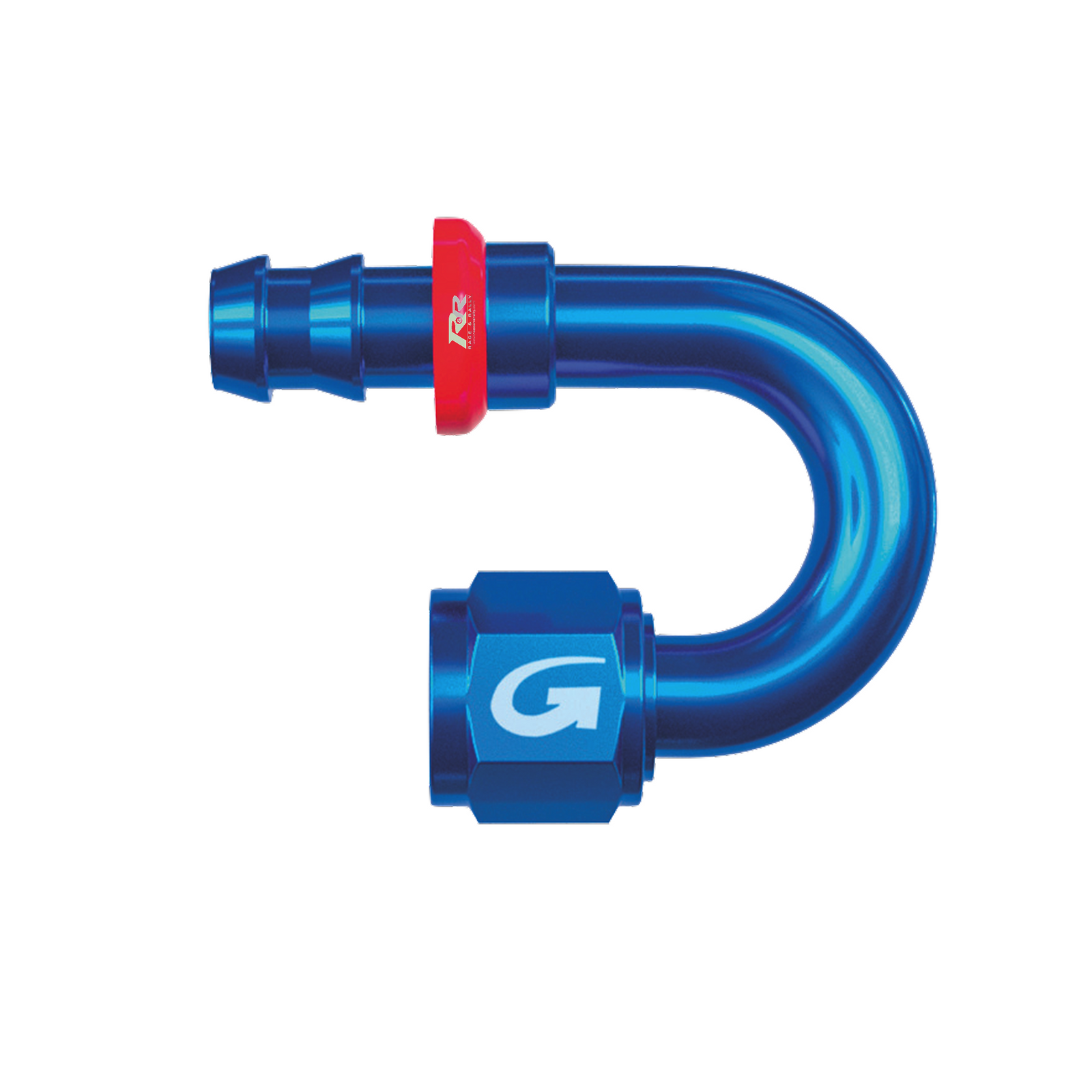

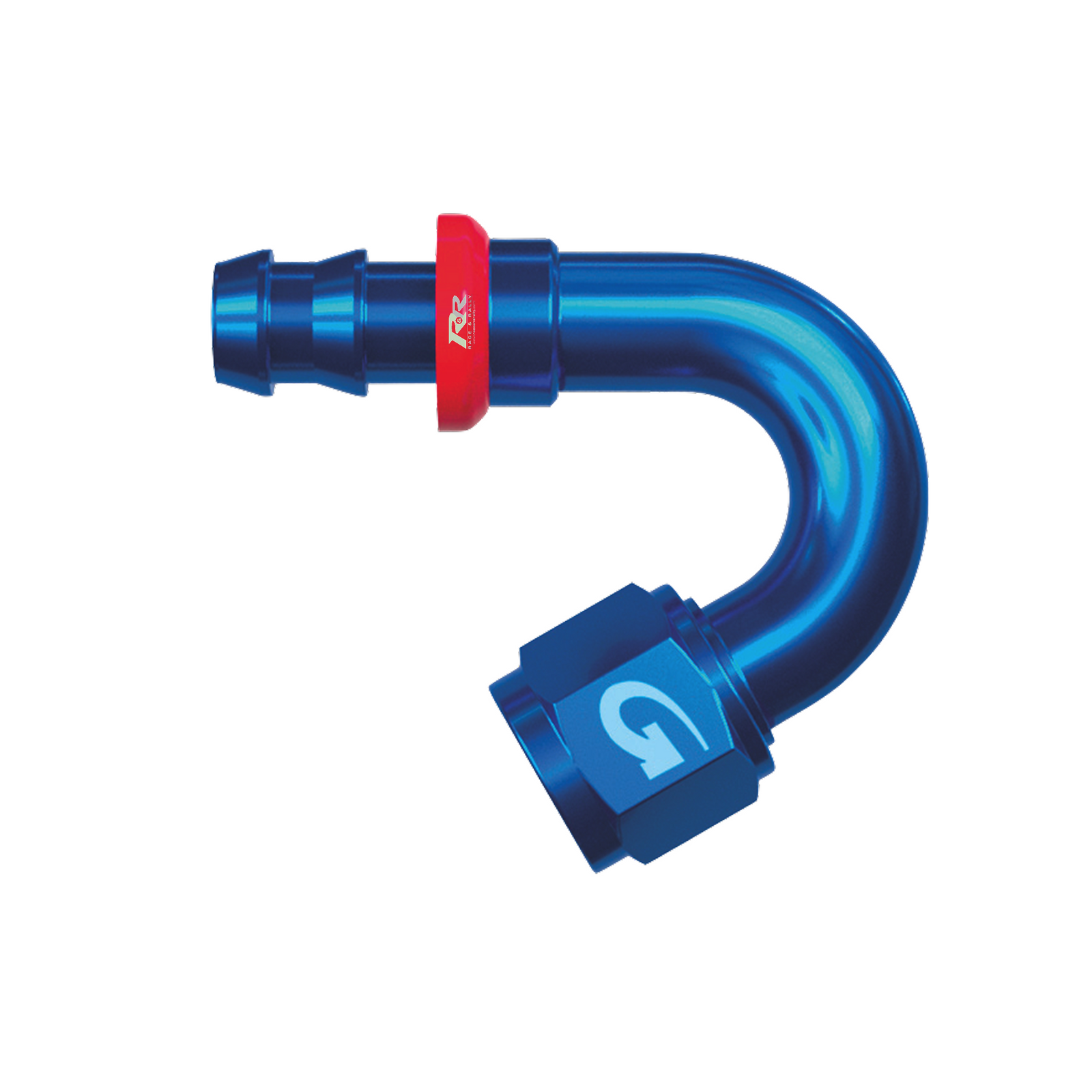

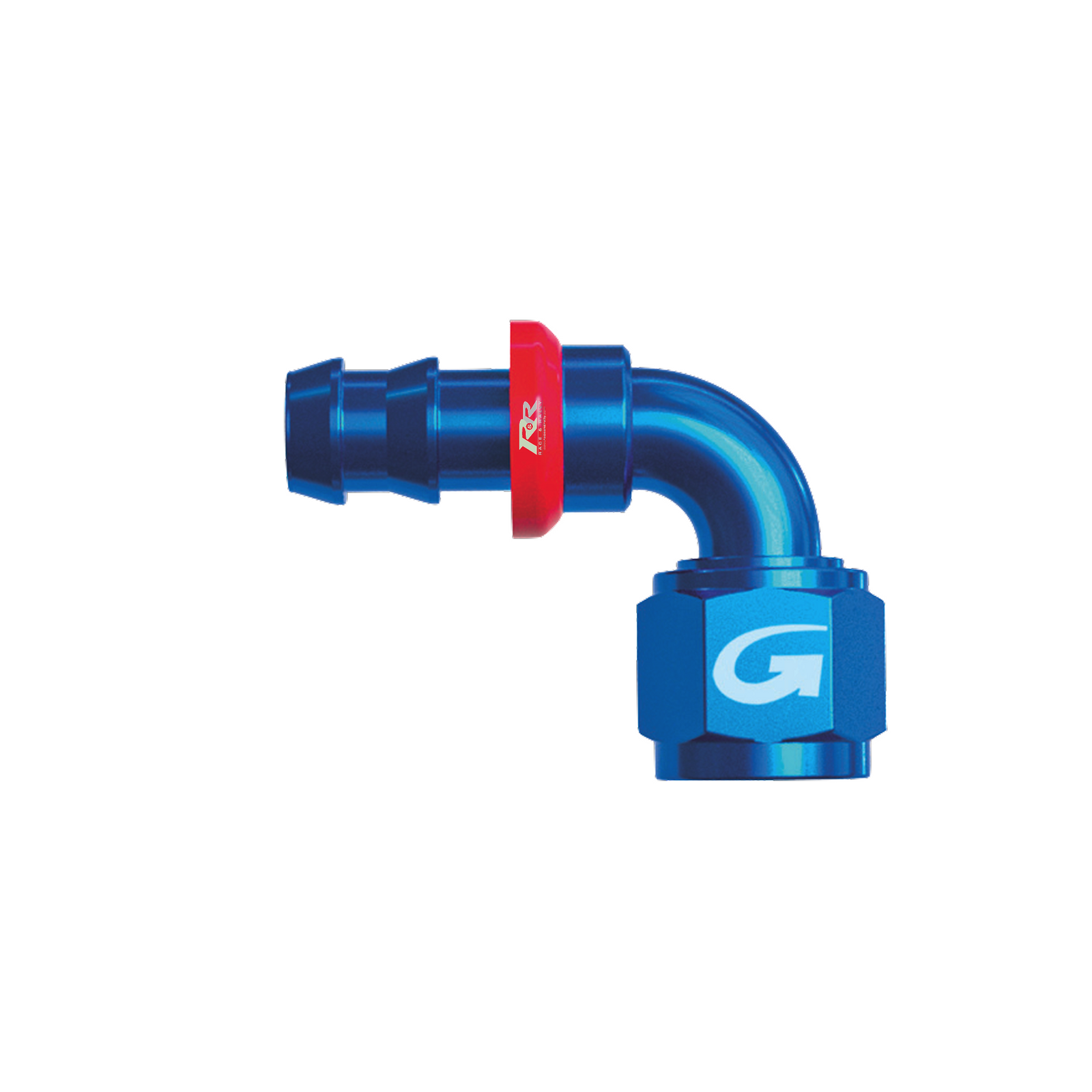

With the 536 Series hose, you can use the 536 'sure lock' barbed push fit fittings. With the TF-TU25 hose, you can use both the 536 series fittings (as above) aswell as the 936 series hose finishers specifcally for this hose type.

Can the hose and fitting assemblies be built easily?

Yes, with just a bench vice these hose assemblies can be easily assembled. As a reusable fitting with a 'sure lock' tail, the 536 series fittings alignment can be adjusted in situ on the barbed fitting tail.

 STEP 1 STEP 2 STEP 3
Cut hose at the required length using a fine tooth saw blade or cut off wheel. Clean any loose debris from both the cut ends and inside the hose Holding the fitting in a bench vice, lubricate the fitting tail and inside the hose.
Tip: Submerge the end of the hose in hot water to soften and ease assembly.
Push the hose over the fitting tail until it is tight behind the red hose finisher.
STEP 4 STEP 5 STEP 6

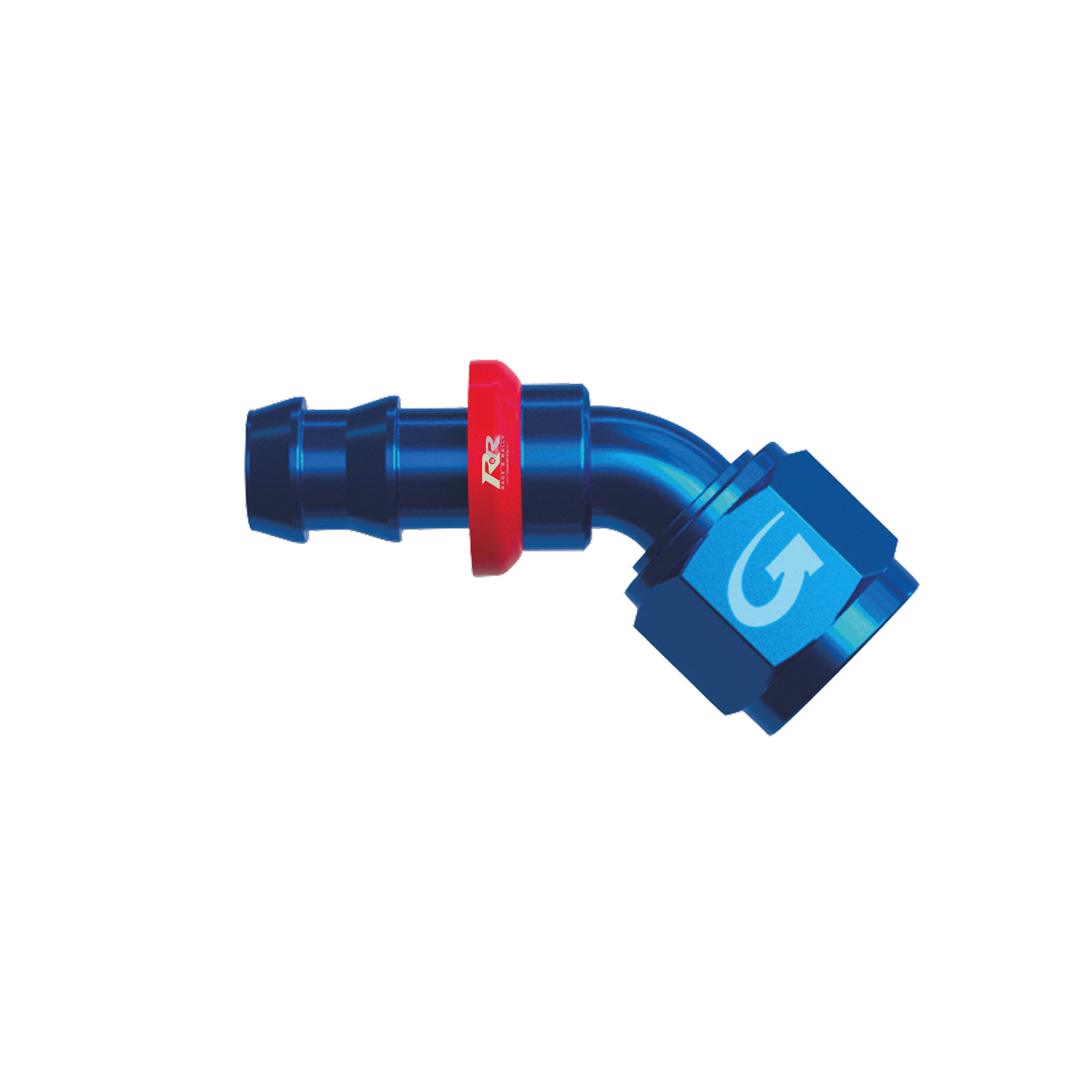

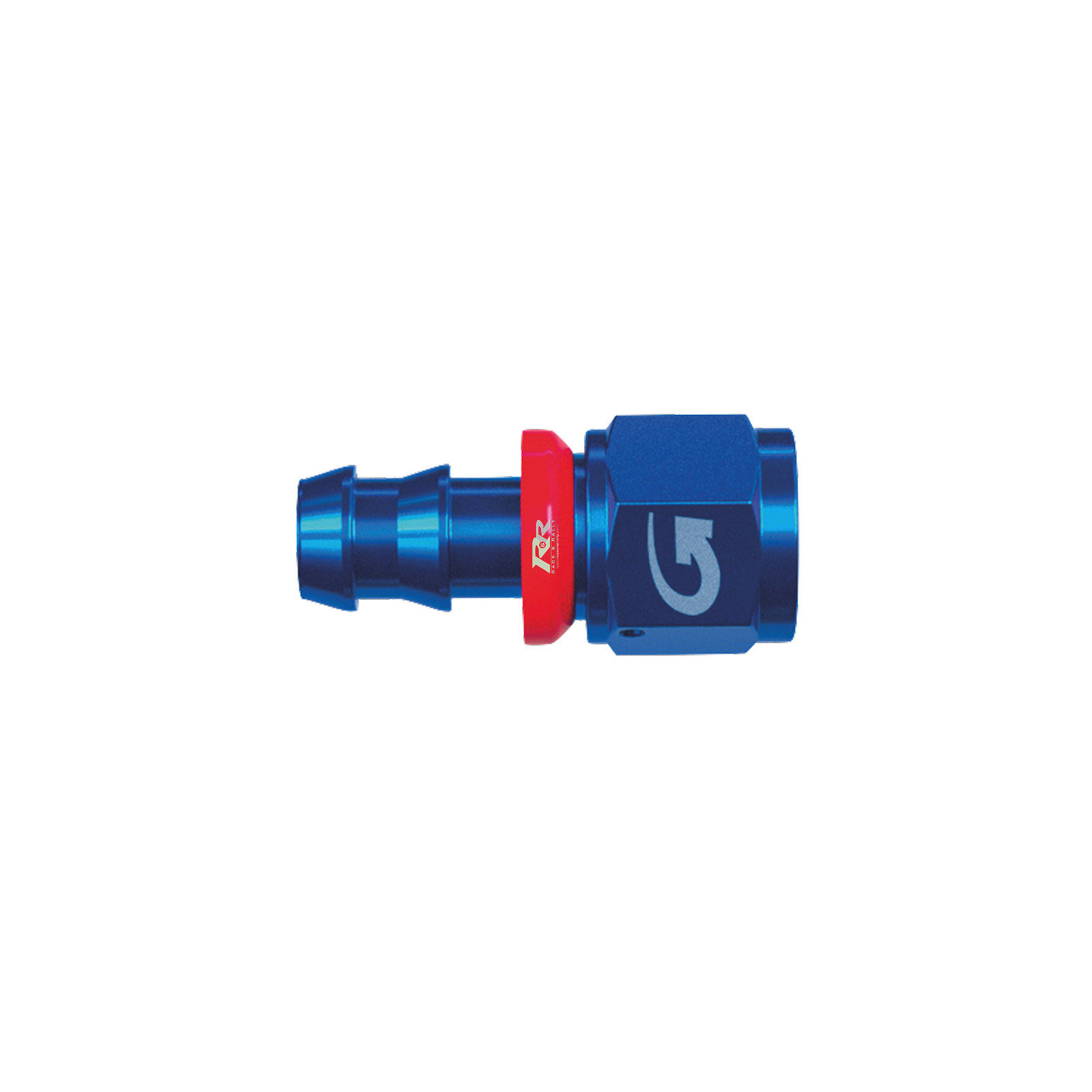

Please Note: Straight female fittings require the use of a male adaptor during hose assembly to stop the fitting tail turning. Finished Straight hose assembly  Finished 45° hose assembly
