Collection: 600 Series (Fuel)

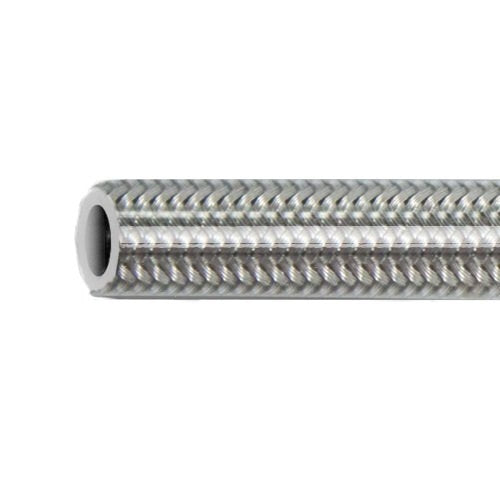

The 600 series hose range is a PTFE-lined hose, wrapped in a stainless steel braid; designed for brake, clutch, fuel, oil, water, dampers, power steering, gear shift and active differential applications.

The 600 series hose range is a PTFE-lined hose, wrapped in a stainless steel braid; designed for brake, clutch, fuel, oil, water, dampers, power steering, gear shift and active differential applications. Available in AN-02 and AN-03, AN-04, AN-06 & AN-08 bore sizes are available in medium-pressure and high-pressure variants. Current 600 series customers include teams competing in F1, INDYCAR, WEC, NASCAR, WRC, GT, BTCC, WTCR and club-level motorsports.

Benefits

- Uninterrupted flow
- Burst pressure up to 9572 PSI / 660 Bar
- Temperature Resistance from -70°C to +260°C
- Bend radius down to 100mm (600-06)

Features

- Smooth Bore
- PTFE Lined
- Stainless Steel Braid
- Andosied Aluminium reusable fittings available in Traditional Red & Blue and Black for a more Classis look
- Compatiable with 600 series MP crimp fittings

SAFE FOR USE 'IN COCKPIT'



Frequently Asked Questions

What applications can the 600 Series be used on?

In dash 6 and dash 8 hose sizes, the 600 series range of fittings and hosing can be used on the following applications:
- Oil
- Water
- Coolant
- Fuel (Suitable for use 'IN COCKPIT')

What fittings can I use?

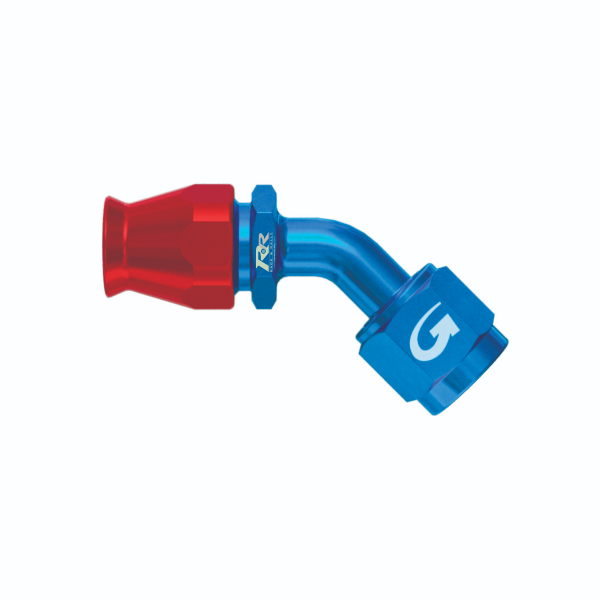

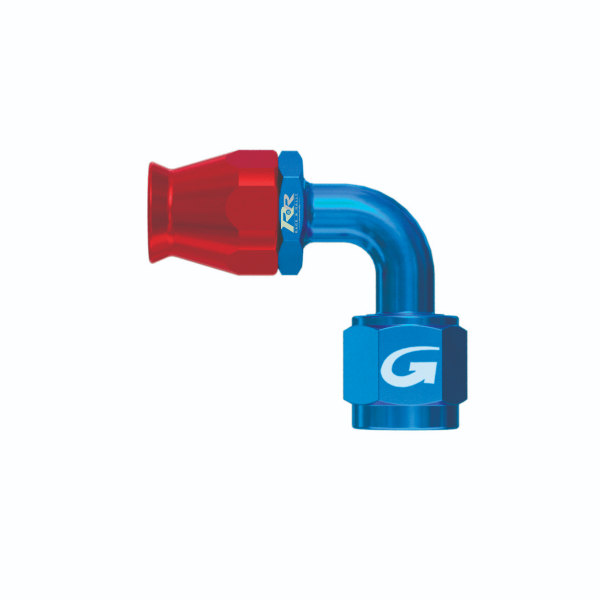

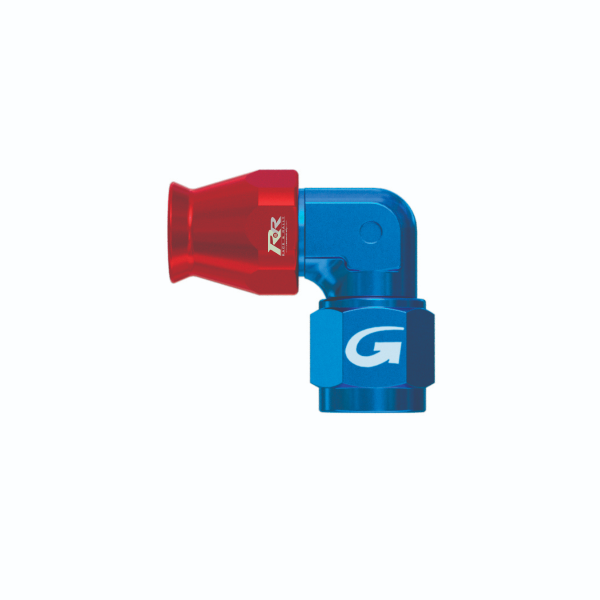

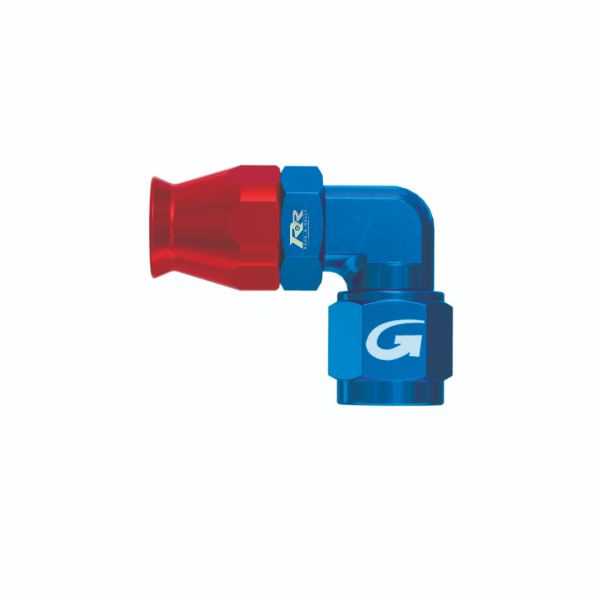

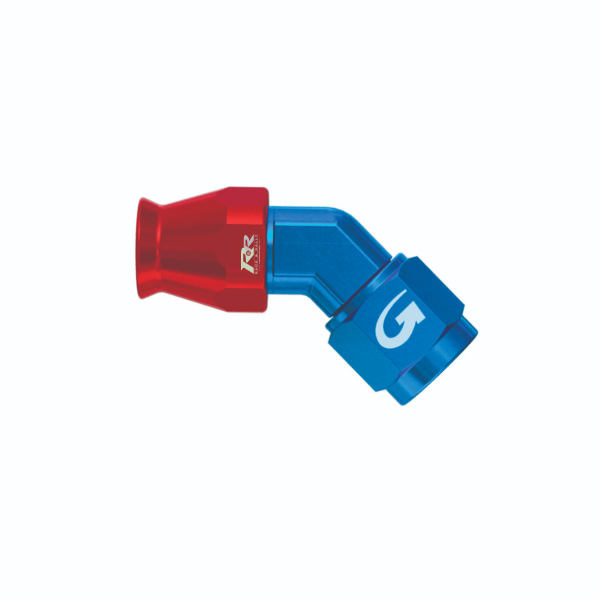

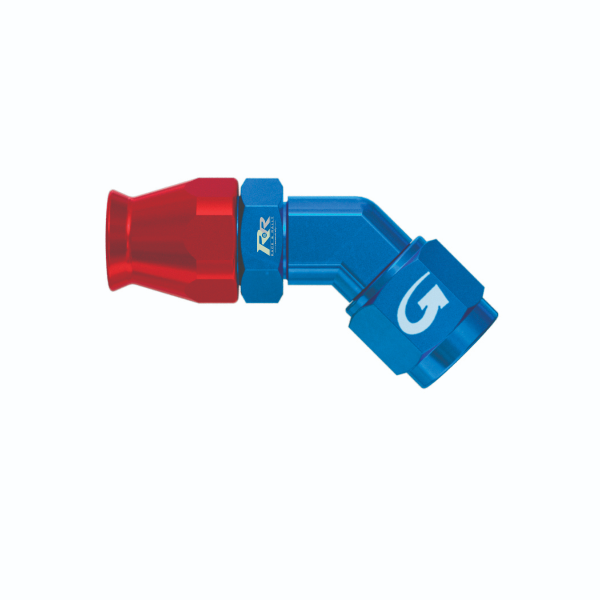

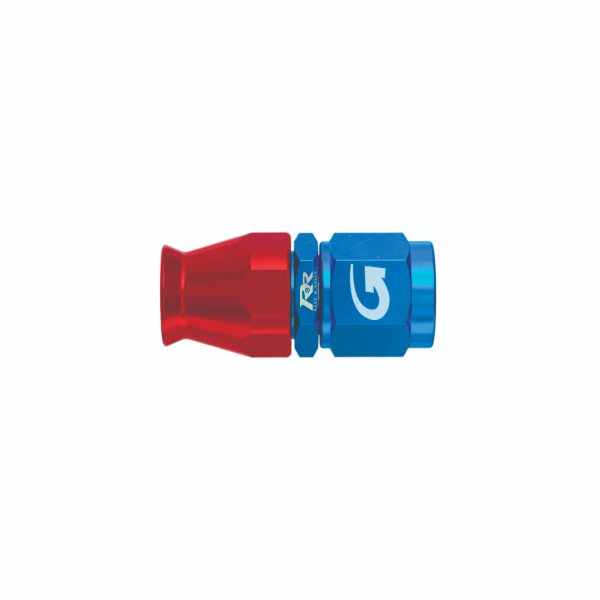

With the 600 MP series hose you can use the 600 series reusable fittings. These are available in an Andoised Aluminium material featuring a 360° swivel end. These fittings are available as standard in the Red/Blue aeroquipe colour, or for a more classical look, limited sizes are available in Black. If you require double swivel fittings, so they swivel at both ends, these are available in 45° and 90° forged fittings only.

Can the hose and fitting assemblies be built easily?

Yes, with basic hand tools these hose assemblies can be easily assembled. As a reusable fitting with 'olive design', the 600 series fittings alignment CANNOT be adjusted once the socket is tightened!

We recommend to use the Goodridge Aluminium spanners on all Aluminium fittings.

 STEP 1 STEP 2 STEP 3
Using a fine tooth saw blade or cut off wheel, cut hose to the required length. Clean any loose debris from both the cut ends and inside the hose.
Note: Lubricate threads with Duck Oil before assembly. (or a similar commercial lubricant may be used)

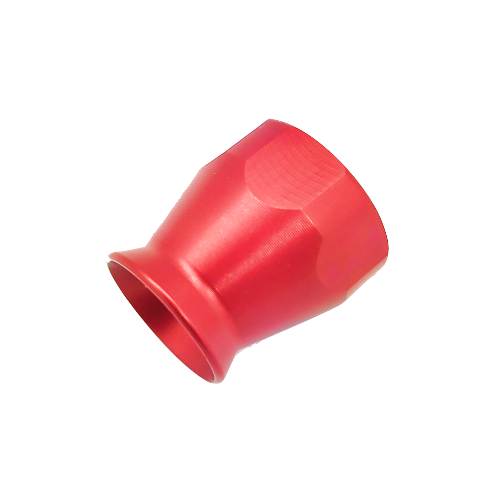

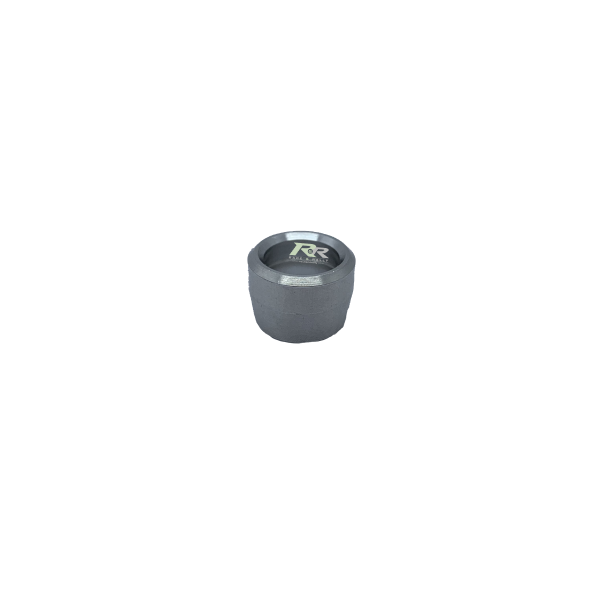

Main fitting body - Olive - Socket

On a clean flat surface disassemble the fitting, this consists of 3 parts, the main fitting body, olive and socket.
Push two sockets back to back over the overbraid working from the non flared end
STEP 4 STEP 5 STEP 6

Using an appropriate sizedGoodridge mandrel, flare out both ends of the stainless steel overbraid from the PTFE inner tube Push an olive onto each end of the PTFE inner tube under the stainless steel over braid by hand and finish off by pushing against a flat solid surface making sure the PTFE tube is fully home in the olive. Holding the main fitting body in a smooth jaw vice, lubricate the thread and push the hose over the nipple end and start to thread the socket onto the fitting by hand.
STEP 6 STEP 7
Finish tightening the socket onto the fitting with a good qualityspanner until the socket is one full turn from the main fitting hex.
PRESSURE TEST UNDER NO CIRCUMSTANCES SHOULD THE SOCKET BE LOOSENED IN AN ATTEMPT TO ADJUST THE ALIGNMENT AFTER ASSEMBLY
