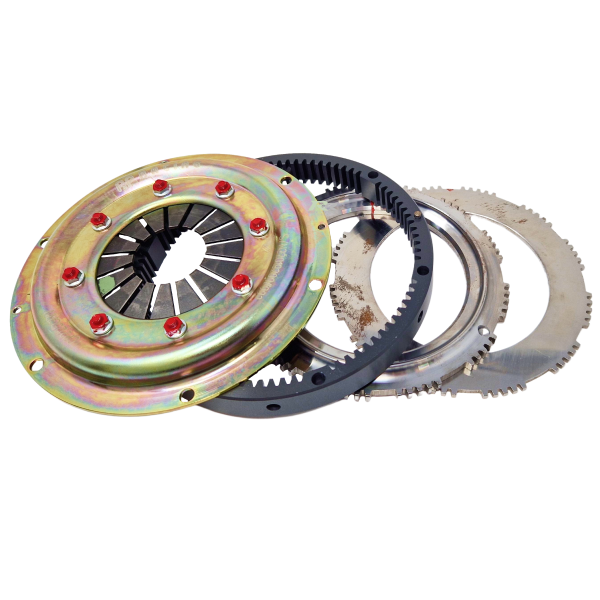

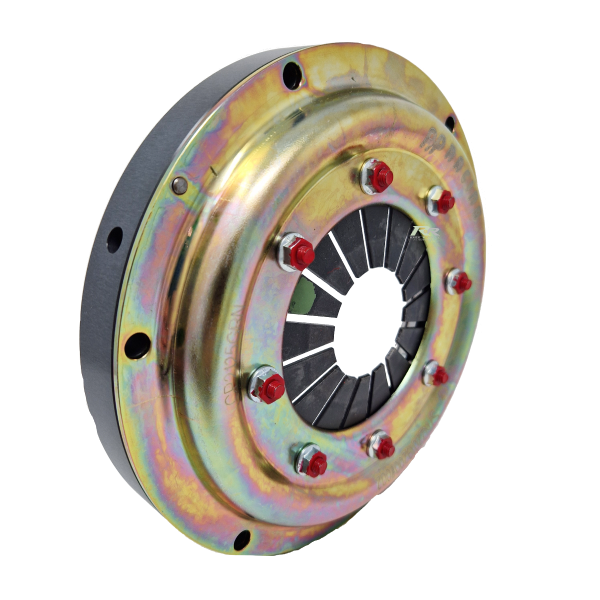

CP2125 - Ø184mm Twin Plate - A-Ring Sintered Paddle Clutch

CP2125 - Ø184mm Twin Plate - A-Ring Sintered Paddle Clutch

CP2125GRN

€636.71 €783.15
Sale Sold out
  • Feature Icon Ø184mm
  • Feature Icon Twin Plate
  • Feature Icon A-Ring Sintered Clutch
  • Feature Icon Push Type
  • Feature Icon Stepped Flywheel Fixing
  • Feature Icon Steel / Aluminium Cover Options
  • Feature Icon Torque Range 327 - 848 Nm
  • Feature Icon [Drive Plates Sold Separately]
Flywheel Fixing
Torque Capacity
Material

View Docs View full details

CP2125 - Ø184mm Twin Plate A-Ring Sintered Paddle Clutch

Typical Applications:

  • Race
  • Rally

Features:

  • Twin plate
  • Push Type
  • Stepped Flywheel Fixing
    • Inner diameter location.
  • 6 bolt cover
    • Steel or Aluminium options available
  • Suitable for engine speeds of 14,000 rpm
  • Normal duty
  • Individually tested
    • match machined, balanced and clutch load recorded.
  • Mounting studs available, CP4702

Part Numbers:

  • Aluminium Alloy Cover:
    • CP2125ACRV
    • CP2125AORA
    • CP2125AGRN
  • Steel Cover:
    • CP2125CRV
    • CP2125GRN
    • CP2125ORA

Technical Specifications:

 Torque Capacity - Nm (lbs/ft)
  • CP2125(A)CRV - 848 (625)
  • CP2125(A)ORA - 532 (392)
  • CP2125(A)GRN - 327 (241)
Release Load - Max Peak New - daN
  • CP2125(A)CRV - 350
  • CP2125(A)ORA - 240
  • CP2125(A)GRN - 160
Release Load - Max Peak Worn - daN
  • CP2125(A)CRV - 440
  • CP2125(A)ORA - 330
  • CP2125(A)GRN - 220
Set-up Height - New
  • CP2125(A)CRV - 30.59 / 27.97mm
  • CP2125(A)ORA - 30.92 / 28.01mm
  • CP2125(A)GRN - 29.97 / 27.07mm
Set-up Height - Max Worn
  • CP2125A)CRV - 33.10mm
  • CP2125(A)ORA - 33.44mm
  • CP2125(A)GRN - 32.48mm
Clutch "Wear in" 0.75mm
Weight (Excluding Drive Plates)
  • Aluminium Cover -  Kg
  • Steel Cover -  Kg
Recommended Release Bearing
Drive Plate Options
  • New = 2.63mm
  • Worn = 2.25mm

  • Back to back
  • Nested Type
    • CP2567
  • Gear Driven Type
    • CP3822
    • CP2822

Spare Parts:
Main Pressure Plate CP2616-103
Intermediate Pressure Plate: CP2613-103
A-Ring Assembly CP2012-162


Brand AP Racing
Option SKU Barcode
Stepped Flywheel / 327 Nm (241 lbft) / Steel CP2125GRN
Stepped Flywheel / 532 Nm (392 lbft) / Steel CP2125ORA
Stepped Flywheel / 532 Nm (392 lbft) / Aluminium CP2125AORA
Stepped Flywheel / 848 Nm (625 lbft) / Steel CP2125CRV
