Types of Brake Fluid: How to Choose the Right Racing Brake Fluid

Brake fluid is the part of the braking system people think about least and rely on most. When you press the pedal, it's the fluid that carries that force through the lines to the calipers. It doesn't compress, so all your effort goes into clamping the pads onto the disc, right up until it gets too hot and boils. Once that happens you get a soft pedal, brake fade, and in the worst case a pedal that goes to the floor.

That's why not all brake fluids are the same, and why picking the right one matters more on a competition car than almost any other consumable. This guide covers the types of brake fluid, the difference between dry and wet boiling point, and how the racing fluids we stock compare, so you can match the fluid to how you actually use the car.

What Brake Fluid Does

The braking system is hydraulic. The pedal pushes fluid through the lines to the calipers and because the fluid can't be compressed, that pressure becomes a clamping force at the disc. Hard, repeated braking puts a lot of heat into the calipers, and that heat soaks back into the fluid. Get the fluid hot enough and it boils, and unlike the fluid, the vapour bubbles it creates do compress. That's brake fade: the pedal goes long and soft because you're now squeezing gas rather than moving fluid. A fluid's job is to resist that for as long as possible, which comes down to its boiling point.

Dry vs Wet Boiling Point, and Which One Matters to You

Every brake fluid has two boiling points, and knowing which one applies to you makes the choice much clearer.

• Dry boiling point is the temperature fresh fluid boils at, straight from a sealed bottle.

• Wet boiling point is lower, and it's the temperature the fluid boils at once it has absorbed moisture over time.

Glycol-based brake fluids are hygroscopic, meaning they draw in water from the air, and as that moisture builds up in the system the boiling point falls. The standard wet boiling point figure is measured at a set moisture content meant to represent a fluid that has been in service for a while.

Here's how to choose the right number:

In rally and racing, the fluid is changed often, usually well before it has absorbed enough moisture to matter, so for competition use the dry boiling point is the figure that counts.

Wet boiling point becomes far more relevant for a clubman driver on a tighter budget who isn't renewing fluid every event, and for a performance road car where the same fluid might sit in the system for a year or more.

So a top-level team chases the highest dry boiling point, while a club or road driver should pay closer attention to how the fluid holds up wet.

DOT Ratings Explained

Brake fluids are graded by a DOT standard, which sets minimum boiling points and other requirements for each type. The ones worth knowing:

DOT 3, DOT 4 and DOT 5.1 are all glycol-based and are chemically compatible with one another. That said, Race and Rally don't recommend mixing brake fluids. For the best and most consistent performance, always flush the system fully and fill with fresh fluid rather than topping up with a different one.

DOT 4 is the common baseline for modern cars, and the racing fluids described as "super DOT 4" are glycol fluids built to the DOT 4 type but with dry boiling points far above the minimum.

DOT 5.1 is also glycol-based, with a higher minimum than DOT 4, and it stays compatible with DOT 3 and DOT 4 systems DOT 5.1 is also glycol-based, with a higher minimum boiling point than DOT 4. It's also a lower viscosity fluid, so it flows better at low temperatures and tends to suit ABS systems, which rely on fluid moving quickly through fine valving.

DOT grades set a minimum standard, not the actual performance. Two of the fluids we stock are DOT 5.1, and they sit at opposite ends of the range, one the entry point and one of the highest performers here, which shows the grade tells you the fluid meets a baseline, not how far above it the fluid actually reaches. The real comparison is the boiling point figures, not the DOT number.

DOT 5 is the odd one out. It's silicone-based, doesn't absorb moisture, and must never be mixed with glycol fluids. It's mostly used in military and some classic applications, and it's generally not suited to ABS or hard competition use, so it isn't what racing fluids are built on. It's worth knowing only so you don't confuse DOT 5 with DOT 5.1, which are completely different fluids despite the similar name.

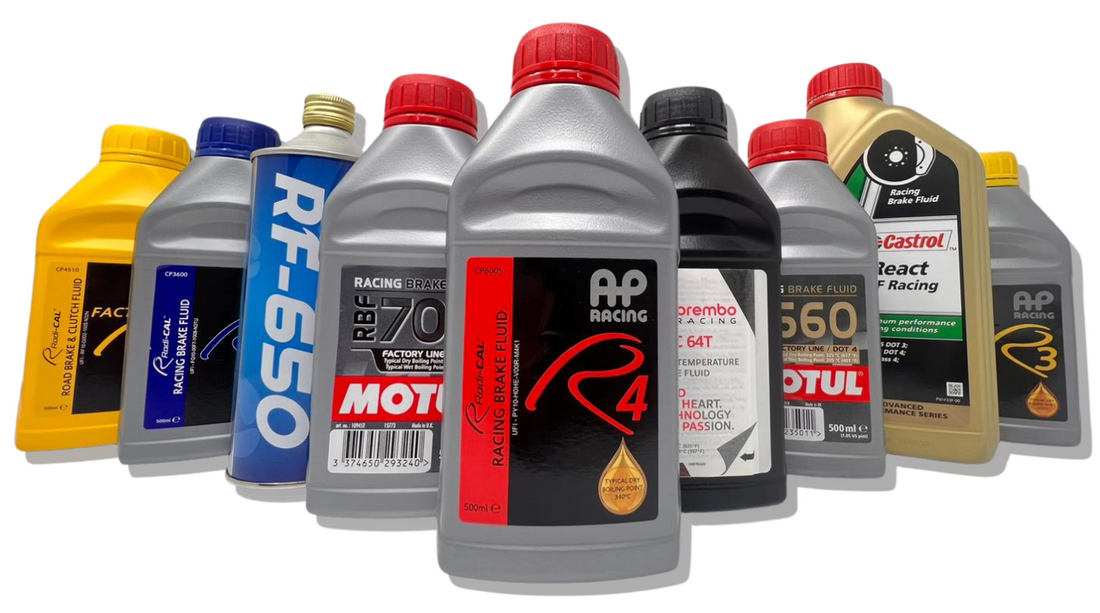

The Racing Brake Fluids We Stock, Compared

The table below compares the fluids in our range by dry and wet boiling point, so you can weigh outright performance against how well each holds up as it ages. Figures are the manufacturers' typical values.

The pattern is worth reading, because it's the whole point. Dry boiling point climbs up the list, but wet boiling point doesn't track it. The AP Racing Radi-CAL R4 has the highest dry point at 340°C, yet the lowest wet point at 195°C, so it's built for a team bleeding fresh fluid constantly rather than one leaving it in the car.

The Castrol React SRF is the clearest example of the opposite: a mid-table dry point of 320°C, but a wet boiling point of 270°C that towers over everything else here by more than 50°C. That's what SRF is known for, holding its performance long after other fluids have started to drop off as they absorb moisture, which makes it the standout when the fluid has to stay in the system. The Endless RF-650 shows the same balance to a lesser degree, a strong 328°C dry backed by the second-highest wet point at 218°C.

Which Fluid Is Right for You

• Top-level racing. If you're renewing fluid regularly, chase the dry boiling point, since you'll change it long before the wet figure matters. The Radi-CAL R4 (340°C) and Motul RBF 700 (336°C) lead here. The Brembo HTC 64T is also in this bracket, but note it's a competition-only fluid and not road legal, so keep it to the race car.

• Club motorsport on a budget. If you can't renew fluid every event, don't just buy the highest dry point you can afford. A fluid that holds a strong wet boiling point serves you better as it ages, and this is where the Castrol React SRF makes a strong case. Its 270°C wet point is the highest in the range, so it holds up longest as it absorbs moisture.

• Performance road cars. For a fast road car that sees the occasional track day, wet boiling point matters most, since the fluid sits in the system for a long time. The Endless RF-650 suits here well. It has a high wet boiling point, and as a lower viscosity DOT 5.1 fluid it flows better through the fine valving of an ABS system, which most modern performance cars run. The Castrol React SRF is also worth considering, since that same high wet point suits a road car leaving fluid in for months at a time. Avoid competition-only fluids like the Brembo HTC 64T for road use.

Final Thoughts

The best brake fluid isn't simply the one with the highest number on the label, it's the one matched to how you drive and how often you change it. A front-running team and a clubman on a budget can rightly end up buying different fluids for good reasons. Use the dry and wet boiling points together, weigh them against how often you'll renew, and you'll get the right fluid rather than just the dearest.

Browse the full brake fluid range at Race and Rally, or get in touch and we'll help you match a fluid to your car and how you use it.

Frequently Asked Questions

Can I mix different brake fluids?

We strongly advise against mixing different brake fluids for motorsport use. Always flush the system and fill with fresh fluid, since that's the only way to know exactly what's in the system and get the performance the fluid is rated for. You should never mix silicone DOT 5 with any glycol fluid.

How often should I change racing brake fluid?

For competition, many drivers renew fluid before each event or regularly through the season, because hard use and heat cycling degrade it faster than road use. A road or occasional track car is changed far less often, but fresh fluid before a track day is cheap insurance.

Is a higher dry boiling point always better?

Not on its own. A high dry boiling point is what you want for competition, but if you don't change your fluid often, a fluid with a stronger wet boiling point can be the smarter buy, since it holds performance as it ages. The right choice depends on how often you renew it.

Does brake fluid damage paint?

Glycol-based brake fluids can damage painted surfaces, so wipe up any spills straight away. This is worth bearing in mind when bleeding or filling.

How do I know when my brake fluid needs changing?

There's no single warning light for tired brake fluid, so it comes down to time, use and feel. The clearest sign is the pedal: as fluid ages and takes on moisture, its boiling point drops, and you'll notice the pedal going softer or longer under hard braking as it starts to fade sooner than it used to. If the brakes feel less sharp than they did, the fluid is a good place to look.

Time matters even if the car isn't used much, because glycol fluid absorbs moisture from the air whether you're driving or not. As a rough guide, a road car is usually on a one to two year interval, but always check your manufacturer's recommendation, since that's the figure that applies to your car.

Competition use works differently. Rather than going by time, teams and serious club drivers renew fluid by event or by how hard the car has been worked, because heat cycling and hard braking degrade fluid far faster than road miles do. Many bleed fresh fluid before a race or at the start of an event, which is also why dry boiling point matters more than wet for competition, the fluid rarely stays in the system long enough for the wet figure to come into play. If you're not sure how far gone your fluid is, fresh fluid before a hard weekend is cheap peace of mind.
