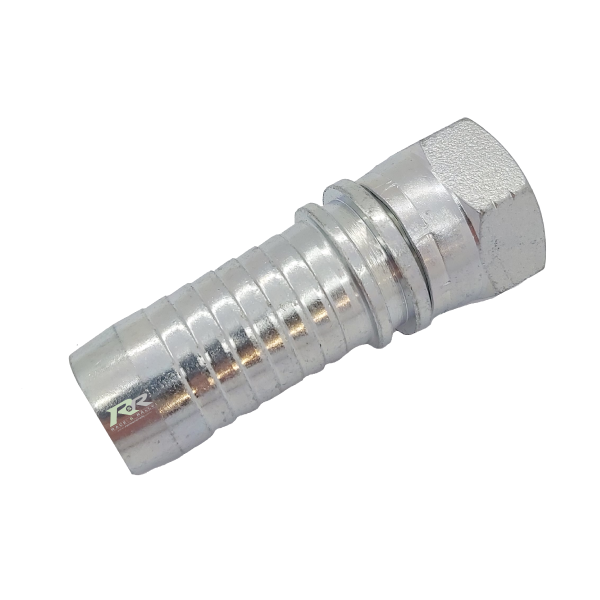

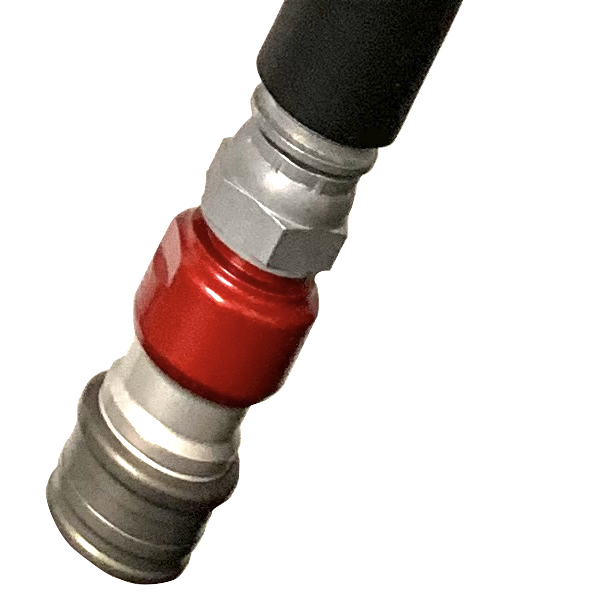

This swivel fitting is primarily combined with the Staubli SPT12 Socket in order to attach a hydraulic hose by push fit for Refuelling purposes.

Technical Specifications:

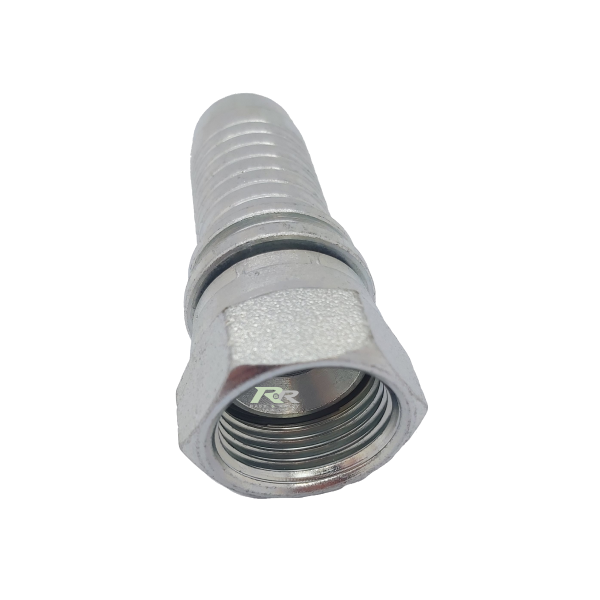

• Female Threads: 1 1/16 x 24 JIC/UNF (Convex Seat)
• Swivel Socket: 1.25" HEX

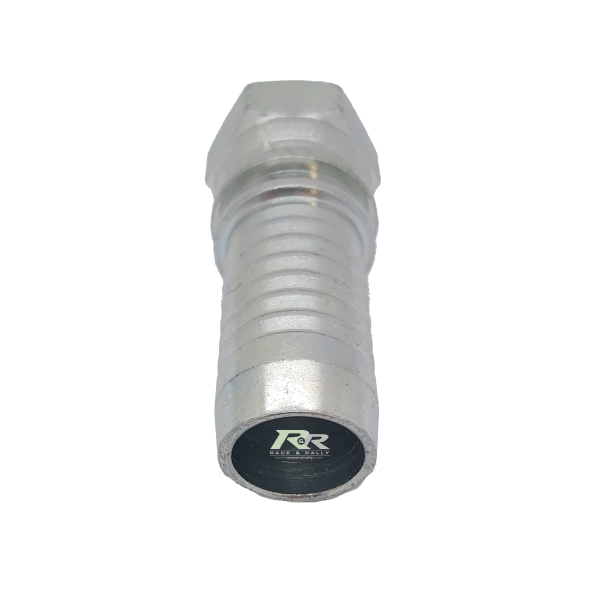

• Push-on OD: 1" // 25mm
• Push-on ID: 0.75" // 19mm
• Push-on Lentgh: 1.8" // 47mm
• Groove for Circlip

Staubli socket and fuel pipe supplied separately
