CP7382

AP Racings' Cerametallic range of competition clutches have been designed to handle demanding situations where a degree of clutch slip is required, mostly for rally use. The cerametallic plates are resistant to high energy inputs (i.e. long slip), as well as having a smoother engagement, allowing for better control and feel at the pedal. Due to the unique compound mixture of ceramic and metallic materials, the drive plates benefit from low wear rates, both reducing dust and debris build up. Each clutch component is individually tested at the factory prior to shipping to ensure that the part is of the highest quality.

There is a wide range of torque ratings and drive plate types available to suit most applications ranging from Formula 3 to Rallying and Endurance Racing. Although primarily used in rally applications, cerametallic clutches can also be used for circuit racing. Drawing on their years of top level experience, the knowledge that has been attained has been used to continually improve and polish the whole range of clutches in order to keep up with the ever demanding motorsport environment. The result is a huge selection of the finest quality racing clutches which can be available for all forms of motorsport, while making use of the latest in clutch technology.

Applications:

Ford Escort MK2

Escort MK2
Fiesta R2T 2019 - PT12110002A
Fiesta Rally4 - PT12110002A

Race
Hillclimb
Engine speeds of 10000 rpm

Features

Twin Plate
Push Type
Stepped flywheel fixing

Inner diameter location

6 Bolt, one piece cover and lugs

Machined from aluminium alloy
CP4702 mounting studs available

Black hard anodised cover
Stainless steel wear clips
Low wear rate
Individually tested

Match machined, balanced and clutch load recorded

Organic Driven Plate option available

CP5386 Family

Part Numbers:

CP7382-OH80-SF
- PT12110002A

Bonded - Driven Plates

Thickness

7.11mm New
6.67mm Worn

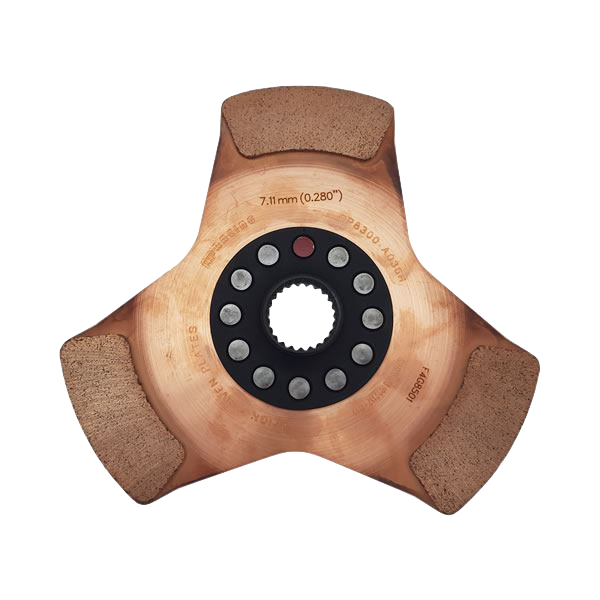

CP8300-A036H x2 - 3 Paddle - 1.00" x 23 Spline
CP8400-A036H x2 - 4 Paddle - 1.00" x 23 Spline
CP8600-A036H x2 - 6 Paddle - 1.00" x 23 Spline
CP5386-10 x2 - Organic Faced - 1.00" x 23 Spline

Riveted - Driven Plates

Thickness

7.11mm New
6.67mm Worn

CP2606-17 x2 - 3 Paddle - 1.00" x 23 Spline
CP3219-1 x2 - 4 Paddle - 1.00" x 23 Spline
CP4946-20SEAT x2 - 6 Paddle - 1.00" x 23 Spline

Recommended Release Bearing:

Outer Race Rotates:

Inner Race Rotates:

CP3457-6

Spare Parts

CP3021-102 - Main Pressure Plate
CP4112-102 - Wear Clips
CP3592-106 - Intermediate Pressure Plate

CP7382 - Installation Drawing

CP7382-Drawing
