Goodridge Brake/Clutch Banjo Fittings to suit Goodridge -03 sized 600 Series brake hose. Each fitting is supplied with the necessary olive and socket to aide fitment to the Goodride Brake Hose.

Goodridge Banjo's available in a range Material and a range of Angles (Degrees) making it possible to fit to hard to access cylinders and pedal boxes.

CONSTRUCTION

• Suitable for Smoothbore Teflon (PTFE) Hosing Only**
• 600 Series banjo's allow for all time alignment with swept angle.
• They are available in various material types and Banjo Bolt hole sizes (See part numbers below)
• Each fiting contains an Olive which must be fitted between the Steel Braid and the Teflon Lining so it can be compressed by the socket:

REPLACEMENT SOCKETS & OLIVES

• 1205 - Replacement Olive
• 1206 - Replacement Socket

APPLICATIONS

• Brake
• Clutch

COMPATIABLE HOSING

• 600 Series Hosing
• 600 Series Colour-Flexed Hosing

5095 - PART NUMBERS

GOODRIDGE MATERIAL KEY:

• B: Brass,
• C: Stainless steel,
• CH: Crome plated,
• D: Anodised Aluminium,

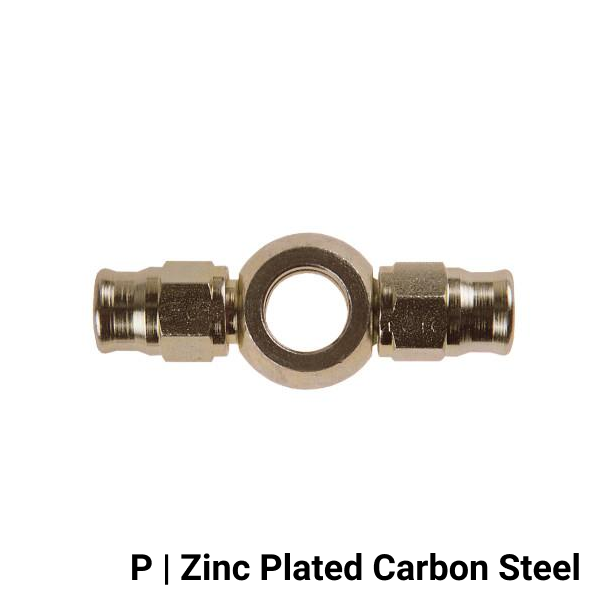

• P: Zinc plated carbon steel,
• Z1: Silver plated carbon steel.

RECOMMENDED BANJO ASSEMBLE WITH BANJO BOLT:

With the suitable Banjo Bolt to Suit the desired Banjo Hole, place a copper washer either side of the Banjo to create a sealed fitment when tightened.

**Please note that the washers internal diameter must also match the Banjo Bolt size to ensure it is a sealed fitment to avoid leaks and loss of pressure.
