Double Banjo Bolt -
JIC/UNF Threads
-
Short / Long Size Variations
Double Banjo Bolt
Manufactured to exacting specifications to ensure an accurate fit to the Banjo Hose Ends every time. Goodridge range of banjo bolts covers all possible applications.
CONSTRUCTION
- Suitable for Goodridge Banjo's
- They are available in a wide range of:
- Materials
- Colours
- Lengths - Under the HEX Measurement
- Threads
APPLICATIONS
- Brake
- Clutch
COMPATIABLE WASHERS
For Single Port Banjo Bolts, two washers are requried per assembly.
For Double Port Banjo Bolts, three-four washers are required per assembly.
773 - PART NUMBERS
UNDER HEX LENGTH:
Long bolts are for use with 5091 (Swaged - S5091), 5095 (Swaged - S5095) and 5096 Banjo's
- 18mm - Short Single Banjo Bolt (S)
- 20mm - Standard Single Banjo Bolt
- 25mm - Long Single Banjo Bolt (L)
- 30mm - Standard Double Banjo Bolt
- 40mm - Long Double Banjo Bolt (L)
CROSS REFERENCE
- AP Racing Reference: CP2673 = 773-03Z1
GOODRIDGE MATERIAL KEY:
- B: Brass

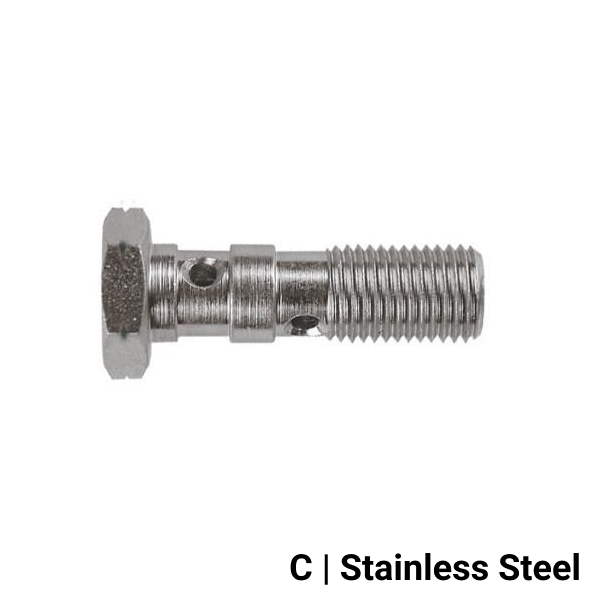

- C: Stainless Steel

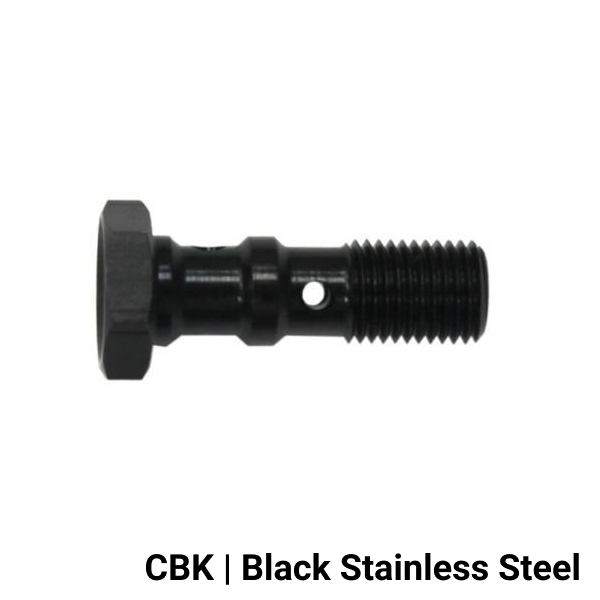

- CBK: Black Stainless Steel

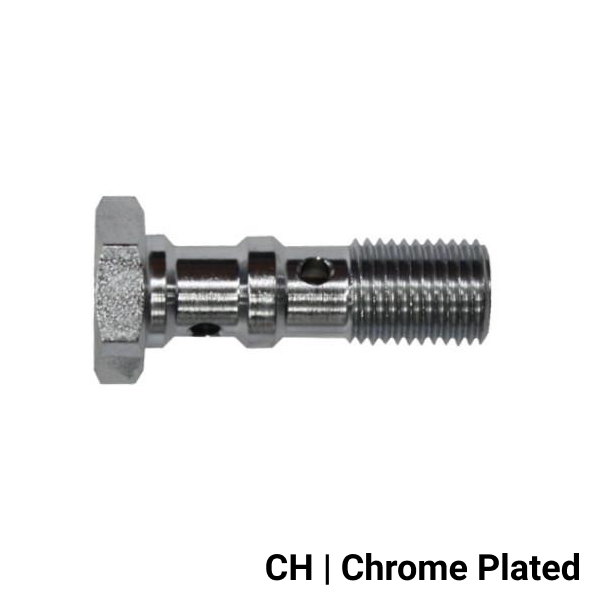

- CH: Crome Plated

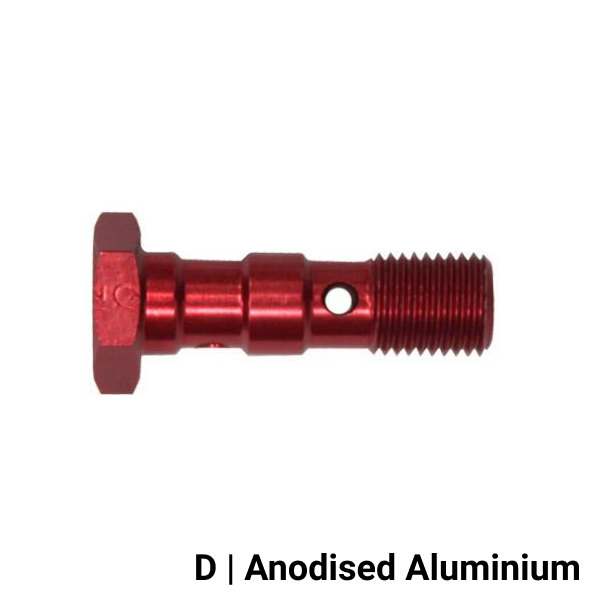

- D: Red Anodised Aluminium
- DBK: Black Anodised Aluminium
- DBU: Blue Anodised Aluminum
- P: Zinc Plated Carbon Steel

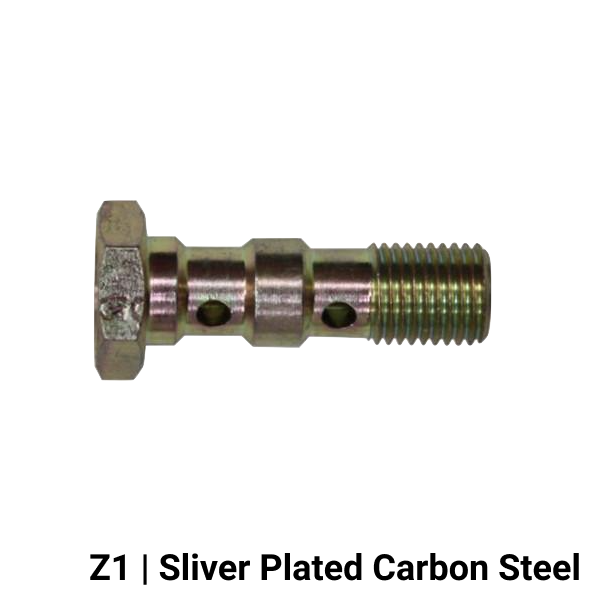

- Z1: Silver Plated Carbon Steel
RECOMMENDED BANJO ASSEMBLE WITH Double BANJO BOLT:
With the suitable Double Banjo Bolt to Suit the desired Banjo Hole, place a copper washer either side of the first Banjo and place the second Banjo onto the bolt, also placing a washer at the remaining side to create a sealed fitment when tightened.
**Please note that the washers internal diameter must also match the Banjo Bolt size to ensure it is a sealed fitment to avoid leaks and loss of pressure.
Brand:
Goodridge
Manufacturer Part Number:
773-03C, 773-03CBK, 773-03CH, 773-03D, 773-03LCH, 773-03LZ1, 773-03Z1, 773-44CH
