Ø290mm x 27.0mm Ventilated Brake Disc with Integral Bell - 5 x 120.0mm PCD
Ø290mm x 27.0mm Ventilated Brake Disc with Integral Bell - 5 x 120.0mm PCD
SKU:CP3575-78CG5
Regular price
€306.76
Brake Disc Dimensions
Brake Disc Dimensions
Outside Diameter - 290mm
Thickness - 27.0mm
Mounting P.C.D. - 120.0mm
Mounting Type - 13.85mm Stud Hole
Spigot Diameter - 63.65mm
Eye Diameter: - 185.8mm
Inside Flange Diameter - 150.0mm
Mounting Flange Thickness - 8.1mm
Mounting Offset - 29.5mm
Max Pad Depth - D51.0
No. of Vanes - 36
Air Gap - 16.0mm
Weight - 5.22Kg
290mm x 27.0mm Brake Disc Dimensions
Outside Diameter | 290mm |
Thickness | 27.0mm |
Mounting P.C.D. | 120.0mm |
Mounting Type | 13.85mm Stud Hole |
Eye Diameter | 185.8mm |
Spigot Diameter | 63.65mm |
Inside Flange Diameter | 150.0mm |
Mounting Flange Thickness | 8.1mm |
Mounting Offset | 29.5mm |
Max Pad Depth | D51.0 |
No. of Vanes | 36 |
Air Gap | 16.0 |
Weight | 5.22Kg |
Face Types Available |
CG5 - Curved Grooves (Backward Forward)
CG5 - Curved Grooves (Backward Forward) |
Disc Handing |

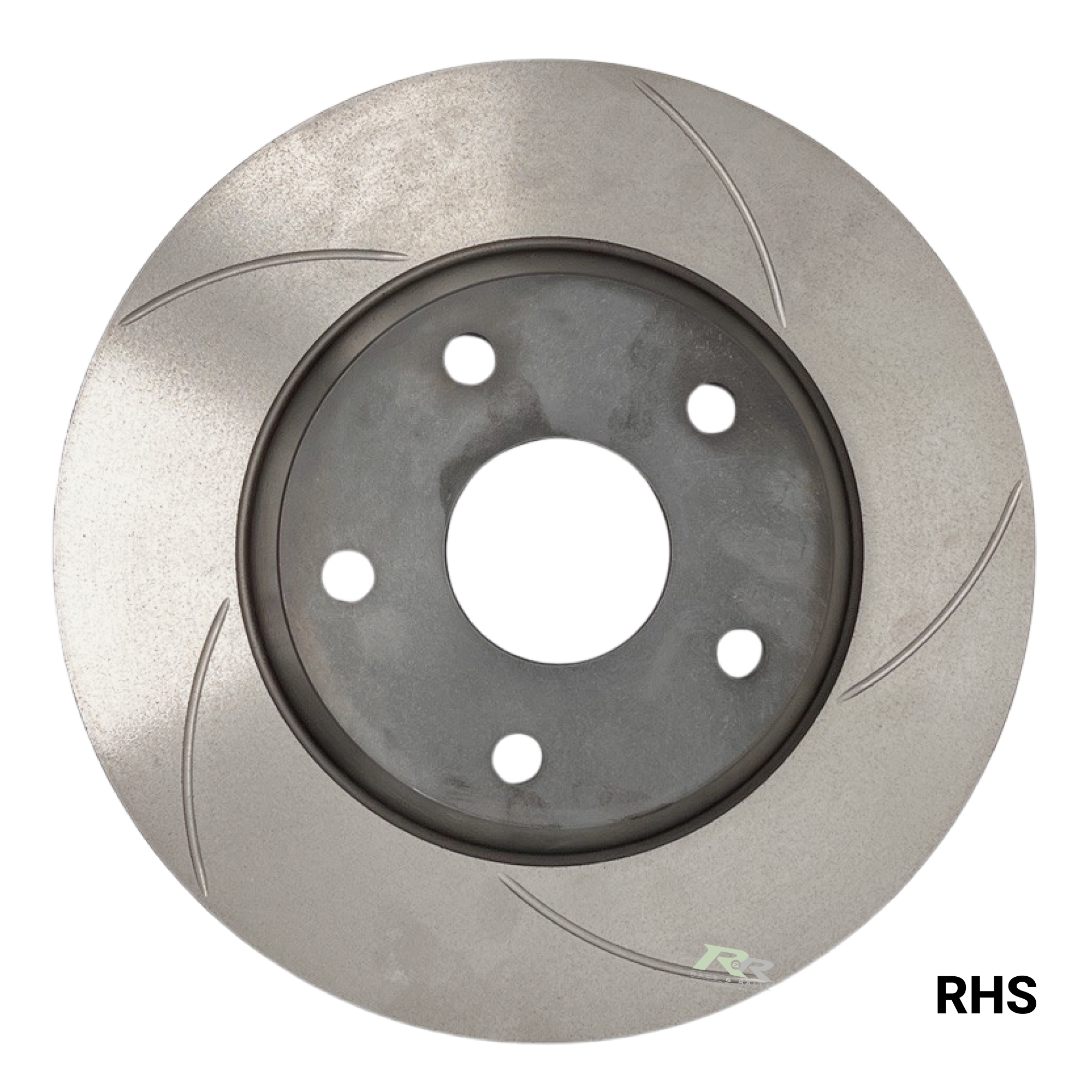

Right-Hand Side

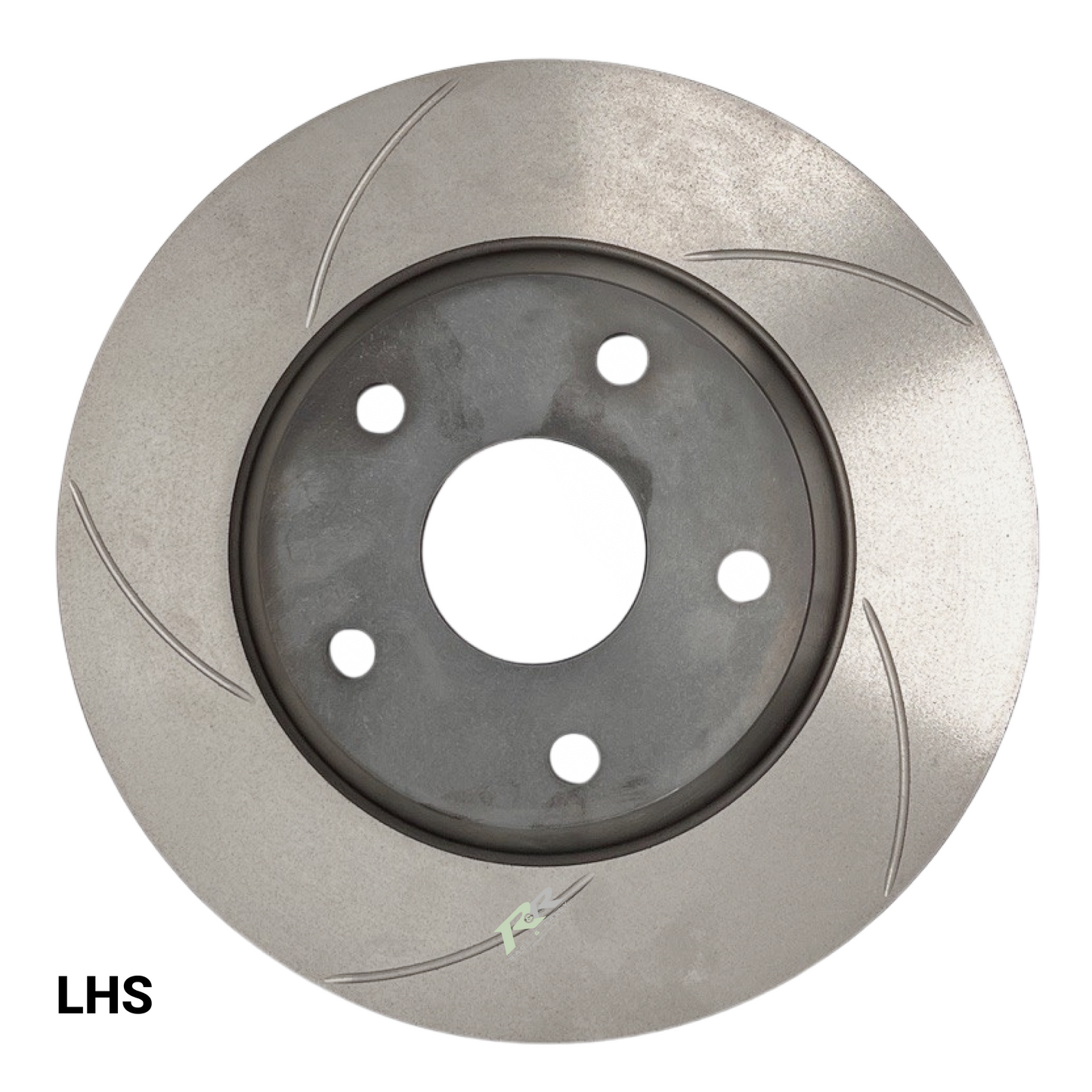

Left-Hand Side |
Notes |
M-Sport Fiesta Rally3 Rear Brake Disc / Front Gravel Brake Disc
PX18020001A & PX18020002A |
Brand:
AP Racing
Manufacturer Part Number:
CP3575-78CG5, CP3575-79CG5
