AP 15" Honda EG/EK Rear Brake Kit - CP5020 Caliper - Ø277x9.6mm Floating Discs - G4 Face Design
AP 15" Honda EG/EK Rear Brake Kit - CP5020 Caliper - Ø277x9.6mm Floating Discs - G4 Face Design
SKU:AP5020-277-9F-G4-EGEK
Regular price
€2050.30
€2521.87
-
UPGRADED! -
15" BRAKE KIT
-
4x100 & 4x114.3 PCD Fitment
-
CP5020 CALIPERS
-
Ø277MM FLOATING BRAKE DISCS
-
'FLOAT IN THE Disc'
-
G4| 4 Straight Groove FACE DESIGN
-
COMPLETE KIT
UPGRADED!
Honda Civic EG and EK 15" rear brake kit. The kit is complete with 2-pot AP Calipers (CP5020), Ø277 x 9.6mm brake discs, and all required hardware for mounting to standard Civic EG/EK axle setup.
Fitment Details:
Suits cars with hub PCD's:
- 4x100
- 4x114.3

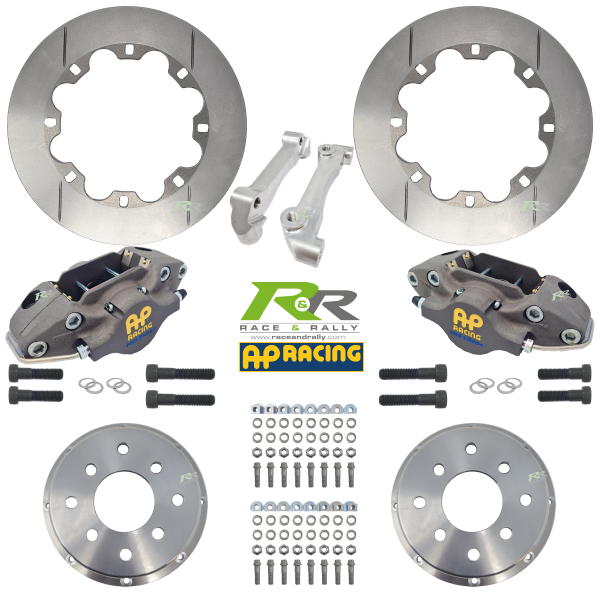

KIT CONTENTS
- 2x AP Radial Mounted 2 Pot Caliper

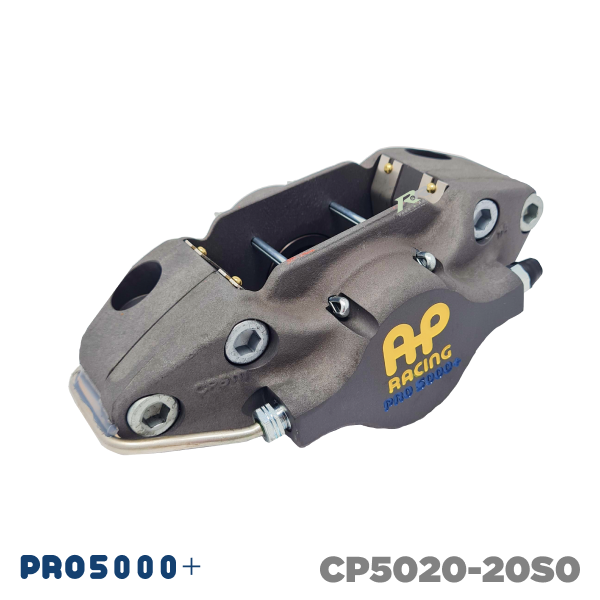

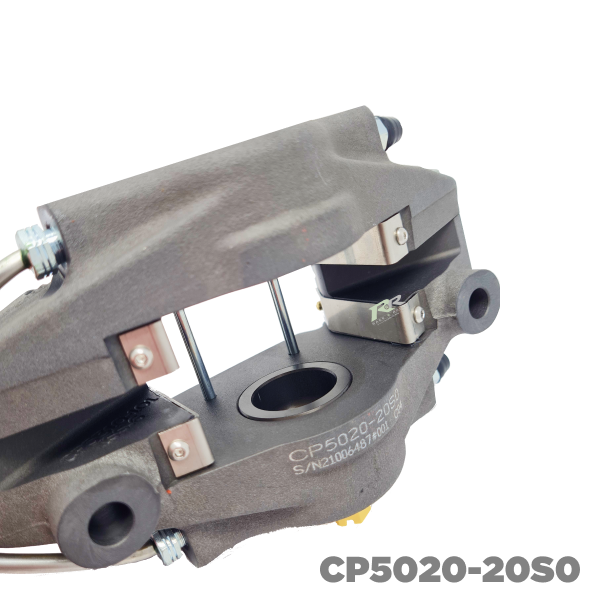

- CP5020-20S0 - Right-hand Leading

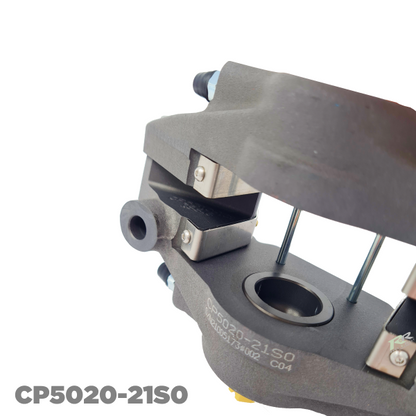

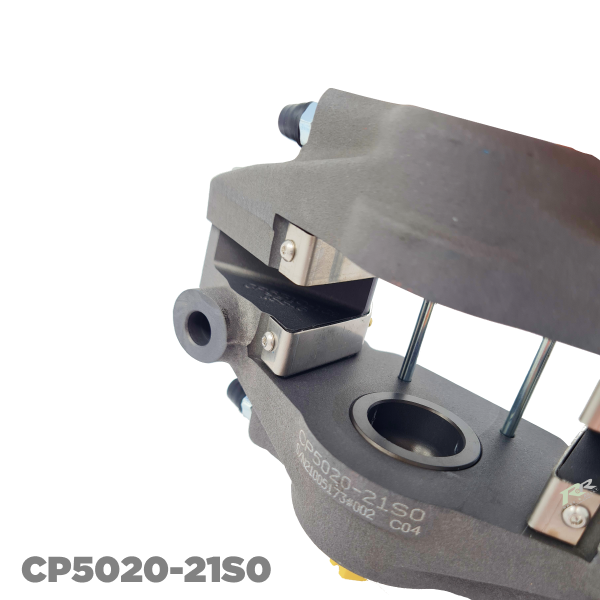

- CP5020-21S0 - Left-hand Leading

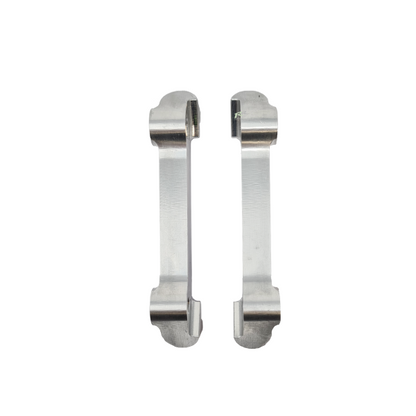

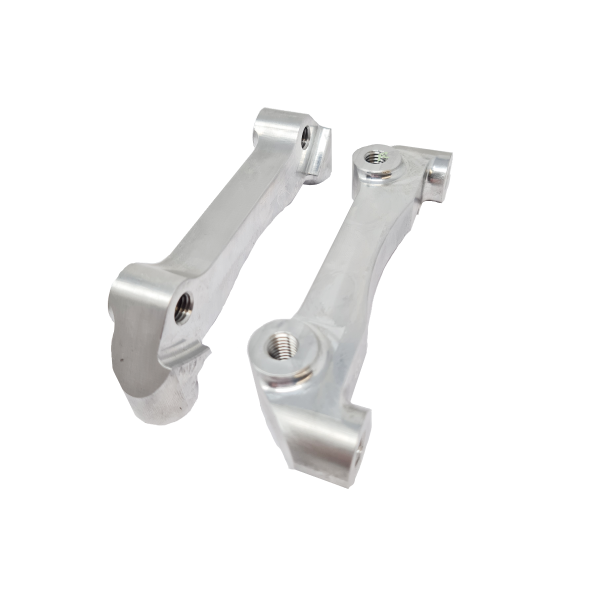

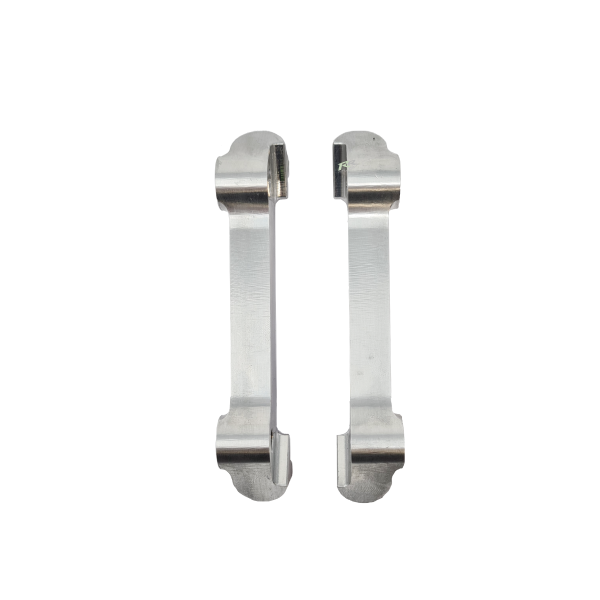

- 1x Pair of caliper mounting brackets machined from Aluminium
- RCR502027796-EG-EK
- 8x Caliper mounting bolts & washers
- 2x AP Racing brake discs - Ø277x9.6mm

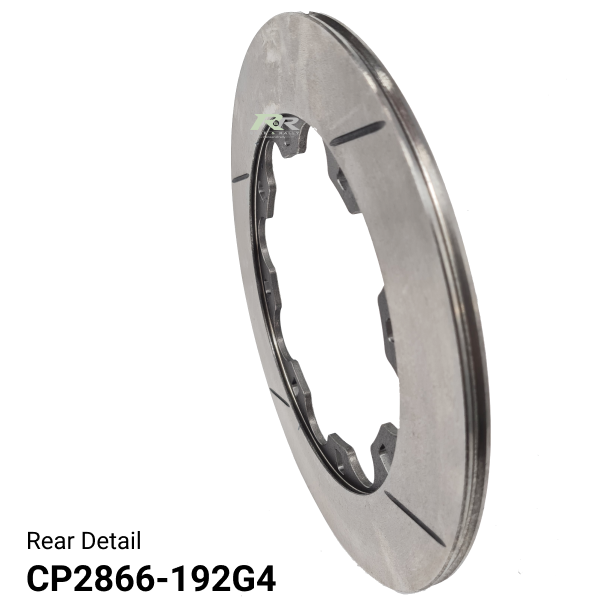

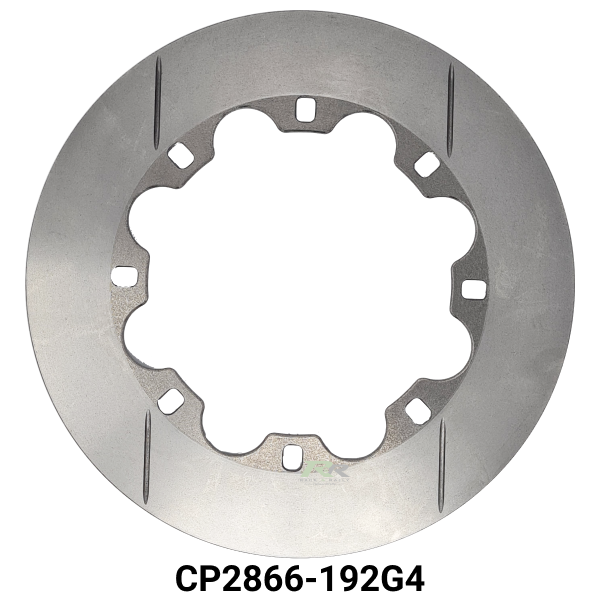

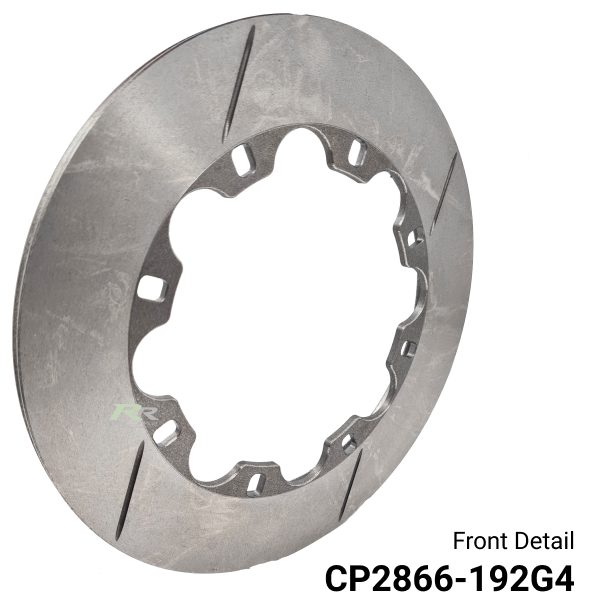

- CP2866-192G4 - Non-handed solid brake disc - G4 | 4 Straight Grooves face design

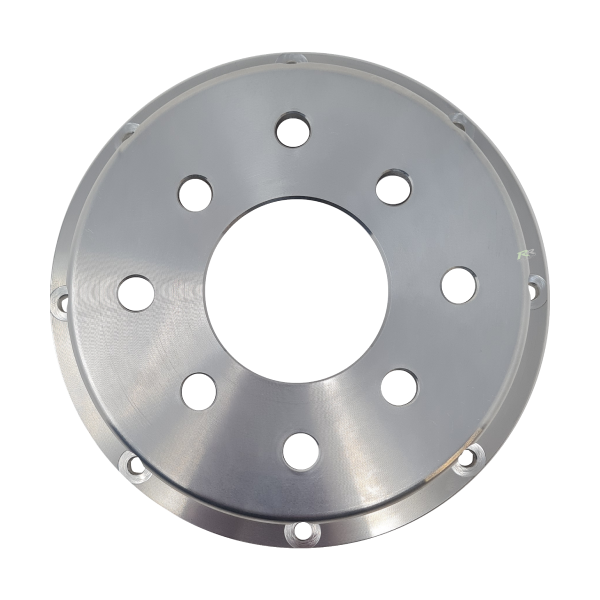

- 2x CNC Machined aluminum brake disc mounting bells - 'Float in the disc'
- RBR27708B176-EG-EK
- 2x Brake disc floating bell mounting kits
- CP2494-593K08

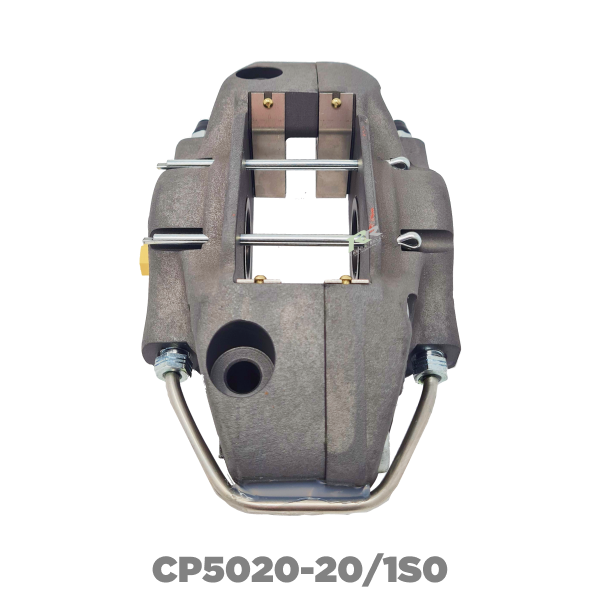

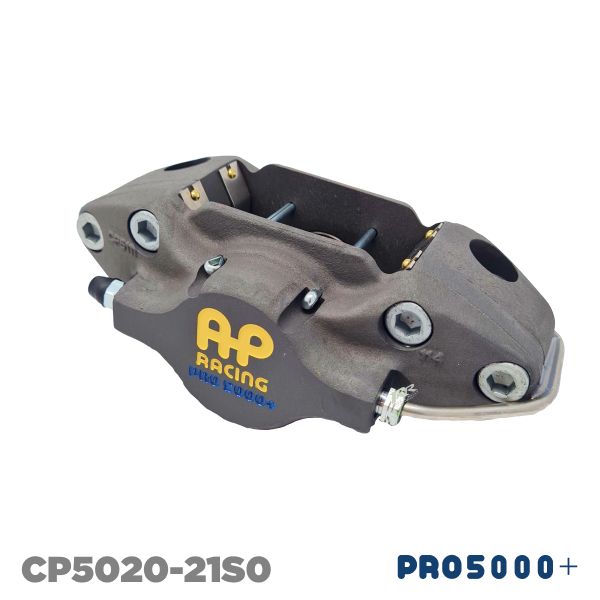

CP5020 2-POT CALIPER
Piston Sizes
2x Ø36.00mm
Piston Area
20.4cm²
Weight - No Pads
1.50kg
Hydraulic Threads
M10 x 1.0
Mounting Type
Radial
130mm Mounting Centres
17.5mm Mounting Offset
Ø10.1mm Mounting Hole
'PL' Dimension
41.5mm
Brake Pad Family
AP - CP2399D43
Ferodo - FCP825
PFC - 7720
CL - 5001W43T14
Ø277 X 9.60MM Solid BRAKE DISC
'A' Outside Diameter
277mm
'B' Thickness
9.6mm
'M' P.C.D.
176.8mm
Fixing Type:
8 Bolts Floating
Bobbins: CP2494-593MB
'C' Eye Diameter
192.00mm
'D' Inside Flange Diameter
154.00mm
'H' Mounting Flange Thickness
4.8mm
Max Pad Depth
D43
Weight
2.3kg [per disc]
Face Types Available
G4 | 4 Straight Forward facing grooves
** 'Letter' from above relates to disc drawing below
Brand:
AP Racing
Manufacturer Part Number:
AP5020-277-9F-G4-EGEK
