CP3219 - 4 Paddle Riveted (Ø184mm x 7.11mm)
CP3219 - 4 Paddle Riveted (Ø184mm x 7.11mm)
SKU:CP3219-42
Regular price
€245.77
€302.30
-
4-Paddle Riveted -
Ø184mm
-
7.11mm Thickness
-
Standard Hub Profile - 14.20mm
4-Paddle Riveted
These 7.25" cerametallic drive plates have been designed primarily for Rally, Off-Road and Hillclimb applications, with a ceramic and metallic compound friction material. The friction material has been riveted to the steel drive plate and has a thick friction material depth to provide better heat management. The cerametallic material also gives a smoother engagement over the sintered material, where more clutch slip is required in order to modulate the drive.
**Note: Riveted Clutch Discs are now being phased out for Bonded Clutch Discs - QTY still available in stock
Technical Details
- 4 Paddle
- Ø184mm // 7.25"
- 7.11mm Thickness New
- 6.68mm Thickness Worn
- Riveted Cerametallic
- Range of spline sizes available
- Standard hub Profile - 14.20mm
Applications:
- Rally
- Hillclimb
- Off-Road
- Engine over 2 Litres
| Brand | AP Racing | |
|---|---|---|
| Options | SKU | Barcode |
| 0.875" x 10 / (A) Standard Hub (14.20mm) | CP3219-42 | |
| 1.12" x 10 / (A) Standard Hub (14.20mm) | CP3219-22 | |

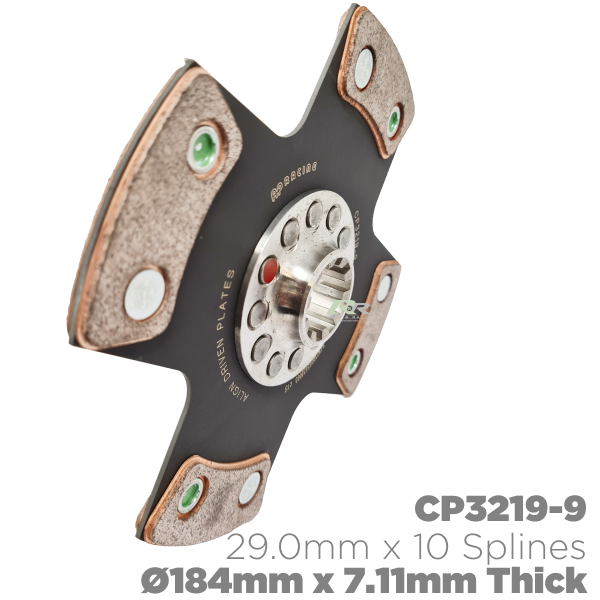

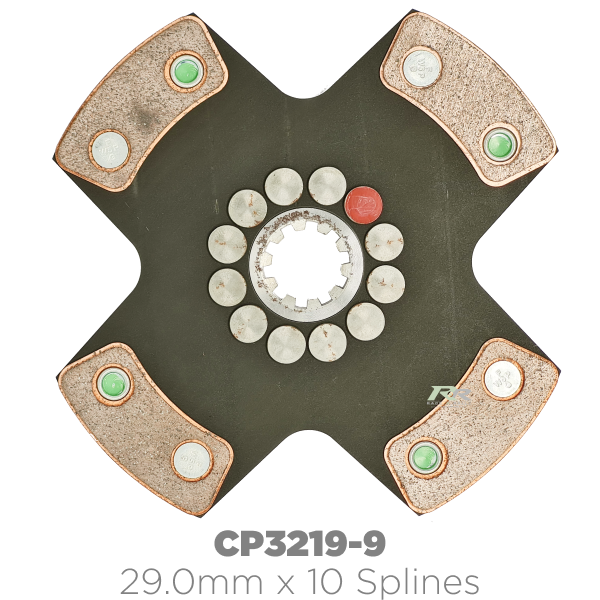

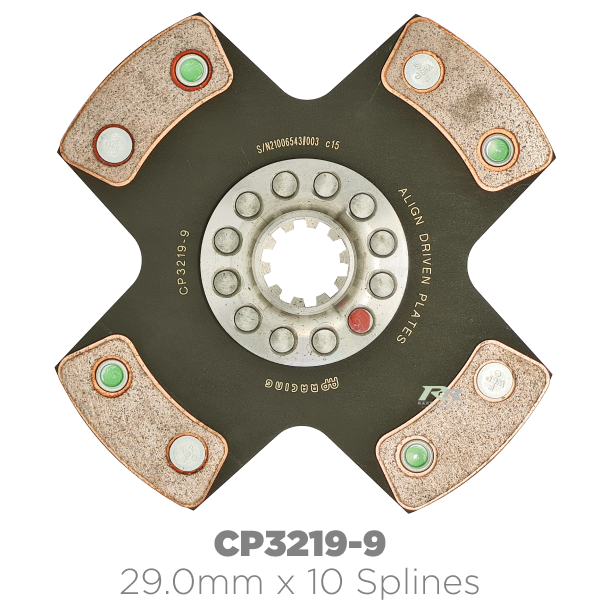

| 29mm x 10 / (A) Standard Hub (14.20mm) | CP3219-9 | |
| 21.1mm x 18 / (A) Standard Hub (14.20mm) | CP3219-5 | |
| 0.875" x 20 / (A) Standard Hub (14.20mm) | CP3219-3 | |
| 24mm x 21 / (A) Standard Hub (14.20mm) | CP3219-35 | |
| 1.00" x 22 / (A) Standard Hub (14.20mm) | CP3219-21 | |
| 1.00" x 23 / (A) Standard Hub (14.20mm) | CP3219-1 | |
| 1.16" x 26 / (A) Standard Hub (14.20mm) | CP3219-30 | |
