CP5623 - Flange Mounted [Metric Hydraulic Threads]

CP5623 - Flange Mounted [Metric Hydraulic Threads]

CP5623-91PRM088

€186.73 €229.68
Sale Sold out
  • Feature Icon 25.4mm (1.00") Full Stroke
  • Feature Icon Short Travel to Cut-off
  • Feature Icon Forged Aluminium Alloy Body

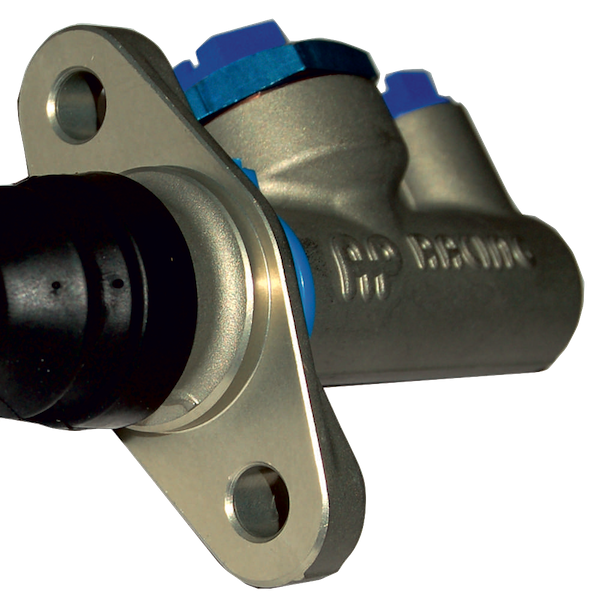

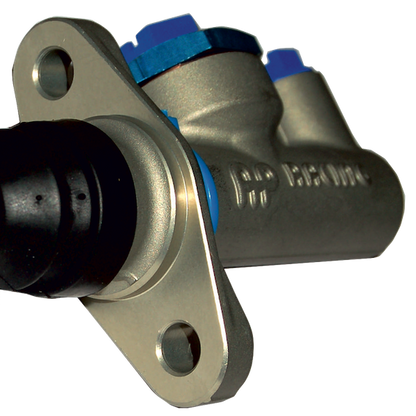

  • Feature Icon Vertical Flange Mounting
  • Feature Icon Suitable for Brake and Clutch Applications
  • Feature Icon Identical to CP2623 but with Metric Hydraulic Threads
Bore Diameter
Push Rod Threads
Push Rod Length
View Docs
View full details

A compact forged bodied flanged master cylinder suitable for all brake and clutch applications especially where space is restricted.

Identical to CP2623 but had Metric Hydraulic Threads

Features:

  • Forged Aluminium Alloy Body
  • 50g weight saving over cast version
  • Short travel to cut-off
  • 10 Available bore sizes
  • Non Captive Cylinders available
  • Hydraulic threads are metric.

Technical Details

CP5623 Master cylinders Technical Details

CP5623 Part Numbering

CP5623 Master cylinders Part Numbers

Installation Drawing

CP5623 Installation Drawing

Repair Kits

Each repair kit is in accordance to Bore Diameter of Master Cylinder:

Cross Reference

M-Sport cross reference as used on Fiesta R5 MKI

  • CP5623-91PRM088 - BV18110013A
  • CP5623-92PRM088 - BV18110014A
  • CP5623-94PRM088 - BV18110016A

Master Cylinder Identification

All AP Racing master cylinders have their part number nominal bore size laser marked on the body together with batch codes enabling full manufacturing traceability.  All master cylinders also have a coloured tie wrapped around the body for quick visual identification of bore size.

Brand AP Racing
Option SKU Barcode

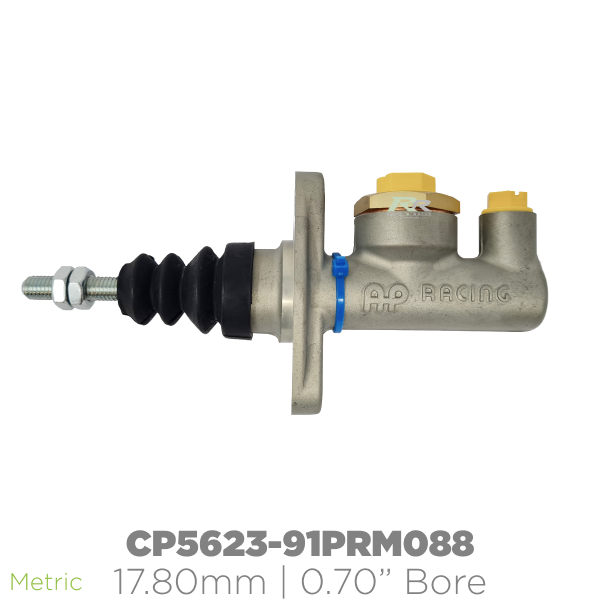

17.80mm | (0.70") / M8 x 1.25 / 88mm | 3.46" CP5623-91PRM088

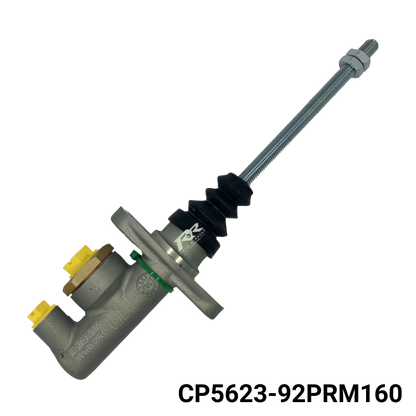

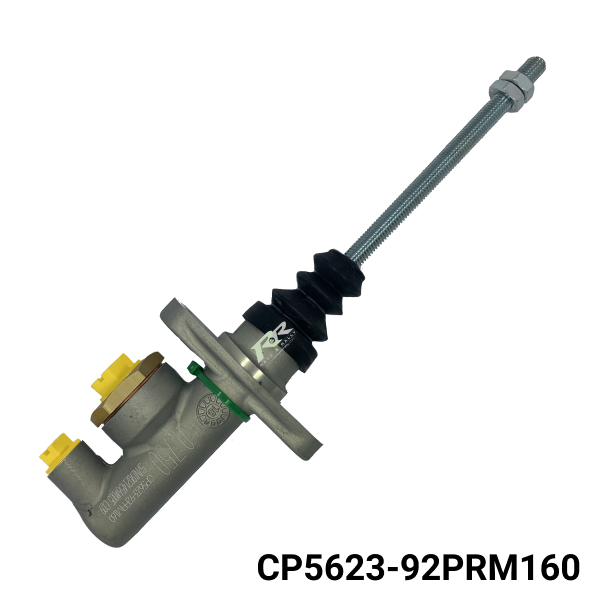

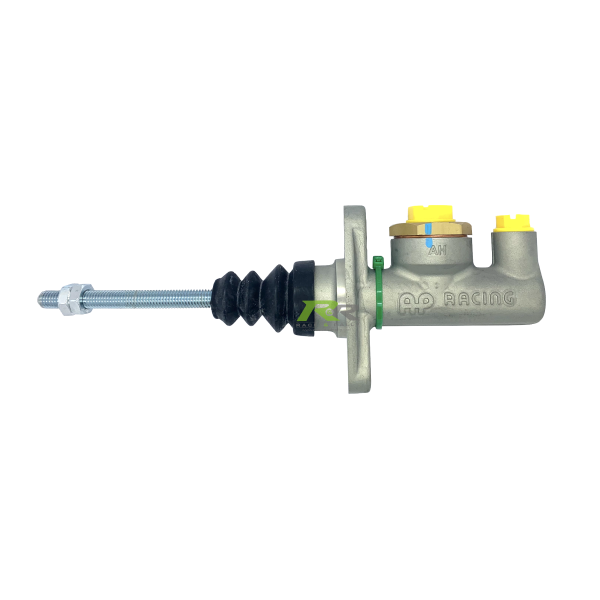

19.10mm | (0.75") | 3/4" / M8 x 1.25 / 160mm | 6.30" CP5623-92PRM160
19.10mm | (0.75") | 3/4" / M8 x 1.25 / 88mm | 3.46" CP5623-92PRM088

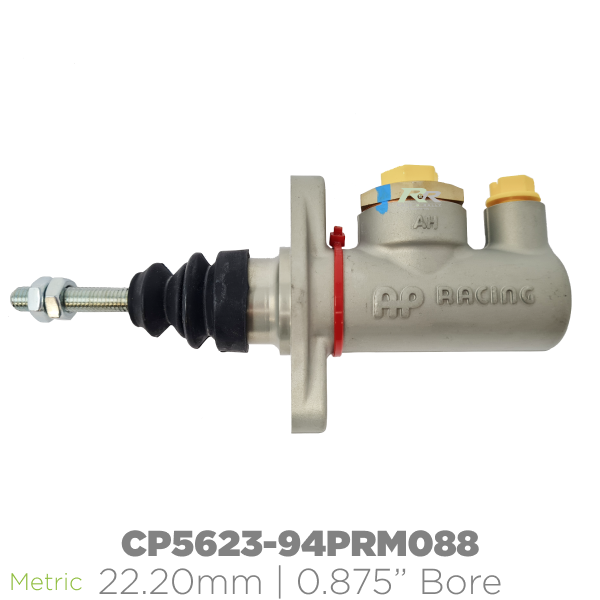

22.20mm | (.875") | 7/8" / M8 x 1.25 / 88mm | 3.46" CP5623-94PRM088

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
