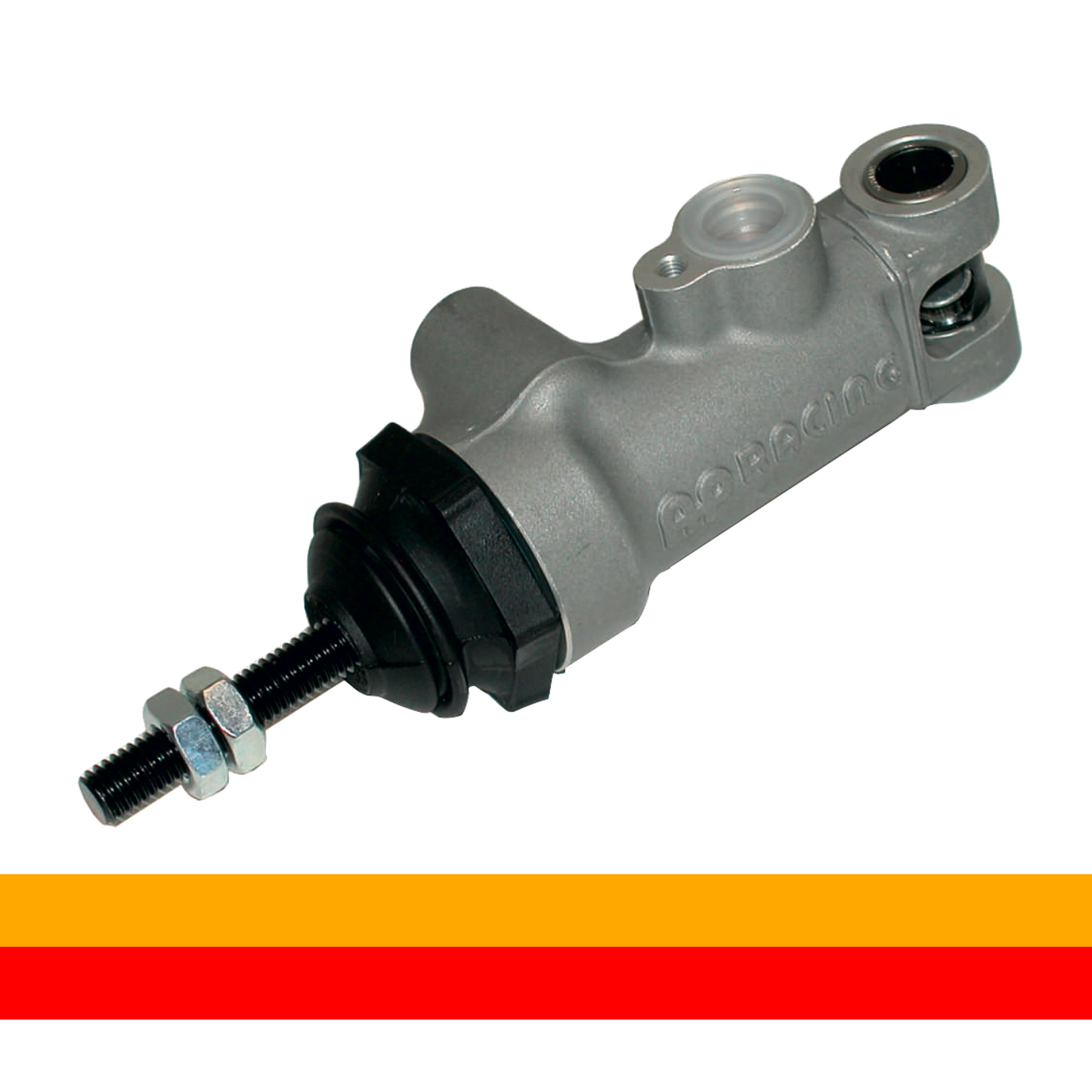

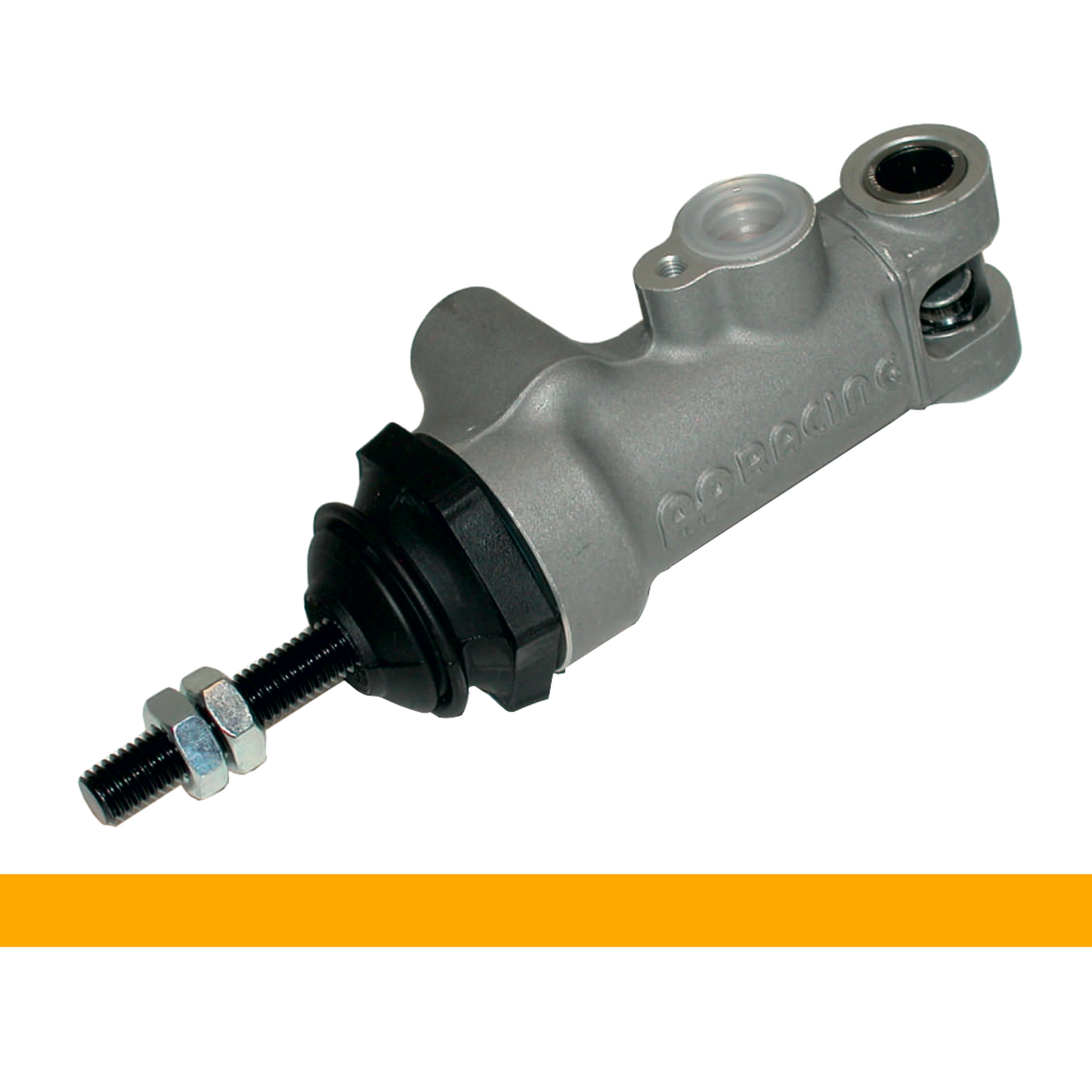

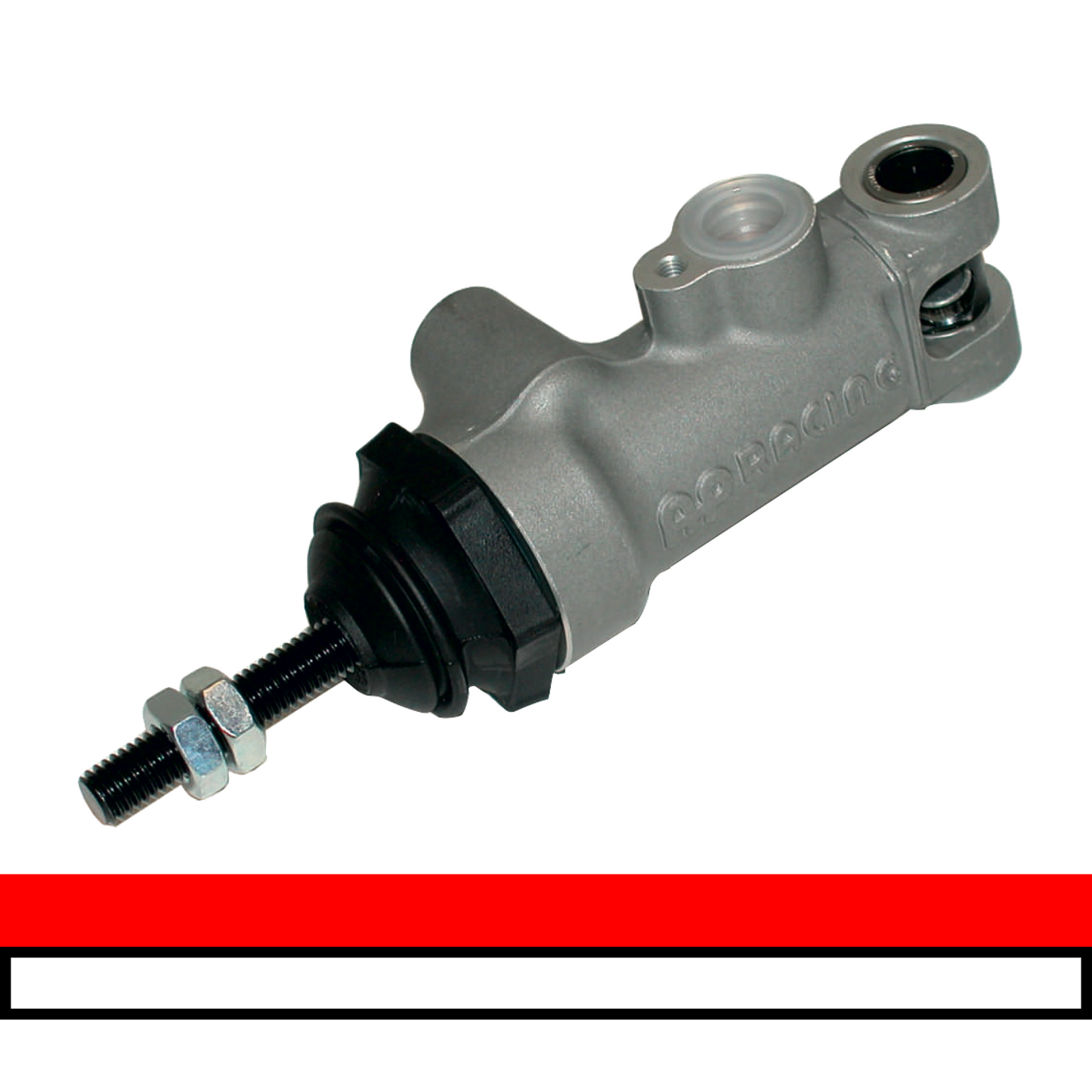

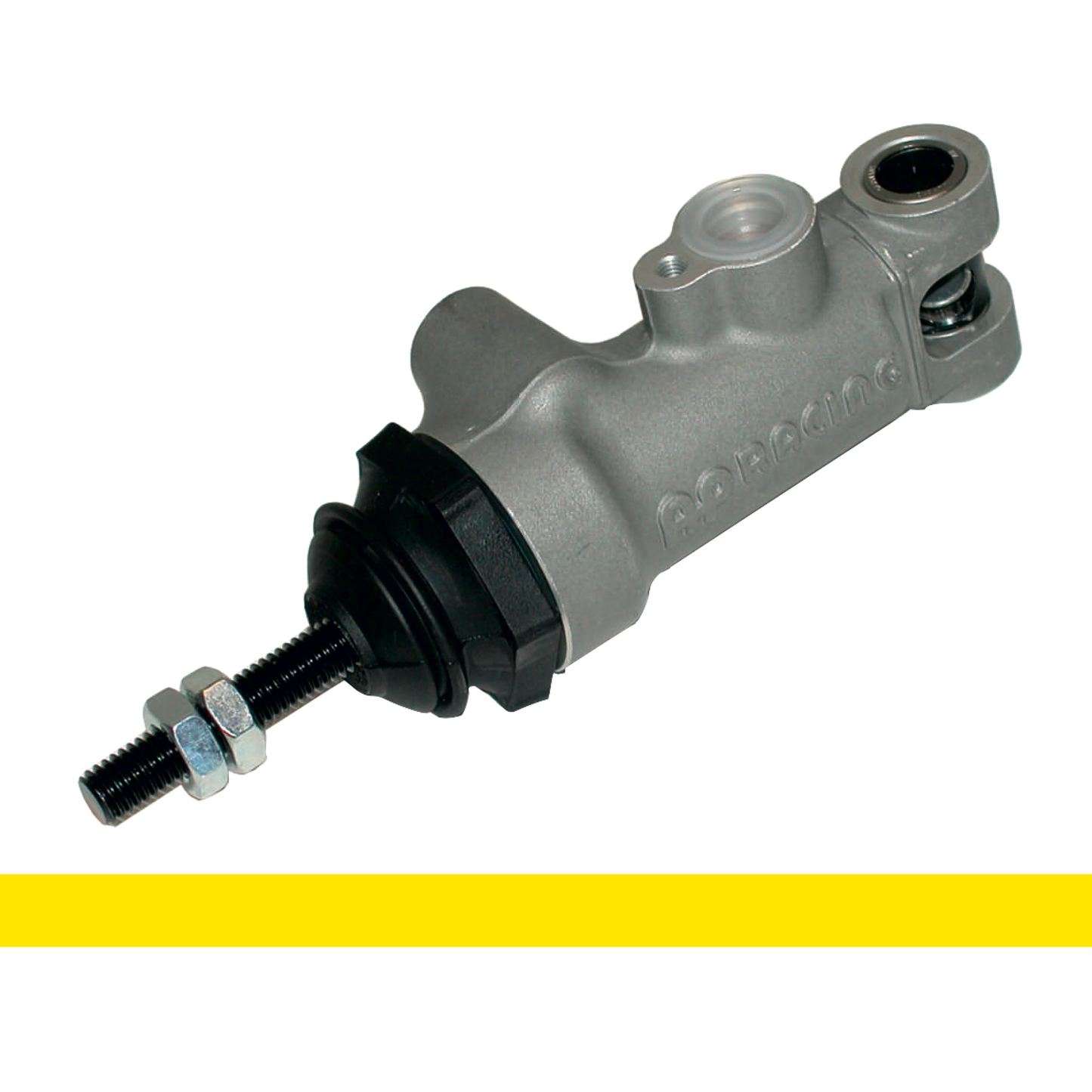

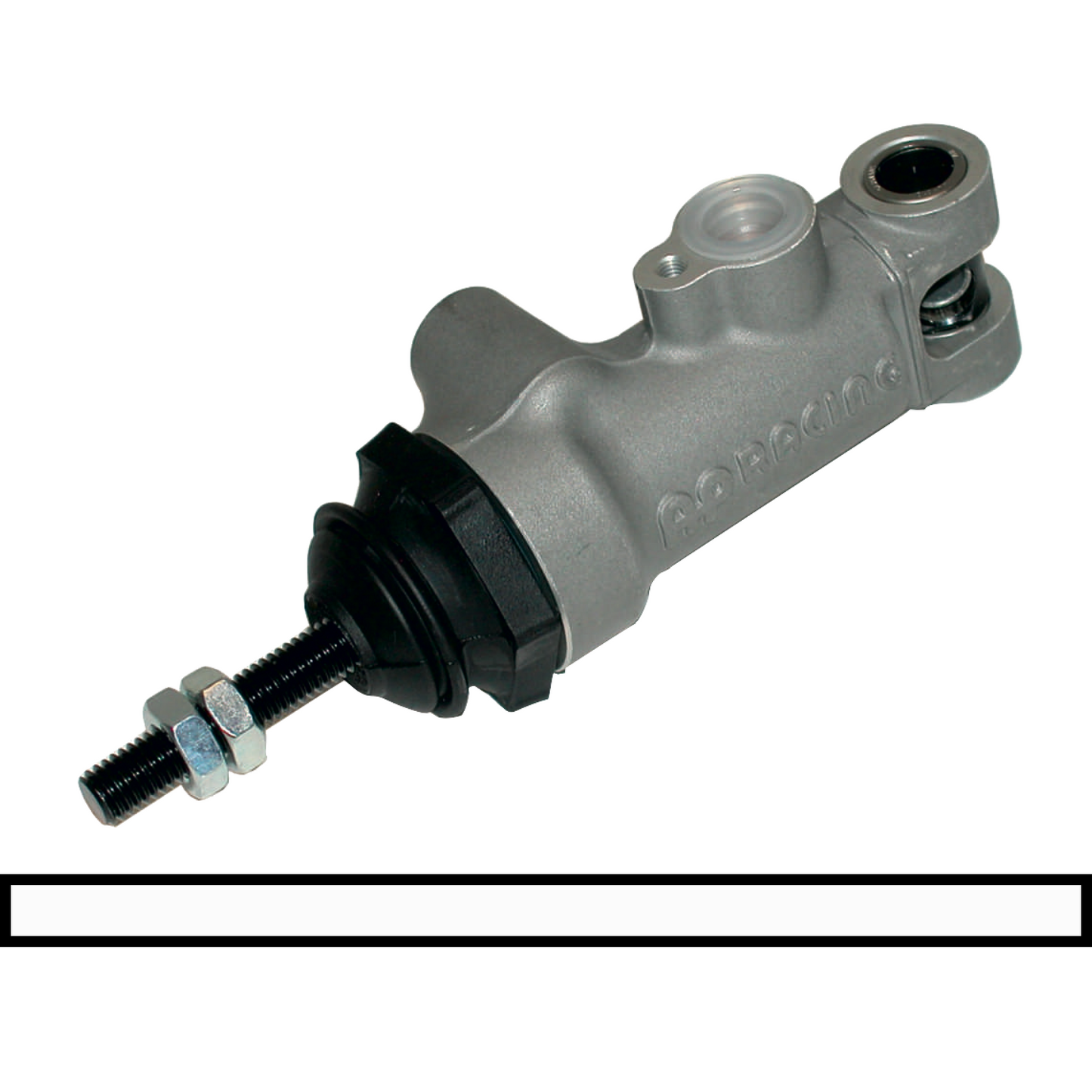

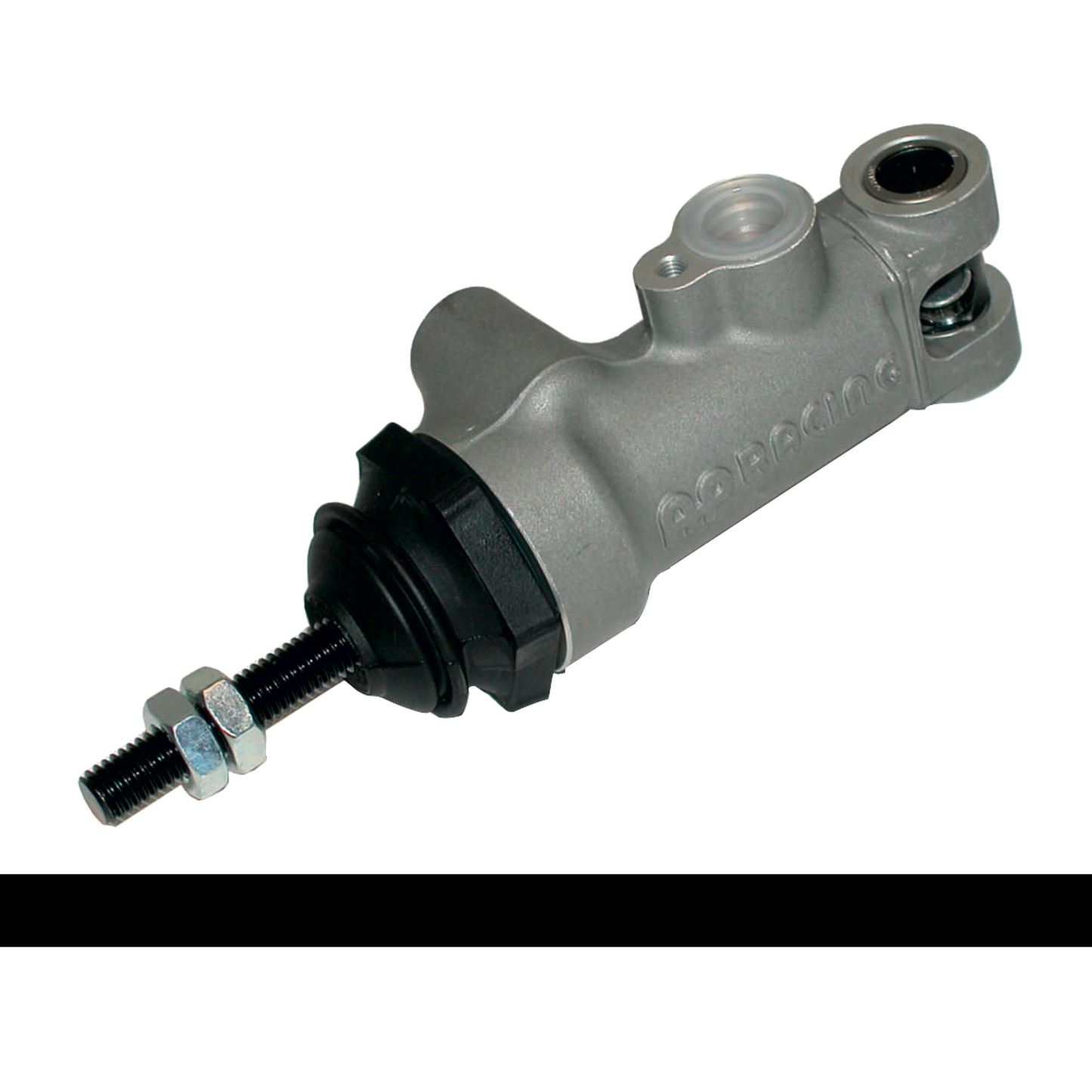

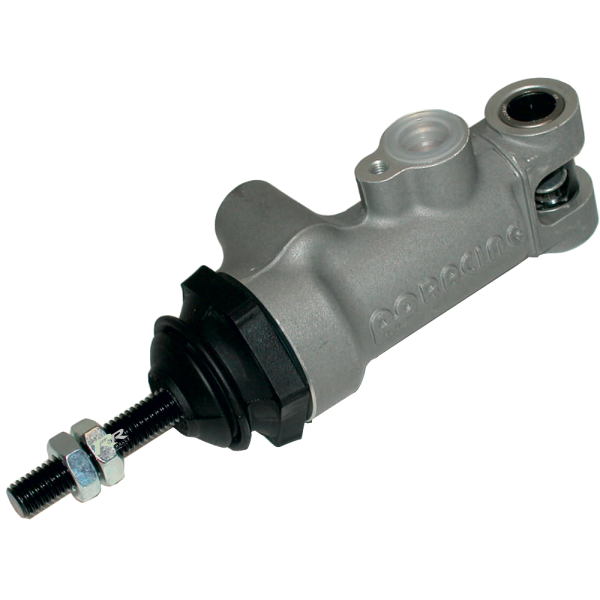

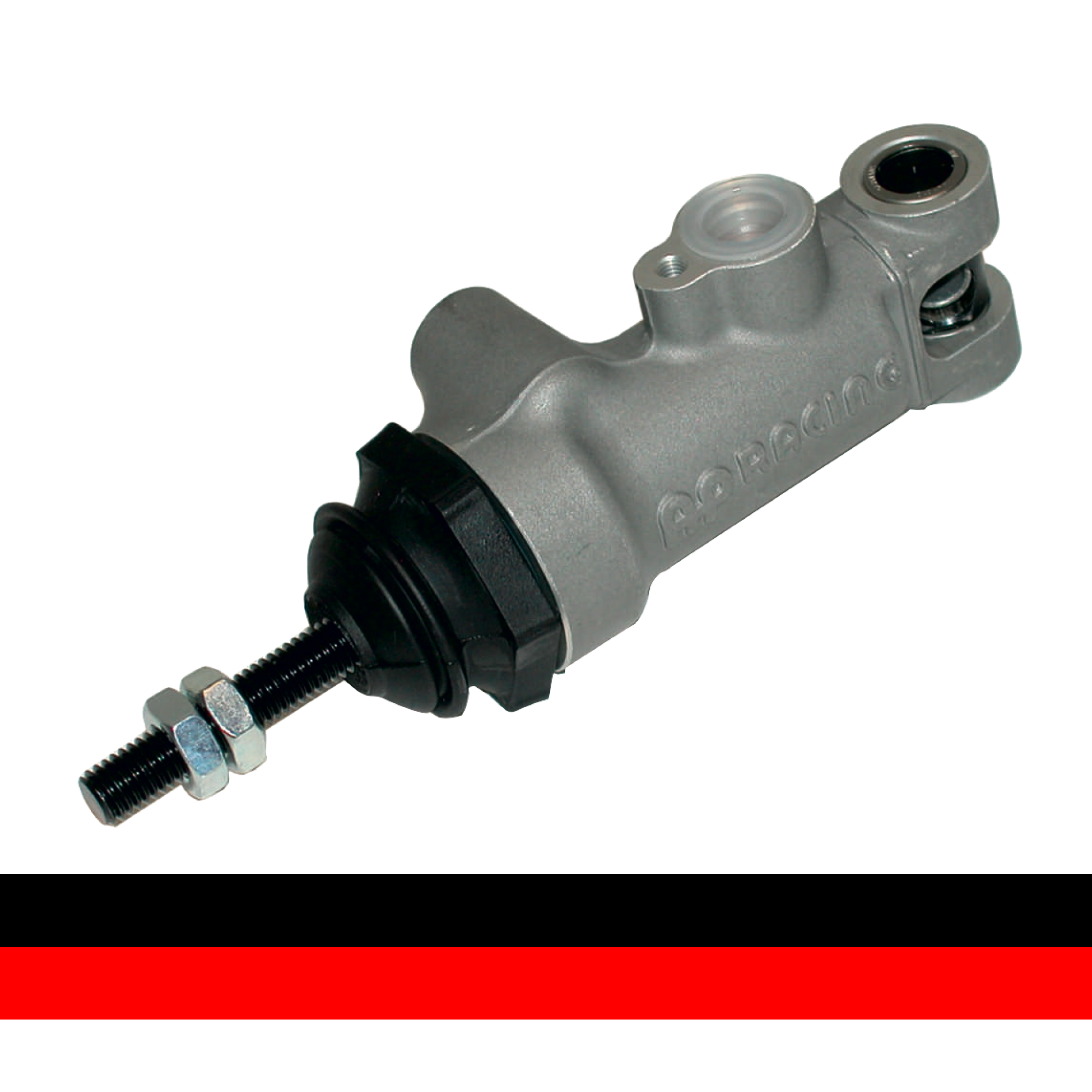

CP6465 - Pull Type Trunnion Mounted

CP6465 - Pull Type Trunnion Mounted

CP6465-149PRME

€447.73 €550.71
Sale Sold out
  • Feature Icon 25.4MM (1.00") FULL STROKE
  • Feature Icon SHORT TRAVEL TO CUT-OFF
  • Feature Icon Low profile inlet & Outlet
  • Feature Icon Pull Type Design
  • Feature Icon M8 pushrod
  • Feature Icon Needle bearing Trunnion mounted
  • Feature Icon SUITABLE FOR BRAKE AND CLUTCH APPLICATIONS
Bore Diameter

View full details

The ultimate in master cylinder efficiency over traditional cylinder designs. This cylinder operates on the pull rather than push principle of other cylinders.

It has a built in trunnion mounted in needle roller bearings for direct mounting to the balance bar.

FEATURES:

  • Hard Anodised Aluminium Alloy Body
  • Low profile inlet and outlet
  • Extra short travel to cut-off
  • 10 Available bore sizes
  • Outlet hydraulic threads are metric
  • Use with CP5520-2, 3 or 4 Trunnion type balance bar or purpose designed pedal box.
  • Rubber boots fitted as standard

TECHNICAL DETAILS

CP6465 Technical Details

CP6465 PART NUMBERING

CP6465 - Part Numbers

INSTALLATION DRAWING

CP6465 - Drawings

REPAIR KITS

Each repair kit is in accordance to Bore Diameter of Master Cylinder:

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.

Race and Rally are the official AP Racing Distributor for Northern Ireland

Brand:

AP Racing

Manufacturer Part Number:

CP6465-149PRME, CP6465-162PRME, CP6465-173PRME, CP6465-188PRME, CP6465-202PRME, CP6465-212PRME, CP6465-218PRME, CP6465-224PRME, CP6465-237PRME, CP6465-254PRME
