Regular price
€329.29
€405.03
-
Extra Short travel to Cut off -
5/16" x 24 UNF Push Rod Thread
-
Forged Aluminium Alloy Body
-

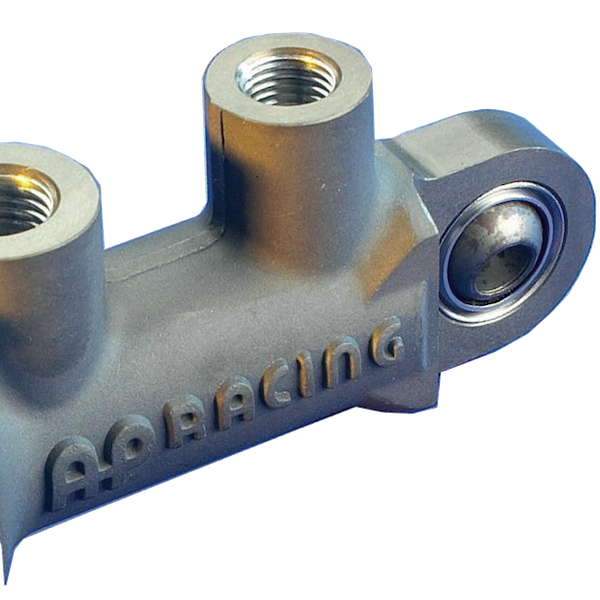

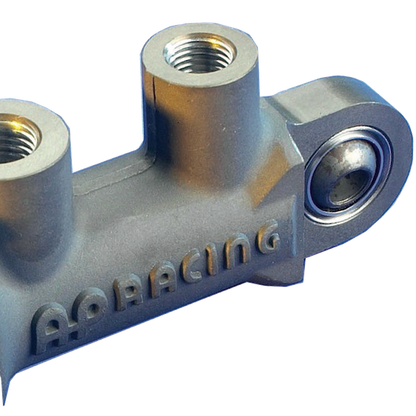

Spherical Bearing Mounting
-
Range of 10 Bore Sizes
Extra Short travel to Cut off

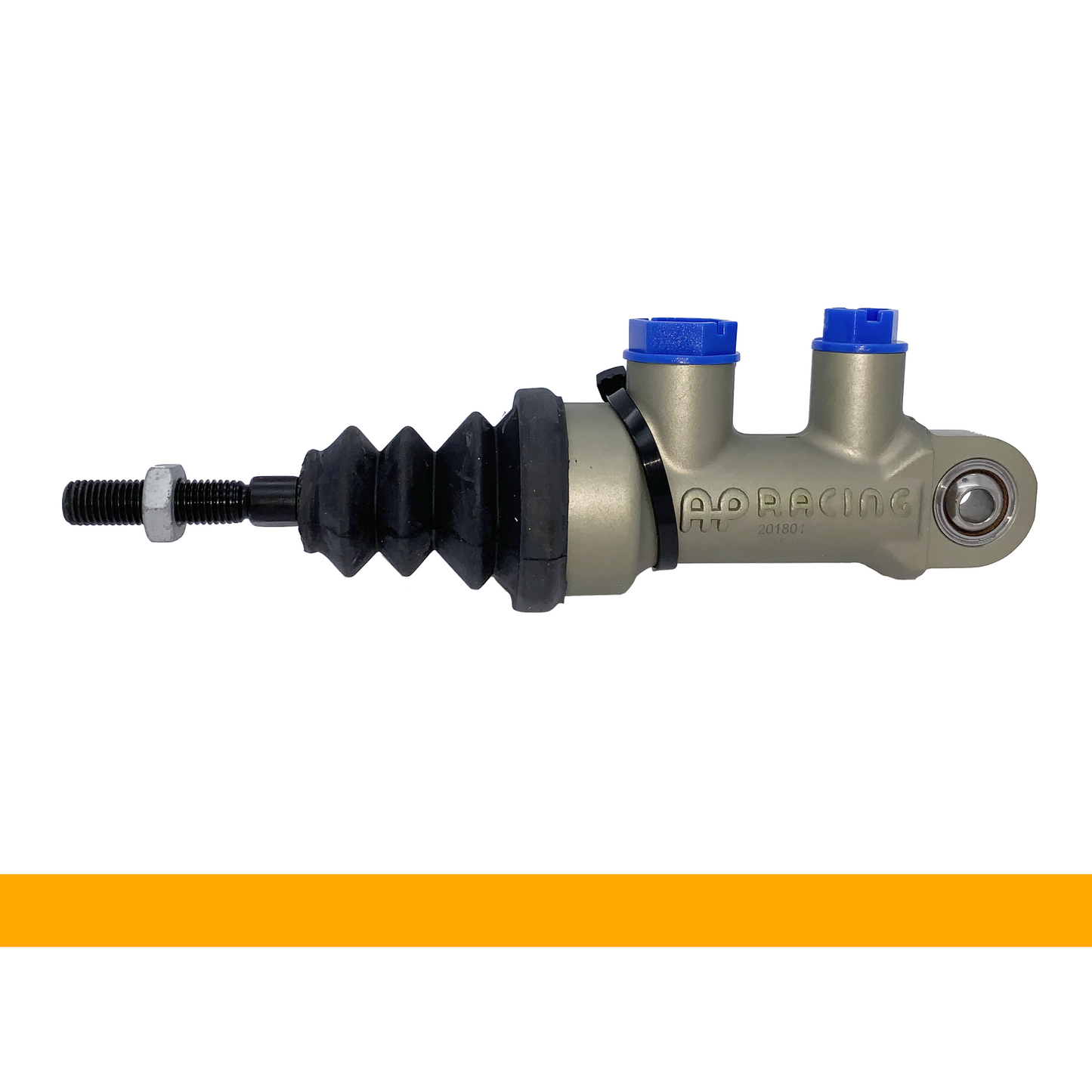

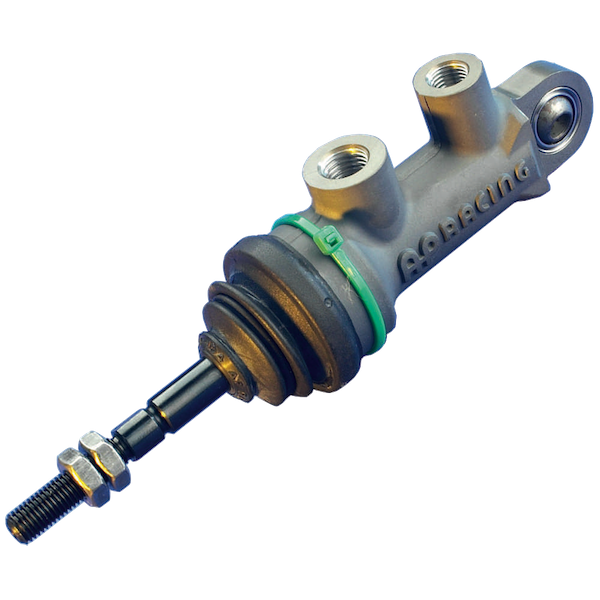

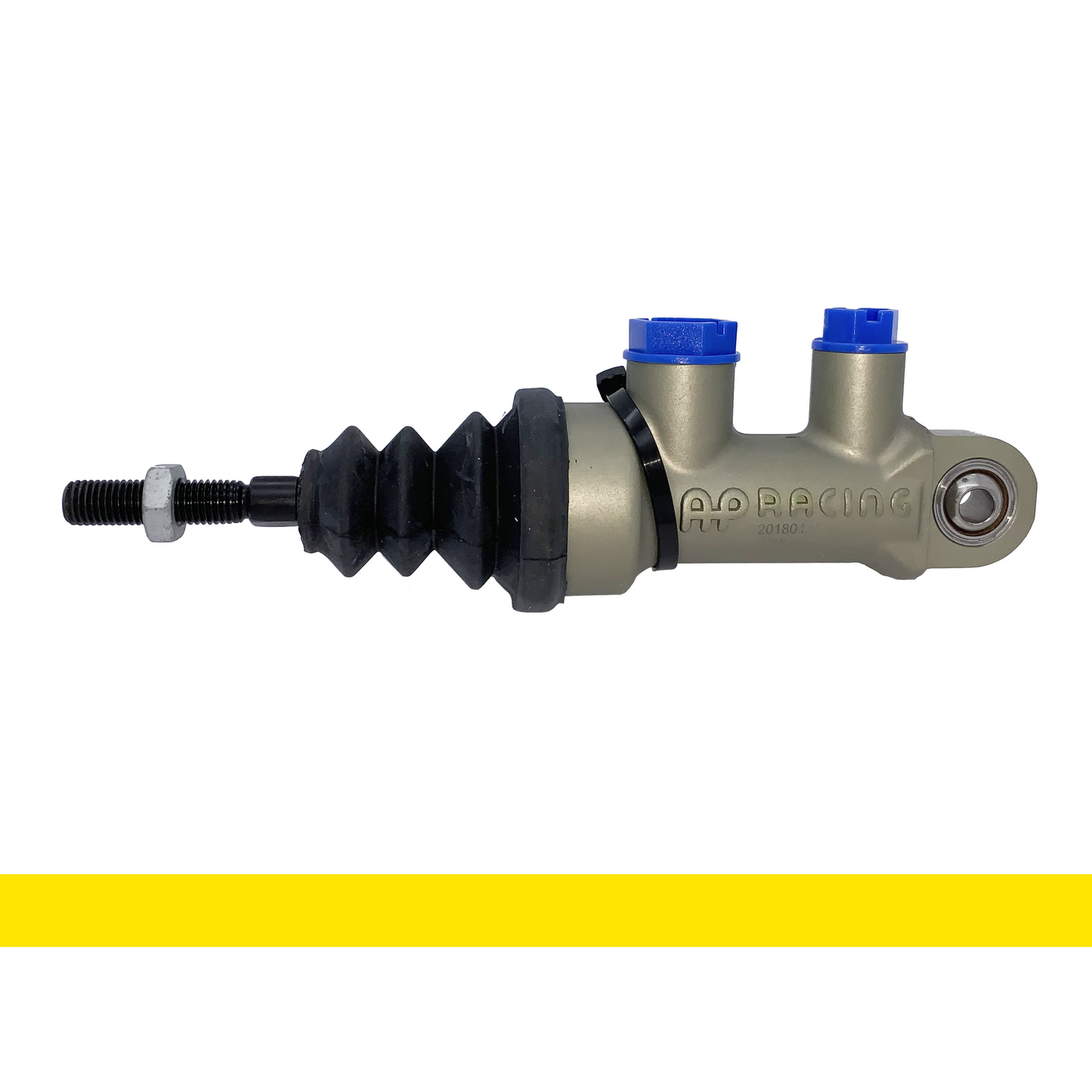

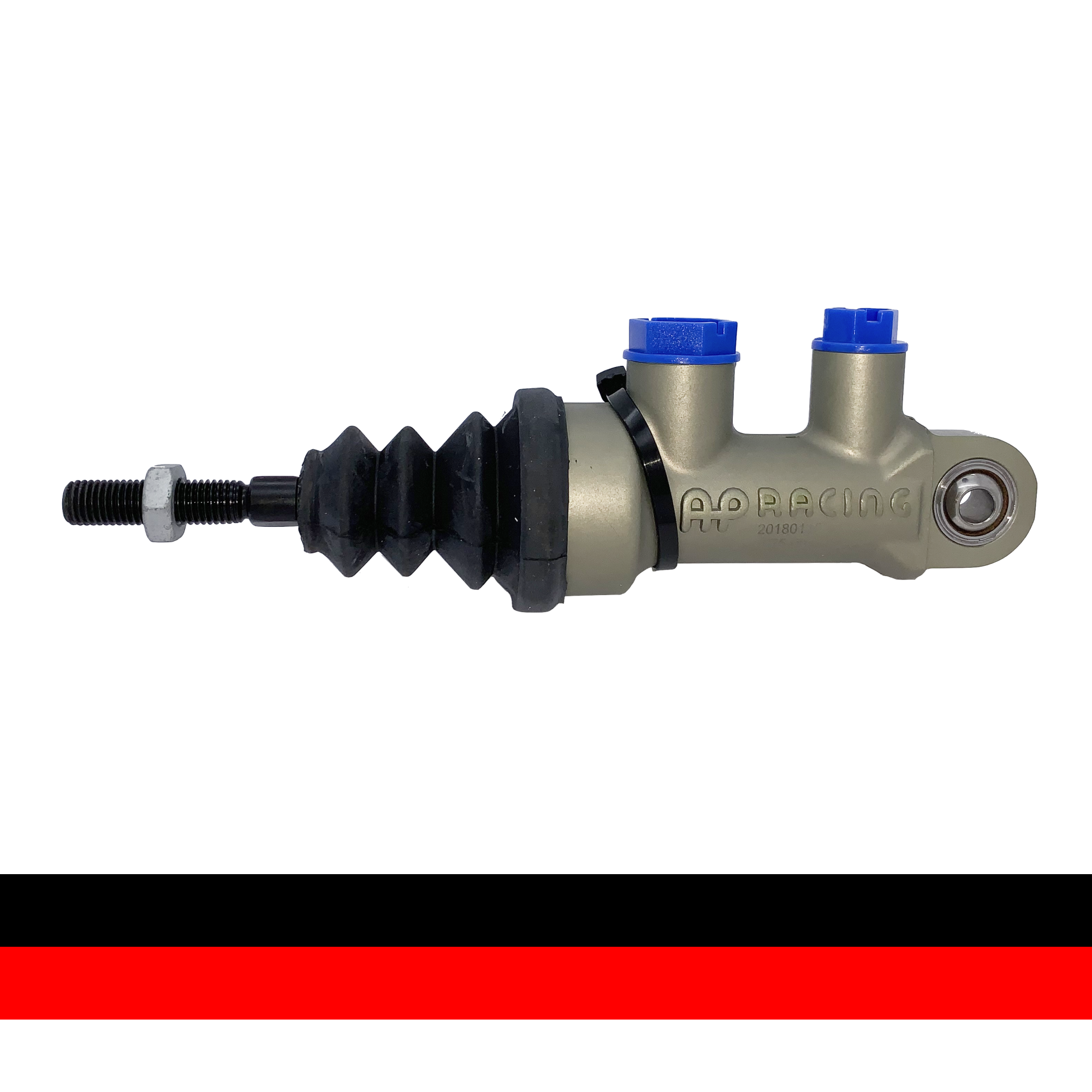

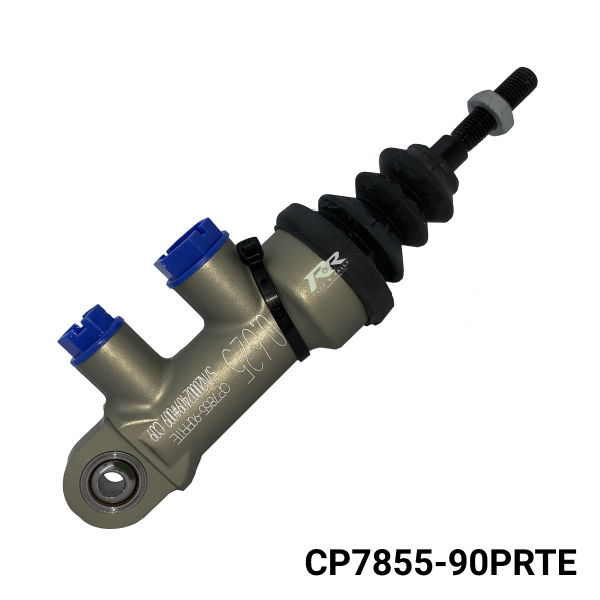

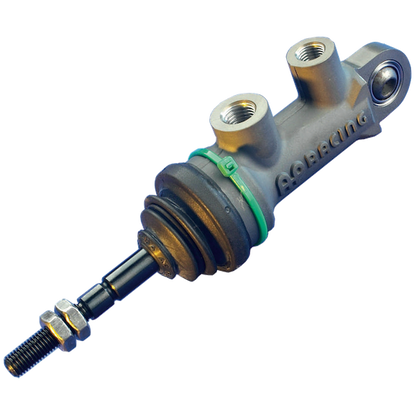

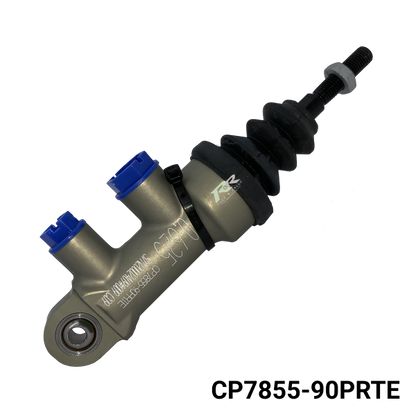

A high efficiency single circuit, short push type master cylinder.
Fixed through a spherical bearing and with a one piece piston / push rod it offers a significant improvement in efficiency over traditional cylinder designs. Ranging from 14mm to 7/8" Bores with 30mm stroke and 15/16" to 1.00" Bores with a 28mm stroke.
Features:
- Hard Anodised Aluminium Alloy Body
- Compact design, mounted through a spherical bearing
- Extra short travel to cut-off standard
- High efficency push type design
- One piece piston and push-rod
- Full range of 10 bore sizes
- Rubber boots fitted as standard
- Replaced CP5855, CP5511 and CP4411 cylinder families
Technical Details
CP7855 Part Numbering
CP7855 Installation Drawing
Repair Kits
Each repair kit is in accordance to the Bore Diameter of the Master Cylinder:
- Ø14.00mm Bore - CP7855-88RK
- Ø15.00mm Bore - CP7855-89RK
- Ø15.90mm Bore - CP7855-90RK
- Ø16.80mm Bore - CP7855-905RK
- Ø17.80mm Bore - CP7855-91RK
- Ø19.10mm Bore - CP7855-92RK
- Ø20.60mm Bore - CP7855-93RK
- Ø22.20mm Bore - CP7855-94RK
- Ø23.80mm Bore - CP7855-95RK
- Ø25.40mm Bore - CP7855-96RK
Installation Drawing - CP7855.pdf
| Brand | AP Racing | |
|---|---|---|
| Option | SKU | Barcode |
| 14.00mm | CP7855-88PRTE | |
| 15.00mm | CP7855-89PRTE | |
| 15.90mm | (.625") | 5/8" | CP7855-90PRTE | |
| 16.80mm | CP7855-905PRTE | |
| 17.80mm | (0.70") | CP7855-91PRTE | |
| 19.10mm | (0.75") | 3/4" | CP7855-92PRTE | |
| 20.60mm | (.812") | 13/16" | CP7855-93PRTE | |
| 22.20mm | (.875") | 7/8" | CP7855-94PRTE | |
| 23.80mm | (.937") | 15/16" | CP7855-95PRTE | |
| 25.40mm | (1.00") | CP7855-96PRTE | |
