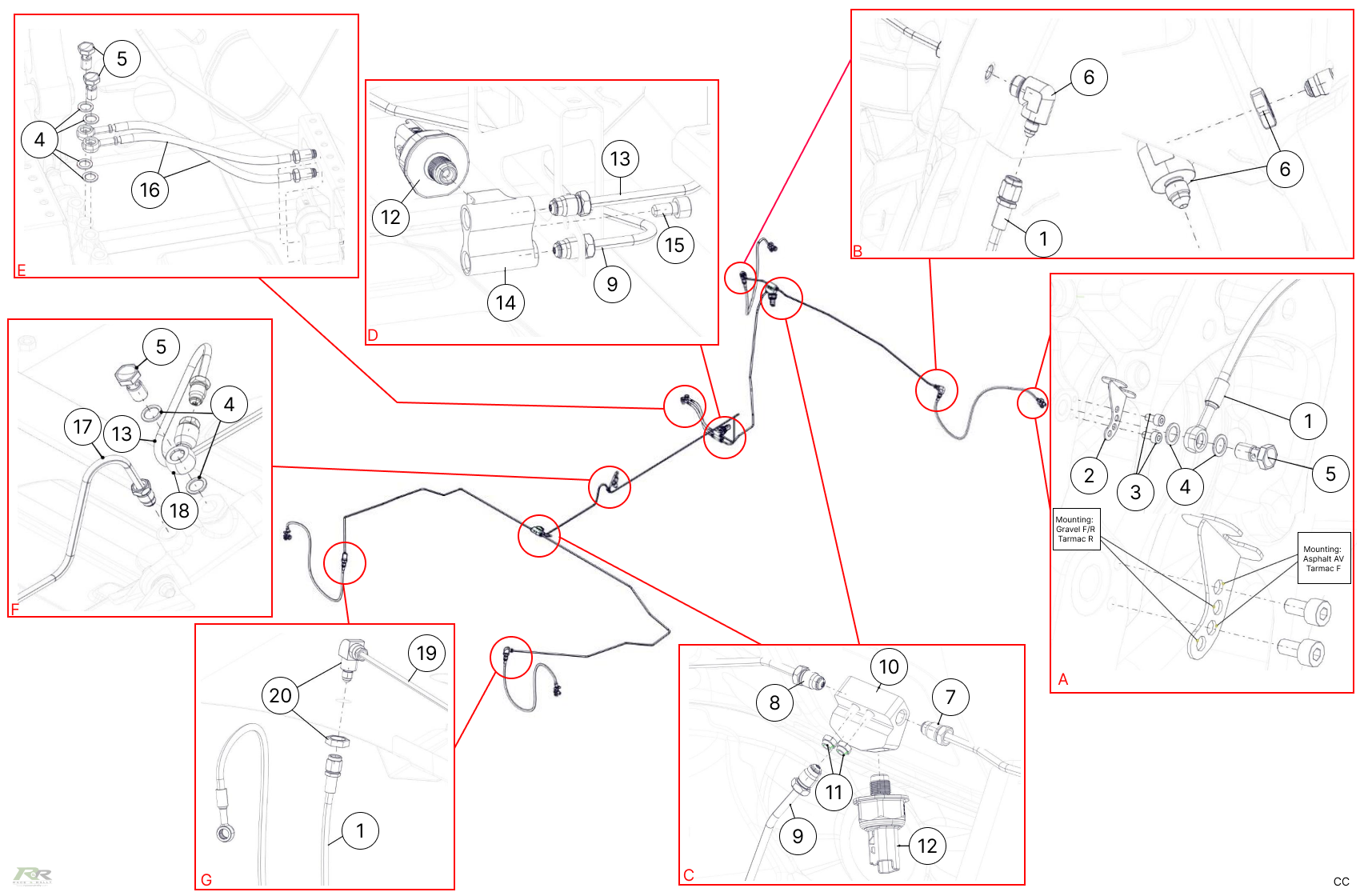

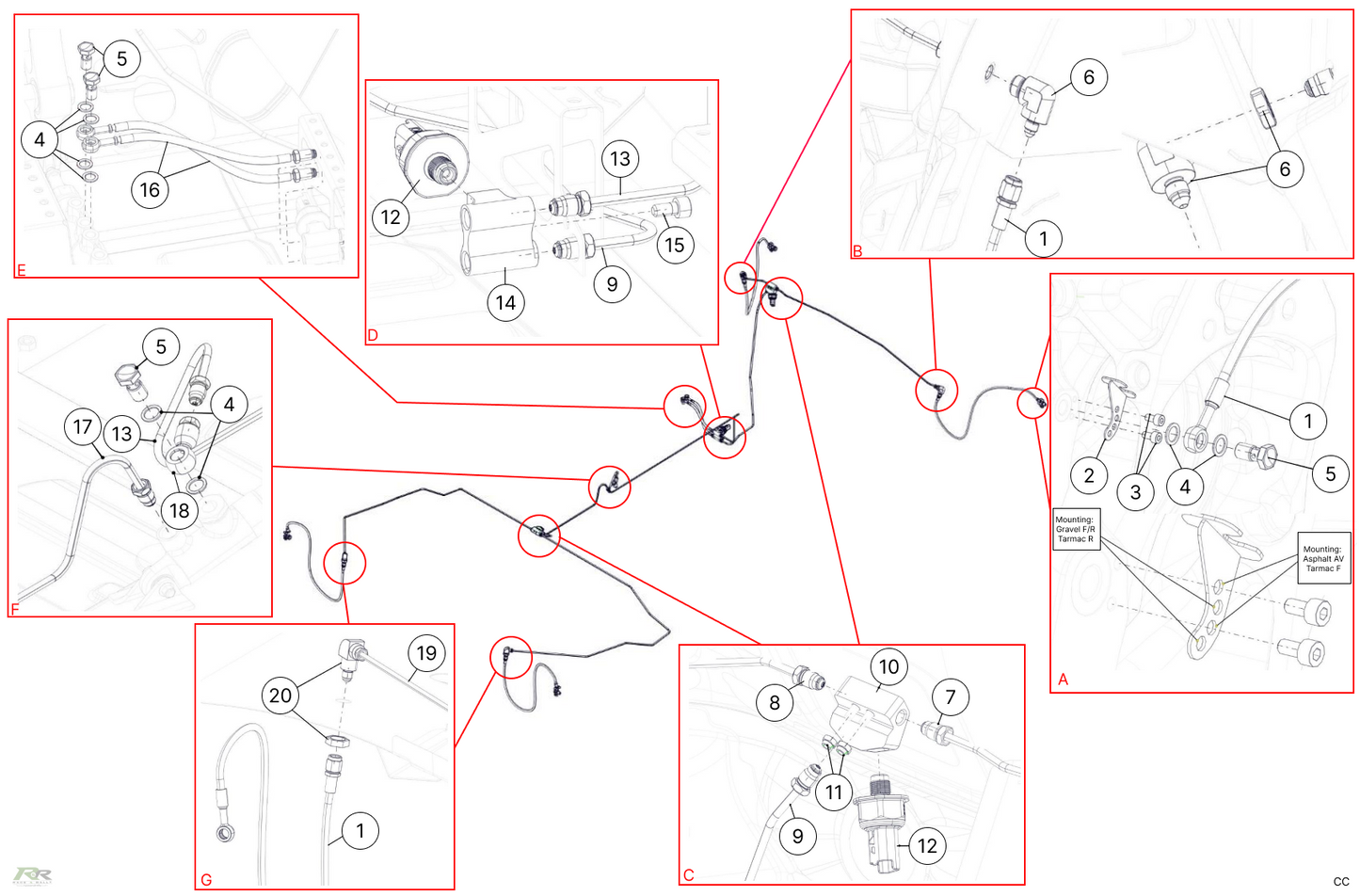

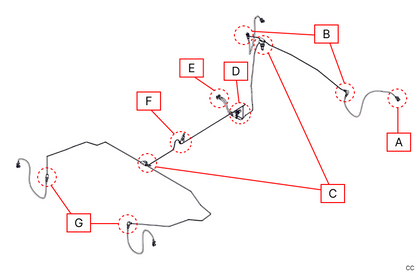

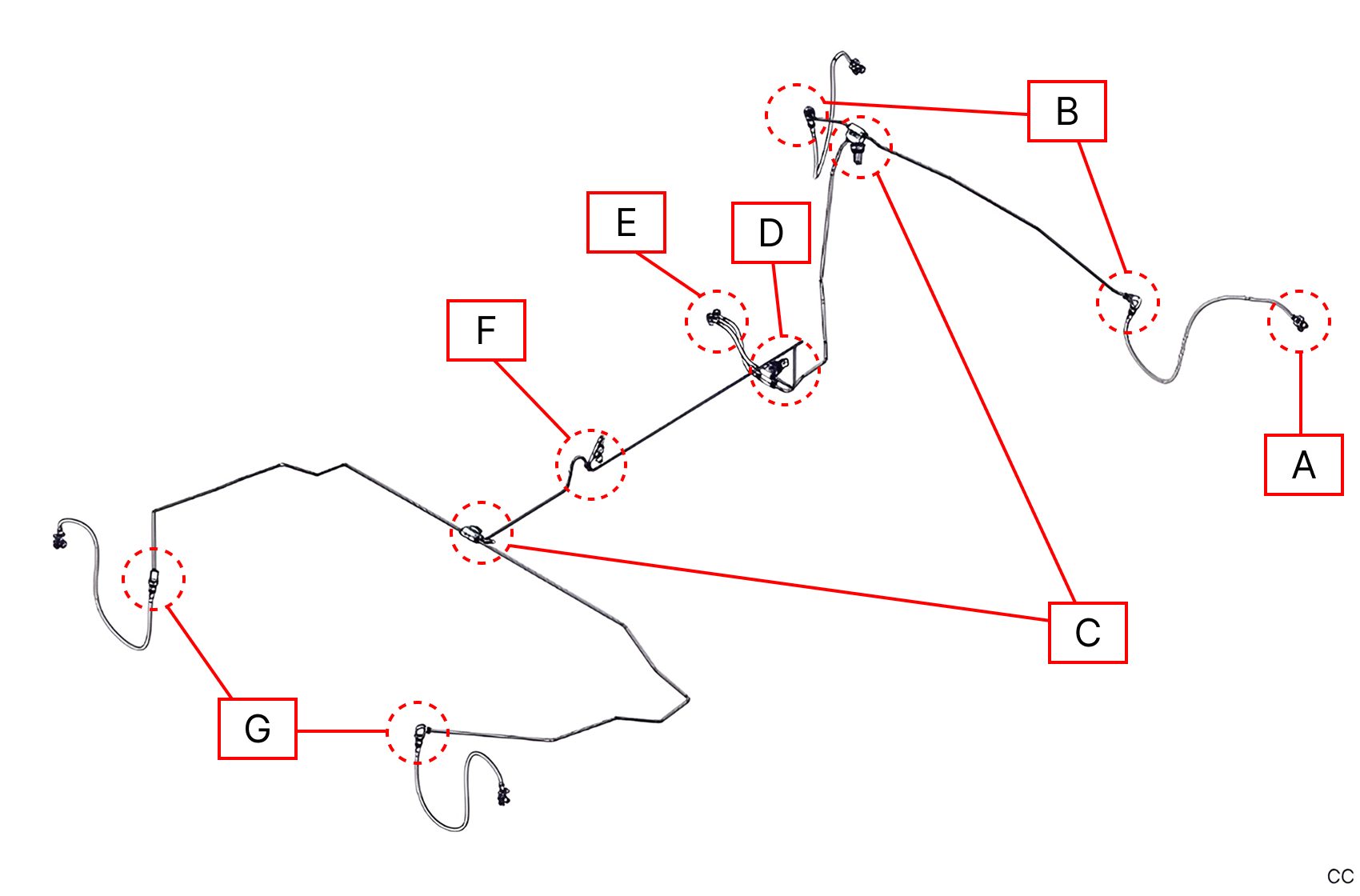

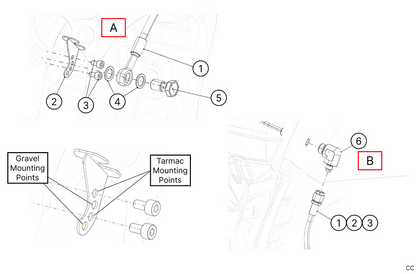

F63 - Brake Circuit

F63 - Brake Circuit

Item Image Description Chapter Qty Select Qty Price Add to Basket

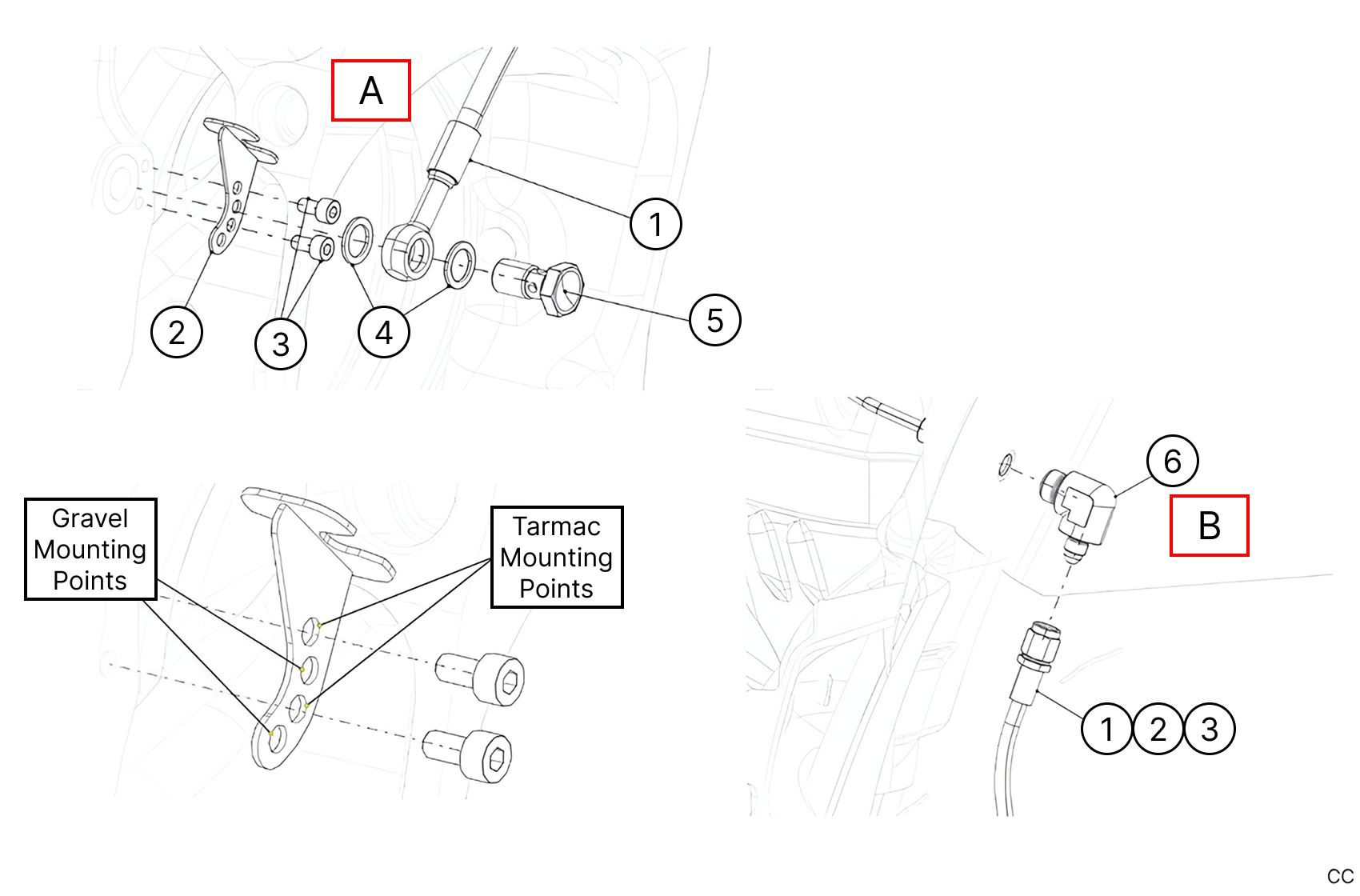

1
Brake Hose

904492788A

4

€52.58 €64.67
2
Anti Rotating Bracket

904492858A

4

€34.24 €42.12
3
Screw M4-8 12.9

PS82084A10

8

€2.30 €2.83
4
Copper Seal ø10,2x13,9x1

PS81031A10

14

€0.74 €0.91
5
Banjo Screw M10X100 L20

PS73763A10

7

€4.32 €5.31
6

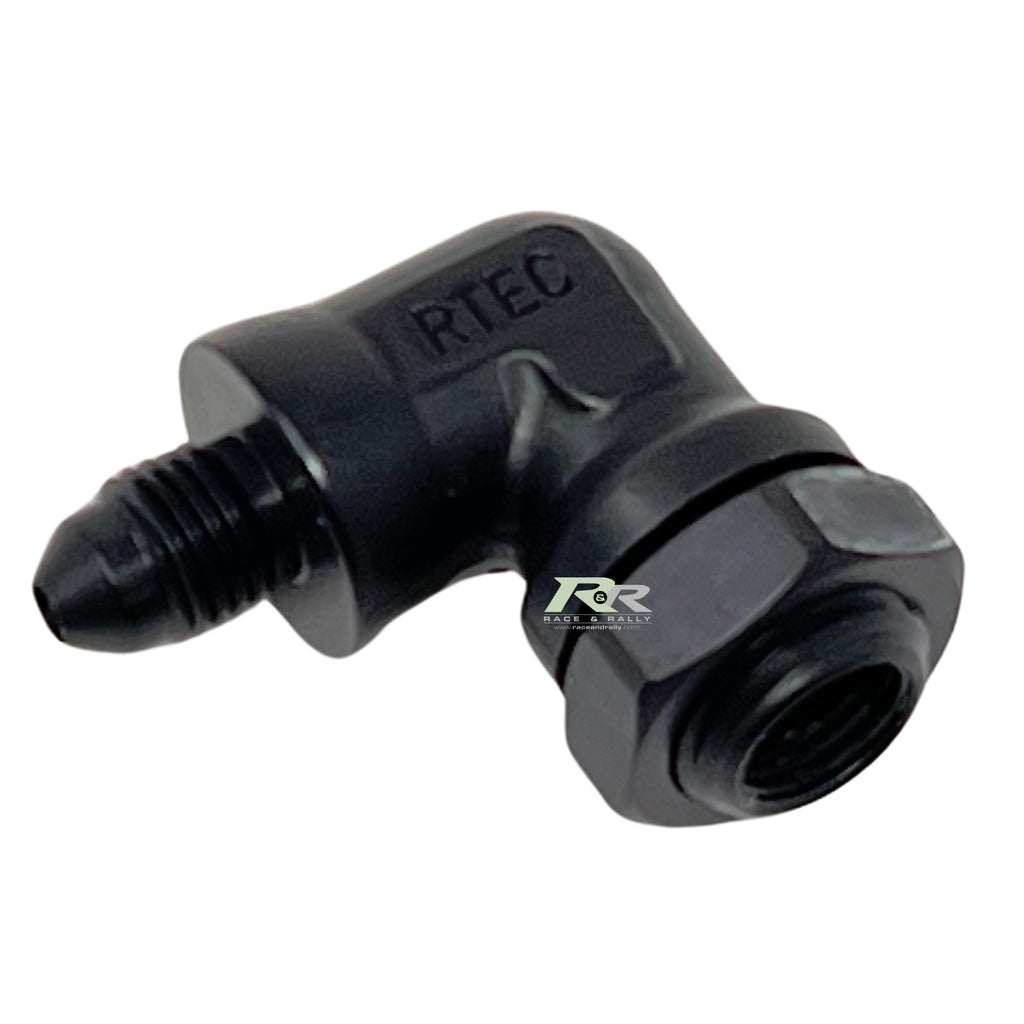

Adaptator 90 10X1 Femelle/Dash3 Male

ST04100014

2

€123.71 €152.16

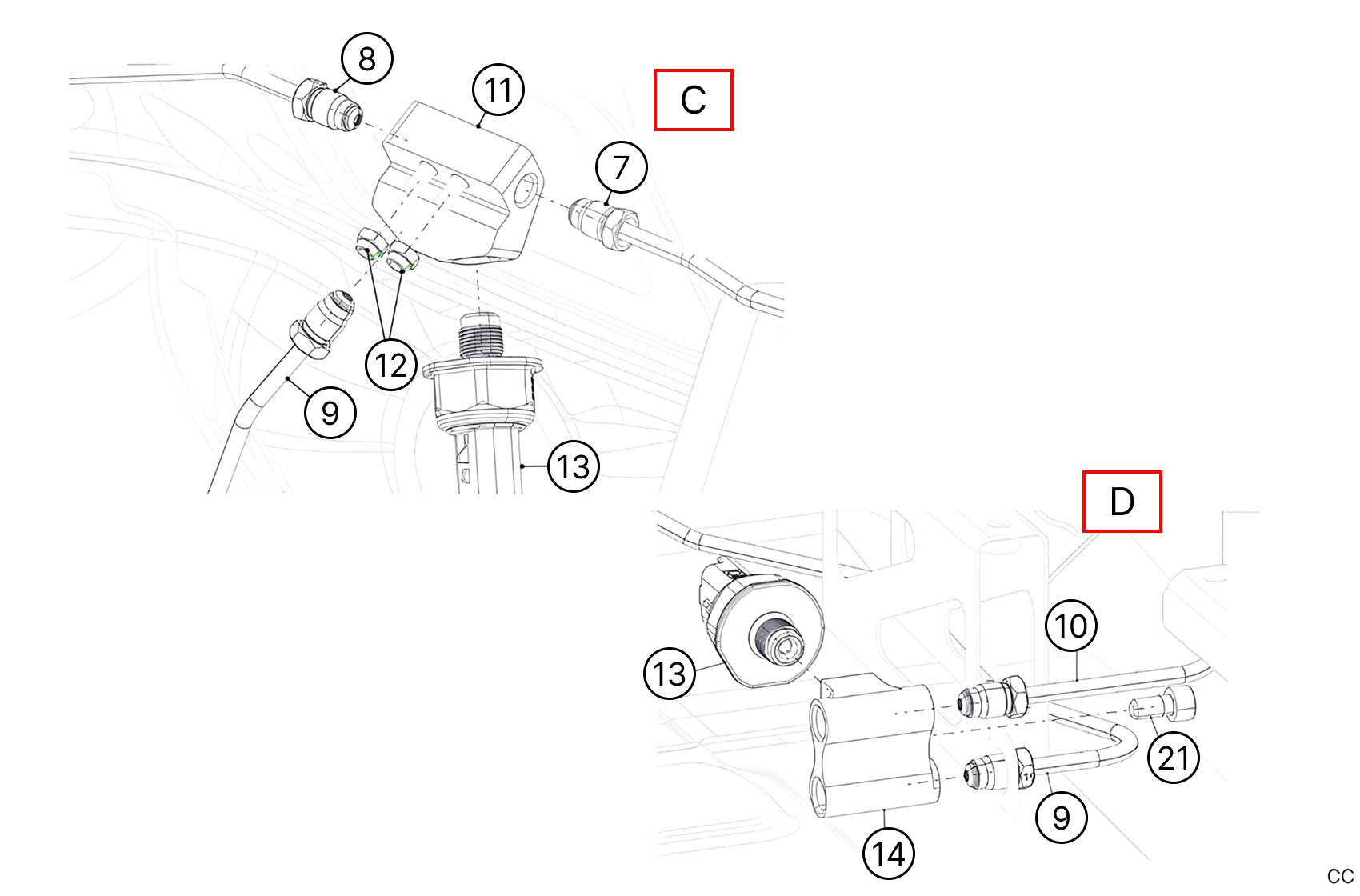

7
Front Right Brake Pipe

904496298B

1

€137.20 €168.76
8

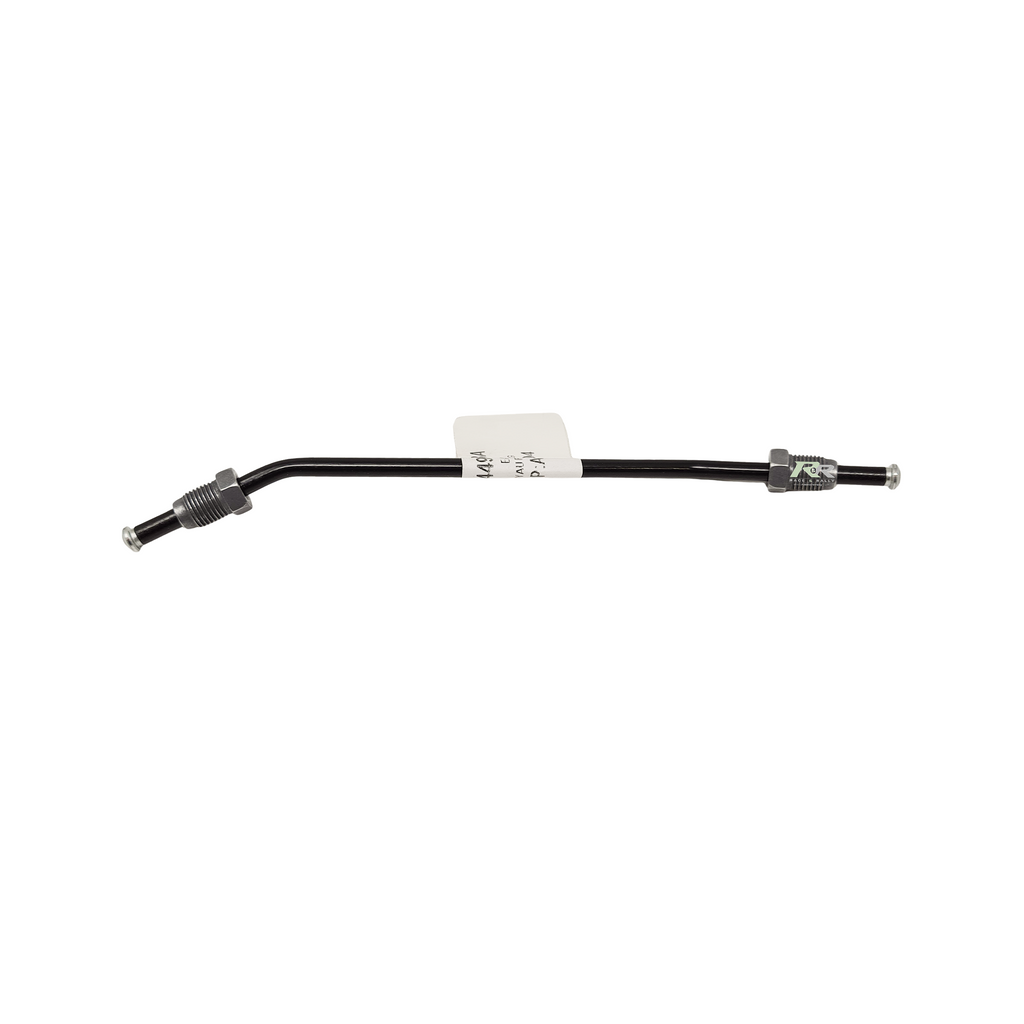

Front Left Brake Pipe

904496708A

1

€102.28 €125.80
9
Front Mc To Front Pipe

904496188B

2

€118.88 €146.22
10
Rear Mc To Handbrake Mc

904496748A

1

€96.20 €118.33
11
4 Way Coupling

1F6363454A

4

€45.54 €56.01
12
Locking nut M5

693673

4

€0.37 €0.46
13
Hydraulic Pressure Sensor

5273A2

3

€147.99 €182.03
14
Raccord 2 / 3 Voies

904496098C

1

€267.20 €328.66
15
Mc To 5 Ways Connector Hose

904603678A

2

€35.58 €43.76
16
Banjo Fittingd10 - M10X100 Female

CS410123ST

1

€48.11 €59.18
17
Rear Right Brake Pipe

904496728A

1

€130.76 €160.83
18
Rear Left Brake Pipe

904496738A

1

€131.04 €161.18
19

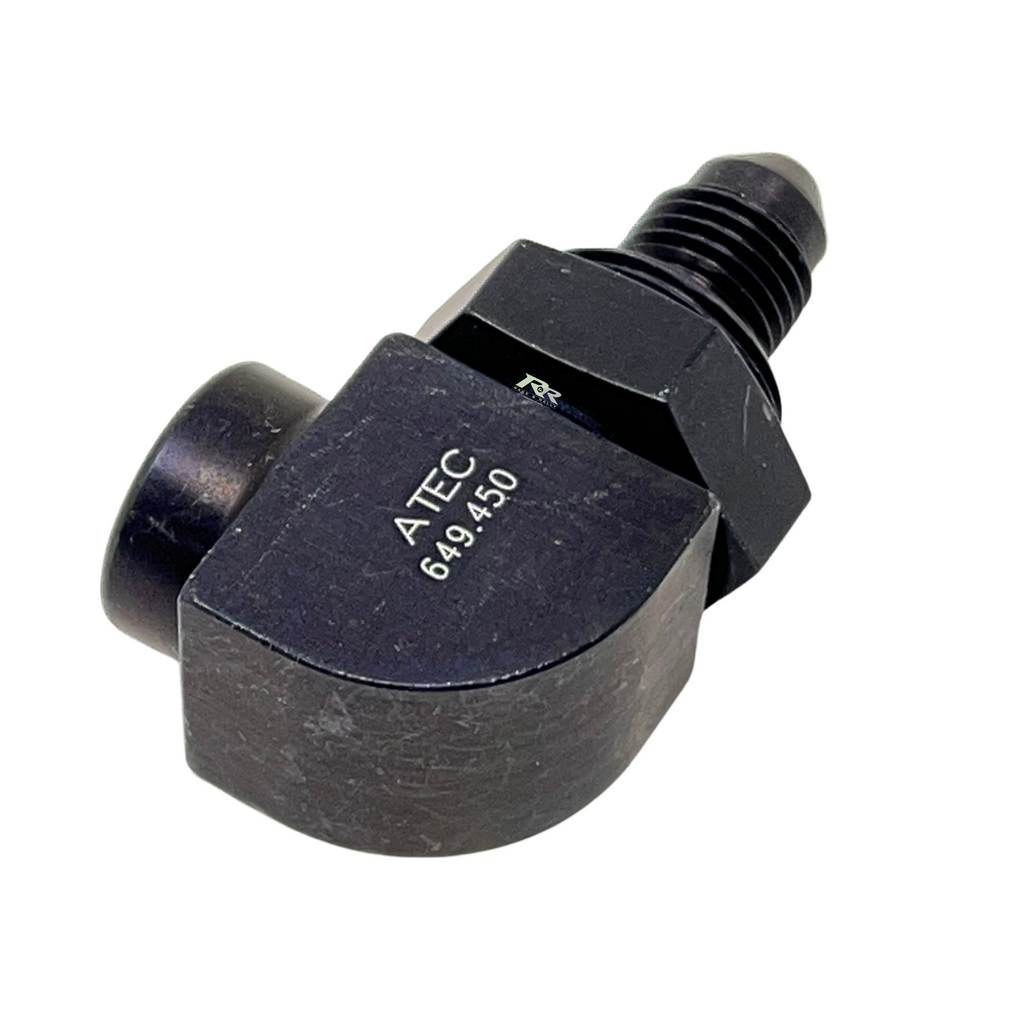

90° connector

90367267-A

2

€86.96 €106.96

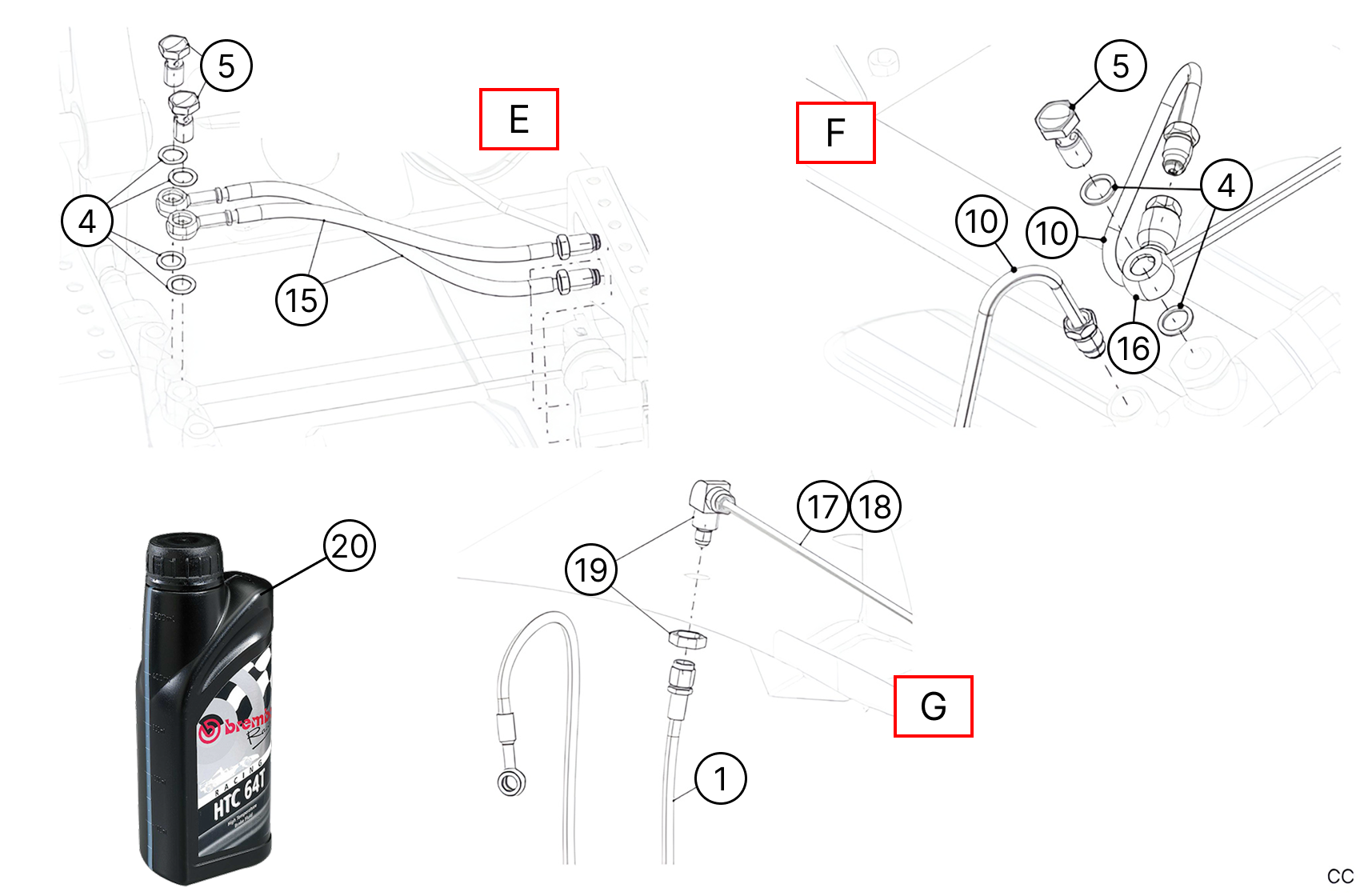

20
Brembo Brake Fluid HTC64T - 500ml

PS97633A10

1

€34.27 €42.15
21
Screw M6x12

PS82119A10

1

€0.25 €0.31
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
