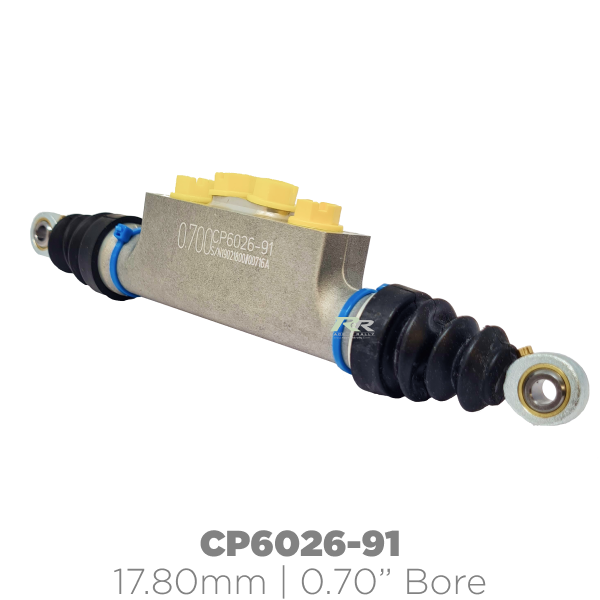

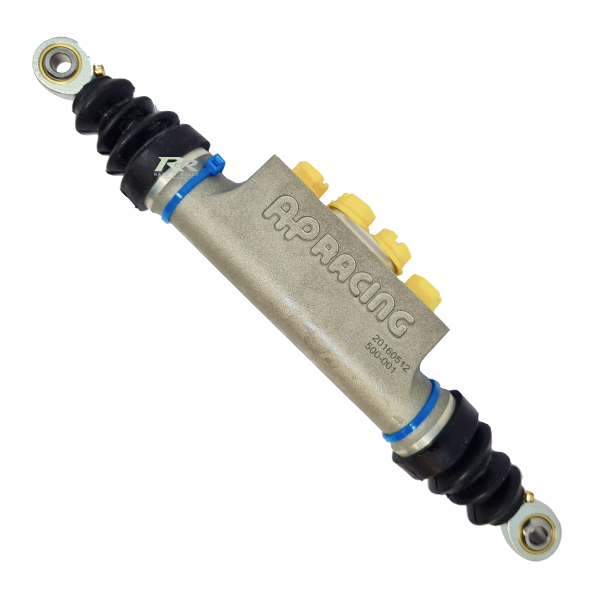

CP6026-91 - Double Ended Hand Brake Master Cylinder

CP6026-91 - Double Ended Hand Brake Master Cylinder

CP6026-91

€578.78 €711.90
Sale Sold out
  • Feature Icon DOUBLE ENEDED
  • Feature Icon M10 X 1.00 INLET & OUTLET PORTS
  • Feature Icon One-piece piston & push rod
Bore Size
View Docs

In stock
View full details

A lightweight double-ended hand brake master cylinder, designed for use with dual circuits where diagonal brake split is mandatory. CP6026 is mounted using rod-ended spherical bearings.

Features:

  • Double ended
  • For use with dual circuits where diagonal brake split is mandatory
  • Forged Aluminium Alloy Body
  • One-piece piston & push rod
  • Lightweight compact design
  • Hard anodised
  • High efficiency push-type design
  • Mounted using rod end sperical bearings
  • Rubber boots fitted as standard

TECHNICAL DETAILS

  • Weight: 0.25kg (0.55lbs)
  • Full stroke: 2 x 12mm
  • Bore diameter: 0.70" | 17.80mm
  • Travel to cut-off: 0.48 to 0.63mm (0.19" to 0.25")
  • Inlet hydraulic thread: M10 x 1.0
  • Outlet hydraulic thread: M10 x 1.0

Spare Parts:

  • Rod end: CP6026-101
  • Nut: ME21001 x 2 M6
  • Seal repair kit: CP6025-91RK
Brand AP Racing
Option SKU Barcode
17.80mm | (0.70") CP6026-91

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
