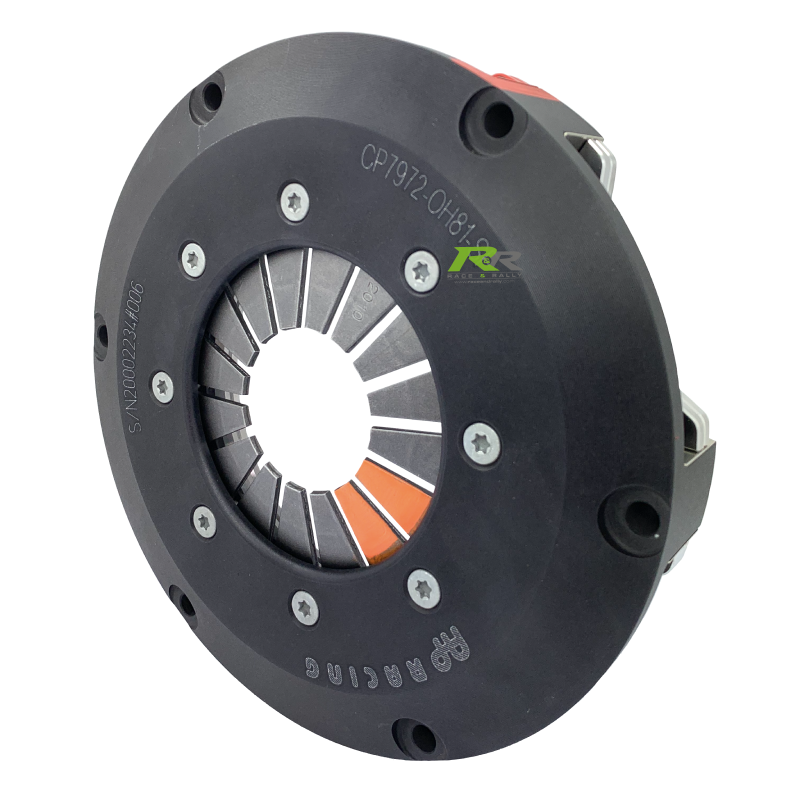

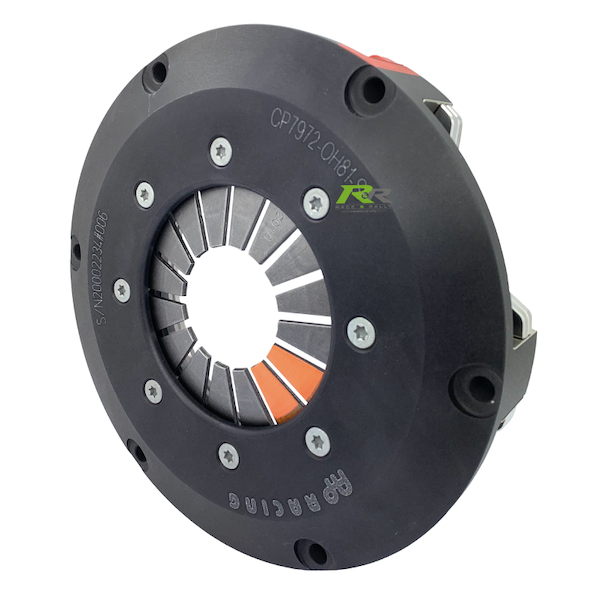

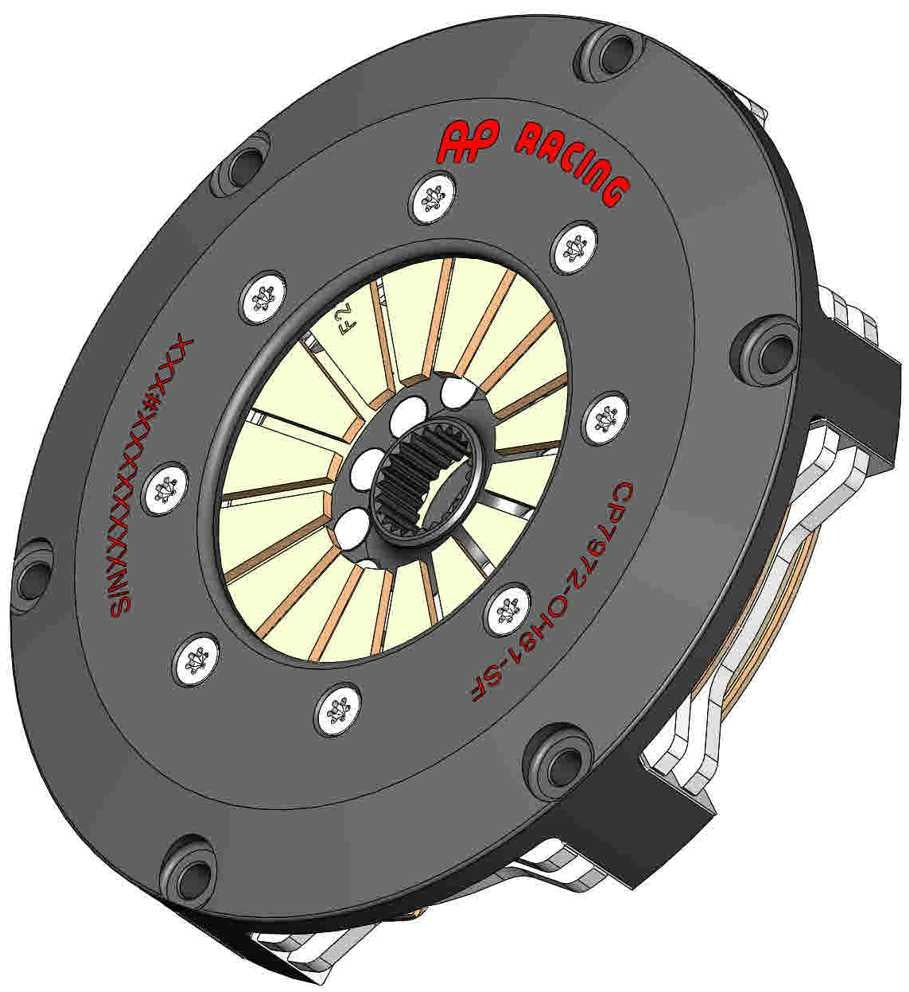

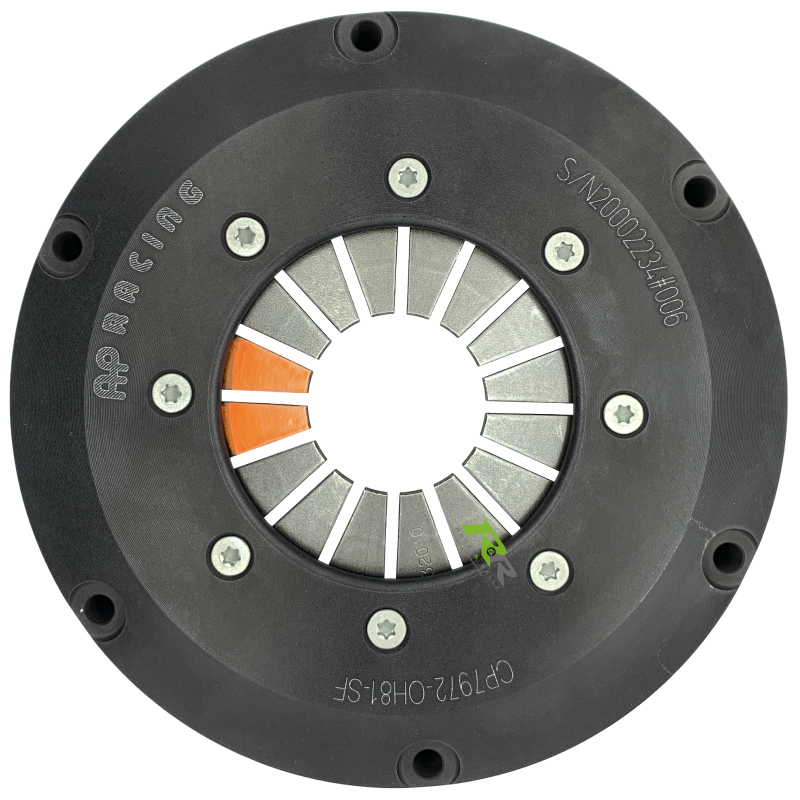

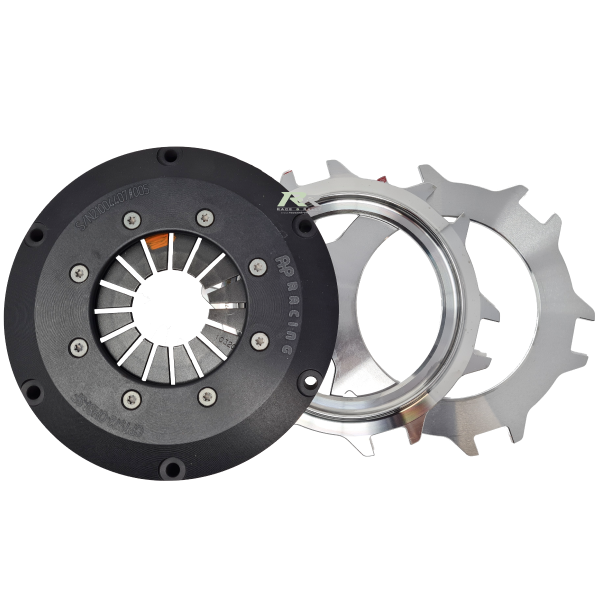

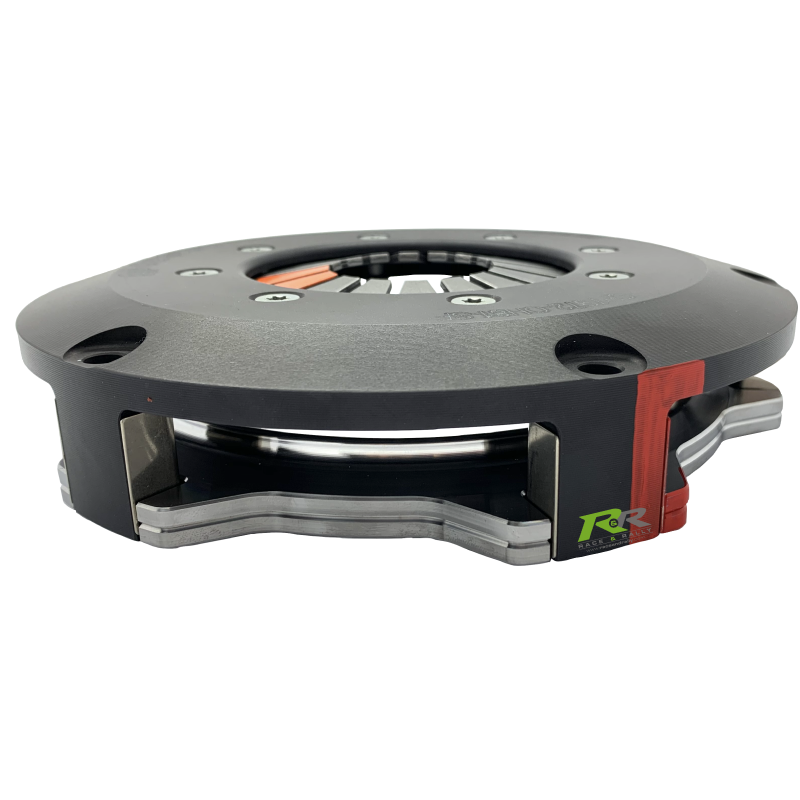

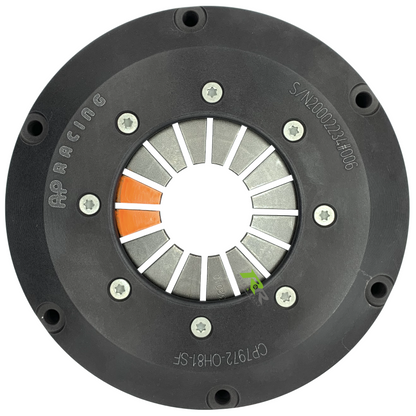

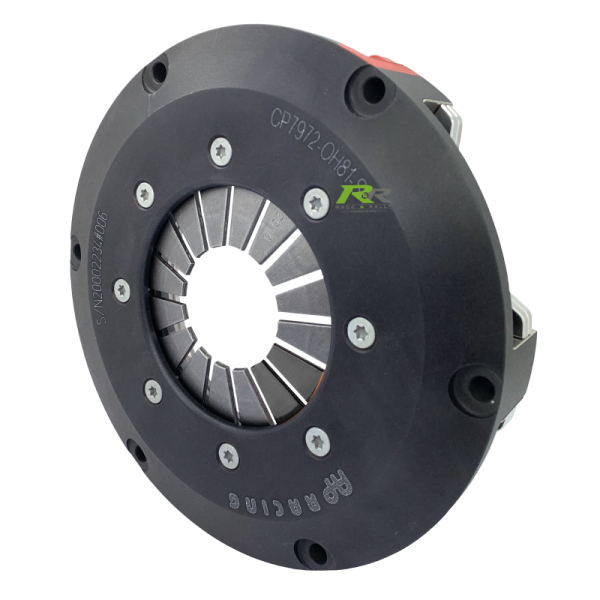

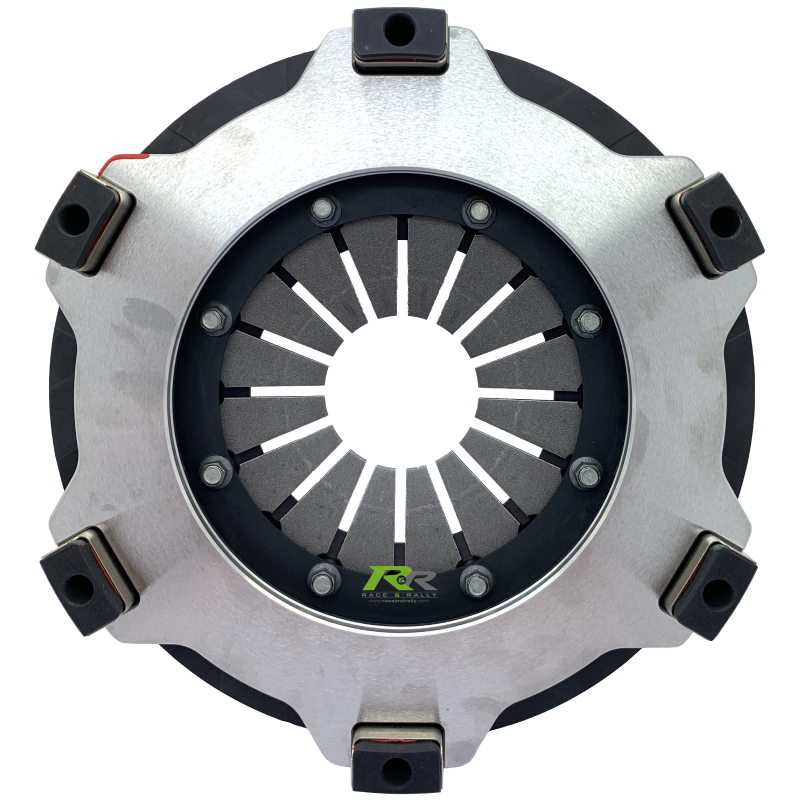

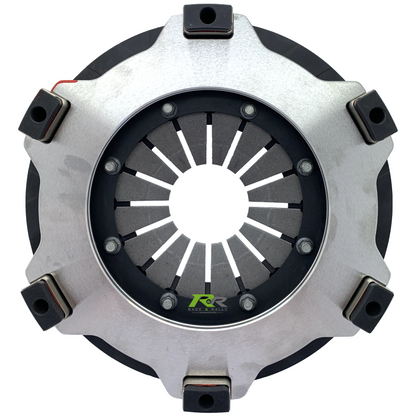

CP7972 - Ø184mm Low Height Twin Plate - Cerametallic Paddle

CP7972 - Ø184mm Low Height Twin Plate - Cerametallic Paddle

SKU:CP7972-CH81-FF

Regular price €1025.93 €1261.89
Sale Sold out
  • Feature Icon Ø184mm
  • Feature Icon Twin Plate
  • Feature Icon Low Height
  • Feature Icon Cerametallic Paddle
  • Feature Icon Push Type
  • Feature Icon Stepped /Flat Flywheel Fixing
  • Feature Icon Lightweight Aluminium Cover
  • Feature Icon Torque Range 263 - 636Nm
  • Feature Icon **Driven Plate Supplied Separately
Flywheel Fixing
Torque Capacity

View Docs View full details

CP7972

AP Racings' Cerametallic range of competition clutches have been designed to handle demanding situations where a degree of clutch slip is required, mostly for rally use. The cerametallic plates are resistant to high energy inputs (i.e. long slip), as well as having a smoother engagement, allowing for better control and feel at the pedal. Due to the unique compound mixture of ceramic and metallic materials, the drive plates benefit from low wear rates, both reducing dust and debris build up. Each clutch component is individually tested at the factory prior to shipping to ensure that the part is of the highest quality.

There is a wide range of torque ratings and drive plate types available to suit most applications ranging from Formula 3 to Rallying and Endurance Racing. Although primarily used in rally applications, cerametallic clutches can also be used for circuit racing. Drawing on their years of top level experience, the knowledge that has been attained has been used to continually improve and polish the whole range of clutches in order to keep up with the ever demanding motorsport environment. The result is a huge selection of the finest quality racing clutches which can be available for all forms of motorsport, while making use of the latest in clutch technology.

Applications:

  • S2000, with naturally aspirated engine
  • ETV
  • Honda ETV-R

Features

  • Twin Plate
  • Push Type
  • Low stack height
    • Uses 6mm driven plates
  • Flywheel fixing
    • Stepped: Inner diameter location
    • Fat: Outer diameter location
  • 6 Bolt, one piece cover and lugs
    • Machined from aluminium alloy
    • CP4702 mounting studs available
  • Black hard anodised cover
  • Stainless steel wear clips fitted
  • Low maintenance
  • Individually tested
    • Match machined, balanced and clutch load recorded

Part Numbers:

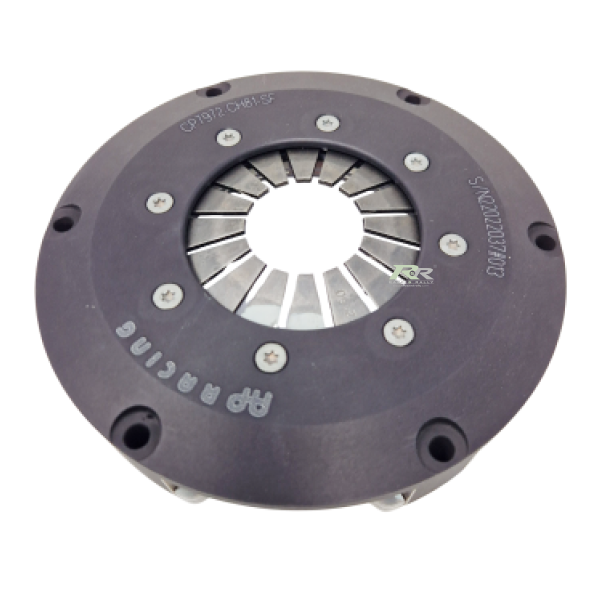

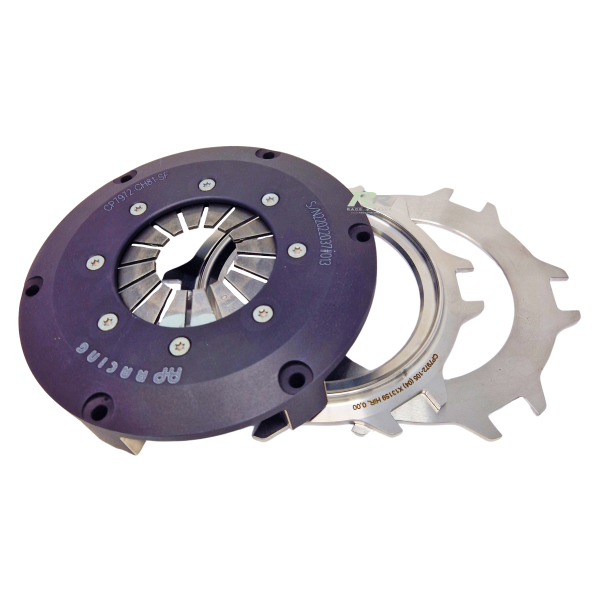

  • CP7972-CH81-SF (Skoda: 5JT141026A)
  • CP7972-OH81-SF
  • CP7972-NH81-SF

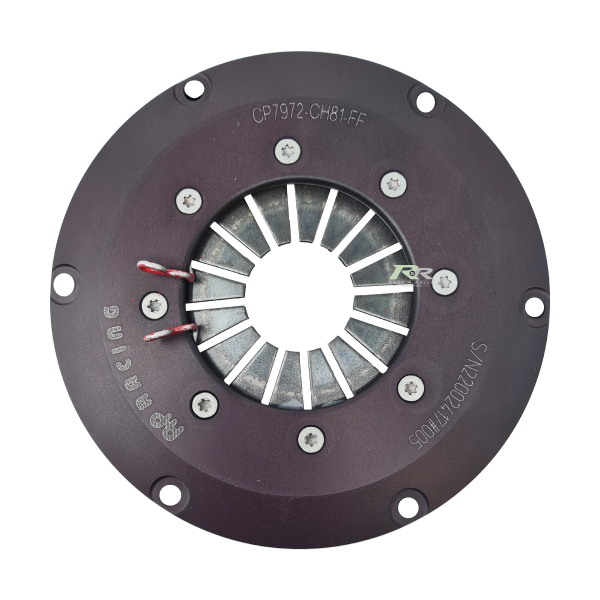

  • CP7972-CH81-FF
  • CP7972-OH81-FF
  • CP7972-NH81-FF

Bonded - Driven Plates

  • Thickness
    • 6.00mm New
    • 5.63mm Worn
  • CP8401-A036H x2 - 4 Paddle Back to Back - 1.00" x 23 Spline
  • CP8401-A026H x2 - 4 Paddle Back to Back - 7/8" x 20 Spline
  • CP7972-A036H x2 - 4 Paddle Nested - 1.00" x 23 Spline
  • CP8601-A036H x2 - 6 Paddle Back to Back - 1.00" x 23 Spline

Recommended Release Bearing:

Spare Parts

CP7972 - Installation Drawing

CP7972

Brand:

AP Racing

Manufacturer Part Number:

CP7972-CH81-FF, CP7972-OH81-SF, CP7972-CH81-SF
