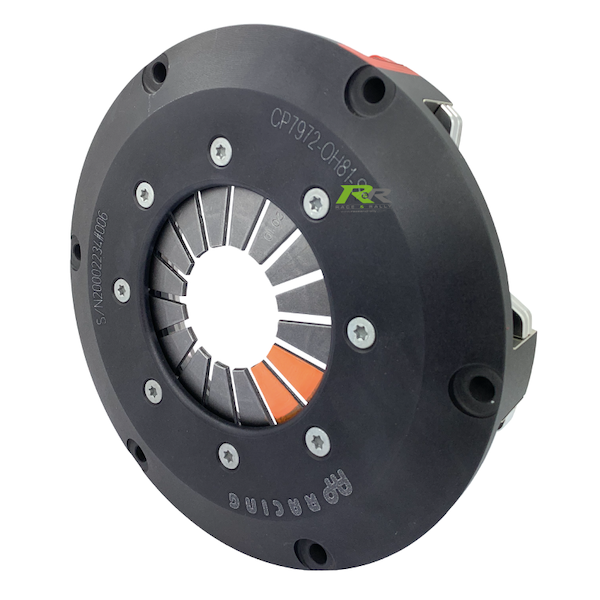

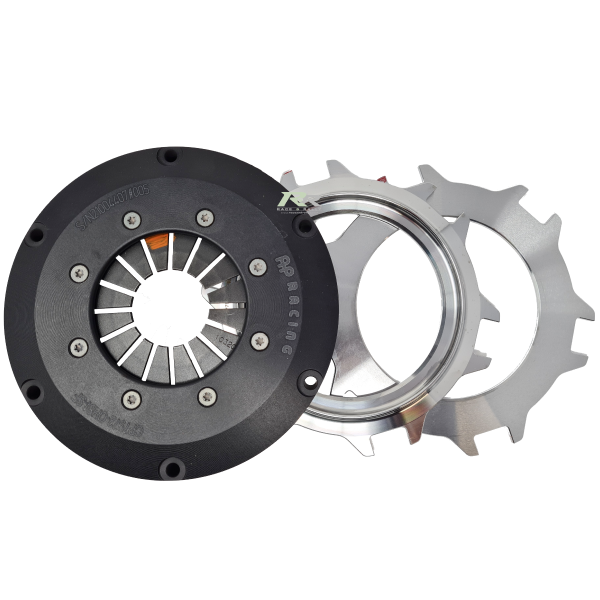

Ø184mm Twin Plate Low Stack Height Clutch - Cerametallic Paddle - 421Nm Torque - Stepped Flywheel

Ø184mm Twin Plate Low Stack Height Clutch - Cerametallic Paddle - 421Nm Torque - Stepped Flywheel

CP7972-OH81-SF

€1029.84 €1266.70
Sale Sold out
Flywheel Fixing
Torque Capacity
View Docs
View full details

CP7972-OH81-SF

Typical Applications:

Features:

  • Twin plate
  • Push Type
  • Low stack height
    • uses 6mm drive plates
  • Stepped or Flat Flywheel Fixing
  • 6 bolt, one piece cover and lugs
    • machined from aluminium alloy. Allows dust and debris to escape.
  • Black hard anodised
  • Stainless steel wear plates fitted
  • Individually tested
    • match machined, balanced and clutch load recorded.
  • Mounting studs available, CP4702

Part Numbers:

  • Stepped Flywheel:
    • CP7972-OH81-SF

Technical Specifications:

 Torque Capacity - Nm (lbs/ft)
  • CP7972-OH81-SF - 421 (310)
Release Load - Max Peak New - daN
  • CP7972-OH81-SF - 240
Release Load - Max Peak Worn - daN
  • CP7972-OH81-SF - 330
Set-up Height - New
  • CP7972-OH81-SF - 34.12 / 31.57mm
Set-up Height - Max Worn
  • CP7972-OH81-SF - 36.72mm
Clutch "Wear in" 0.75mm
Weight (Excluding Drive Plates) 2.65 Kg
Assembly Inertia (Excluding Drive Plates) 0.0165 Kg m²
Recommended Release Bearing
Drive Plate Options
  • New = 6.00mm
  • Worn = 5.63mm

Spare Parts:
Main Pressure Plate CP7972-105
Intermediate Pressure Plate: CP3592-106
Wear Clips



Applications

 AP Racing Applications
CP7972-OH81-SF
  • 3MO ETV-R Sequential Gearbox
Brand AP Racing
Option SKU Barcode
Stepped Fywheel / 421 Nm (310 lbft) CP7972-OH81-SF
