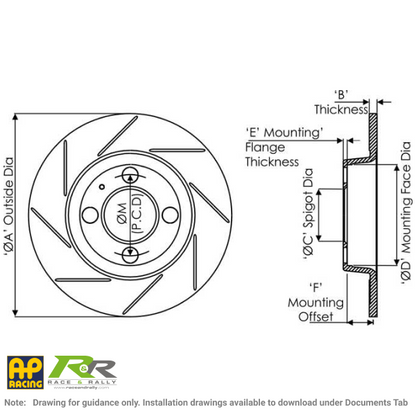

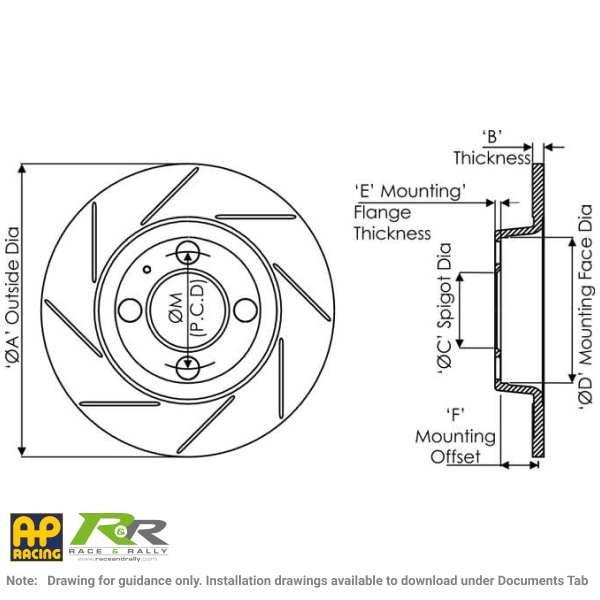

TECHNICAL SPECIFICATIONS ('LETTER' RELATING TO DISC DRAWING)

• 'A' Outside Diameter: 264mm
• 'B' Thickness: 11.10mm
• 'M' P.C.D.: 107.95mm
• Fixing Type:
• 4 Stud
• Ø11.60mm Mounting Hole
• 'C' Spigot Diameter: 86.36mm
• 'D' Mounting Flange Diameter: 133.35mm
• 'E' Mounting Flange Thickness: 7.87mm
• 'F' Mounting Offset: 16.8mm
• Max Pad Depth: D52
• Weight: 3.8kg [per disc]
• Face Types Available:
• P | Plain Face

Part Numbers

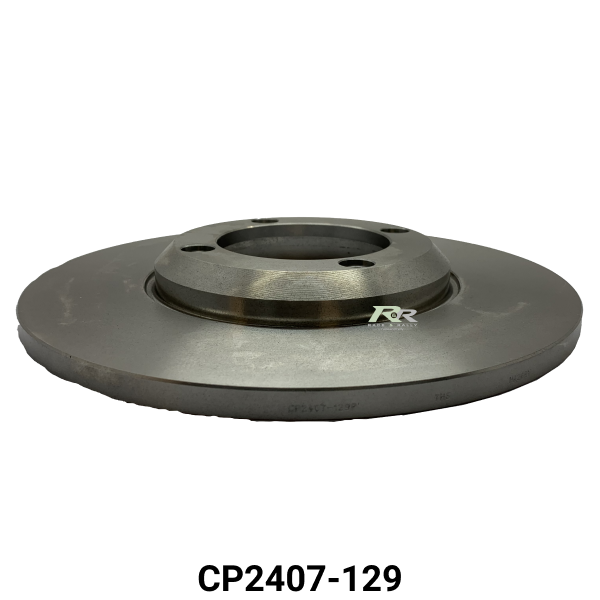

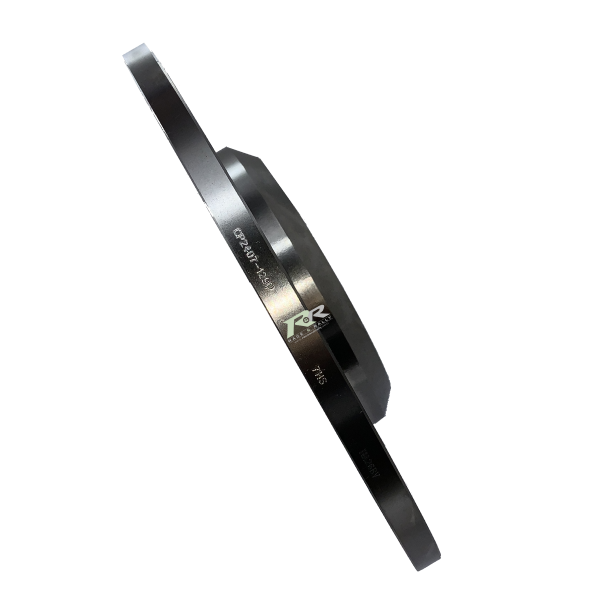

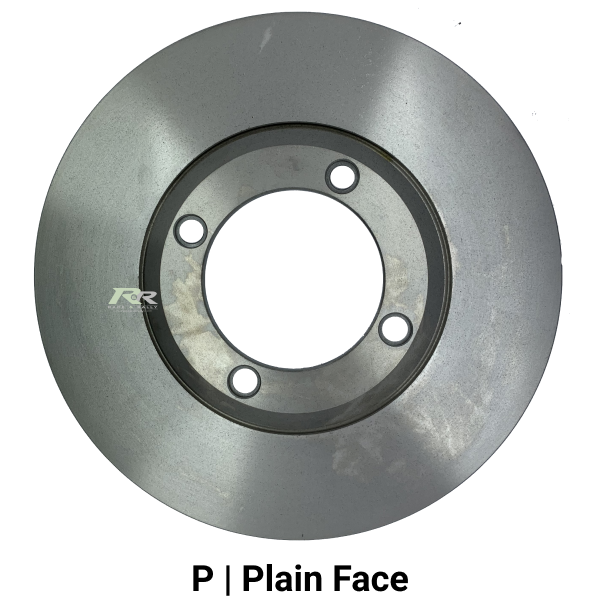

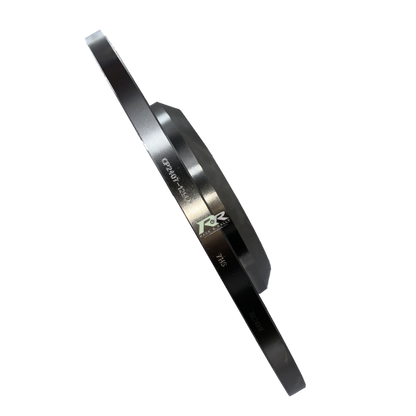

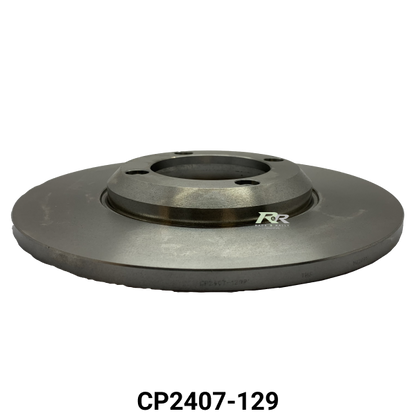

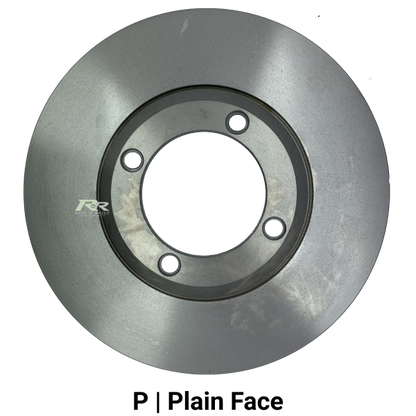

• CP2407-129P
