• Vauxhaul Nova - Works Spec

TECHNICAL SPECIFICATIONS ('LETTER' RELATING TO DISC DRAWING)

• 'A' Outside Diameter: 295mm
• 'B' Thickness: 25.4mm
• 'M' P.C.D.: 190.5mm
• Fixing Type: Bolted
• 12 Bolts
• Ø6.40mm Mouting Holes
• 'C' Eye Diameter: 207.0mm
• 'D' Inside Flange Diameter: 173.5mm
• 'H' Mounting Flange Thickness: 5.6mm
• Max Pad Depth: D44

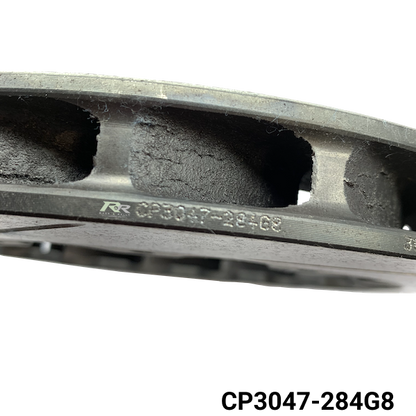

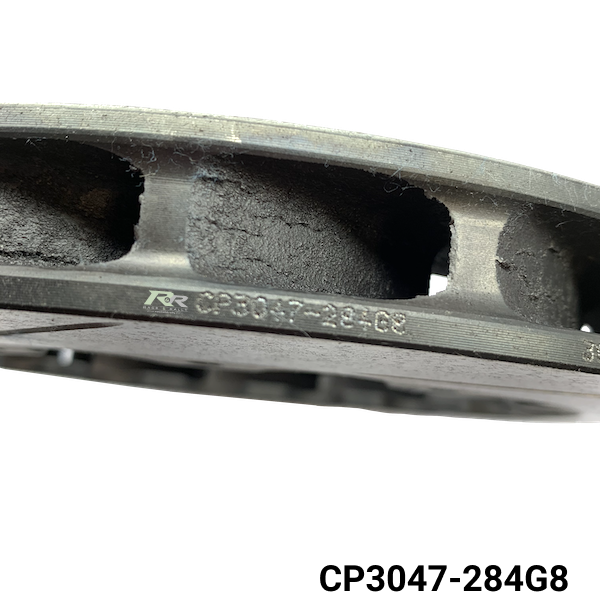

• Number of Vanes: 24

• Air Gap: 15.5mm
• Face Types Available:
• G8 | 8-Straight Forward Facing Grooves

INSTALLATION DRAWING

PART NUMBERS

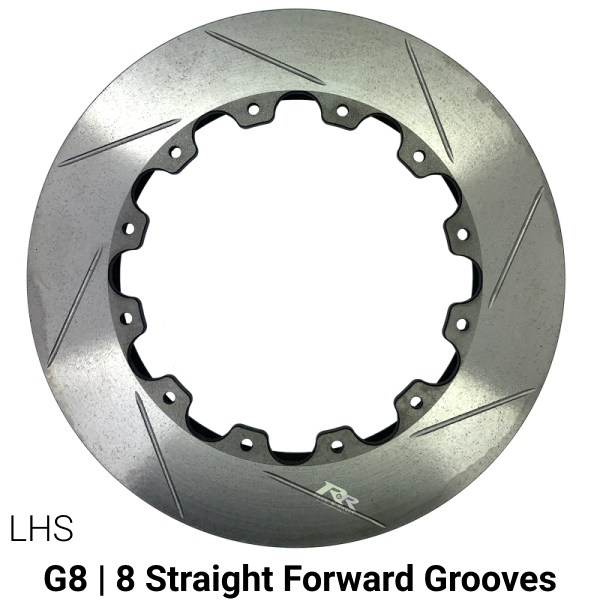

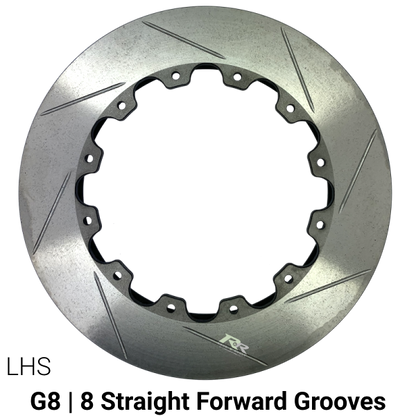

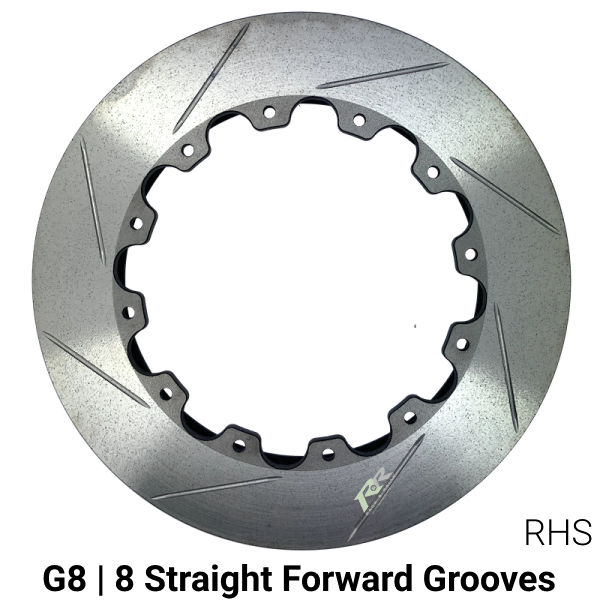

G8 | 8-Straight Forward Facing Grooves

• CP3047-284G8 - Right-hand side
• CP3047-285G8 - Left-hand side
