Ø295mm Ventilated Brake Disc

Ø295mm Ventilated Brake Disc

295-28-0051-03

€401.04 €493.28
Sale Sold out
  • Feature Icon AP Replacement
  • Feature Icon Ø295mm
  • Feature Icon 28mm Thickness
  • Feature Icon 177.8mm P.C.D.
  • Feature Icon 13.5mm Air Gap
  • Feature Icon 12-Bolts
  • Feature Icon Slotted Face Design
View full details

TECHNICAL SPECIFICATIONS ('LETTER' RELATING TO DISC DRAWING)

  • 'A' Outside Diameter: 295mm
  • 'B' Thickness: 28.00mm
  • 'M' P.C.D.: 177.8mm
  • Fixing Type: Bolted
    • 12 Bolts
    • Ø6.40mm Mounting Hole
  • 'C' Eye Diameter: 192.00mm
  • 'H' Mounting Flange Thickness: 6.75mm
    • Mounting Flange stepped in 0.25mm
  • Air Gap: 13.50mm
  • Weight: 6.35kg [per disc]
  • Face Types Available:
    • Slotted

Ventilated Brake Disc Drawing

PART NUMBERS

Slotted Face Grooves

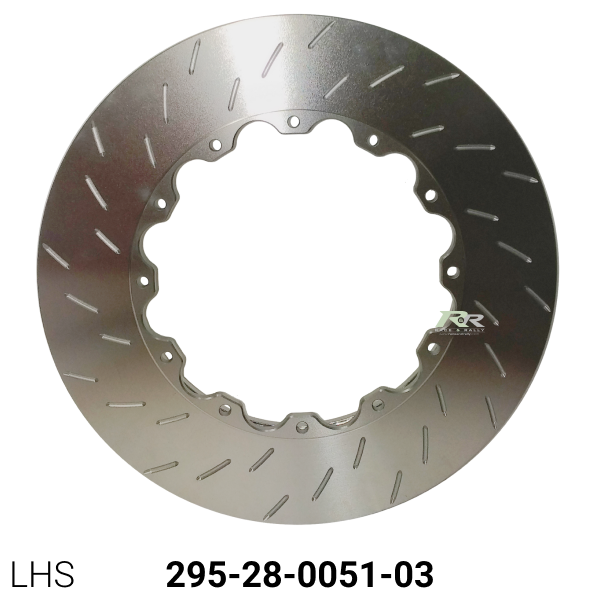

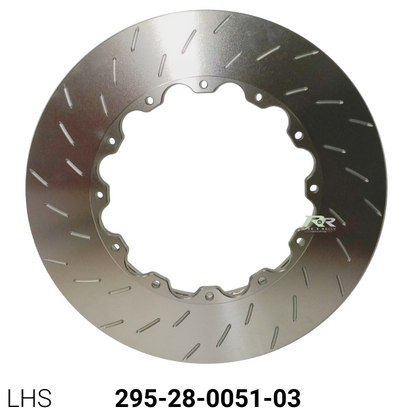

  • 295-28-0051-03 - Left Hand Side Disc

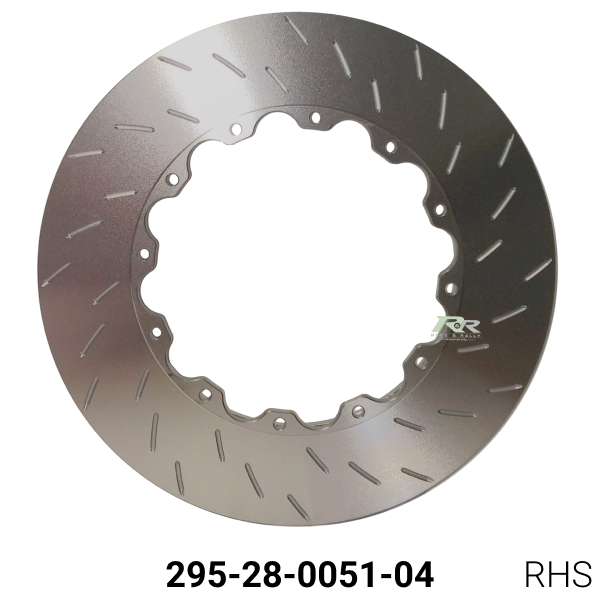

  • 295-28-0051-04 - Right Hand Side Disc

AP Racing Equivalent

  • 295.28.0051.03 - CP3580-103
  • 295.28.0051.04 - CP3580-102

Compatiable Mounting Bells

  • CP294-120
.

Brand:

PFC Brakes

Manufacturer Part Number:

295-28-0051-03, 295-28-0051-04
