AP direct formula replacement for Mk2 Escort on Tarmac Applications

TECHNICAL SPECIFICATIONS ('LETTER' RELATING TO DISC DRAWING)

• 'A' Outside Diameter: 304mm
• 'B' Thickness: 28.00mm
• 'M' P.C.D.: 177.8mm
• Fixing Type: Bolted
• 12 Bolts
• Ø6.40mm Mounting Hole
• 'C' Eye Diameter: 201.40mm
• 'H' Mounting Flange Thickness: 5.5mm
• Mounting Flange stepped in 0.25mm
• Air Gap: 17.00mm
• Weight: 5.38kg [per disc]
• Face Types Available:
• Slotted

PART NUMBERS

Slotted Face Grooves

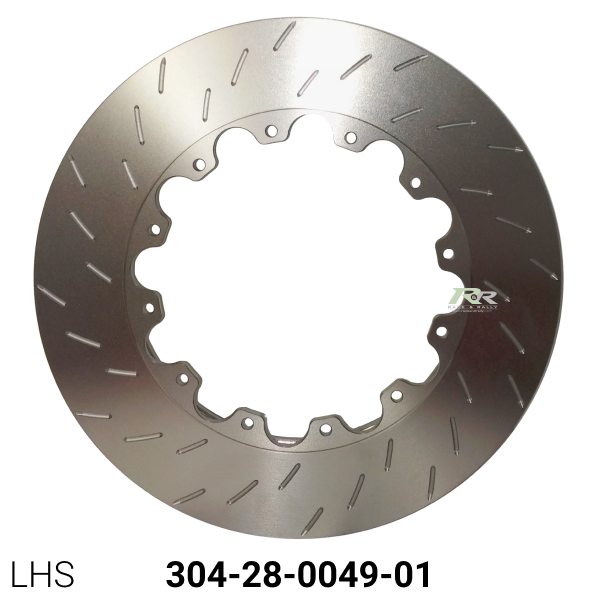

• 304-28-0049-01 - Left Hand Side Disc

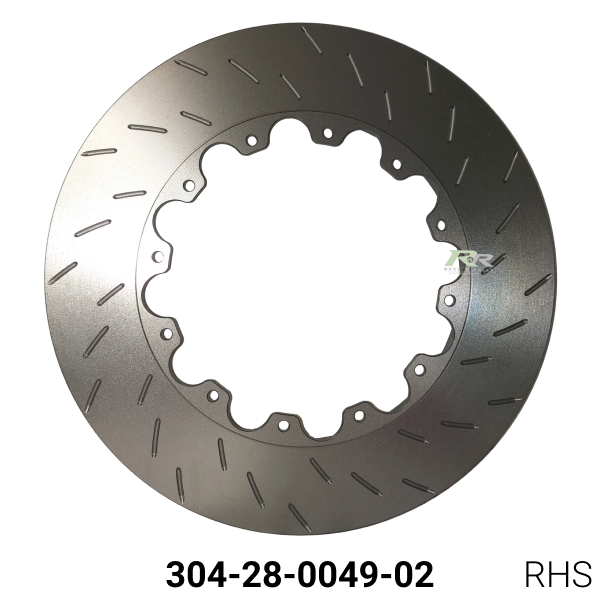

• 304-28-0049-02 - Right Hand Side Disc

AP Racing Equivalent

• 304-28-0049-01 - CP3580-2573
• 304-28-0049-02 - CP3580-2572
