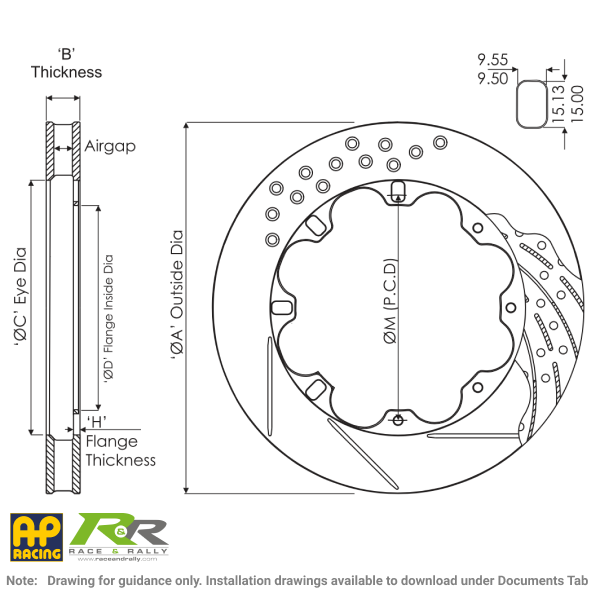

TECHNICAL SPECIFICATIONS ('LETTER' RELATING TO DISC DRAWING)

• 'A' Outside Diameter: 325mm
• 'B' Thickness: 28.0mm
• 'M' P.C.D.: 203.2mm
• Fixing Type: Bolted
• 12 Bolts
• Ø6.40mm Mounting Hole
• 'C' Eye Diameter: 222.00mm
• 'D' Inside Flange Diameter: 187.0mm
• 'H' Mounting Flange Thickness: 6.6mm
• Max Pad Depth: D51
• Number of Vanes: 48
• Air Gap: 14.0mm
• Weight: 5.80kg [per disc]
• Face Types Available:

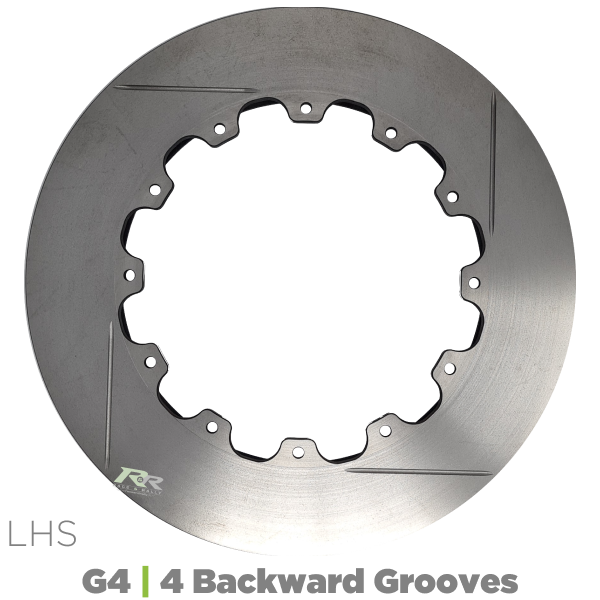

• G4 | 4 Straight Forward Grooves
• G8 | 8 Straight Forward Grooves
• RD | Radiused Drilled
