AP Replacement disc suitable for Ferrari Challenge (Rear)

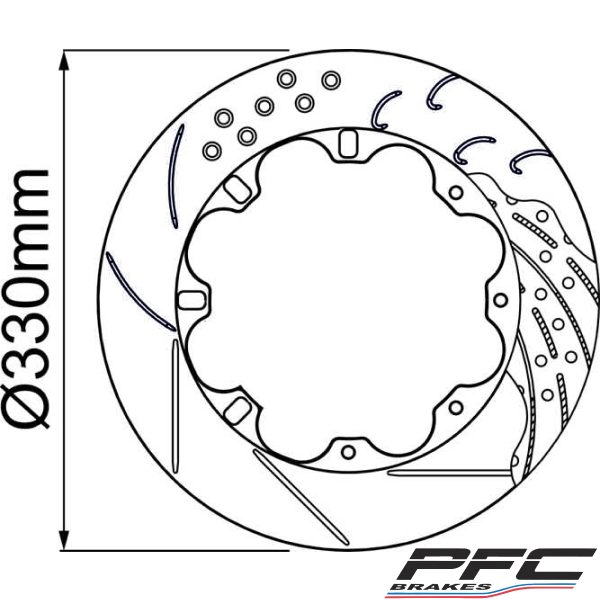

TECHNICAL SPECIFICATIONS ('LETTER' RELATING TO DISC DRAWING)

• 'A' Outside Diameter: 330mm
• 'B' Thickness: 28.00mm
• 'M' P.C.D.: 203.2mm
• Fixing Type: Bolted
• 12 Bolts
• Ø6.40mm Mounting Hole
• 'C' Eye Diameter: 226.7mm
• 'H' Mounting Flange Thickness: 5.75mm
• Mounting Flange stepped in 0.25mm
• Air Gap: 13.50mm
• Weight: 6.75kg [per disc]
• Face Types Available:
• Slotted

PART NUMBERS

Slotted Face Grooves

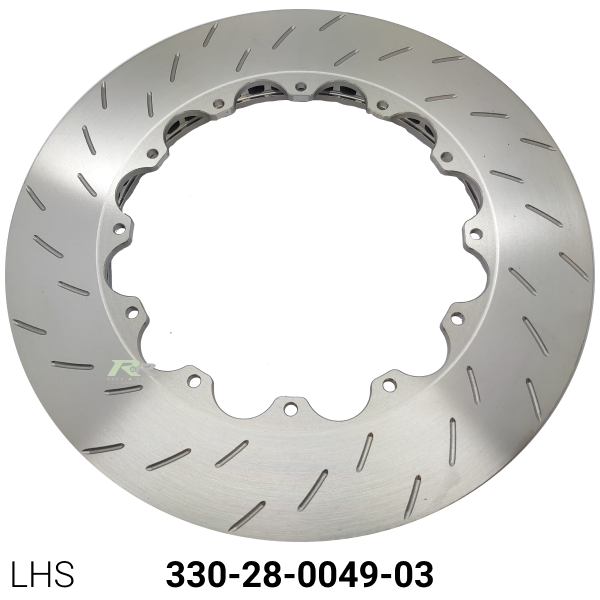

• 330-28-0049-03 - Left Hand Side Disc

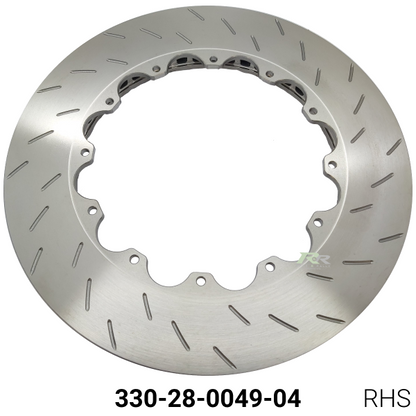

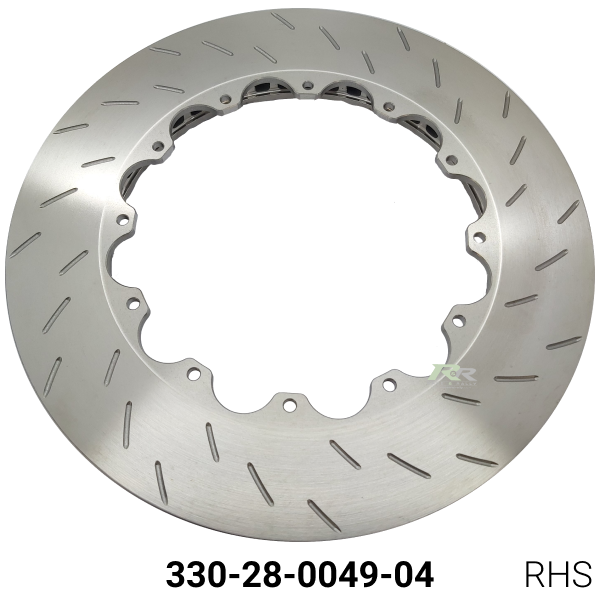

• 330-28-0049-04 - Right Hand Side Disc

AP Racing Equivalent

• 330.28.0049.03 - CP3580-2899
• 330.28.0049.04 - CP3580-2898
