AP direct formula replacement, suitable for Mistubishi EVO 9.

TECHNICAL SPECIFICATIONS ('LETTER' RELATING TO DISC DRAWING)

• 'A' Outside Diameter: 332mm
• 'B' Thickness: 32.00mm
• 'M' P.C.D.: 203.2mm
• Fixing Type: Bolted
• 12 Bolts
• Ø6.40mm Mounting Hole
• 'C' Eye Diameter: 217.00mm
• 'H' Mounting Flange Thickness: 5.6mm
• Mounting Flange stepped in 0.25mm

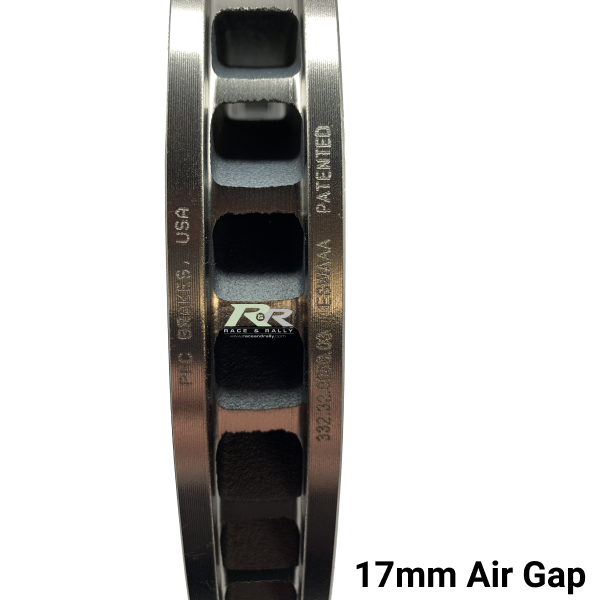

• Air Gap: 17.00mm
• Weight: 6.90kg [per disc]
• Face Types Available:
• Slotted

PART NUMBERS

Slotted Face Grooves

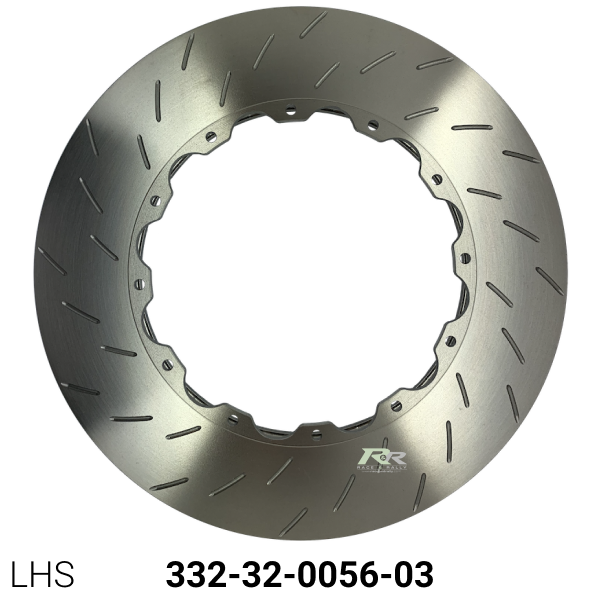

• 332-32-0056-03 - Left Hand Side Disc

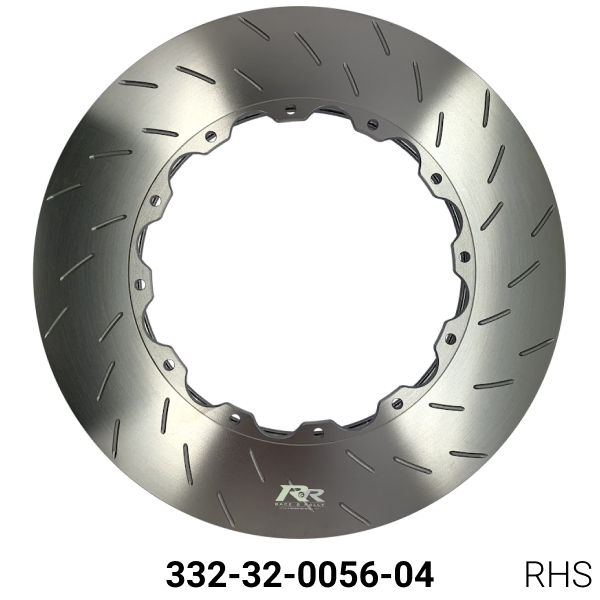

• 332-32-0056-04 - Right Hand Side Disc

AP Racing Equivalent

• 332-32-0056-03 - CP3581-766
• 332-32-0056-04 - CP3581-767

Compatiable Mounting Bells:

• Mistubishi EVO 9
• CP2494-1307 - RBR33212B203
