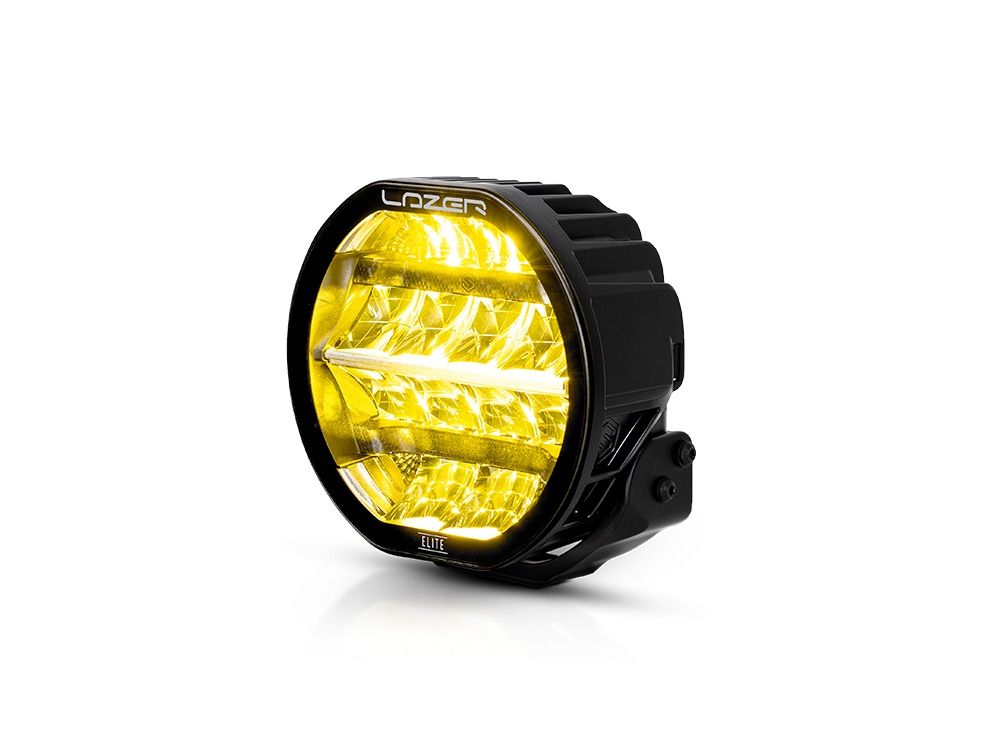

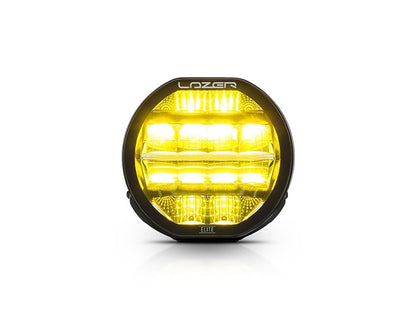

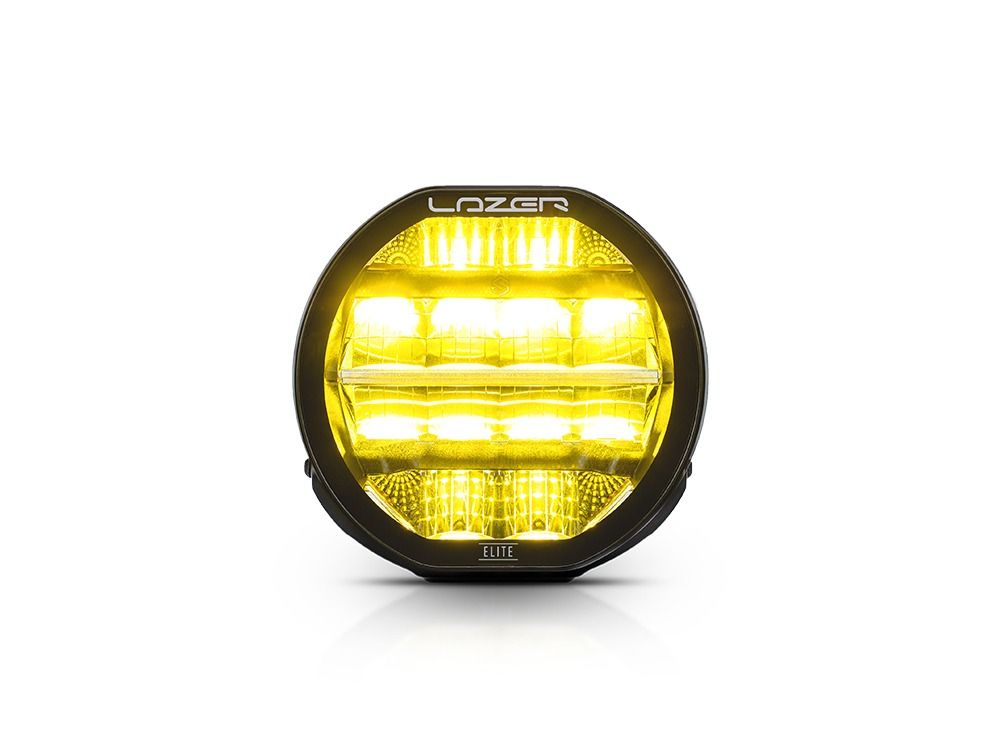

Sentinel 7" Elite (Yellow)

Sentinel 7" Elite (Yellow)

SKU:0S7-ELITE-PL-YLW-SM

Regular price €402.50 €495.08
Sale Sold out
  • Feature Icon 9600 Lumens

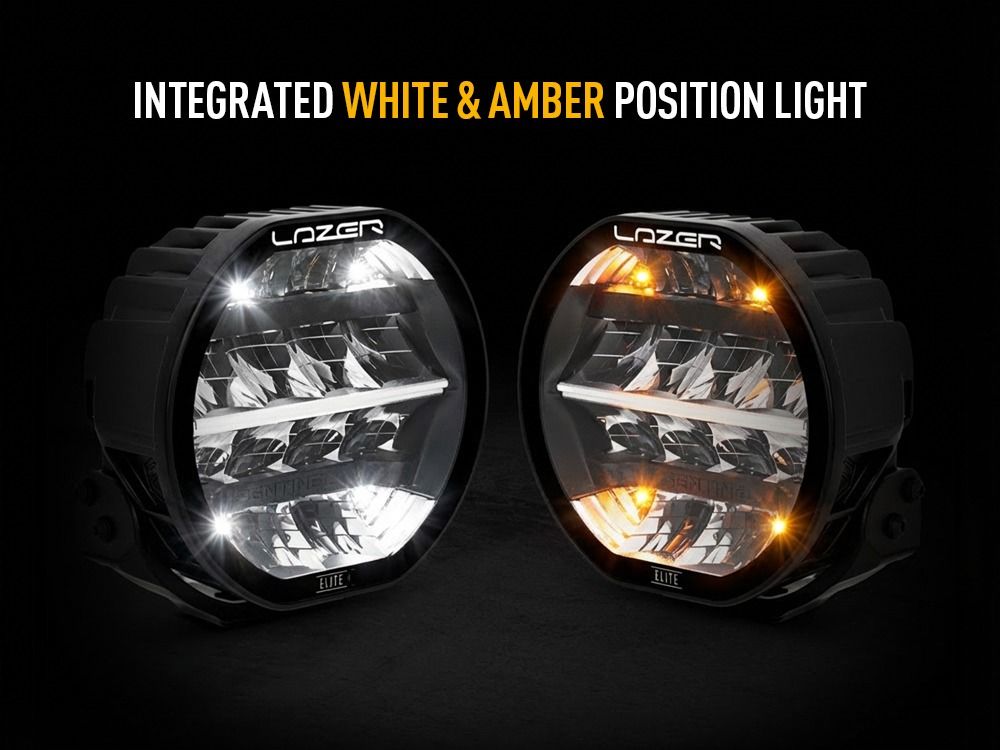

  • Feature Icon Integrated white and amber position light function
  • Feature Icon Yellow LED
Mounting Bracket

View full details

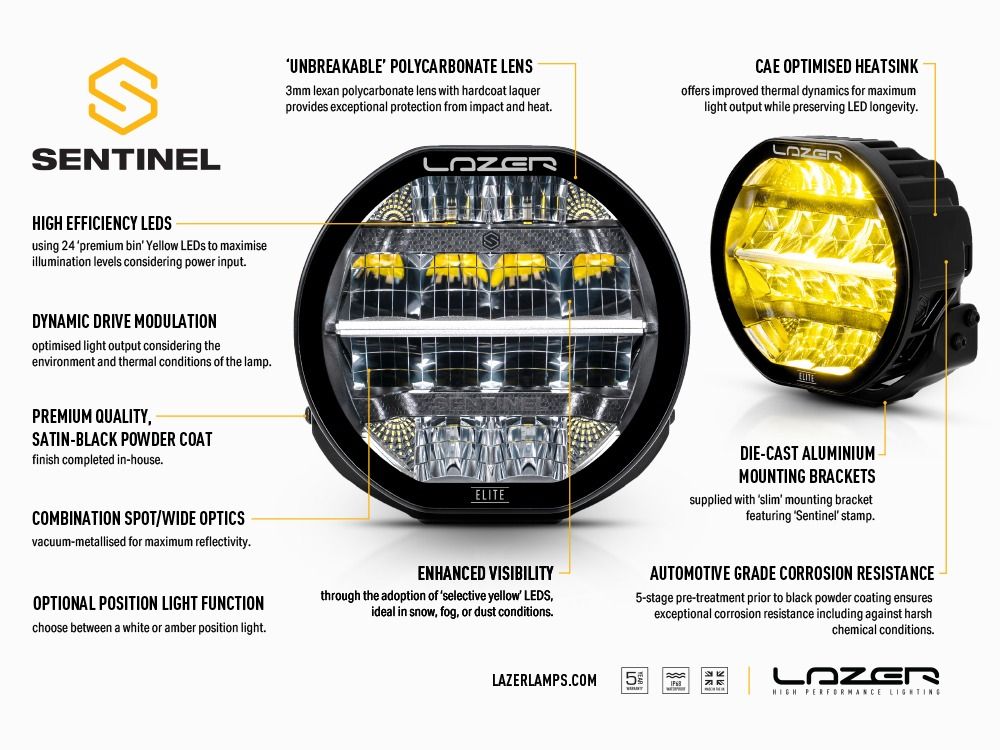

The Sentinel range of round LED driving lights now expands with the introduction of a 7-inch Elite Yellow version. Retaining the unmistakable high-end styling and industry-leading build quality, the new variant delivers outstanding high-beam performance with a yellow LED output engineered specifically for enhanced visibility in adverse weather such as fog, dust, snow and rain.

Using 24 high-output yellow LEDs, the Elite Yellow delivers 10,248 raw lumens, with lighting performance enhanced through precision-engineered optics and class-leading electronics. Its combination beam pattern combines long-range punch with a wide 65° left/right spread, offering improved visibility of the terrain ahead. The balanced distribution and carefully selected yellow colour temperature provide improved contrast, reduced glare and superior definition in challenging driving conditions.

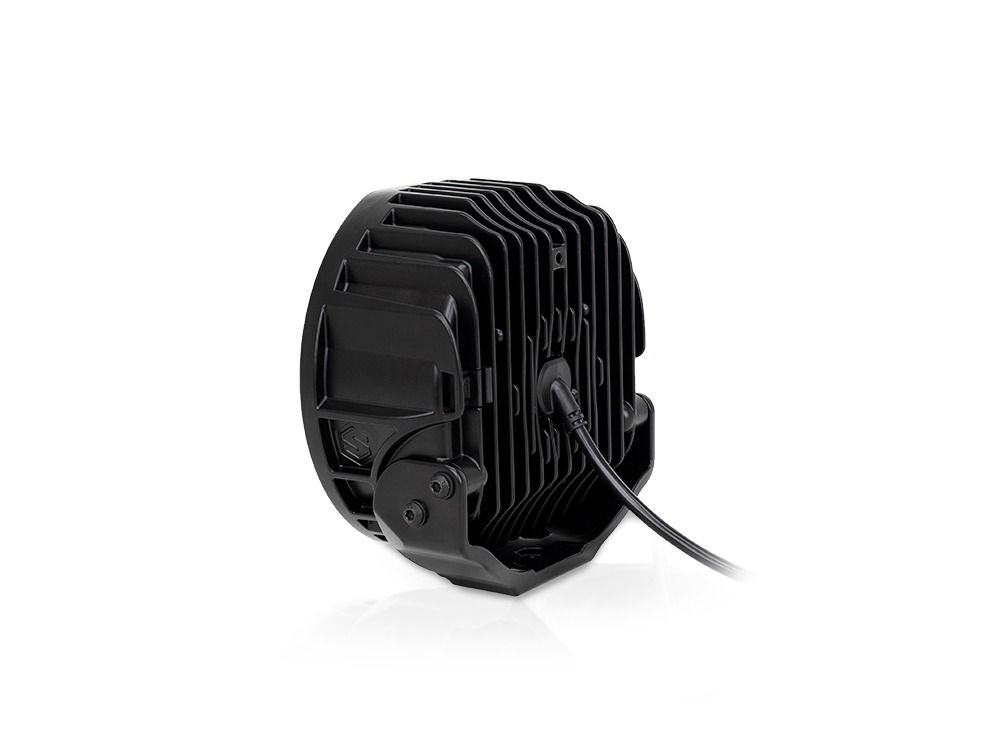

The distinctive stealth styling of the Sentinel 7” is achieved through black printed circuit boards and a black bezel incorporating intricate hexagonal detailing. The Elite Yellow version also features an optional white or amber backlight, allowing customers to further personalise the lamp’s appearance. Each lamp is supplied with a die-cast aluminium mounting bracket, pre-treated and powder-coated satin black for maximum corrosion resistance and long-term durability.

As with all Lazer Lamps products, the Sentinel lamps are designed, engineered and manufactured in-house in the UK. There is no compromise in regard to component parts or build processes in order to achieve a superior product, while simultaneously ensuring that, more than ever, environmental stewardship and an ambitious carbon-reduction programme have also featured heavily in the Sentinel product design and build.

Whats Included:

  • x1 Sentinel 7'' Elite LED Lamp
  • x1 'Slim' Mount Kit (1141-0S7-K)
  • x1 Black Lens Cover (LC-0S7-lllR)
  • x1 Installation Instructions

Product Specifications:

  • Voltage Range (DC): 10-32V
  • LED Life: 50,000 hours
  • Weight: 1.5 kg

HIGH BEAM FUNCTION

  • Total Luminous Flux: 9,600 Lm
  • Total Driver 'FOV' Flux †: 5,568 Lm
  • Colour Temperature: Yellow
  • Power Consumption: 110 Watts
  • Current Draw (14.4V): 8 Amps
  • Peak Current Draw: 9.3
  • Connector: 3-Pin Superseal (+25cm Cable)

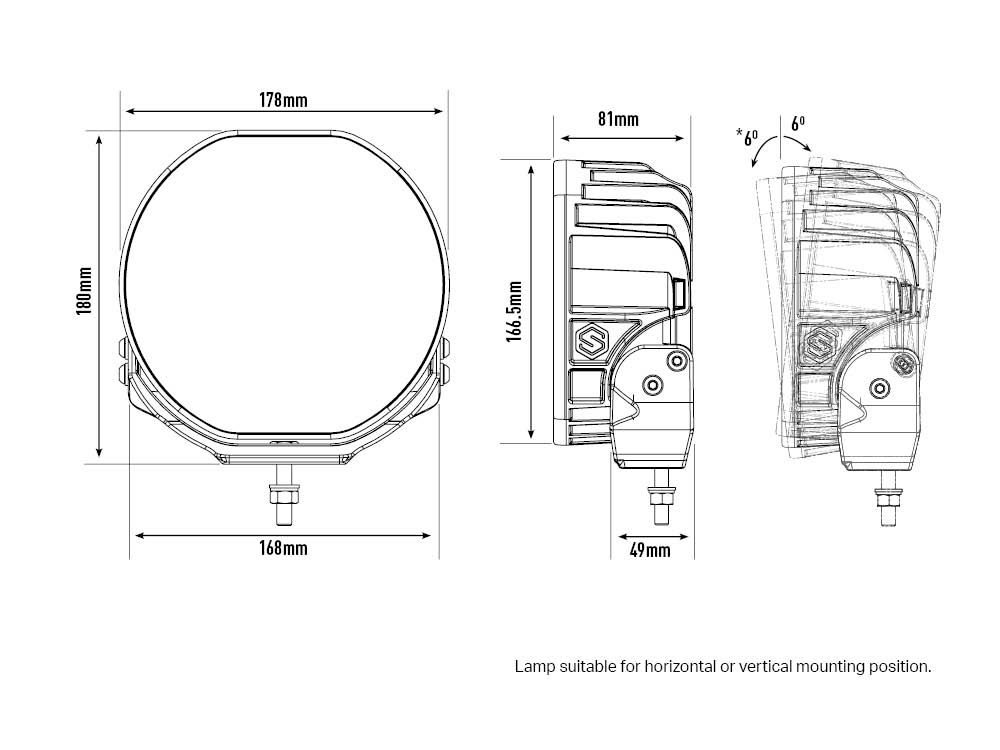

DIMENSIONS

  • Width: 178mm
  • Depth: 81mm
  • Height: 180mm

CERTIFICATION

  • IP Rating: #IP68
  • EMC Certification: ECE R10
  • Salt Spray Test: ISO 9227
  • Dump Load Protection: ISO 7637-2

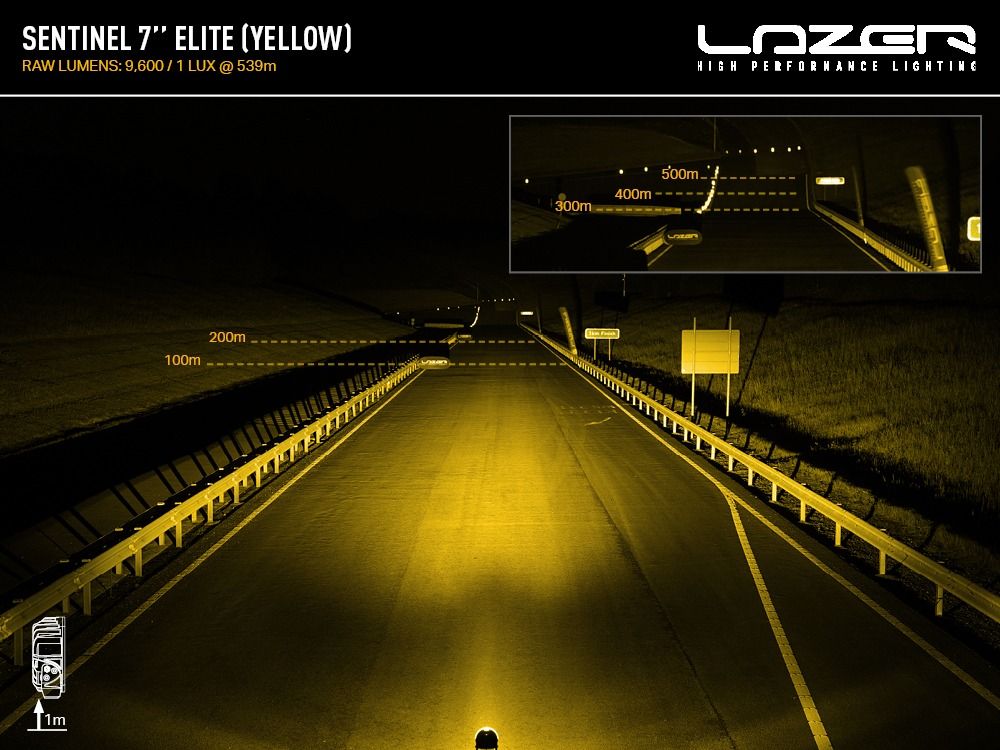

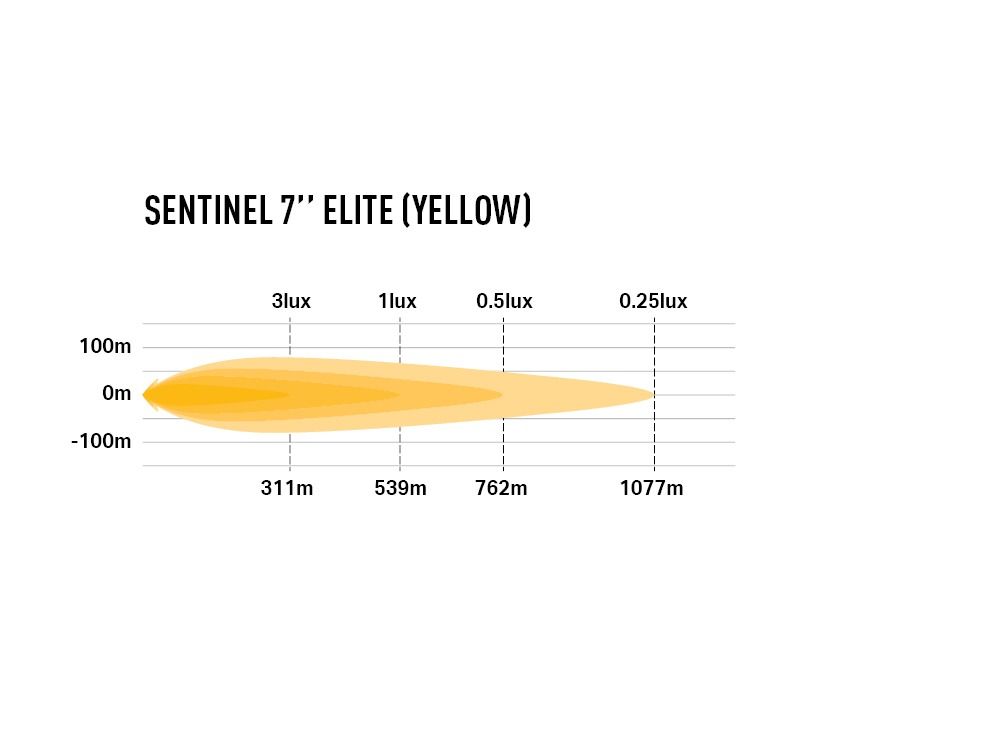

PHOTOMETRIC DATA

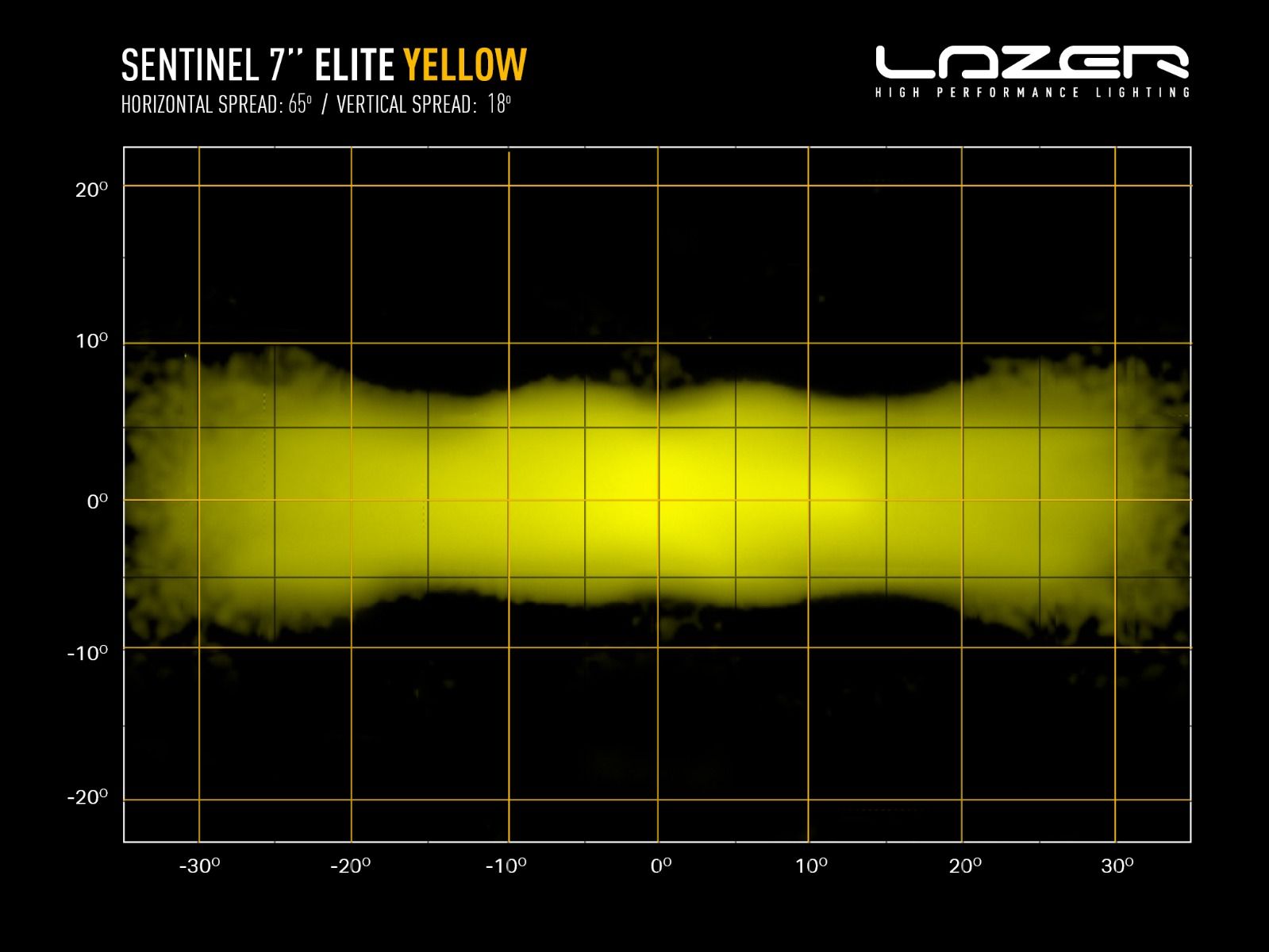

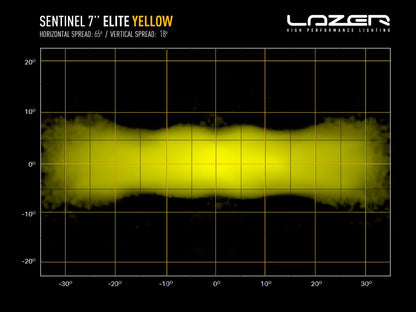

  • Horizontal / Vertical Beam Angle: 65° / 18°
  • 0.25 lx Line: 1077m
  • 0.5 lx Line: 762m
  • 1 lx Line: 539m
  • 3 lx Line: 311m



† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down.

# - All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at Lazers UK facility is fully submerged under water prior to sending out.

Brand Lazer Lamps
Option SKU Barcode
Slim Mount 0S7-ELITE-PL-YLW-SM
