TECHNICAL SPECIFICATIONS ('LETTER' RELATING TO DISC DRAWING)

• 'A' Outside Diameter: 270mm
• 'B' Thickness: 22.0mm
• 'M' P.C.D.: 108.0mm
• Fixing Type:
• 4 Stud
• Ø12.40mm Stud Hole
• 'C' Spigot Diameter: 65.26mm
• 'D' Internal Flange Diameter: 129.1mm
• 'E' Eye Diameter: 165.00mm
• 'F' Mounting Flange Thickness: 6.0mm
• 'G' Mounting Offset: 30.7mm
• Max Pad Depth: D52
• Air Gap: 11.0mm
• Weight: 4.8kg [per disc]
• Face Types Available:

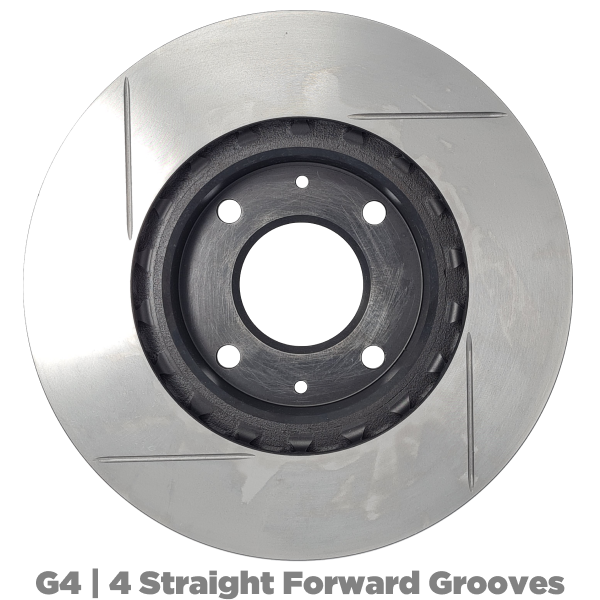

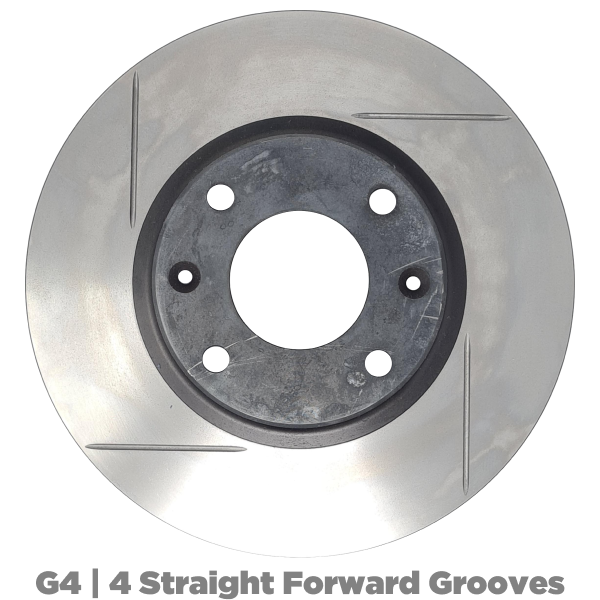

• G4
• G8
