Manufactured to exacting specifications to ensure an accurate fit to the Banjo Hose Ends every time. Goodridge range of banjo bolts covers all possible applications.

CONSTRUCTION

• Suitable for Goodridge Banjo's
• They are available in a wide range of:
• Materials
• Colours
• Lengths - Under the HEX Measurement
• Threads

APPLICATIONS

• Brake
• Clutch

COMPATIABLE WASHERS

For Single Port Banjo Bolts, two washers are requried per assembly.
For Double Port Banjo Bolts, three-four washers are required per assembly.

• 445C - Copper Washers
• 445A - Aluminium Washer

775 - PART NUMBERS

UNDER HEX LENGTH:

Long bolts are for use with 5091 (Swaged - S5091), 5095 (Swaged - S5095) and 5096 Banjo's

• 18mm - Short Single Banjo Bolt (S)
• 20mm - Standard Single Banjo Bolt
• 25mm - Long Single Banjo Bolt (L)
• 30mm - Standard Double Banjo Bolt
• 40mm - Long Double Banjo Bolt (L)

CROSS REFERENCE

• AP Racing Reference: CP2677 = 992-03-31SZ1

GOODRIDGE MATERIAL KEY:

• B: Brass

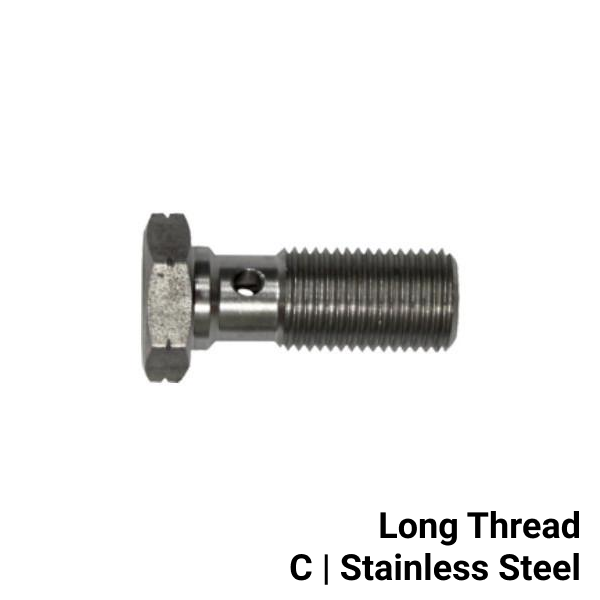

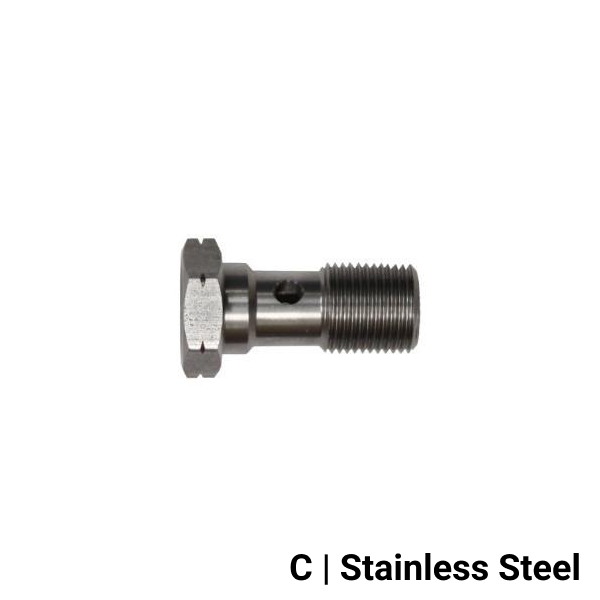

• C: Stainless Steel
• CBK: Black Stainless Steel

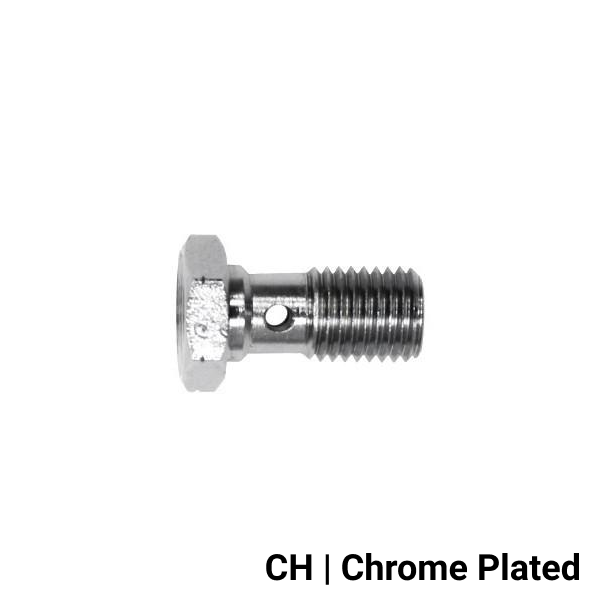

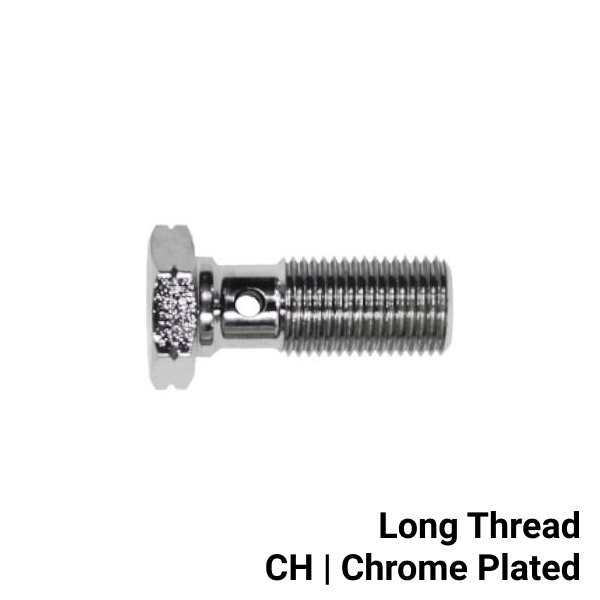

• CH: Crome Plated

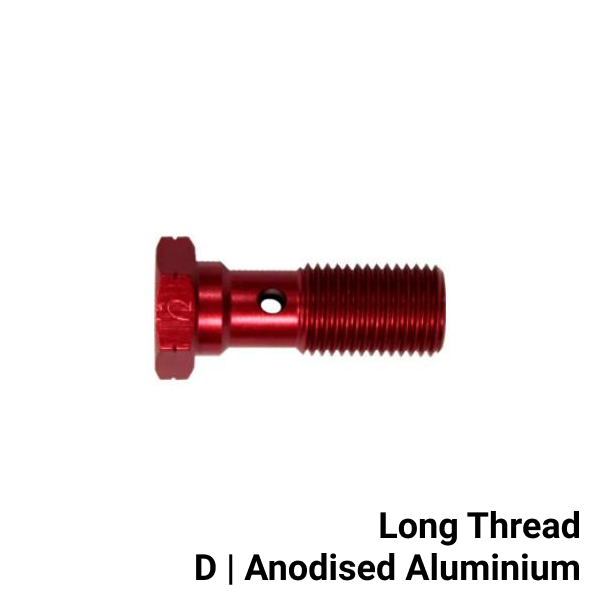

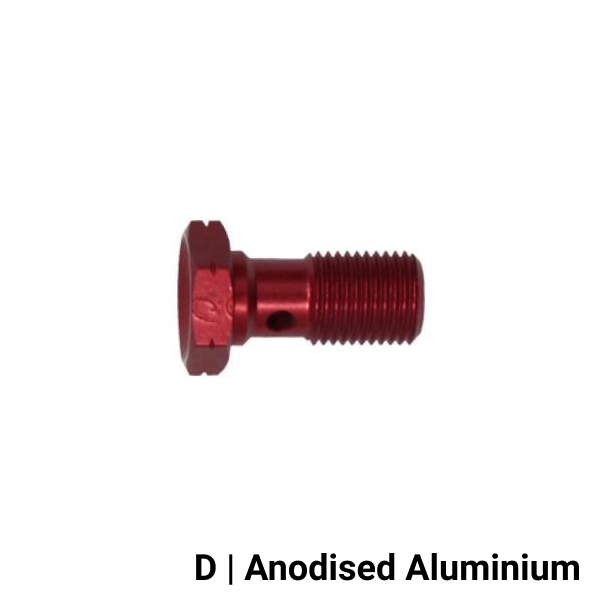

• D: Red Anodised Aluminium

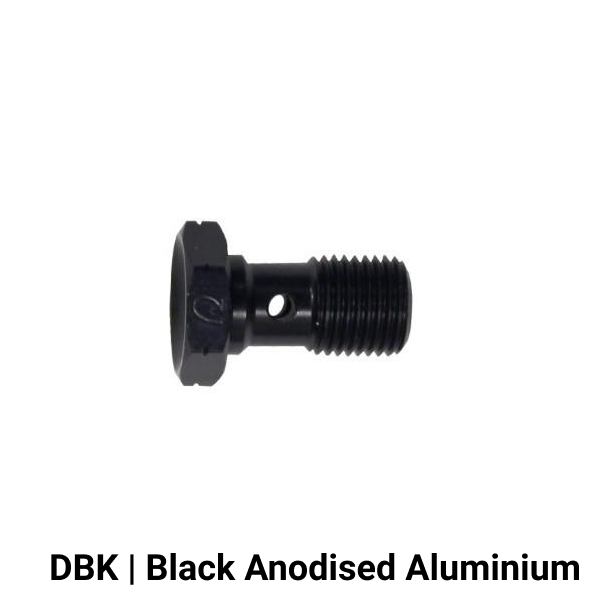

• DBK: Black Anodised Aluminium
• DBU: Blue Anodised Aluminum
• P: Zinc Plated Carbon Steel

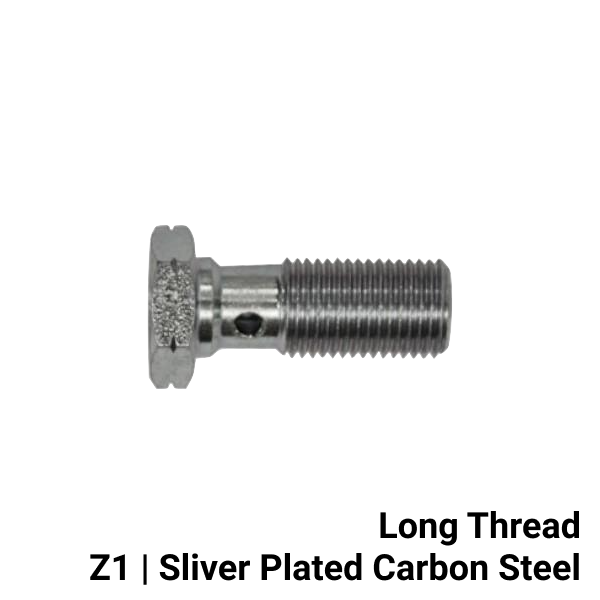

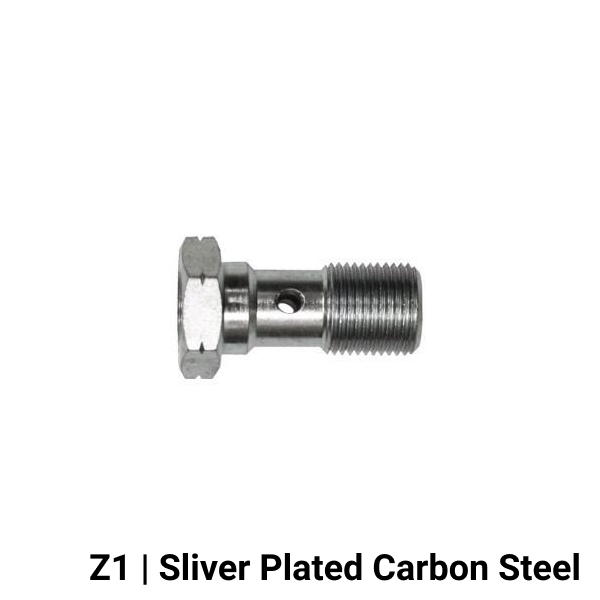

• Z1: Silver Plated Carbon Steel
