Single Banjo Bolt - Metric

Single Banjo Bolt - Metric

992-03-21C

€24.27 €29.85
Sale Sold out
  • Feature Icon Single Banjo Bolt
  • Feature Icon Metric Thread
  • Feature Icon Short / Long Variations Available
  • Feature Icon Various Material Options Available
View full details

Manufactured to exacting specifications to ensure an accurate fit to the Banjo Hose Ends every time. Goodridge range of banjo bolts covers all possible applications.

CONSTRUCTION

  • Suitable for Goodridge Banjo's
  • They are available in a wide range of:
      • Materials
      • Colours
      • Lengths - Under the HEX Measurement
      • Threads

APPLICATIONS

  • BrakeSingle Banjo
  • Clutch

COMPATIABLE WASHERS

For Single Port Banjo Bolts, two washers are requried per assembly.
For Double Port Banjo Bolts, three-four washers are required per assembly.

  • 445C - Copper Washers
  • 445A - Aluminium Washer

775 - PART NUMBERS

UNDER HEX LENGTH:

Long bolts are for use with 5091 (Swaged - S5091), 5095 (Swaged - S5095) and 5096 Banjo's

      • 18mm - Short Single Banjo Bolt (S)
      • 20mm - Standard Single Banjo Bolt
      • 25mm - Long Single Banjo Bolt (L)
      • 30mm - Standard Double Banjo Bolt
      • 40mm - Long Double Banjo Bolt (L)

CROSS REFERENCE

      • AP Racing Reference: CP2677 = 992-03-31SZ1

992

GOODRIDGE MATERIAL KEY:

  • B: Brass

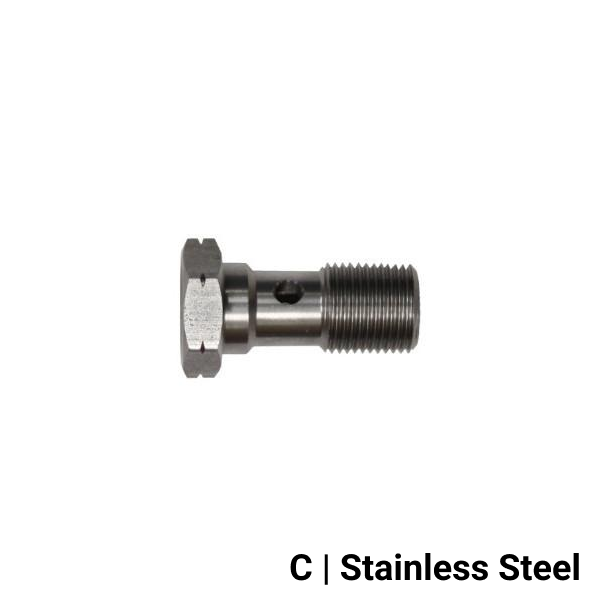

  • C: Stainless Steel
  • CBK: Black Stainless Steel

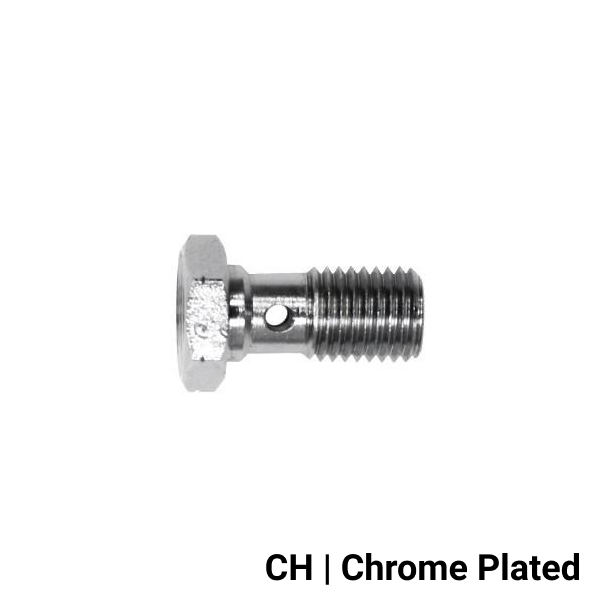

  • CH: Crome Plated

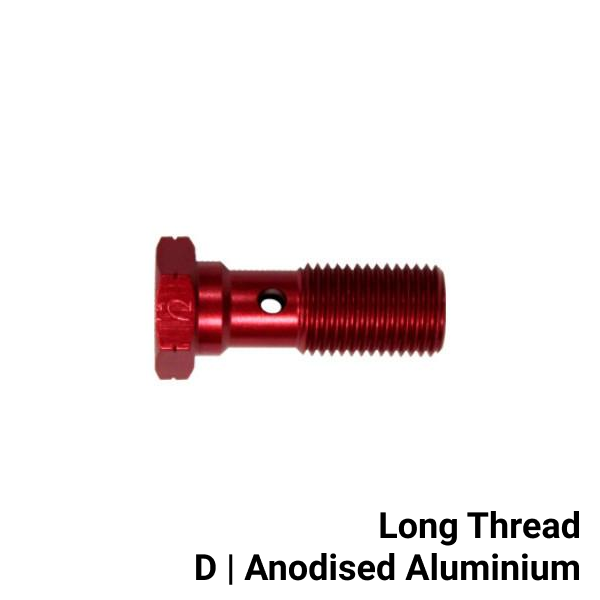

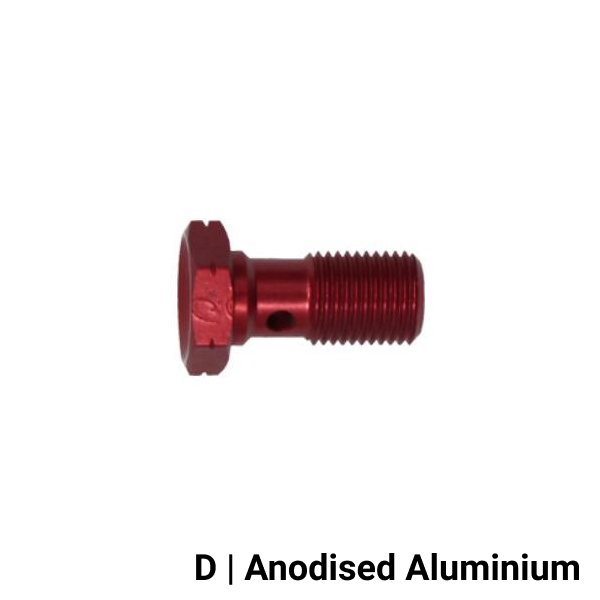

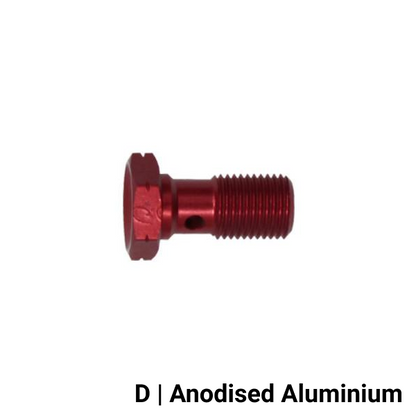

  • D: Red Anodised Aluminium

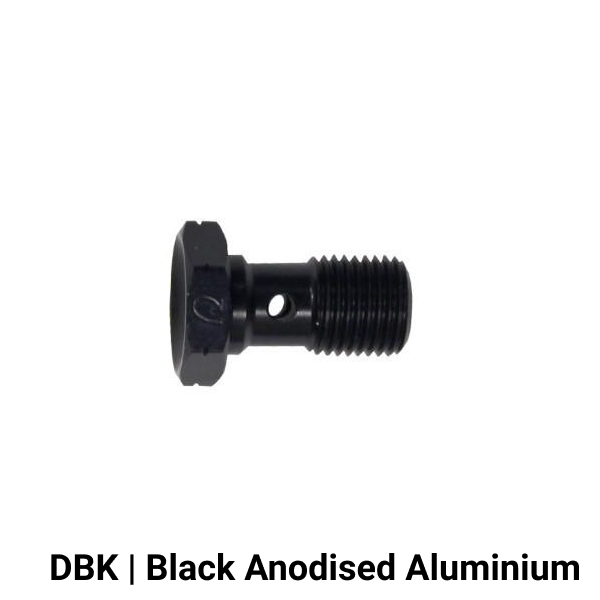

  • DBK: Black Anodised Aluminium
  • DBU: Blue Anodised Aluminum
  • P: Zinc Plated Carbon Steel

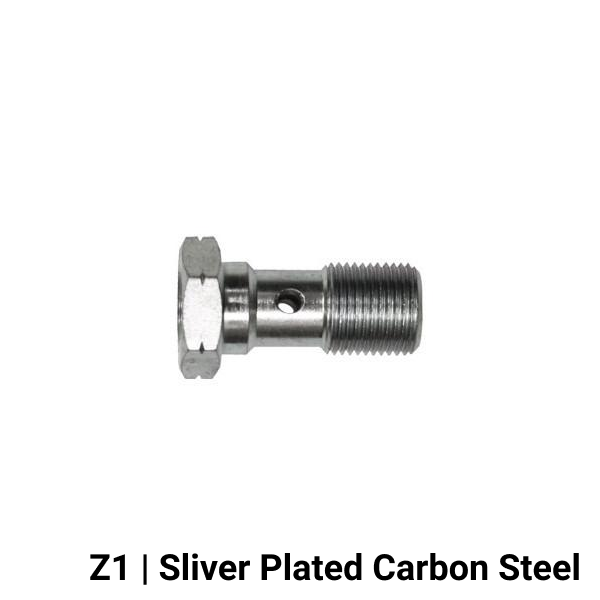

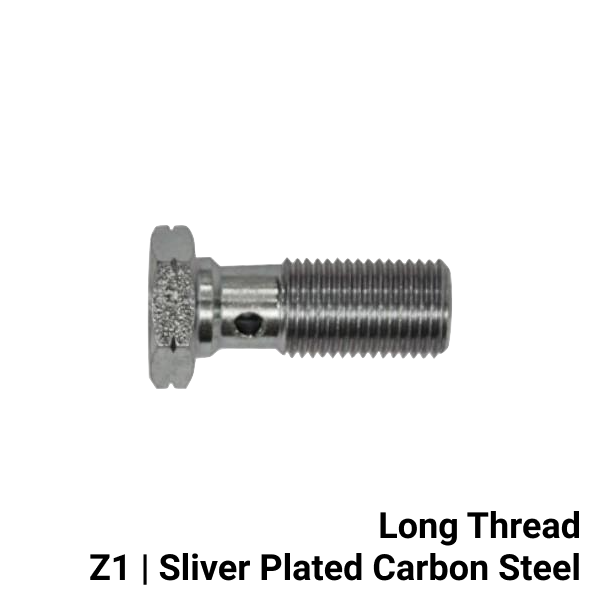

  • Z1: Silver Plated Carbon Steel

RECOMMENDED BANJO ASSEMBLE WITH BANJO BOLT:
With the suitable Banjo Bolt to Suit the desired Banjo Hole, place a copper washer either side of the Banjo to create a sealed fitment when tightened.
**Please note that the washers internal diameter must also match the Banjo Bolt size to ensure it is a sealed fitment to avoid leaks and loss of pressure.

Brand Goodridge
Options SKU Barcode
M8 x 1.00 / Single - 20mm / Stainless Steel 992-03-21C
M8 x 1.25 / Single - 20mm / Stainless Steel 992-03-22C
M10 x 1.00 / Single - 20mm / Stainless Steel 992-03-31C
M10 x 1.00 / Single - 20mm / Chrome Plated 992-03-31CH
M10 x 1.00 / Single - 20mm / Anodised Aluminium 992-03-31D

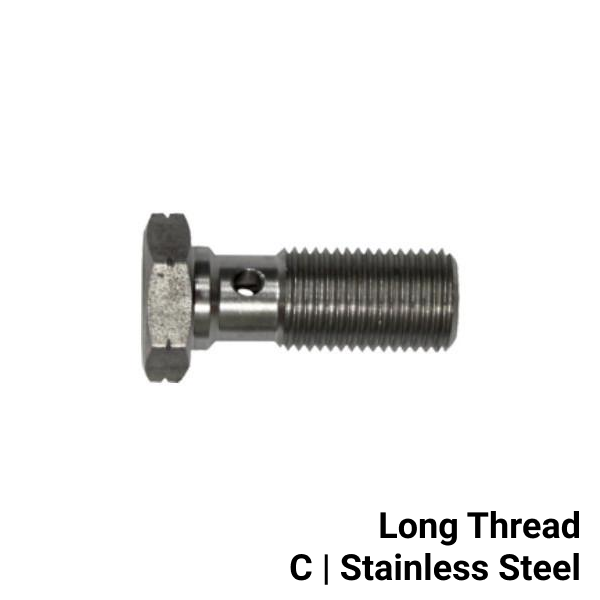

M10 x 1.00 / Single Long - 25mm (L) / Stainless Steel 992-03-31LC

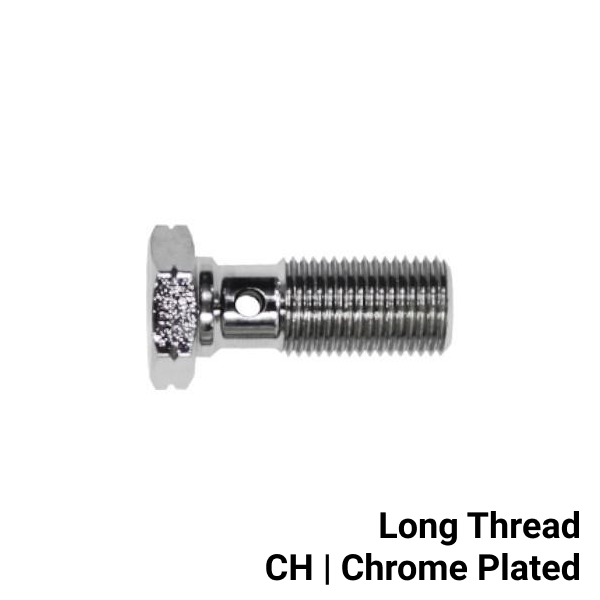

M10 x 1.00 / Single Long - 25mm (L) / Chrome Plated 992-03-31LCH
M10 x 1.00 / Single Short - 18mm (S) / Stainless Steel 992-03-31SC
M10 x 1.00 / Single Short - 18mm (S) / Black Stainless Steel 992-03-31SCBK
M10 x 1.00 / Single Short - 18mm (S) / Anodised Aluminium 992-03-31SD
M10 x 1.00 / Single Short - 18mm (S) / Silver Plated Carbon Steel 992-03-31SZ1
M10 x 1.25 / Single - 20mm / Stainless Steel 992-03-32C
M10 x 1.25 / Single - 20mm / Black Stainless Steel 992-03-32CBK
M10 x 1.25 / Single - 20mm / Chrome Plated 992-03-32CH
M10 x 1.25 / Single - 20mm / Anodised Aluminium 992-03-32D
M10 x 1.25 / Single Long - 25mm (L) / Silver Plated Carbon Steel 992-03-32LZ1
M10 x 1.25 / Single - 20mm / Silver Plated Carbon Steel 992-03-32Z1
M10 x 1.50 / Single - 20mm / Stainless Steel 992-03-35C
M10 x 1.50 / Single Long - 25mm (L) / Silver Plated Carbon Steel 992-03-35LZ1
M10 x 1.50 / Single - 20mm / Silver Plated Carbon Steel 992-03-35Z1
M12 x 1.00 / Single - 20mm / Anodised Aluminium 992-04-M121D
M12 x 1.00 / Single Short - 18mm (S) / Stainless Steel 992-04-M121SC
M12 x 1.00 / Single Short - 18mm (S) / Silver Plated Carbon Steel 992-04-M121SZ1
M12 x 1.00 / Single - 20mm / Silver Plated Carbon Steel 992-04-M121Z1
M12 x 1.25 / Single - 20mm / Anodised Aluminium 992-04-M122D
M12 x 1.25 / Single - 20mm / Silver Plated Carbon Steel 992-04-M122Z1
M12 x 1.50 / Single - 20mm / Stainless Steel 992-04-M12C
M12 x 1.50 / Single - 20mm / Chrome Plated 992-04-M12CH
M12 x 1.50 / Single - 20mm / Anodised Aluminium 992-04-M12D
