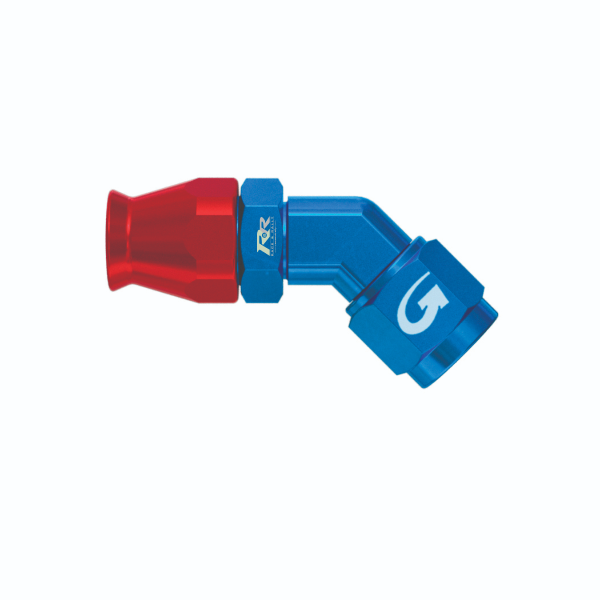

45° Forged Female Double Swivel - PTFE SPECIFIC

45° Forged Female Double Swivel - PTFE SPECIFIC

SKU:6645-06D

Regular price €93.96 €115.57
Sale Sold out
  • Feature Icon 600 Series
  • Feature Icon PTFE Hose Fitting
  • Feature Icon Forged Fitting
  • Feature Icon Double Swivel
Hose Dash Size
Material

View full details

SMOOTHBORE PTFE HOSE ASSEBMLIES:
A PTFE Compatiable fitting can be indetifed by a Flared Socket which also contains an Olive. Quite simply, the fitter must  place the olive between the PTFE lining and the outer stainless steel braid, so when the socket is tightened, the olive compresses the hose to create a very effective seal suitable for high pressure fluids. The compressed olive ensures that the assmebly is vapour free making it suitable for the interior cockpit of a car.
These fittings are reusable so that they can be used time and time again but will require replacement olives. If the hose itself is damaged, just disassemble, clean, lubricate and reassemble with a new olive and a new piece of hose.

Race and Rally is the official Goodridge distributor for Ireland and Northern Ireland

Brand:

Goodridge

Manufacturer Part Number:

6645-06D

Barcodes:
