AP Racing Brake Caliper Pad Retainer

SKU:CP2361-9

€52.89 €65.05

Sale Sold out

Brake Pad Retainers
Sold Individually

Quantity

Out of stock, contact for leadtime

View full details

AP Racing Brake Caliper Brake Pad Retainers

Find below complete chart of brake pad retainers for AP Racing brake calipers. This includes; Split Pins, Capped Pins with R-Clips, H-piece and Retaining Bolts along with Spring Clips used on some of the older calipers.

All retainers are sold individually

If the retainer you require is not listed, please contact us

Caliper Family	Retainer Type	Part Number	QTY per Caliper
CP2270	R-Clip	CP2361-9	2
CP2270	Locating Pin	CP2409-112	2
CP2271	R-Clip	CP2361-9	2
CP2271	Locating Pin	CP2409-112	2
CP2361	R-Clip	CP2361-9	2
CP2361	Locating Pin	CP2409-112	2
CP2382	R-Clip	CP2372-18	1
CP2383	R-Clip	CP2383-4	1
CP2696	Split Pin	CP2696-160	2
CP4567-2/3/4/5S4	Tube	CP5100-116	1
CP4567-2/3/4/5S4	Retainer Bolt	CP5100-120	1
CP4567-8/9/10/11S4	Tube	CP4567-110	1
CP4567-8/9/10/11S4	Retainer Bolt	CP5100-126	1

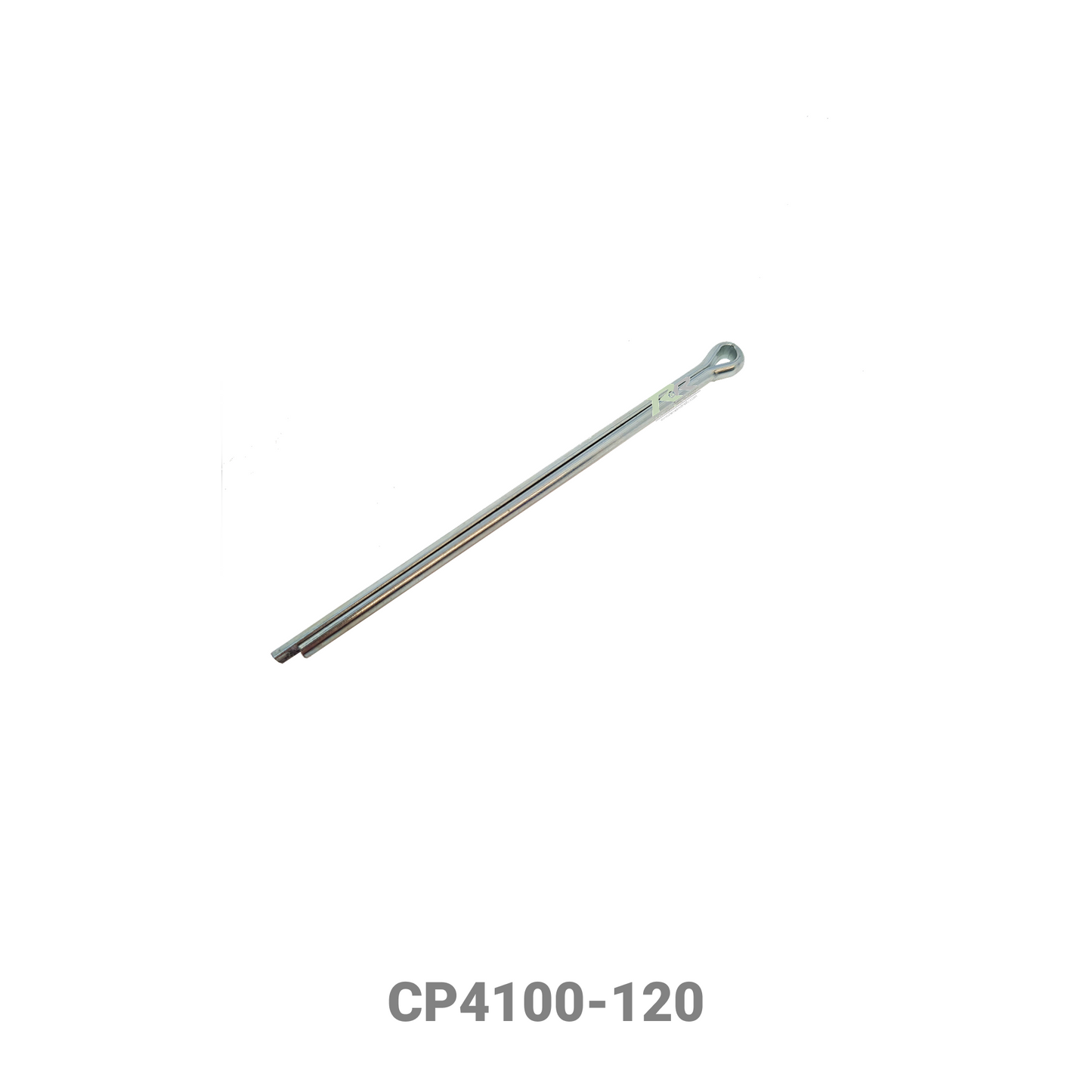

CP5020	Split Pin	CP4100-120	2
CP5040	Tube	CP5200-124	2
CP5040	Retainer Bolt	CP5100-120	1
CP5316	Capped Pin	CP5119-144	2
CP5317	Capped Pin	CP5119-144	2
CP6120	Capped Pin	CP6120-103	2
CP6121	Capped Pin	CP6120-103	2
CP6720	H-Piece	CP6720-101	1
CP6720	Retainer Bolt	CP6720-110	2
CP6760	H-Piece	CP4144-101	1
CP6760	Retainer Bolt	CP3344-165	2

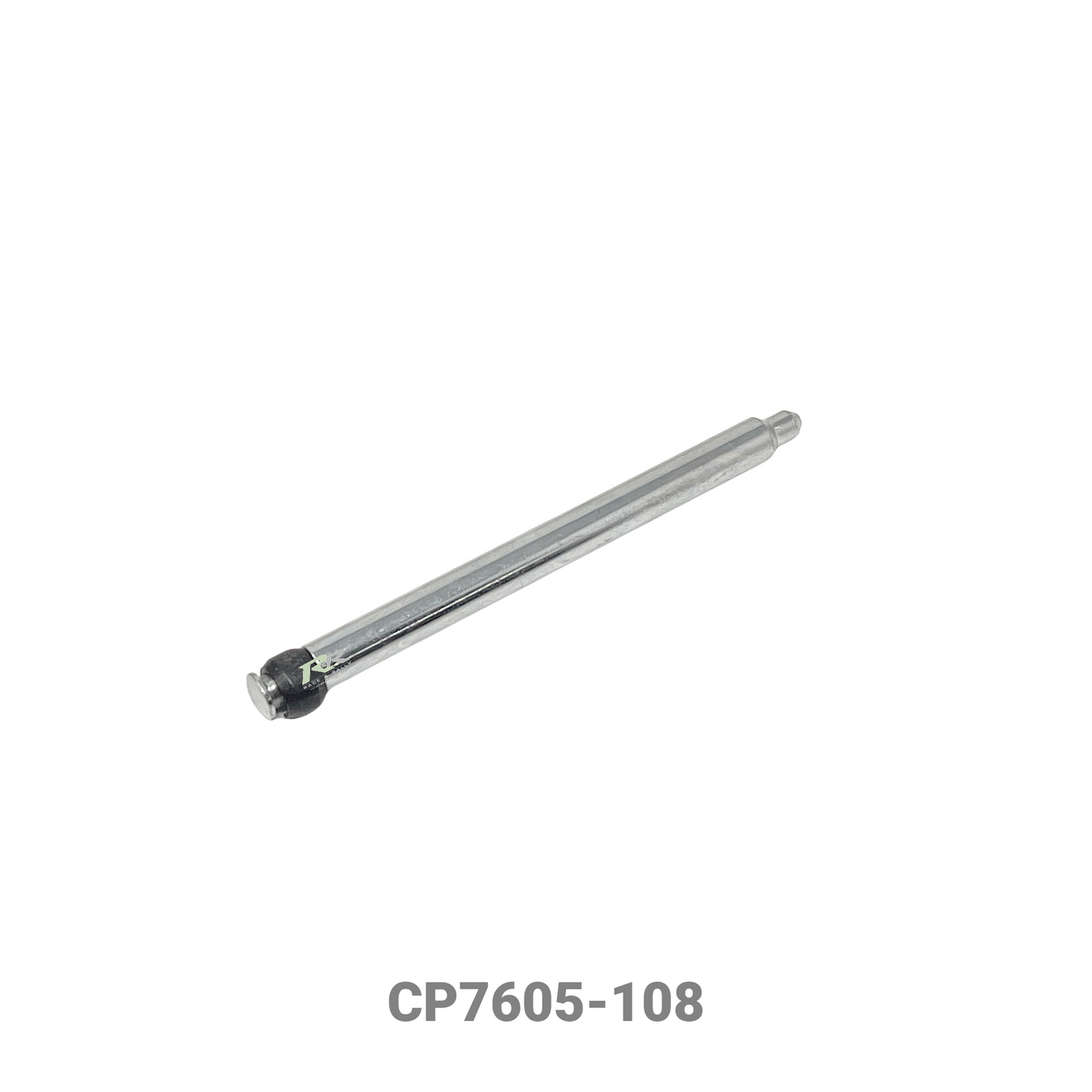

CP7606	Capped Pin	CP7605-108	2
CP7606	R-Clip	CP5119-134CR3	2
CP7613-2/3/4/5S4	Capped Pin	CP7605-108	2
CP7613-2/3/4/5S4	R-Clip	CP5119-134CR3	2
CP7613-6/7/8/9S0	Capped Pin	CP7613-112	2
CP7613-6/7/8/9S0	R-Clip	CP5119-134CR3	2
CP9230	Tube	CP5200-110	1
CP9230	Retainer Bolt	CP3984-139ST	1
CP9280	Tube	CP5555-157	2
CP9280	Retainer Bolt	CP3894-139ST	2
CP9440	Tube	CP9440-110	2
CP9440	Retainer Bolt	CP3796-121ST	1
CP9441	Tube	CP9440-110	2
CP9441	Retainer Bolt	CP3796-121ST	2

Options	SKU	Barcode
Brand	AP Racing
CP2270 / R-Clip	CP2361-9
CP2270 / Locating Pin	CP2409-112
CP2271 / R-Clip	CP2361-9
CP2271 / Locating Pin	CP2409-112
CP2361 / R-Clip	CP2361-9
CP2361 / Locating Pin	CP2409-112
CP2382 / Pad Clip	CP2372-18
CP2383 / Pad Clip	CP2383-4
CP2696 / Split Pin	CP2696-160
CP4567-2/3/4/5S4 / Tube	CP5100-116
CP4567-2/3/4/5S4 / Retainer Bolt	CP5100-120
CP4567-8/9/10/11S4 / Tube	CP4567-110
CP4567-8/9/10/11S4 / Retainer Bolt	CP5100-126
CP5020 / Split Pin	CP4100-120
CP5040-2/3/4/5S4(L) / Tube	CP5200-124
CP5040-2/3/4/5S4(L) / Retainer Bolt	CP5100-120
CP5040-30/31/32/33S4(L) / Retainer Bolt	CP3439-111
CP5040-30/31/32/33S4(L) / H-Piece	CP3795-101
CP5316 / Capped Pin	CP5119-144
CP5317 / Capped Pin	CP5119-144
CP6120 / Capped Pin	CP6120-103
CP6121 / Capped Pin	CP6120-103
CP6720 / Retainer Bolt	CP6720-110
CP6720 / H-Piece	CP6720-101
CP6760 / Retainer Bolt	CP3344-165
CP6760 / H-Piece	CP4144-101
CP7606 / R-Clip	CP5119-134CR3
CP7606 / Capped Pin	CP7605-108
CP7613-2/3/4/5S4 / R-Clip	CP5119-134CR3
CP7613-2/3/4/5S4 / Capped Pin	CP7605-108
CP7613-6/7/8/9S0 / R-Clip	CP5119-134CR3
CP7613-6/7/8/9S0 / Capped Pin	CP7613-112
CP9230 / Tube	CP5200-110
CP9230 / Retainer Bolt	CP3984-139ST
CP9280 / Tube	CP5555-157
CP9280 / Retainer Bolt	CP3894-139ST
CP9440 / Tube	CP9440-110
CP9440 / Retainer Bolt	CP3796-121ST
CP9441 / Tube	CP9440-110
CP9441 / Retainer Bolt	CP3796-121ST
