AP Racing Bleedscrews

SKU:CP4469-101

€20.21 €24.86

Sale Sold out

AP Racing Bleedscrews
Various Thread Sizes Available
Zinc Plated Carbon Steel Material
**Sold Individually

Thread Size M7 x 1.0 M10 x 1.0 M10 x 1.0 [With lockwire hole] 3/8" x 24 UNF

Quantity

Out of stock, contact for leadtime

View full details

AP Racing Bleedscrews designed for use with AP Racing Calipers.

**Zinc Plated Carbon Steel Material

Technical Specifications

CP3720-107 = M10 x 1.0 Metric Thread with lockwire Hole

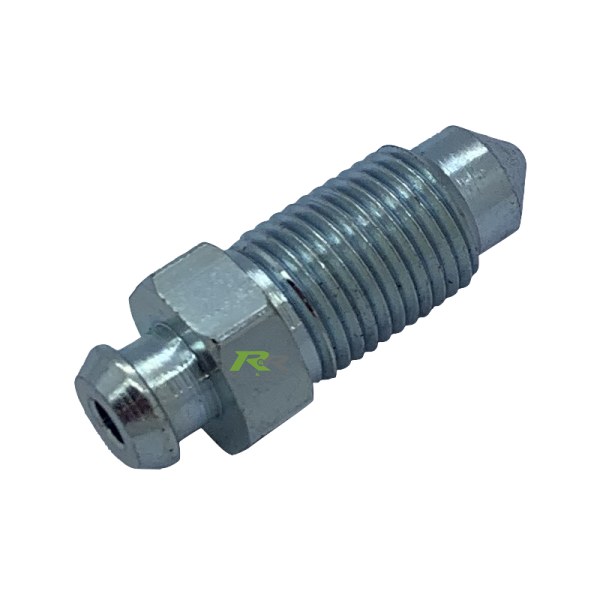

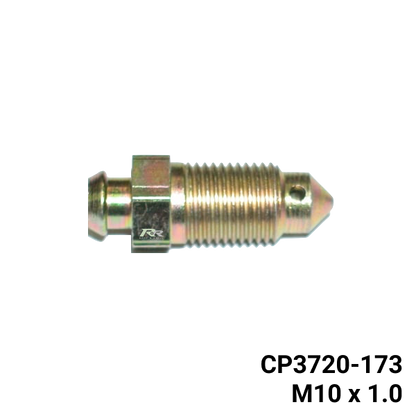

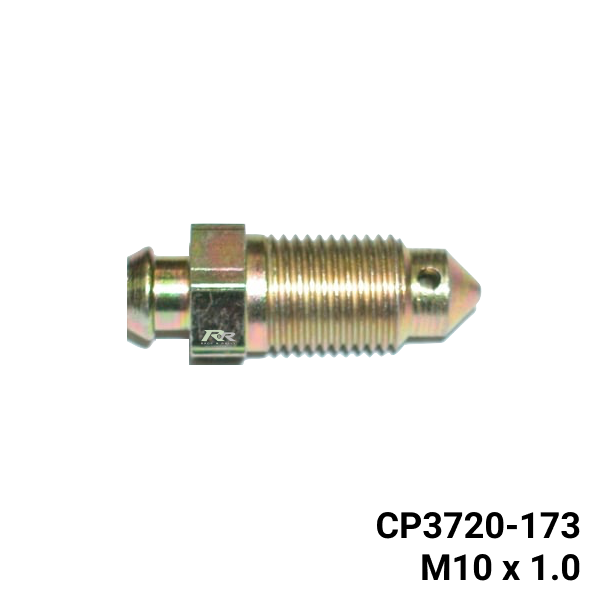

CP3720-173 = M10 x 1.0 Metric Thread - 30.5mm Overall Length

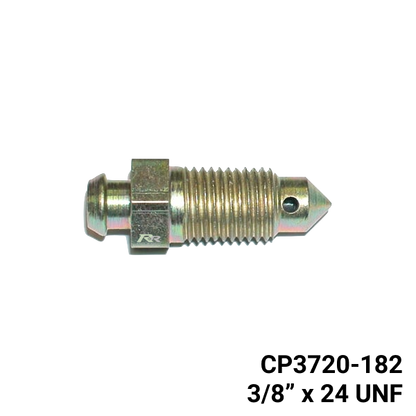

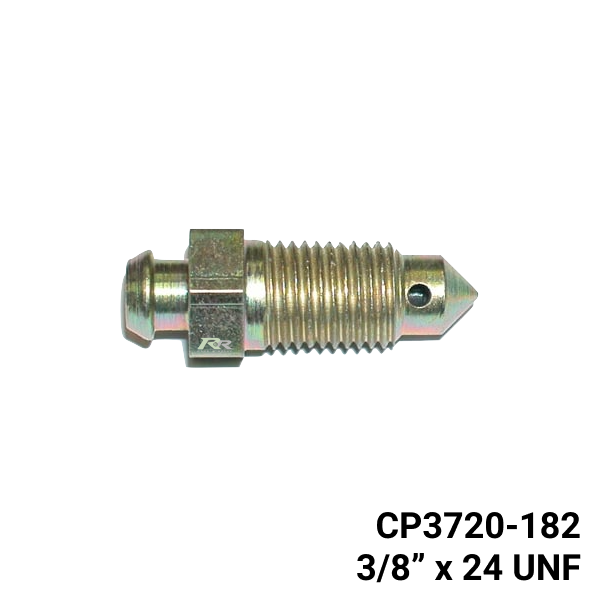

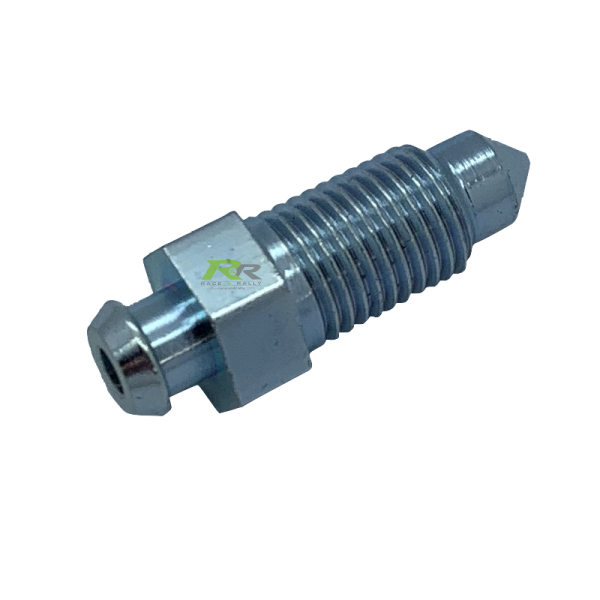

CP3720-182 = 3/8" x 24 UNF Thread - 30.93mm Overall Length

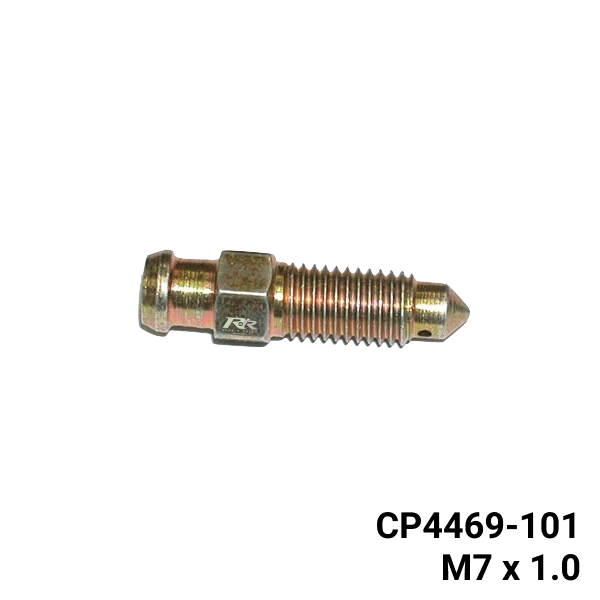

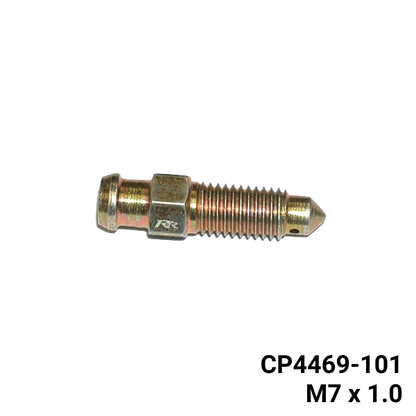

CP4469-101 = M7 x 1.0 Metric Thread - 27.10mm Overall Length

Goodridge - Cross Reference

CP3720-173 = BN510P
CP3720-182 = BN506P
CP4469-101 = BN507P

Option	SKU	Barcode
Brand	AP Racing
M7 x 1.0	CP4469-101
M10 x 1.0	CP3720-173
M10 x 1.0 [With lockwire hole]	CP3720-107
3/8" x 24 UNF	CP3720-182

AP Racing is the leading manufacturer of performance brake and clutch systems for road and race cars. The core product range includes clutches, callipers, discs, pads, master cylinders, pedal boxes and air jacks, as well as road and competition brake systems for motorcycles.

Being at the pinnacle of motor sport and OEM supply, numerous factors dictate the most specialised requirements for ultimate success. From the state of the art 3 dimensional solid modelling/design and Finite Element Analysis CAD facilities, to sophisticated research, development and testing including a special NVH and multiple other dynamometers that can simulate true racing speeds and the arduous of environments for road cars, AP Racing is constantly probing the boundaries of technology every working day.
