AP Racing Brake Caliper Pistons

Find below complete chart of AP Racing replacement brake caliper pistons available in both Aluminium and Stainless Steel materials. Its impotant to use the correct piston for yur caliper as it will determine where the seal is fitted (on piston or in bore) and piston depth / finish etc.

All pistons are sold individually
- If the caliper has 4 equal pistons, order QTY 4
- If the caliper has 4 pistons, 2 equal pairs, order QTY 2 of each size

If the piston you require is not listed, please contact us

Aluminium Pistons

Caliper Family

Ø25.4
mm

Ø26.0
mm

Ø27.0
mm

Ø28.6
mm

Ø31.8
mm

Ø34.0
mm

Ø34.9
mm

Ø36.0
mm

Ø38.1
mm

Ø41.3
mm

Ø44.5
mm

Ø47.6
mm

Ø50.8
mm

CP2270

CP2270-92

CP2271

CP2260-66

CP2361

CP2260-66

CP2382

CP2383-52

CP2383

CP2383-52

CP2576

CP2576-105

CP2577

CP2577-102

CP3176

CP3176-102

CP3177

CP3177-102

CP3178

CP3178-102

CP4567

CP3567-114

CP4270-3

CP5020

CP3177-102

CP5040-2/3/4/5S4

CP3584-101

CP3434-116

CP5040-30/31/32/33S4

CP3636-107

CP3394-110

CP5060

CP4910-156

CP4910-155

CP4910-154

CP5219

CP2876-101

CP2270-92

CP5316

CP5128-104

CP5317

CP5317-103

CP6120

CP5235-108

CP6121

CP6121-104

CP6720

CP3567-108

CP3344-109

CP7606

CP7605-109

CP7613

CP7613-106

Stainless Steel Pistons

Caliper Family

Ø25.4
mm

Ø26.0
mm

Ø27.0
mm

Ø28.6
mm

Ø31.8
mm

Ø34.0
mm

Ø34.9
mm

Ø36.0
mm

Ø38.1
mm

Ø41.3
mm

Ø44.5
mm

Ø47.6
mm

Ø50.8
mm

CP5040-2/3/4/5S4

CP5040-113

CP5040-114

CP5040-30/31/32/34S4

CP5040-112

CP5040-111

CP5060

CP5560-108

CP5560-109

CP5560-110

CP5119

CP5235-108

CP6760

CP4907-106

CP6760-118

CP6840

CP6820-106

CP6820-107

CP9230

CP9230-112

CP9230-113

CP9280

CP5260-109

CP5260-110

CP5260-111

CP9440

CP9440-107

CP9440-106

CP9441

CP9441-101

CP9440-107

CP9444

CP9444-110

CP9444-111

CP9660

CP9660-114

CP9660-115

CP9660-116

CP9668

CP9665-114

CP9665-115

CP9665-116

Option	SKU	Barcode
Brand	AP Racing
CP2270 / Ø41.3mm / Aluminium	CP2270-92

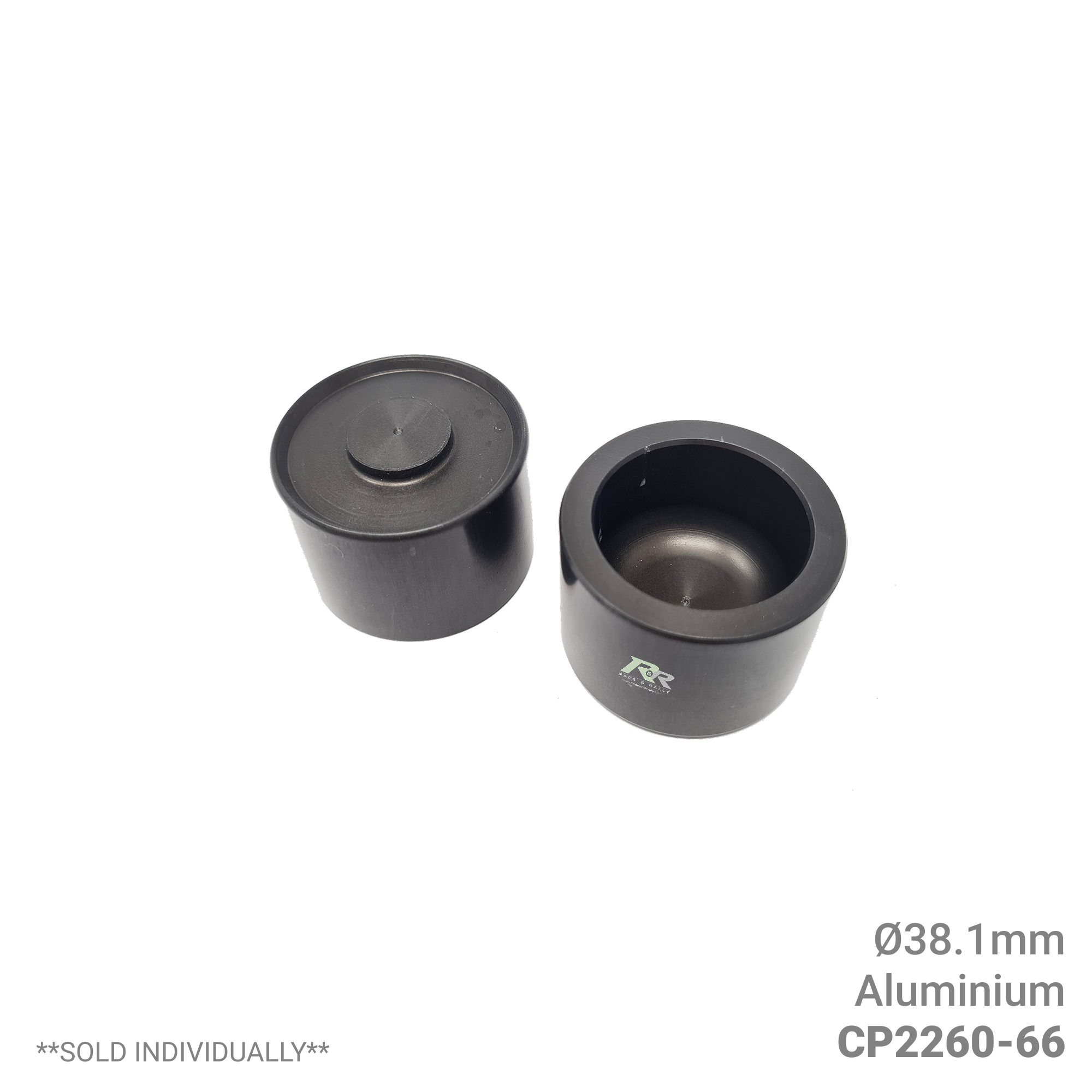

CP2271 / Ø38.1mm / Aluminium	CP2260-66
CP2361 / Ø38.1mm / Aluminium	CP2260-66
CP2382 / Ø50.8mm / Aluminium	CP2383-52
CP2383 / Ø50.8mm / Aluminium	CP2383-52
CP2576 / Ø41.3mm / Aluminium	CP2576-105
CP2577 / Ø44.5mm / Aluminium	CP2577-102
CP3177 / Ø36.0mm / Aluminium	CP3177-102
CP3178 / Ø31.8mm / Aluminium	CP3178-102
CP4567 / Ø41.3mm / Aluminium	CP4270-3
CP4567 / Ø34.9mm / Aluminium	CP3567-114
CP5020 / Ø36.0mm / Aluminium	CP3177-102
CP5040-2/3/4/5S4 / Ø41.3mm / Aluminium	CP3434-116
CP5040-2/3/4/5S4 / Ø38.1mm / Aluminium	CP3584-101
CP5040-30/31/32/33S4 / Ø38.1mm / Aluminium	CP3636-107
CP5040-30/31/32/33S4 / Ø38.1mm / Stainless Steel	CP5040-112
CP5040-30/31/32/33S4 / Ø44.5mm / Aluminium	CP3394-110
CP5040-30/31/32/33S4 / Ø44.5mm / Stainless Steel	CP5040-111
CP5060 / Ø38.1mm / Aluminium	CP4910-154
CP5060 / Ø38.1mm / Stainless Steel	CP5560-110
CP5060 / Ø31.8mm / Aluminium	CP4910-155
CP5060 / Ø31.8mm / Stainless Steel	CP5560-109
CP5060 / Ø27.0mm / Aluminium	CP4910-156
CP5060 / Ø27.0mm / Stainless Steel	CP5560-108
CP5119 / Ø44.5mm / Stainless Steel	CP5235-108
CP5219 / Ø41.3mm / Aluminium	CP2270-92
CP5219 / Ø34.9mm / Aluminium	CP2876-101
CP5316 / Ø38.1mm / Aluminium	CP5128-104
CP5317 / Ø41.3mm / Aluminium	CP5317-103
CP6120 / Ø44.5mm / Aluminium	CP5235-108
CP6121 / Ø38.1mm / Aluminium	CP6121-104
CP6720 / Ø41.3mm / Aluminium	CP3567-108
CP6720 / Ø34.9mm / Aluminium	CP3344-109
CP6760 / Ø27.0mm / Stainless Steel	CP4907-106
CP6760 / Ø34.0mm / Stainless Steel	CP6760-118
CP6840 / Ø41.3mm / Stainless Steel	CP6820-107
CP6840 / Ø34.9mm / Stainless Steel	CP6820-106
CP7606 / Ø38.1mm / Aluminium	CP7605-109

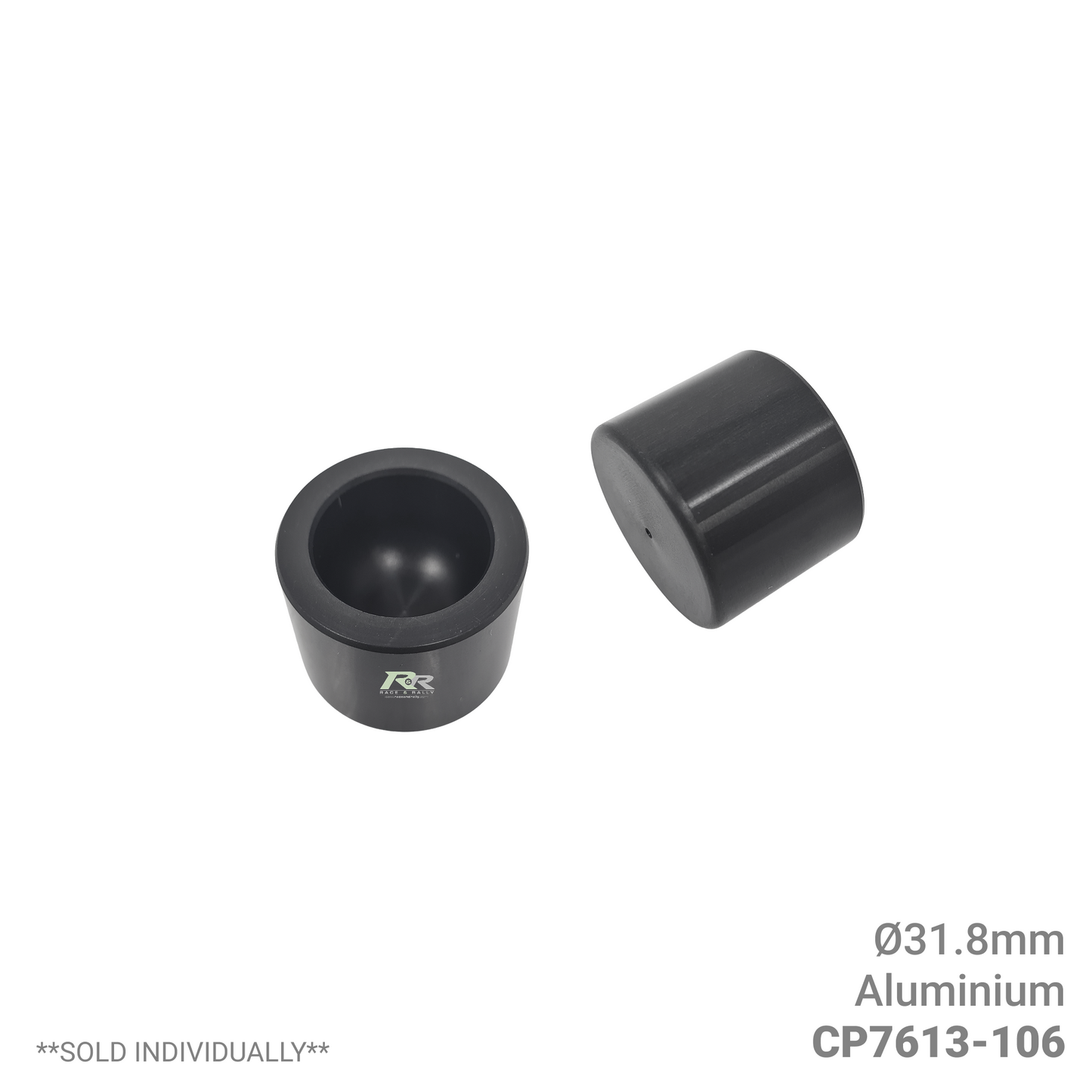

CP7613 / Ø31.8mm / Aluminium	CP7613-106
CP9230 / Ø41.3mm / Stainless Steel	CP9230-113
CP9230 / Ø38.1mm / Stainless Steel	CP9230-112
CP9280 / Ø38.1mm / Stainless Steel	CP5260-111
CP9280 / Ø31.8mm / Stainless Steel	CP5260-110
CP9280 / Ø27.0mm / Stainless Steel	CP5260-109
CP9440 / Ø41.3mm / Stainless Steel	CP9440-106
CP9440 / Ø36.0mm / Stainless Steel	CP9440-107
CP9441 / Ø36.0mm / Stainless Steel	CP9440-107
CP9441 / Ø31.8mm / Stainless Steel	CP9441-101
CP9444 / Ø41.3mm / Stainless Steel	CP9444-111
CP9444 / Ø34.9mm / Stainless Steel	CP9444-110
CP9660 / Ø38.1mm / Stainless Steel	CP9660-116
CP9660 / Ø31.8mm / Stainless Steel	CP9660-115
CP9660 / Ø27.0mm / Stainless Steel	CP9660-114
CP9668 / Ø38.1mm / Stainless Steel	CP9665-116
CP9668 / Ø31.8mm / Stainless Steel	CP9665-115
CP9668 / Ø27.0mm / Stainless Steel	CP9665-114
