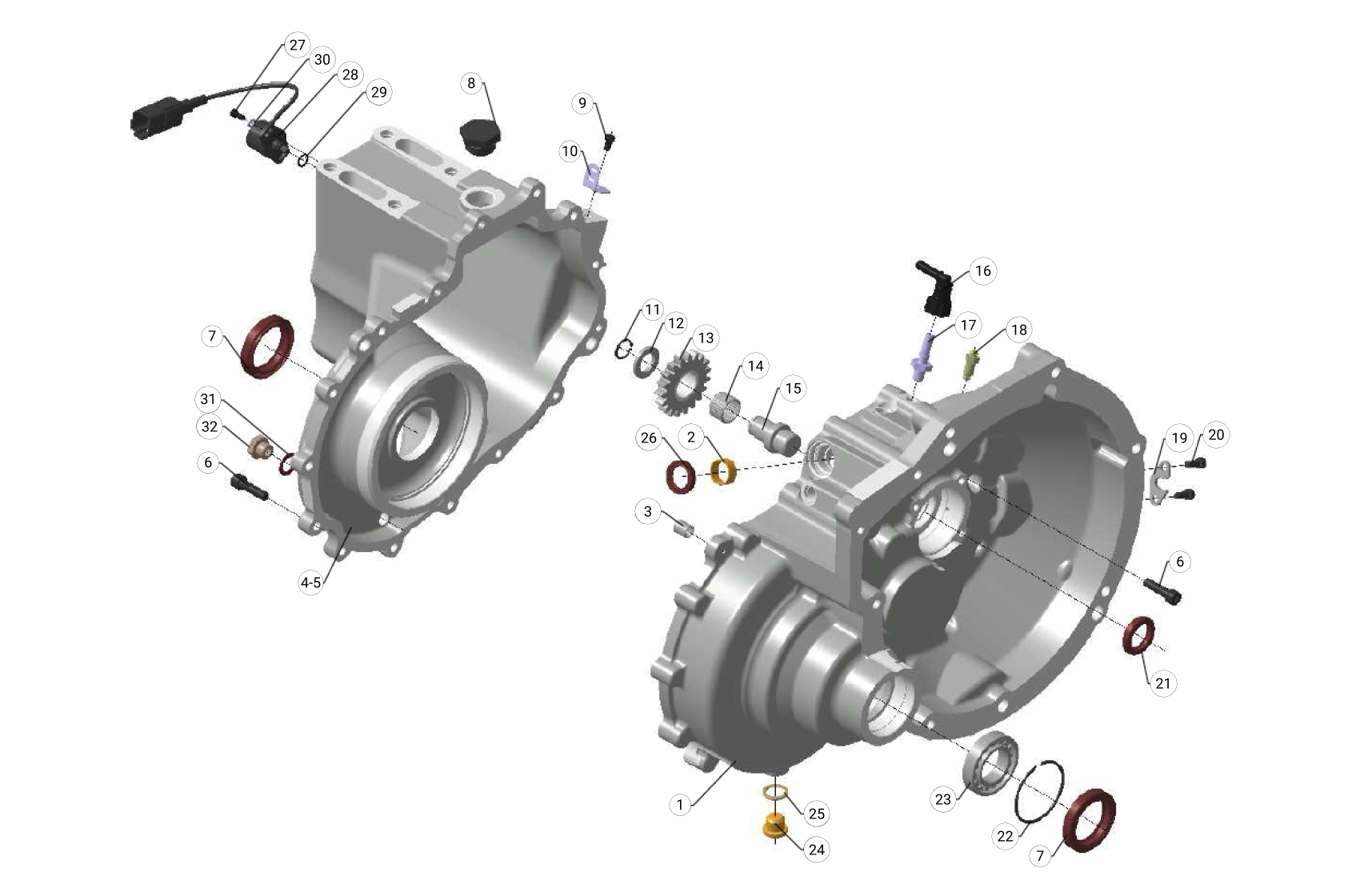

C231 - Manual Gearbox Housing

C231 - Manual Gearbox Housing

Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Clutch housing

F14080011

1

€2142.18 €2634.88
2
Insert

1202028

1

€8.26 €10.16
3
Centring pin12 x 15

F0077229

2

€7.67 €9.43
4
Gearbox Casing M8

F14080031

1

€1132.00 €1392.36
5

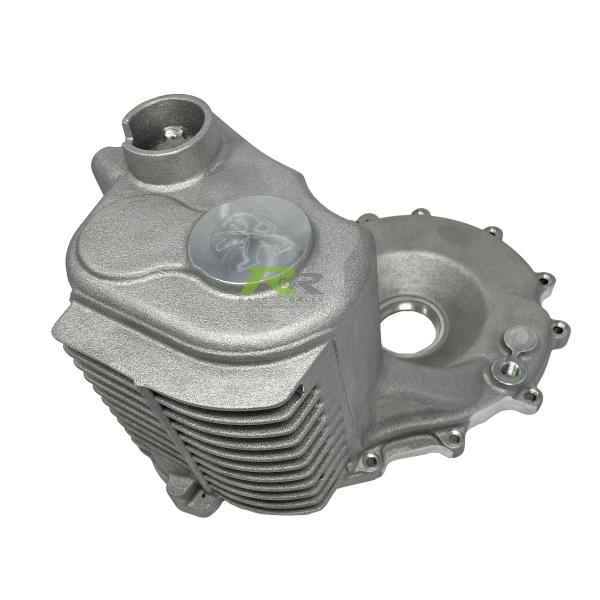

Gearbox Casing EVO M8

F14080041

1

€2296.08 €2824.18
6
CHC screw M8 x 25 cl 12.9 HK black zinc plated

301532

15

€0.41 €0.50
7

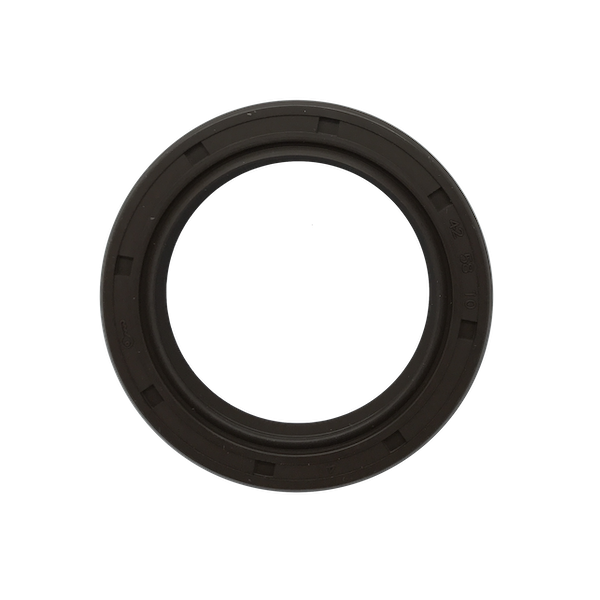

Seal DL 42x58x10

206066

2

€24.48 €30.11
8

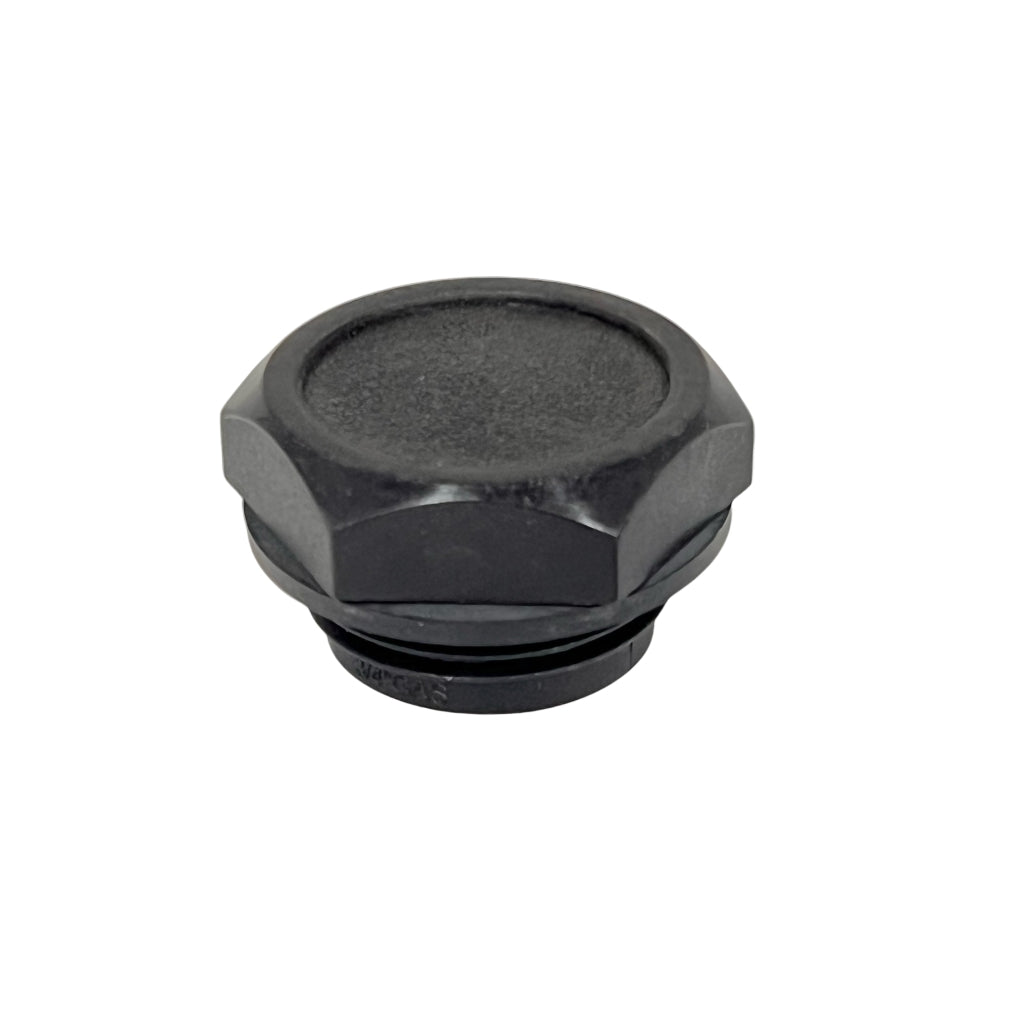

Fill cap TN.3 / 4

9999999

1

€5.00 €6.15
9
Screw BHC M6 x 8 cl 10.9 black zinc plated

308048

1

€0.26 €0.32
10
Support cable shifter

F9050003

1

€25.32 €31.14
11
Od circlip D18

601020

1

€0.36 €0.44
12
Sleeve reverse gear

F9019509

1

€10.77 €13.25
13

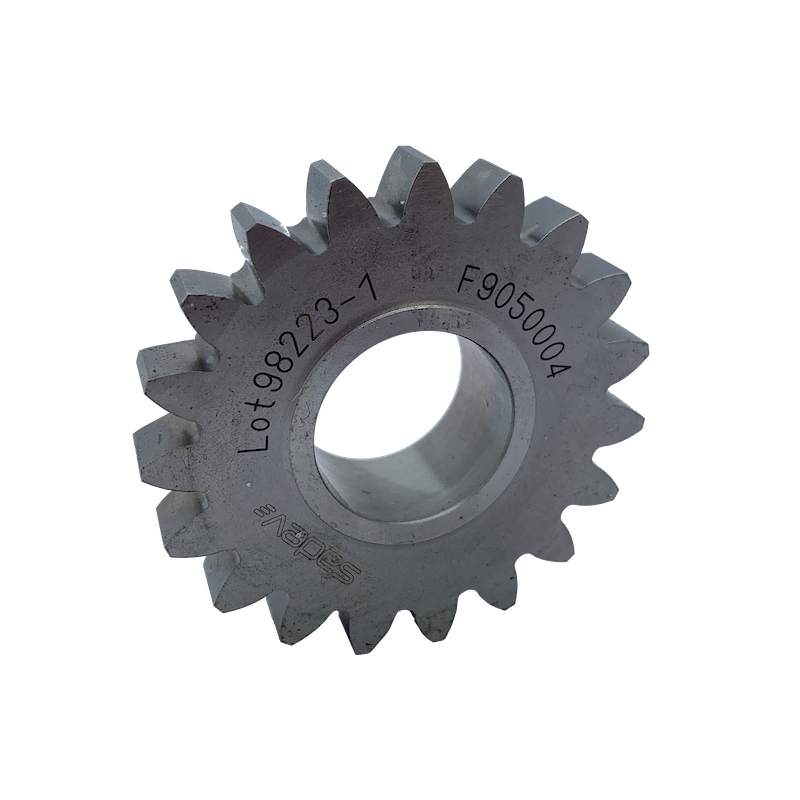

Reverse gear 19 teeth

F9050004

1

€201.89 €248.32
14
Roller bearing

105061

1

€12.31 €15.14
15
Reverse gear shaft

F9019516

1

€82.19 €101.09
16

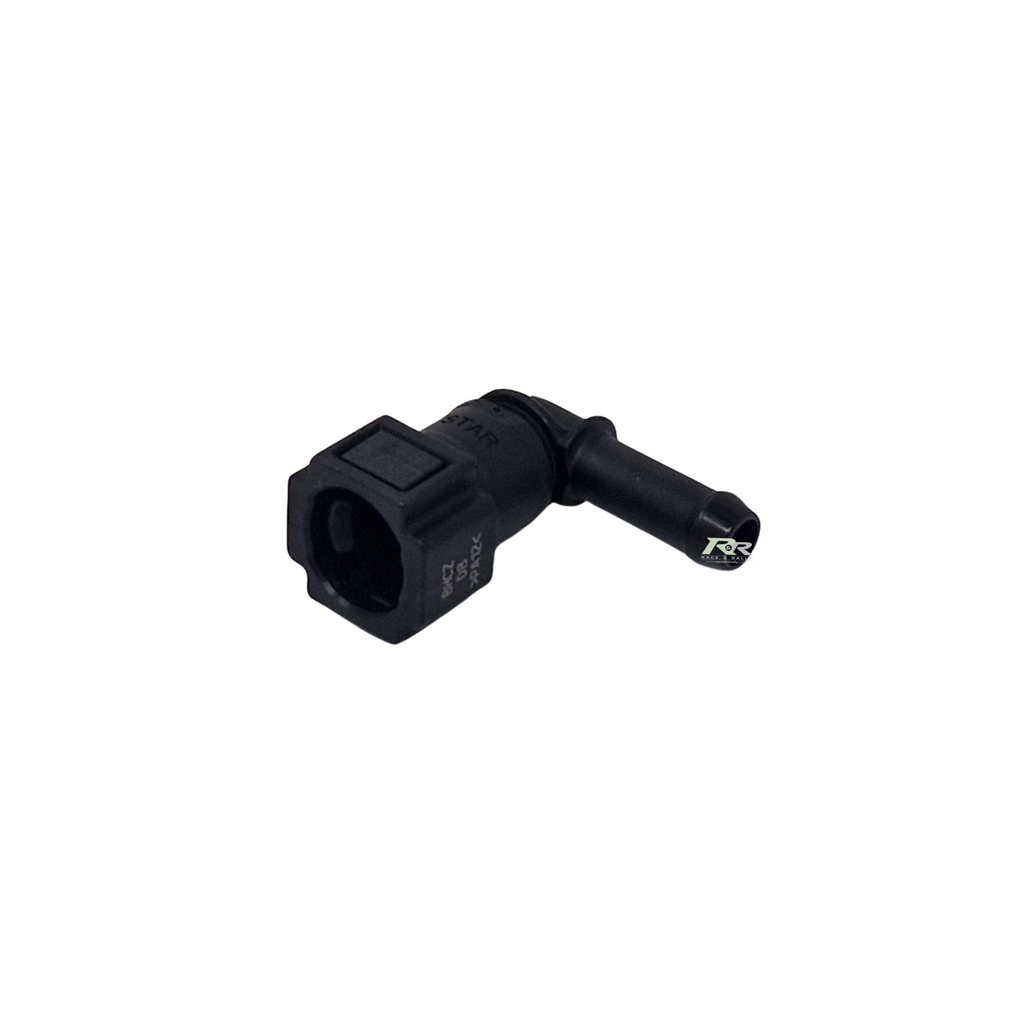

Venting Plug

9999683

1

€4.83 €5.94
17
Breather tip

F9022106

1

€32.68 €40.20
18
Bleed Nipple

5010002

1

€47.04 €57.86
19
Thrust feed flange

F9050001

1

€24.21 €29.78
20
Screw CHC M6x16 cl.12.9

301477

2

€0.71 €0.87
21

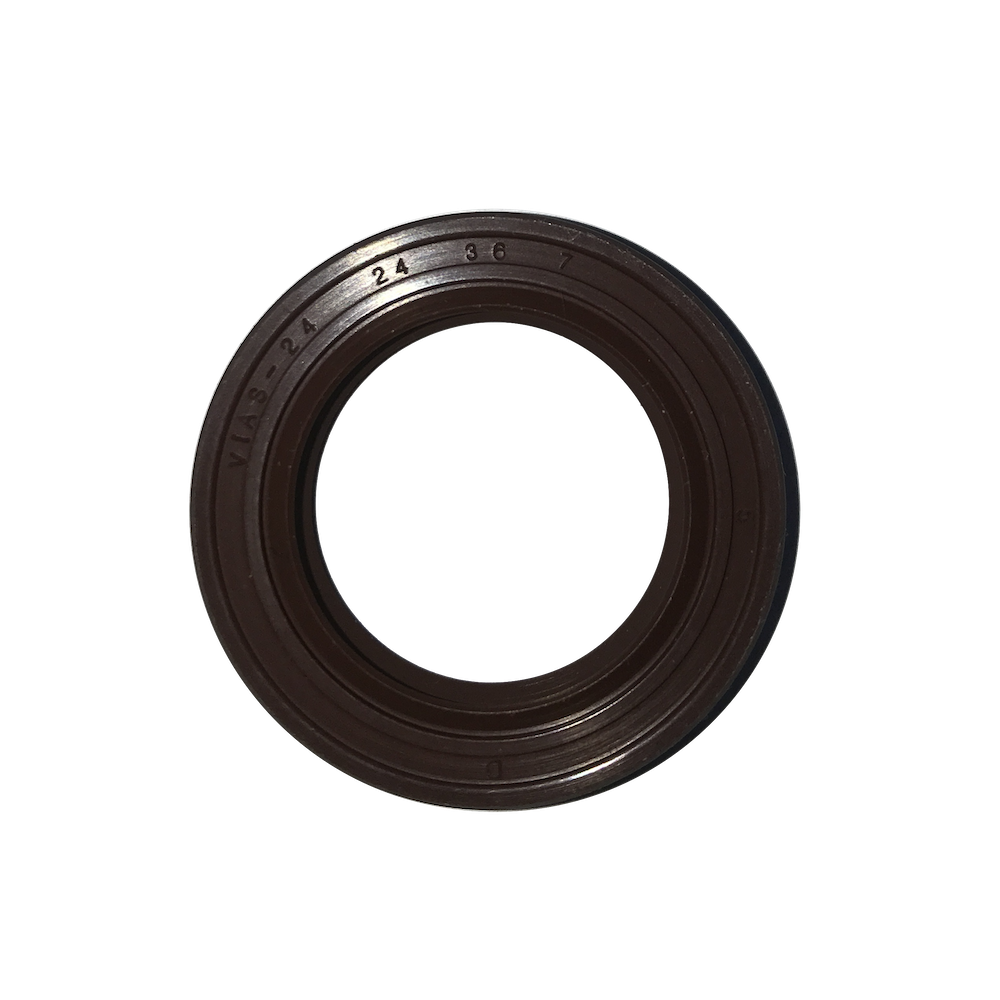

Seal DL 24x37x7

206011

1

€9.65 €11.87
22
Expanding ring BR58

9907074

1

€1.92 €2.36
23

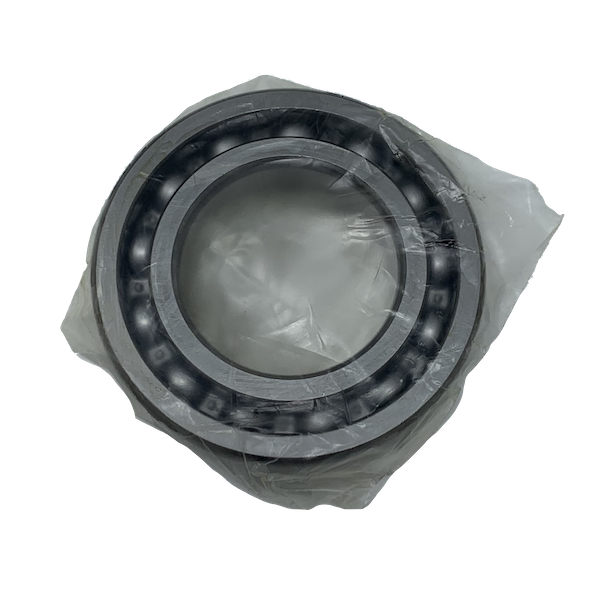

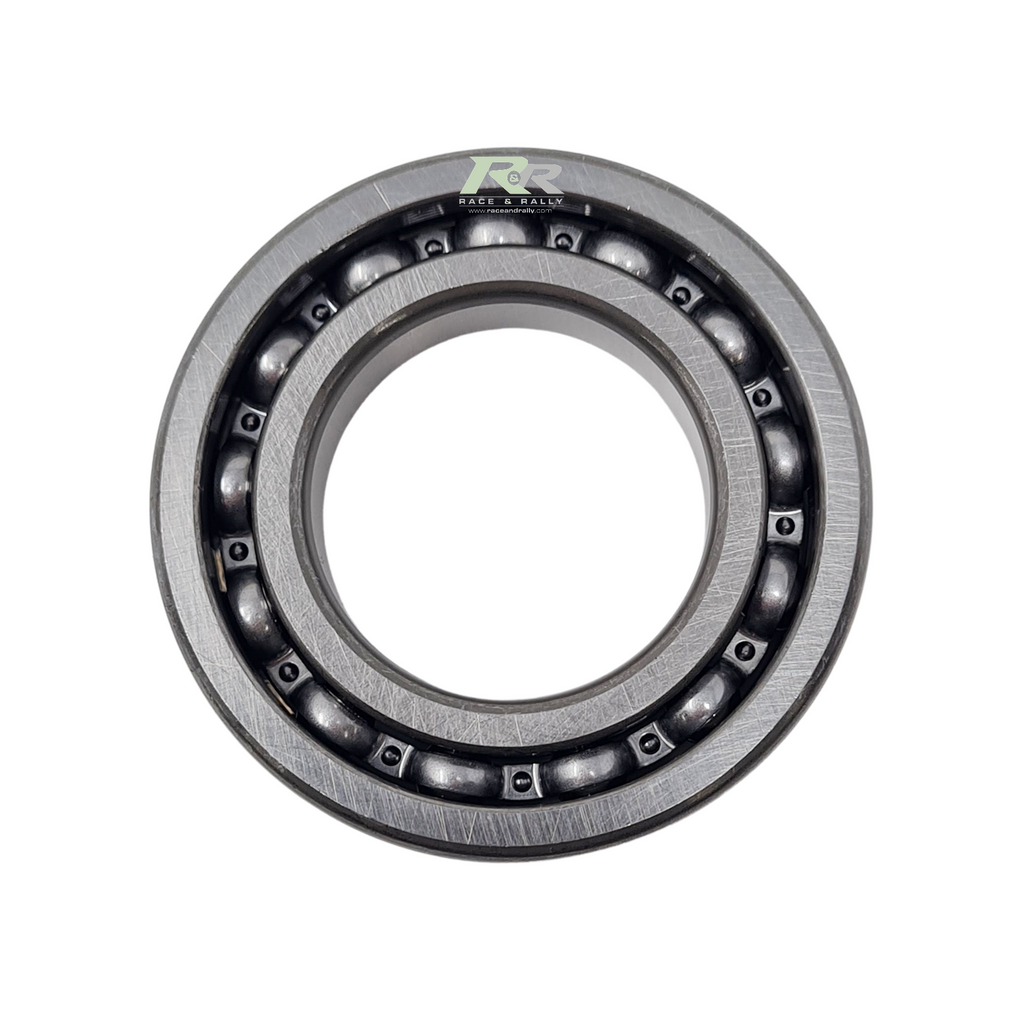

Bearing 60/32

101144

1

€19.98 €24.58
24

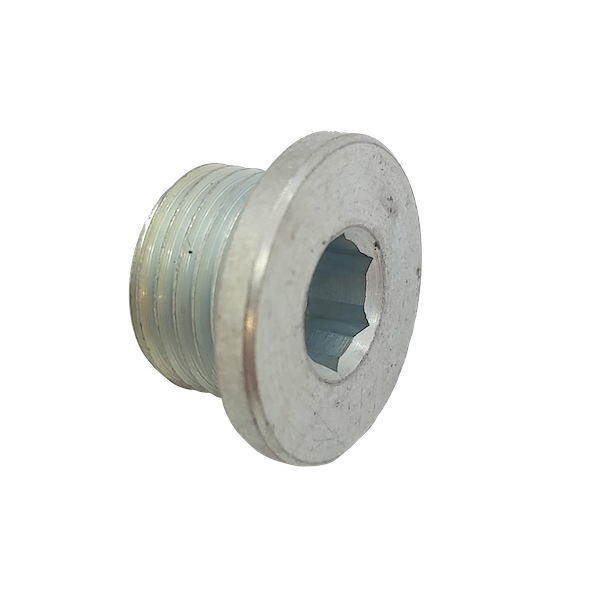

Magnet plug

F1402058

1

€24.46 €30.09
25

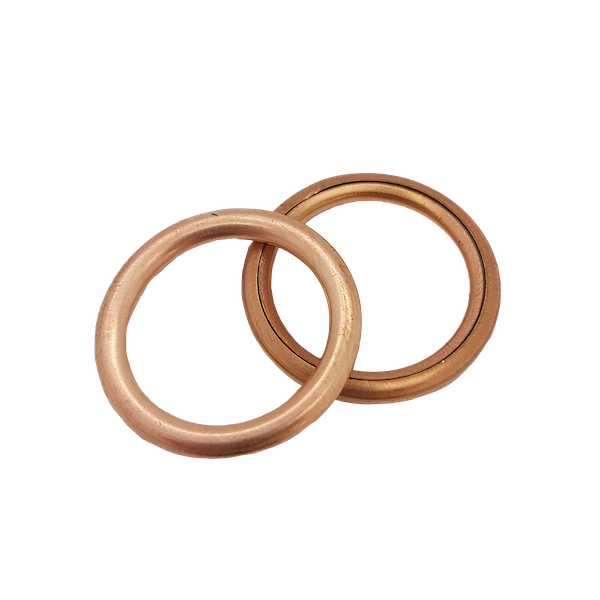

Drain seal Ø16

5002018

1

€1.11 €1.37
26
Seal DL 20x30x5

205099

1

€10.66 €13.11
27
Screw CHC M4x12 cl.10.9 Zn

301425

2

€0.49 €0.60
28

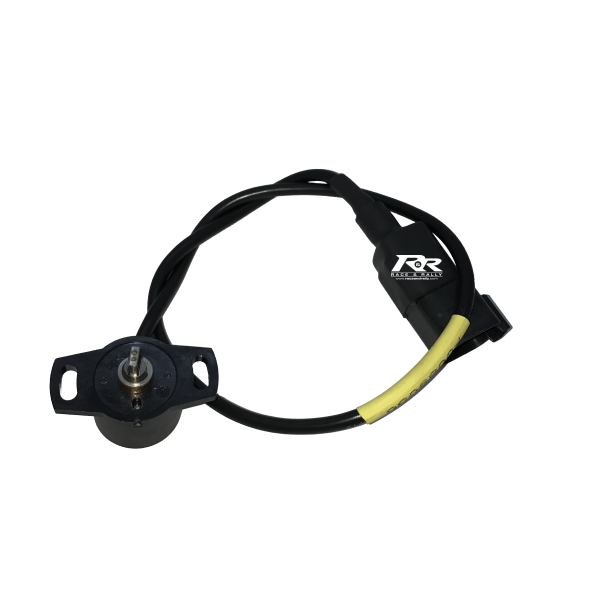

Potentiometre de Rapport

F0089056

1

€365.25 €449.26
29

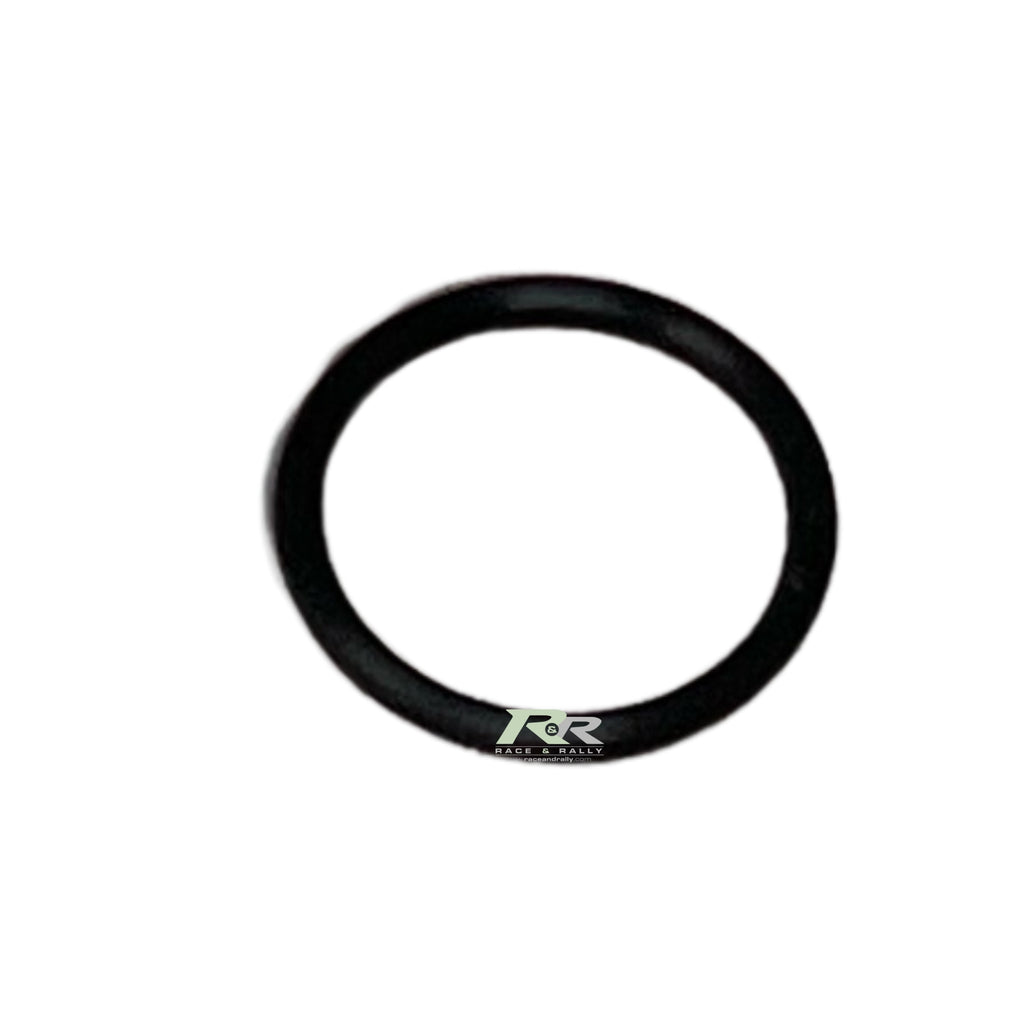

Nitrile O-ring Ø 1.5 x 10

201290

1

€0.36 €0.44
30
M4 washer

502023

2

€0.13 €0.16
31
Washer 14,2 x 22 x1

599044

1

€1.13 €1.39
32
Plug

F0001026

1

€15.02 €18.47
