• C35 - Prop Shaft Clutch Command - Race and Rally
1 1

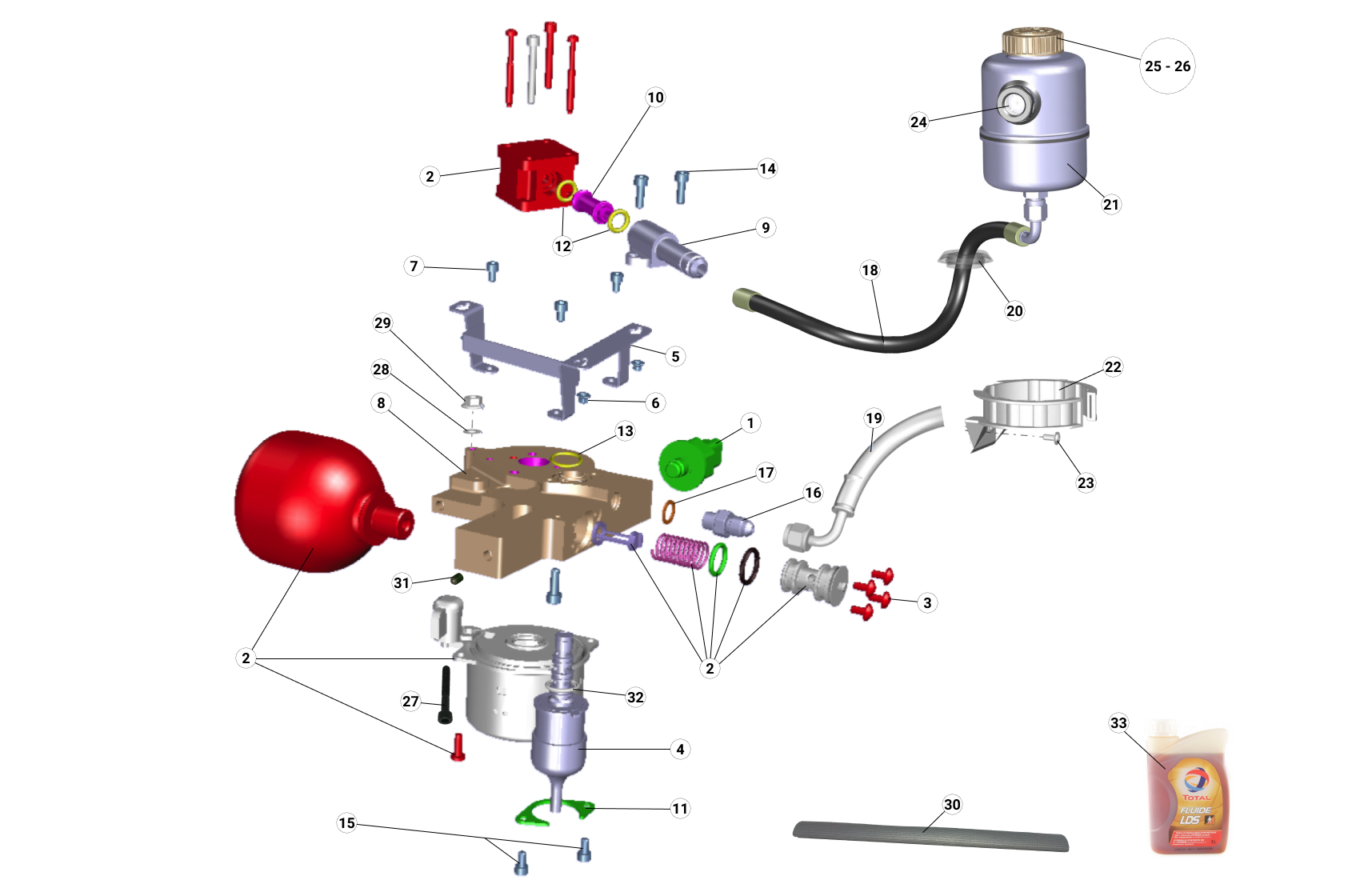

C35 - Prop Shaft Clutch Command

C35 - Prop Shaft Clutch Command

Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Hydraulic Pressure Sensor

5273A2

1

€147.99 €182.03
2
Actuator Electro-Pump

1608730380

1

€911.34 €1120.95
3
Screw STD M4x70 L8

691122

4

€0.37 €0.46
4

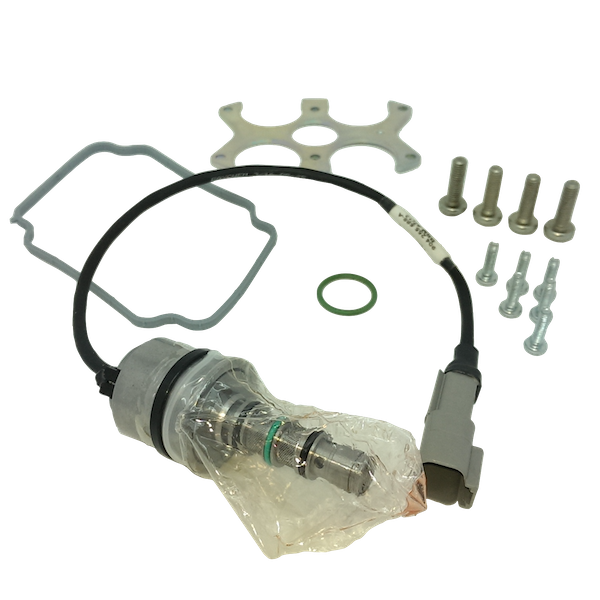

PEAL solenoid valve

1C3525558A

1

€176.51 €217.11
5

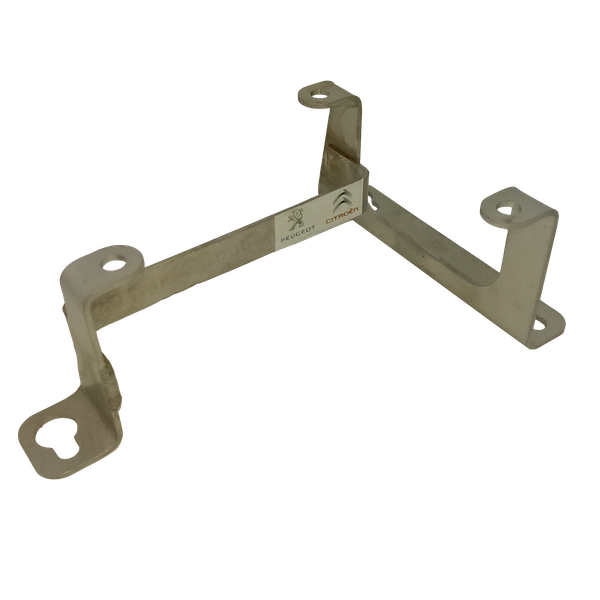

PEAL mount

1C3524343C

1

€47.20 €58.06
6
Lock nut M5x80

PS74524A10

3

€0.55 €0.68
7
Chc screw m5 lg 8

PS82083A10

3

€0.45 €0.55
8
PEAL body

1C3524312C

1

€558.36 €686.78
9
PEAL Body Return

1C3524322B

1

€169.60 €208.61
10
Connecting tube

1C3524323A

1

€95.46 €117.42
11
Clamp

1C3524333A

1

€76.22 €93.75
12
O-ring Ø10x3

PS77041A10

2

€1.44 €1.77
13
O-ring Ø18x2,65

PS77042A10

1

€1.36 €1.67
14
Screw M5x15

PS82118A10

2

€0.35 €0.43
15
Chc screw m5x10 cl.12.9

PS82018A10

2

€0.22 €0.27
16

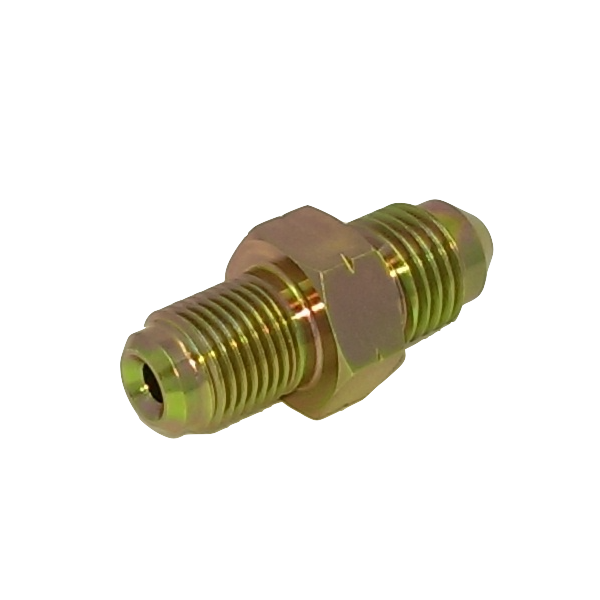

Dash 4 – M10x100 Coupling

PS73984A10

1

€13.10 €16.11
17
Copper Seal ø10,2x13,9x1

PS81031A10

1

€0.70 €0.86
18
Oil Peal hose (Aluminum tank)

1C3541070A

1

€219.54 €270.03
19

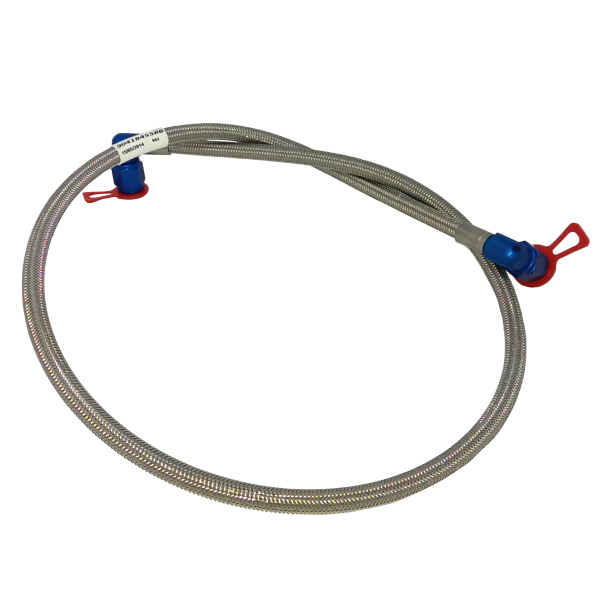

PEAL / rear differential pressure pipe

1C3518455B

1

€76.49 €94.08
20
Plug Ø35

7518WQ

1

€2.58 €3.17
21
Aluminum PEAL Tank

1C3541068A

1

€364.80 €448.70
22
Hydraulic Reservoir Mount

401896

1

€9.08 €11.17
23
Screw M5-12

PS82634A10

2

€0.58 €0.71
24
Oil Level Indicator (Alu 180°C 3/4)

90344293-A

1

€54.84 €67.45
25
Aluminium Tank Cap

1E4242287A

1

€168.35 €207.07
26
Seal for Tank Cap

1E4242411A

1

€6.31 €7.76
27
Screw M5x35 cl.12.9

PS82019A10

1

€0.76 €0.93
28
Onduflex washer Ø5

PS86506A10

1

€0.08 €0.10
29
Collar Nut M5x80 - 4 - 8

693639

1

€1.31 €1.61
30
Heat sheath Ø25x400

653830

1

€67.81 €83.41
31

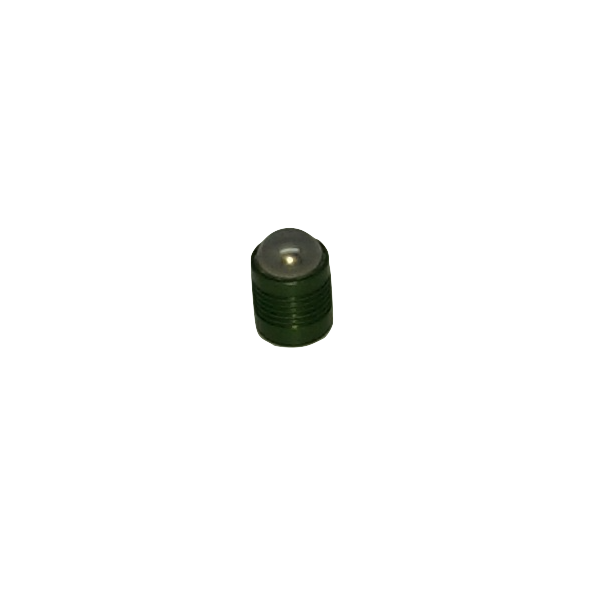

Cap plug Ø 6 mm

PS71600A10

2

€51.80 €63.71
32
O-ring Ø18x2 FPM 80SH A

PS67152A10

1

€0.80 €0.98
33
Total LDS Hydraulic Fluid 1L

1615099680

1

€20.32 €24.99
View full details
