CP4703 - M6 & 1/4" UNF Clutch Mounting Stud Series

CP4703 - M6 & 1/4" UNF Clutch Mounting Stud Series

CP4703-400MK(10)

€29.09 €35.78
Sale Sold out
  • Feature Icon M6 x 1.00 METRIC THREAD OR 1/4" UNF THREAD
  • Feature Icon OFFSET HEAD FLATS
  • Feature Icon NECKED DOWN SHANKS
  • Feature Icon AVAILABLE IN PACKS OF 1 - 10 - 12
  • Feature Icon K-LOCK NUTS INCLUDED
View full details

AP Racing offer a complete range of clutch mounting studs for all of the Carbon/Carbon and Sintered/Cerametallic Race Clutches.

The stud design incorporates offset head flats for location, necked down shanks and precision ground location diameters.

**Note: All kits come complete with relevant K-lock nuts

  • M6 x 1.0 Metric
  • 1/4" UNF

CP4702 - SCHEMATIC DRAWING

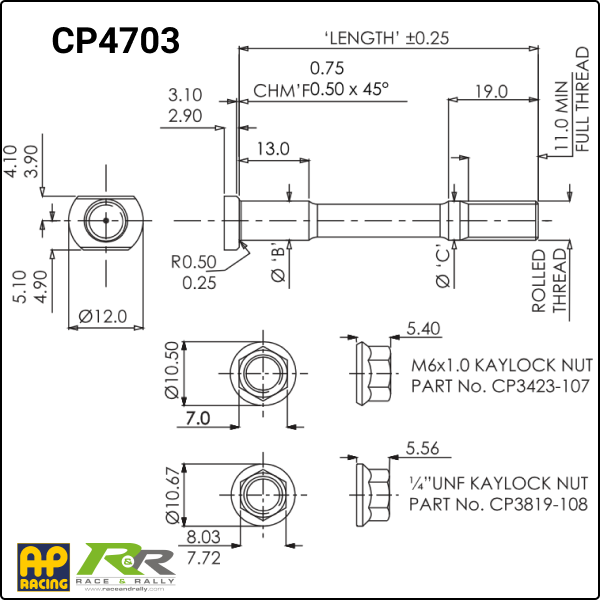

CP4703-Drawing

CP4703 - Part Numbers

CP4709-Part Numbers

.

Brand:

AP Racing

Manufacturer Part Number:

CP4703-400MK(10), CP4703-425MK(10), CP4703-450MK(10), CP4703-450MK(12), CP4703-475M, CP4703-475MK(10), CP4703-475MK(12), CP4703-500MK(10), CP4703-500MK(12), CP4703-525MK(10), CP4703-525MK(12), CP4703-550MK(10), CP4703-575M, CP4703-575MK(10), CP4703-575MK(12), CP4703-600MK(10), CP4703-625MK(10), CP4703-650MK(10), CP4703-700MK(10), CP4703-750MK(10), CP4703-675MK(10), CP4703-675UK(10)
