1a
1
Regular price
€432.34
€531.78
1b
1
Regular price
€432.34
€531.78
1c
1
Regular price
€432.34
€531.78
1d
1
Regular price
€432.34
€531.78
5
4
Regular price
€2.73
€3.36
7
'Very' High Temperature Caliper Seal Kit - 1.38x1.625 - Ø34.9/41.3mm [CP4900-286 | CP4900-283]
CP8518-JK
1
Regular price
€25.59
€31.48
!['Very' High Temperature Caliper Seal Kit - 1.38x1.625 - Ø34.9/41.3mm [CP4900-286 | CP4900-283]](http://raceandrally.com/cdn/shop/files/cp8518-gk_-_800_x_800_150x150.png?v=1733840696)
!['Very' High Temperature Caliper Seal Kit - 1.38x1.625 - Ø34.9/41.3mm [CP4900-286 | CP4900-283]](http://raceandrally.com/cdn/shop/files/cp8518-gk_-_800_x_800_1024x.png?v=1733840696)
Brake Pads - Shop here
AP Racing: CP3215D50
CL Brakes: 5004W50T17
Endless: RCP015
Ferodo Racing: FRP216
- Pad Area: 57.40cm
- Pad Depth: 50.30mm
- Thickness: 16.80mm
Piston Sizes:
- 2x Ø38.1mm
- 2x Ø41.3mm
Piston Area:
- 47.36cm²
Disc Diameters:
- Max - Ø355mm
- Min - Ø310mm
Disc Thickness:
- Max - Ø32mm
- Min - Ø26mm
Weight:
- No pads - 2.54 Kg
Hydraulic Threads:
- M10 x 1.0
- Bleed Screw tightening torque - 17 Nm (12.5 lb/ft)
Mounting:
- Radial Mounted
- 152.0mm Mounting Centres
- 48.79mm Mounting Offset
- 59.0mm 'PL' Dimension

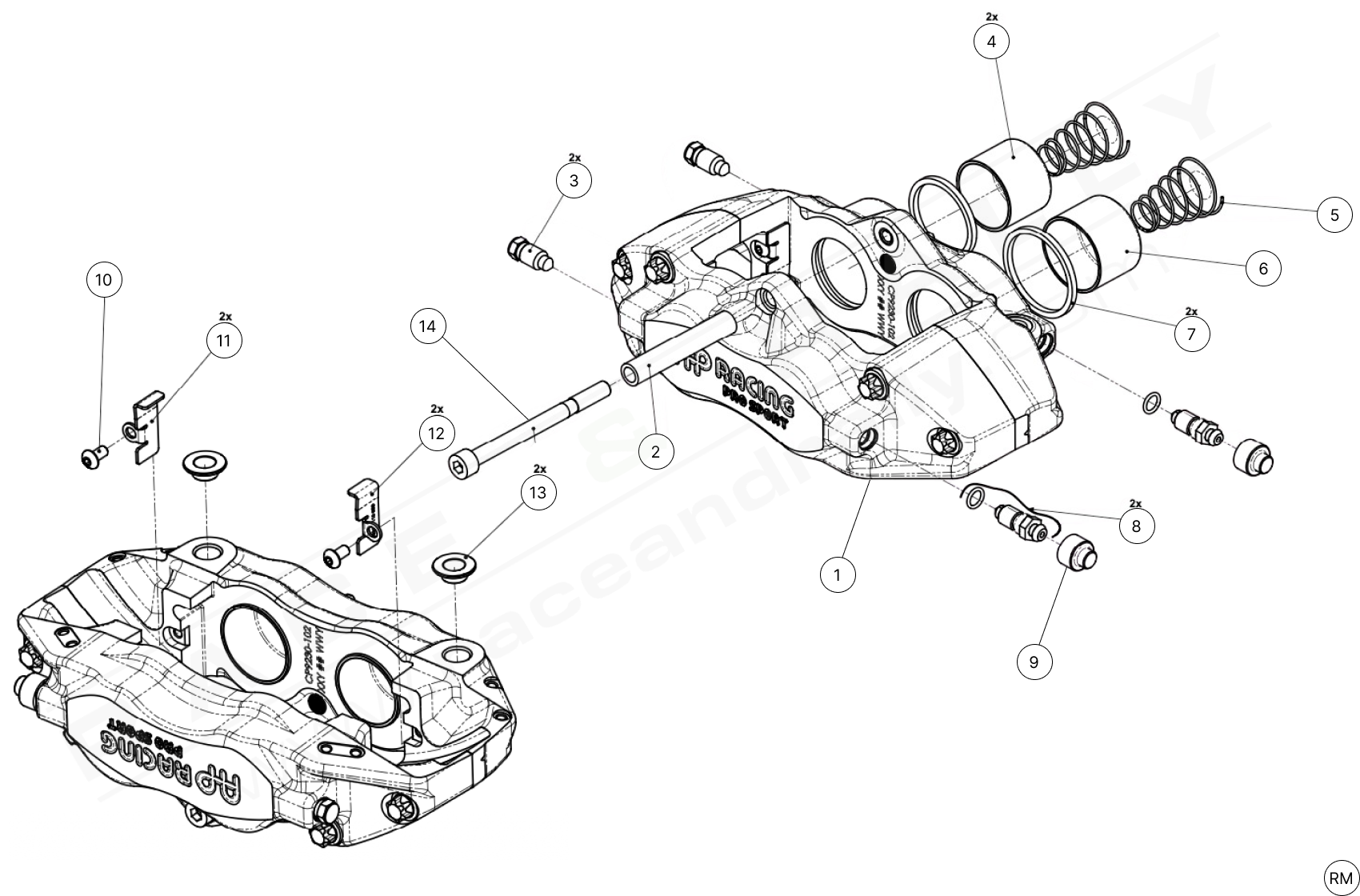

Spare Parts
- Ø38.1mm Piston - CP9230-112
- Ø41.3mm Piston - CP9230-113
- Pad Retainer - CP5200-110
- Pad Retainer Bolt - CP3984-139ST
- RH Wear Plate - CP9230-110
- LH Wear Plate - CP9230-111

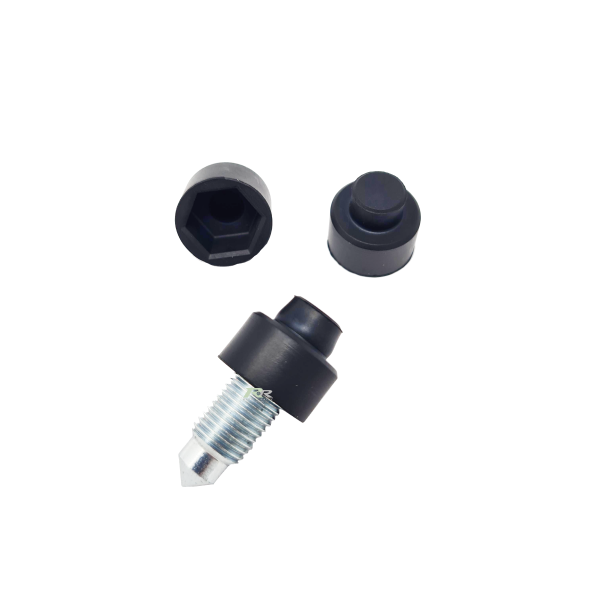

- Bleed Screw Kit - CP3880-1
- Seal Repair Kit - CP8518-JK
- Blanking Plug - CP6320-215
