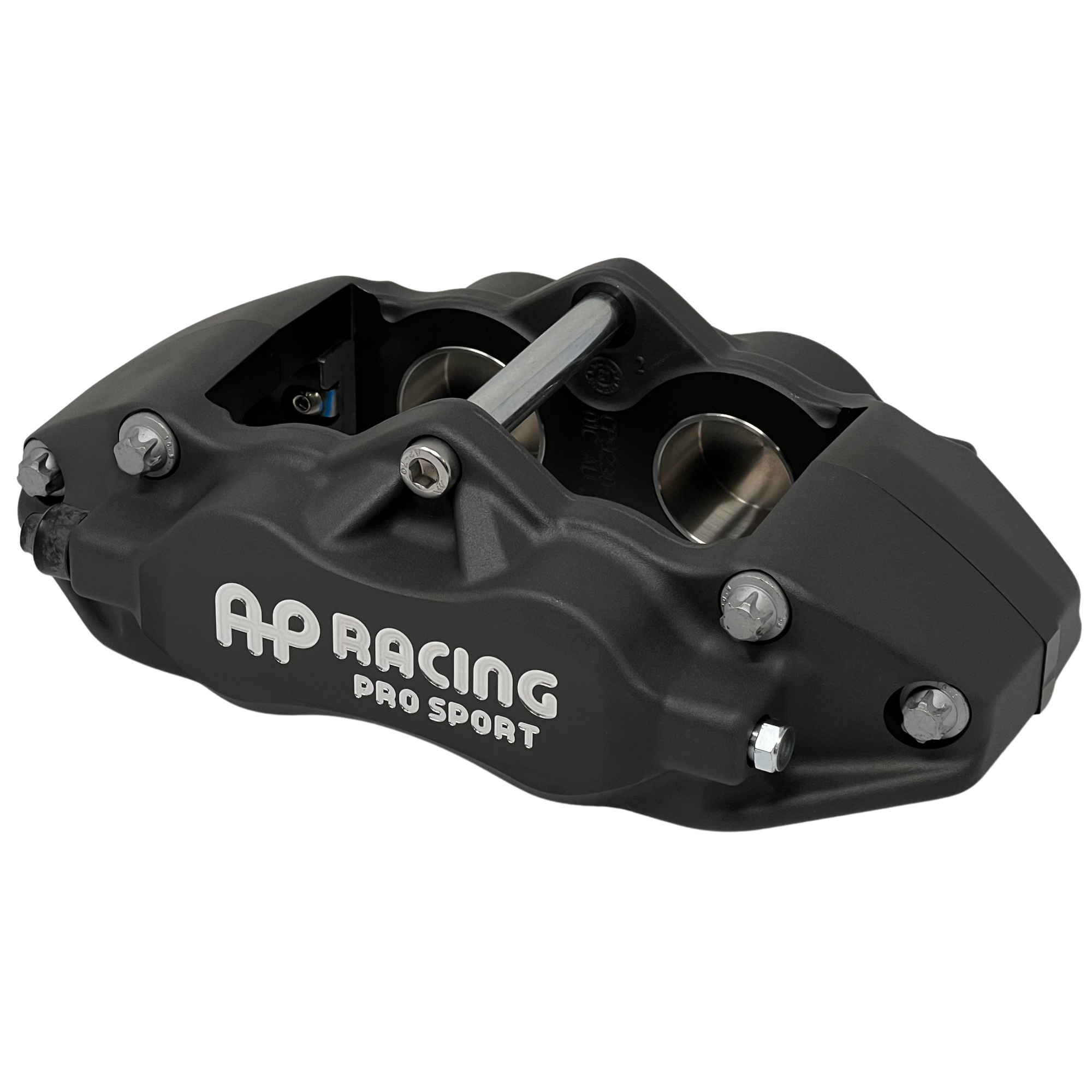

• CP9230 - 4 Piston ProSport Caliper - Race and Rally

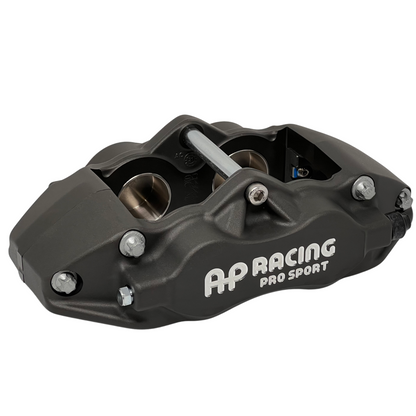

  • CP9230 - 4 Piston ProSport Caliper - Race and Rally
1 2

CP9230 - 4 Piston ProSport Caliper - Leading - RHS

CP9230 - 4 Piston ProSport Caliper - Leading - RHS

CP9230-4S4L

€432.34 €531.78
Sale Sold out
Piston Diameter
Caliper Hand

View Docs View full details

CP9230 - 4 Piston ProSport Caliper

Typical Applications:

  • Budget, general competition use
  • Single make race or rally series

Features:

  • Forged, two piece aluminium alloy body
  • Radial mount:
    • 152.0mm x 48.79mm centres
  • Disc Sizes:
    • Ø355mm or Ø310mm x 32mm Brake discs
  • Stainless Steel Pistons
  • High temperature seals
  • 4lb Anti-knockback springs fitted
  • Stainless Steel wear plates

Part Numbers:

  • Trailing:
    • RHS - CP9230-2S4L
    • LHS - CP9230-3S4L
  • Leading:
    • RHS - CP9230-4S4L
    • LHS - CP9230-5S4L

Brake Pads - Shop here

AP Racing: CP3215D50
CL Brakes: 5004W50T17
Endless: RCP015
Ferodo Racing: FRP216

  • Pad Area: 57.40cm
  • Pad Depth: 50.30mm
  • Thickness: 16.80mm

Piston Sizes:

  • 2x Ø38.1mm
  • 2x Ø41.3mm

Piston Area:

  • 47.36cm²

Disc Diameters:

  • Max - Ø355mm
  • Min - Ø310mm

Disc Thickness:

  • Max - Ø32mm
  • Min - Ø26mm

Weight:

  • No pads - 2.54 Kg

Hydraulic Threads:

  • M10 x 1.0
  • Bleed Screw tightening torque - 17 Nm (12.5 lb/ft)

Mounting:

  • Radial Mounted
  • 152.0mm Mounting Centres
  • 48.79mm Mounting Offset
  • 59.0mm 'PL' Dimension

Spare Parts

  • Ø38.1mm Piston - CP9230-112
  • Ø41.3mm Piston - CP9230-113
  • Pad Retainer - CP5200-110
  • Pad Retainer Bolt - CP3984-139ST
  • RH Wear Plate - CP9230-110
  • LH Wear Plate - CP9230-111
  • Bleed Screw Kit - CP3880-1
  • Seal Repair Kit - CP8518-JK
  • Blanking Plug - CP6320-215

Brand:

AP Racing

Manufacturer Part Number:

CP9230-4S4L
