• E13 - Front Upright - Gravel - Race and Rally
1 1

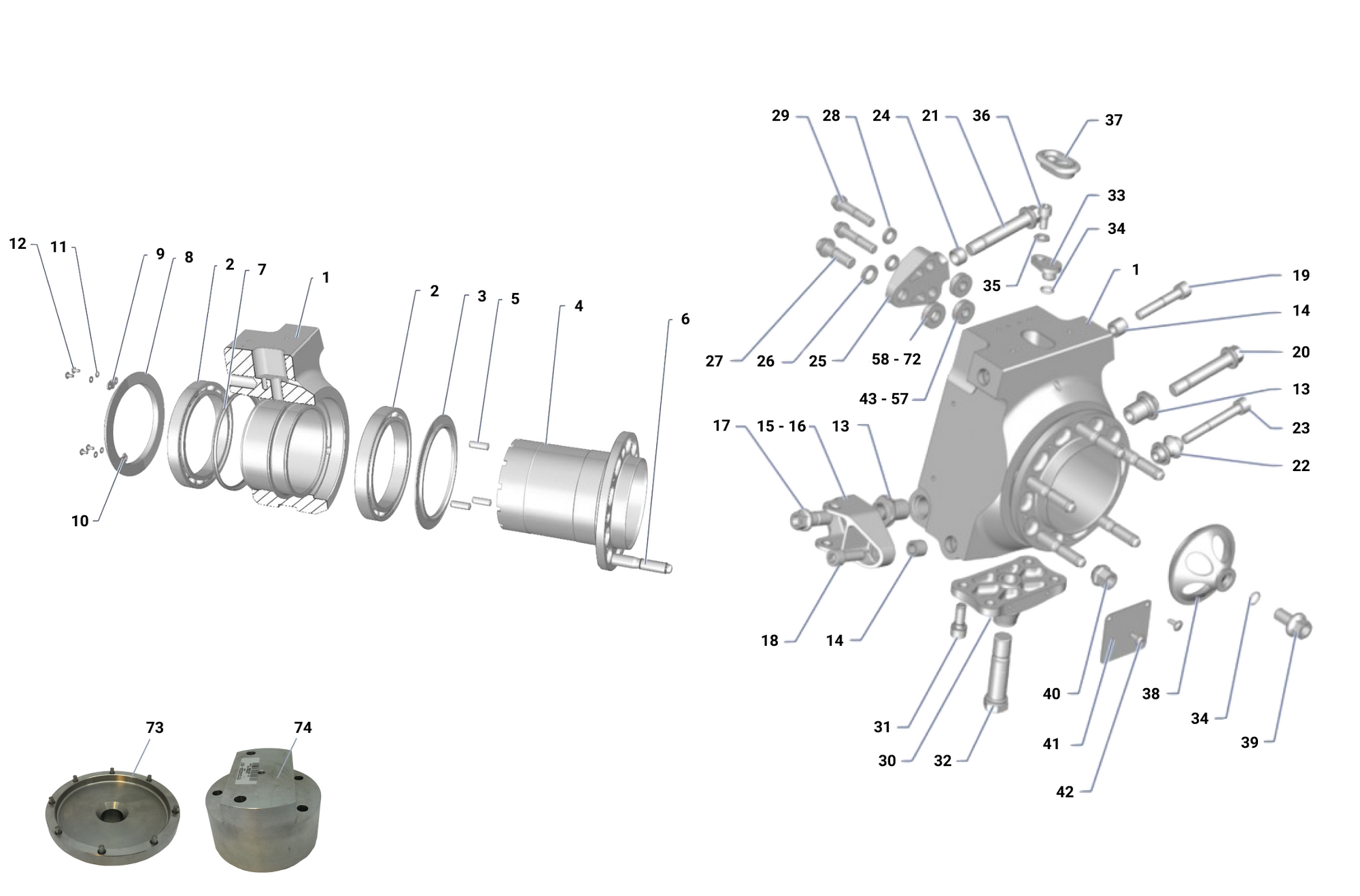

E13 - Front Upright - Gravel

E13 - Front Upright - Gravel

Item Image Description Chapter Qty Select Qty Price Add to Basket
1
R5 Upright (with paired spacer)

1E1326058B

2

€1181.25 €1452.94
2
Reinforced Bearing

903535338B

4

€298.80 €367.52
3
Hub Bearing Shim

1E1318064B

2

€219.38 €269.84
4
Hub M100x1

1E1318068E

2

€585.20 €719.80
5
Center Finder Ø8x23

1E1318147A

6

€22.24 €27.36
6
Wheel Stud Ø12x125

903538348B

10

€34.51 €42.45
7
Magnetic coding wheel

1E1325924A

2

€217.50 €267.53
8
Hub Nut M100x1 Th8

1E1318063A

2

€400.58 €492.71
9
Stopper Type 1

1E1318086A

2

€35.92 €44.18
10
Stopper Type 2

1E1318087A

2

€35.92 €44.18
11

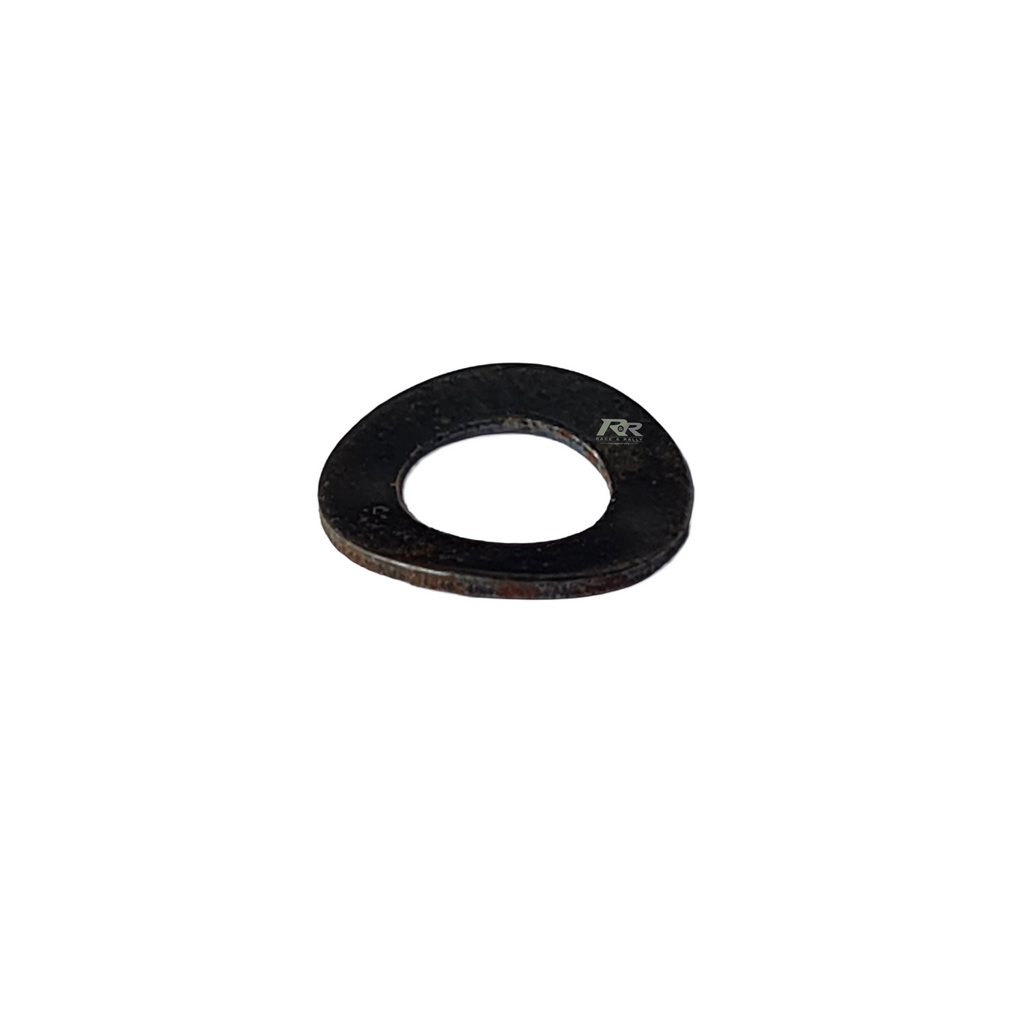

Spring Washer Ø4 type A

PS86002A10

8

€0.05 €0.06
12
Screw M4-8 12.9

PS82084A10

8

€2.30 €2.83
13
Damper Insert

1E1326051B

4

€28.23 €34.72
14
Center Finder Ø16-10x13

1E1326111A

4

€7.53 €9.26
15
Right steering bracket

1E2426554B

1

€529.20 €650.92
16
Left Steering Bracket

1E2426555B

1

€587.25 €722.32
17
Screw Ø14x150-30

1E1318136C

2

€18.44 €22.68
18
CHC Screw M10 lg30 cl12.9

PS82008A10

2

€1.87 €2.30
19
Screw M10x55

PS82145A10

2

€2.32 €2.85
20
Collar Screw Ø14x150-77

1E1325335C

2

€18.14 €22.31
21
Vis MJ14x150 L83 58 cl.12.9 six pans SP

1E1328096A

2

€14.16 €17.42
22
Gravel Caliper Mounting

1E1326057B

2

€18.08 €22.24
23
CHC screw M10x75 cl12.9

PS82148A10

2

€4.23 €5.20
24
Center Finder Ø17-14x10

1E1325079A

2

€7.58 €9.32
25
Camber Mounting - No longer available

1E1326155A

2

Sold Out

€113.54 €139.65
26
Washer Ø12x19.5x3

1E1318146A

2

€9.56 €11.76
27
Screw Ø12x125-38 cl12.9

1E1318143B

2

€37.20 €45.76
28
Washer Ø10x16.5x3

1E1318145A

4

€6.02 €7.40
29
Screw Ø10x125-48 cl12.9

1E1318144B

4

€17.02 €20.93
30
Chape pt D Terre

1E1326428C

2

€327.45 €402.76
31
Screw M10-25

PS82094A10

8

€1.42 €1.75
32
D point Ø18x150 Axle - No Longer Available

1E1326395A

2

Sold Out

€39.83 €48.99
33
Upright Plug (speed sensor)

1E1326679A

2

€84.38 €103.79
34
O-Ring Ø10.82x1.78

903729718A

4

€1.95 €2.40
35
Plain Washer Ø8x16-1,5

6947-78

2

€1.19 €1.46
36
Screw CHC M8x16 cl12.9

PS82130A10

€1.25 €1.54
37
ABS Sensor Plug

96141076

2

€5.60 €6.89
38
Steel Fixing Flange Rzeppa

1E1324300B

2

€276.00 €339.48
39
Screw Ø12x125-24

1E1318079B

2

€17.70 €21.77
40
Wheel Nut Ø12x125

1E1318085B

10

€28.56 €35.13
41
D Point Protecting Plate

1E1326782A

2

€7.97 €9.80
42
Screw ULS M5x12 cl.12.9

PS82657A10

4

€0.31 €0.38
43
Camber washer Ø10 ép 6.45

1E1327417B

4

€2.89 €3.55
44
Camber washer Ø10 ép 6.90

1E1327418B

4

€2.89 €3.55
45
Camber washer Ø10 ép 7.35

1E1327419B

4

€2.89 €3.55
46
Camber washer Ø10 ép 7.80

1E1327420B

4

€2.89 €3.55
47
Camber washer Ø10 ép 8.25

1E1327421B

4

€2.89 €3.55
48
Camber washer Ø10 ép 8.70

1E1327422B

4

€2.89 €3.55
49
Camber washer Ø10 ép 9.15

1E1327423B

4

€2.89 €3.55
50
Camber washer Ø10 ép 9.60

1E1327424B

4

€2.89 €3.55
51
Camber washer Ø10 ép 10.05

1E1327425B

4

€2.89 €3.55
52
Camber washer Ø10 ép 10.50

1E1327426B

4

€2.89 €3.55
53
Camber washer Ø10 ép 10.95

1E1327427B

4

€2.89 €3.55
54
Camber washer Ø10 ép 11.40

1E1327428B

4

€2.89 €3.55
55
Camber washer Ø10 ép 11.85

1E1327429B

4

€2.89 €3.55
56
Camber washer Ø10 ép 12.30

1E1327647A

4

€5.84 €7.18
57
Camber washer Ø10 ép 12.75

1E1327648A

4

€5.84 €7.18
58
Camber washer Ø12 ép 6.45

1E1327431B

2

€3.36 €4.13
59
Camber washer Ø12 ép 6.90

1E1327432B

2

€3.36 €4.13
60
Camber washer Ø12 ép 7.35

1E1327433B

2

€3.36 €4.13
61
Camber washer Ø12 ép 7.80

1E1327434B

2

€3.36 €4.13
62
Camber washer Ø12 ép 8.25

1E1327435B

2

€3.36 €4.13
63
Camber washer Ø12 ép 8.70

1E1327436B

2

€3.36 €4.13
64
Camber washer Ø12 ép 9.15

1E1327437B

2

€3.36 €4.13
65
Camber washer Ø12 ép 9.60

1E1327438B

2

€3.36 €4.13
66
Camber washer Ø12 ép 10.05

1E1327439B

2

€3.36 €4.13
67
Camber washer Ø12 ép 10.50

1E1327440B

2

€3.36 €4.13
68
Camber washer Ø12 ép 10.95

1E1327441B

2

€3.36 €4.13
69
Camber washer Ø12 ép 11.40

1E2427442B

2

€3.36 €4.13
70
Camber washer Ø12 ép 11.85

1E1327443B

2

€3.36 €4.13
71
Camber washer Ø12 ép 12.30

1E1327649A

2

€8.82 €10.85
72
Camber washer Ø12 ép 12.75

1E1327650A

2

€8.50 €10.46
73
Hub nut tightening tool

1E1324231A-OUT

€220.50 €271.22
74
Upright tool

1E1324232A-OUT

€264.31 €325.10
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
