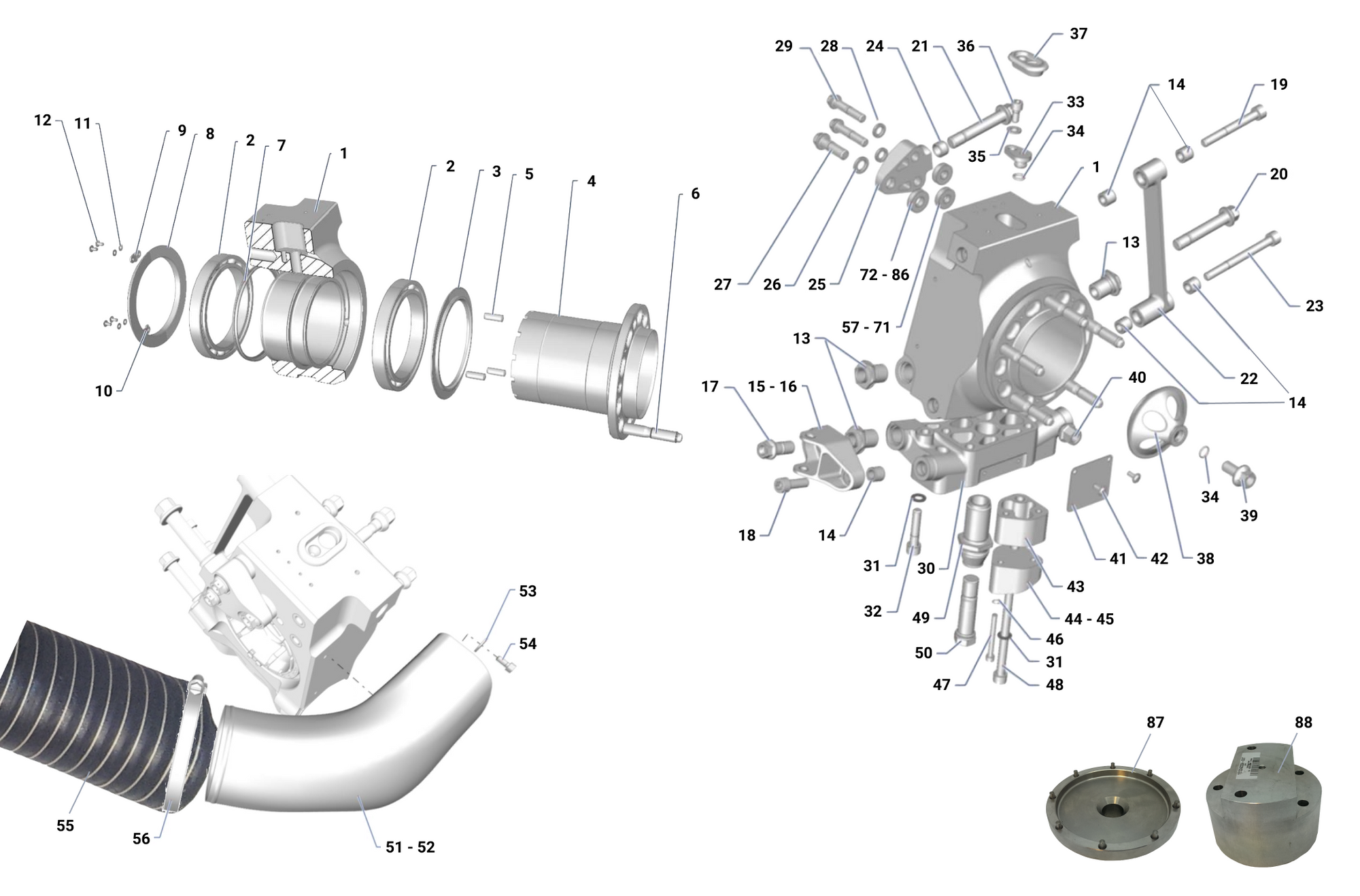

E13 - Front Upright - Tarmac

E13 - Front Upright - Tarmac

Item Image Description Chapter Qty Select Qty Price Add to Basket
1

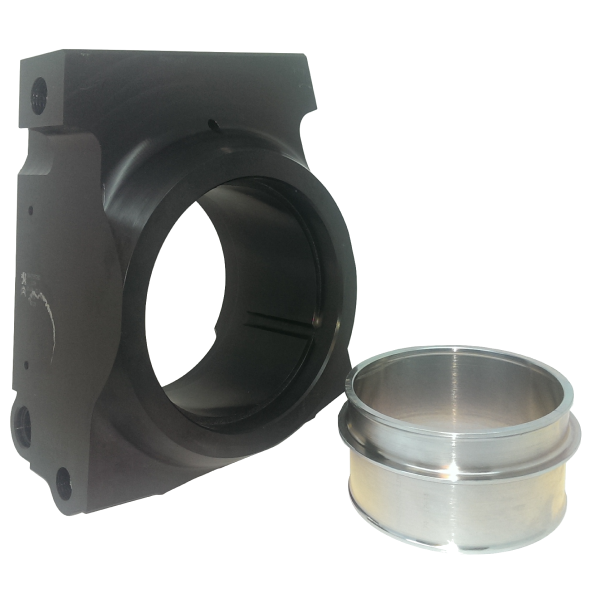

R5 Upright (with paired spacer)

1E1326058B

2

€1181.25 €1452.94
2
Reinforced Bearing

903535338B

4

€298.80 €367.52
3
Hub Bearing Shim

1E1318064B

2

€219.38 €269.84
4

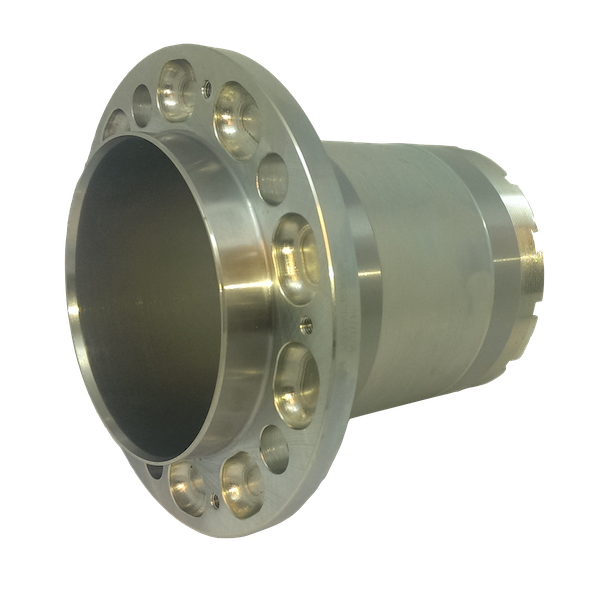

Hub M100x1

1E1318068E

2

€585.20 €719.80
5
Center Finder Ø8x23

1E1318147A

6

€22.24 €27.36
6

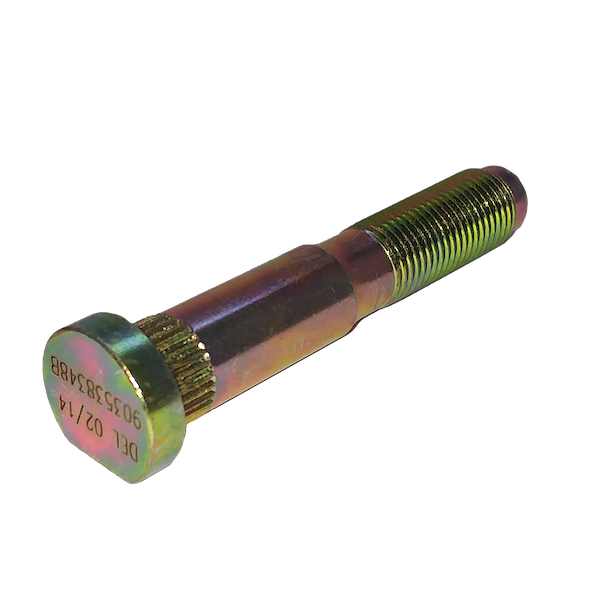

Wheel Stud Ø12x125

903538348B

10

€34.51 €42.45
7
Magnetic coding wheel

1E1325924A

2

€217.50 €267.53
8
Hub Nut M100x1 Th8

1E1318063A

2

€400.58 €492.71
9
Stopper Type 1

1E1318086A

2

€35.92 €44.18
10
Stopper Type 2

1E1318087A

2

€35.92 €44.18
11
Spring Washer Ø4 type A

PS86002A10

8

€0.05 €0.06
12
Screw M4-8 12.9

PS82084A10

8

€2.30 €2.83
13

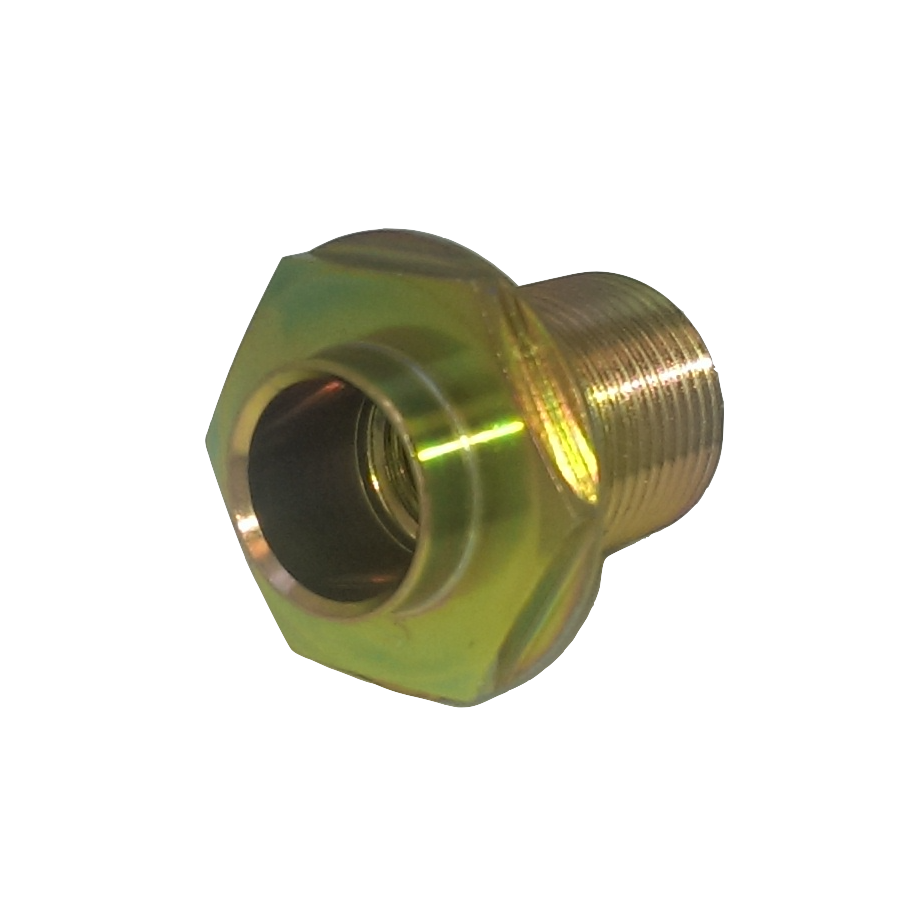

Damper Insert

1E1326051B

6

€28.23 €34.72
14

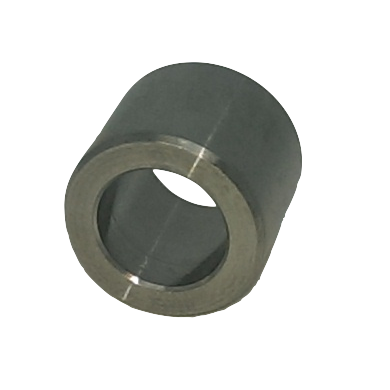

Center Finder Ø16-10x13

1E1326111A

10

€7.53 €9.26
15

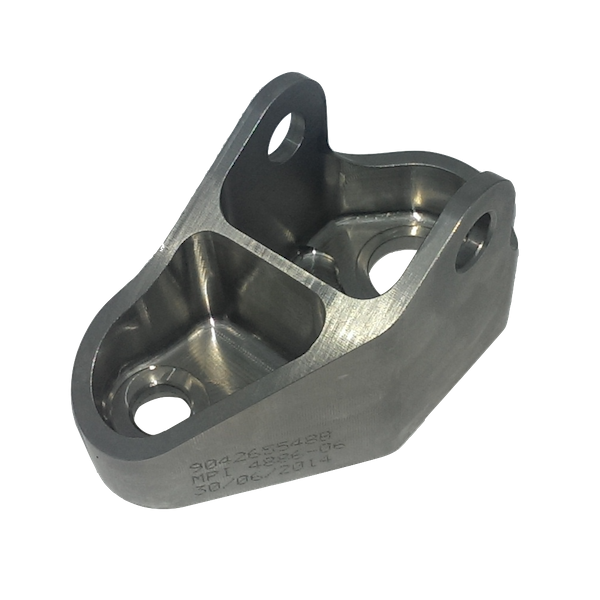

Right steering bracket

1E2426554B

1

€529.20 €650.92
16

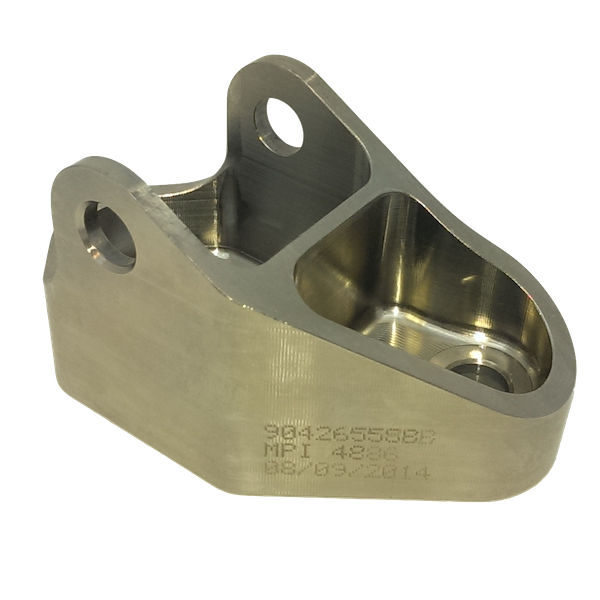

Left Steering Bracket

1E2426555B

1

€587.25 €722.32
17

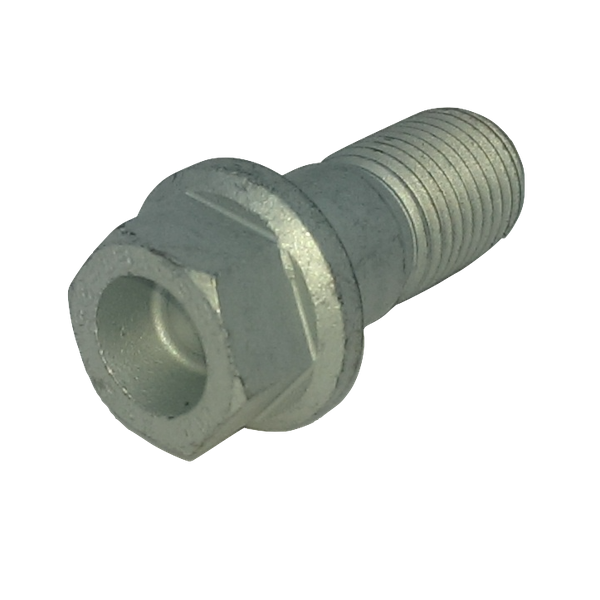

Screw Ø14x150-30

1E1318136C

2

€18.44 €22.68
18
CHC Screw M10 lg30 cl12.9

PS82008A10

2

€1.87 €2.30
19
Screw CHC M10x80 cl12.9

PS82538A10

2

€3.03 €3.73
20

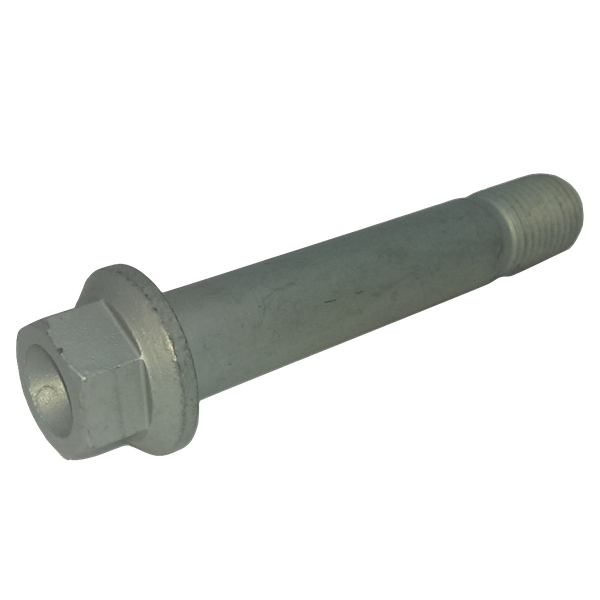

Collar Screw Ø14x150-77

1E1325335C

2

€18.14 €22.31
21

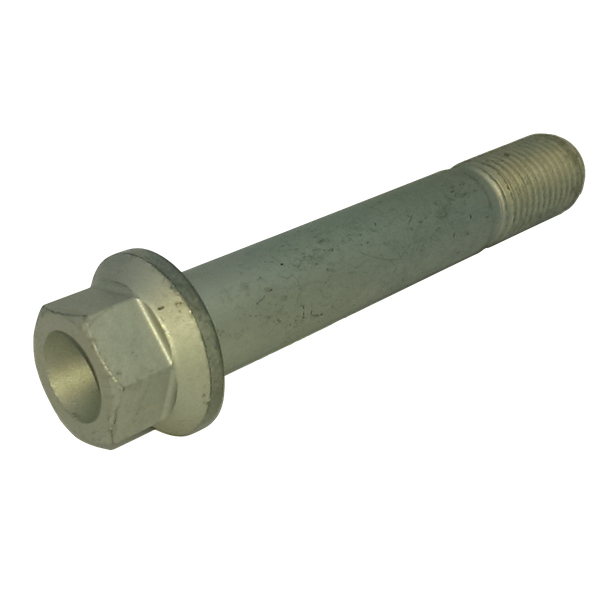

Vis MJ14x150 L83 58 cl.12.9 six pans SP

1E1328096A

2

€14.16 €17.42
22

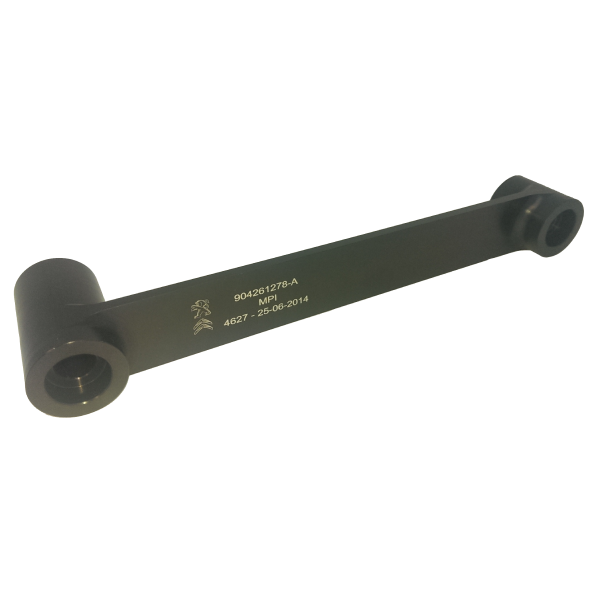

Tarmac Caliper Mounting

1E1326127A

2

€98.60 €121.28
23

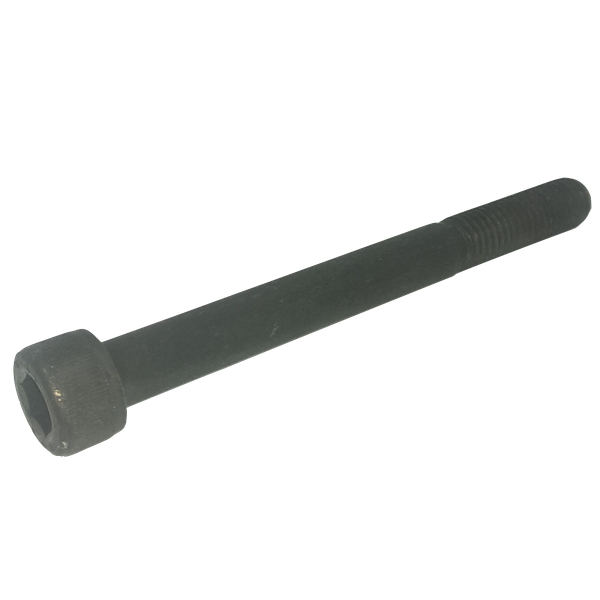

Screw CHC M10x100 cl12.9

PS82179A10

2

€2.00 €2.46
24

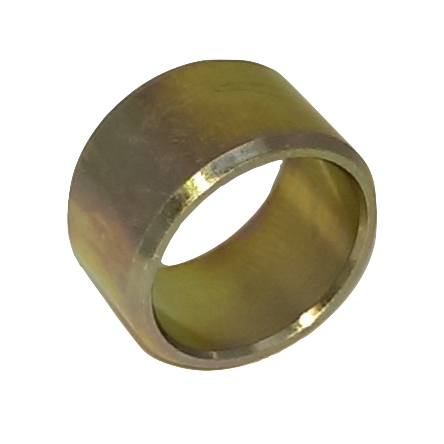

Center Finder Ø17-14x10

1E1325079A

2

€7.58 €9.32
25

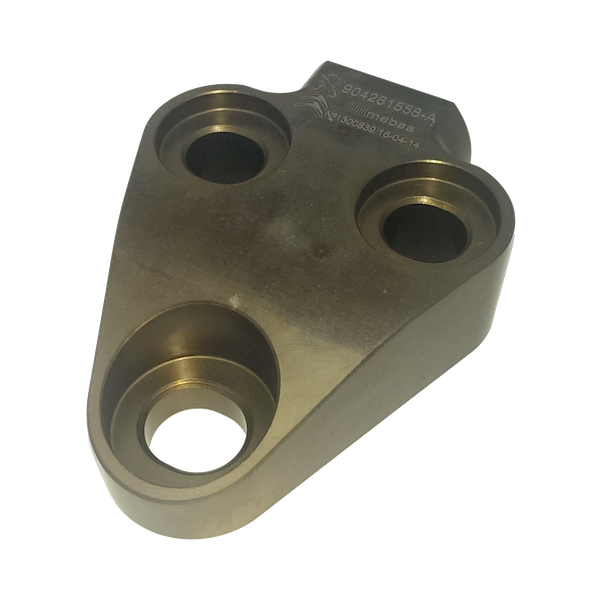

Camber Mounting - No longer available

1E1326155A

2

Sold Out

€113.54 €139.65
26

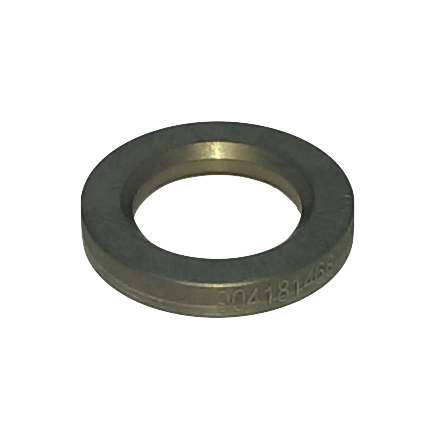

Washer Ø12x19.5x3

1E1318146A

2

€9.56 €11.76
27

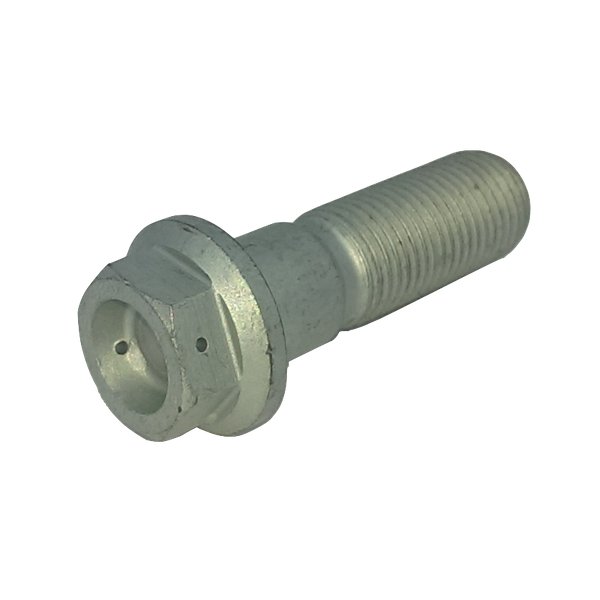

Screw Ø12x125-38 cl12.9

1E1318143B

2

€37.20 €45.76
28

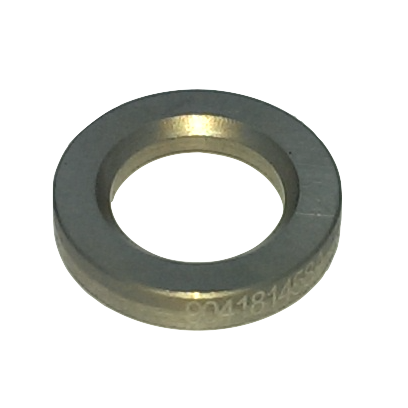

Washer Ø10x16.5x3

1E1318145A

4

€6.02 €7.40
29

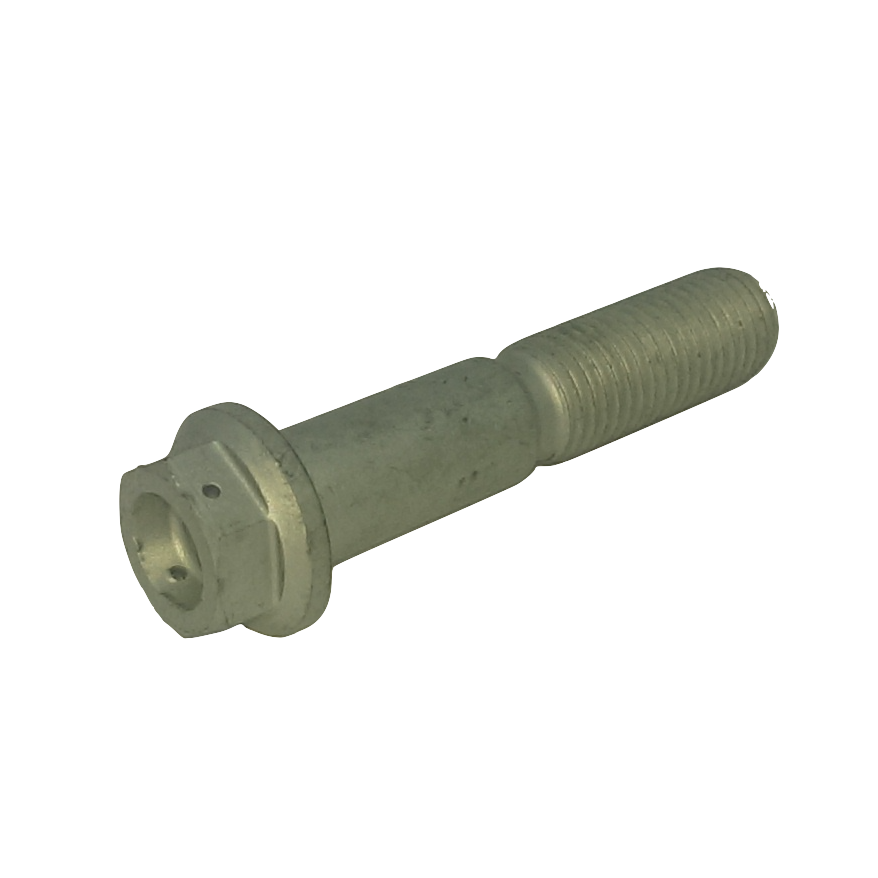

Screw Ø10x125-48 cl12.9

1E1318144B

4

€17.02 €20.93
30

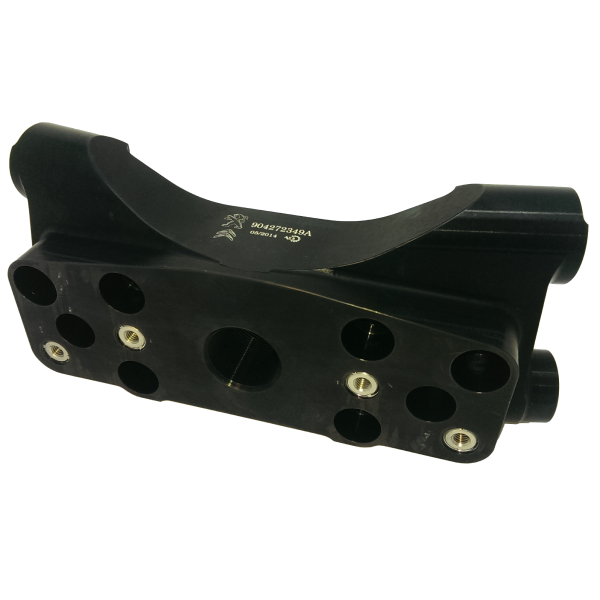

Chape pt D Asph avec Keensert

1E1327234A

2

€740.43 €910.73
31
Sps washer 10-16-1

PS86571A10

12

€0.49 €0.60
32
Screw CHC M10x45 cl12.9

PS82009A10

10

€0.89 €1.09
33
Upright Plug (speed sensor)

1E1326679A

2

€84.38 €103.79
34
O-Ring Ø10.82x1.78

903729718A

4

€1.95 €2.40
35
Plain Washer Ø8x16-1,5

6947-78

2

€1.19 €1.46
36
Screw CHC M8x16 cl12.9

PS82130A10

€1.25 €1.54
37

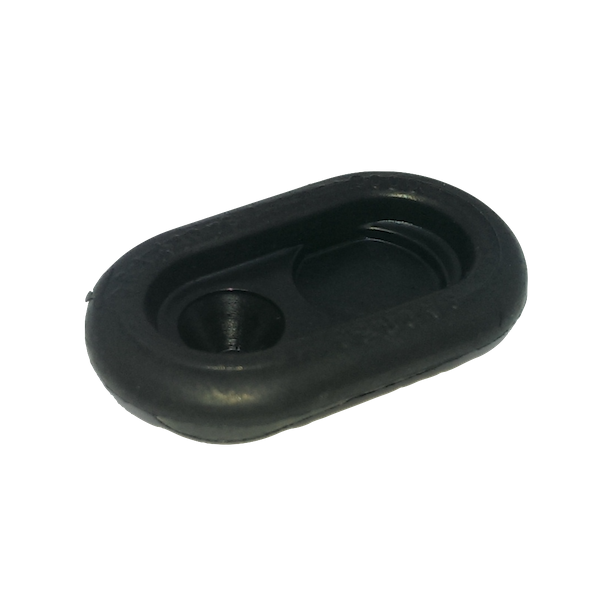

ABS Sensor Plug

96141076

2

€5.60 €6.89
38

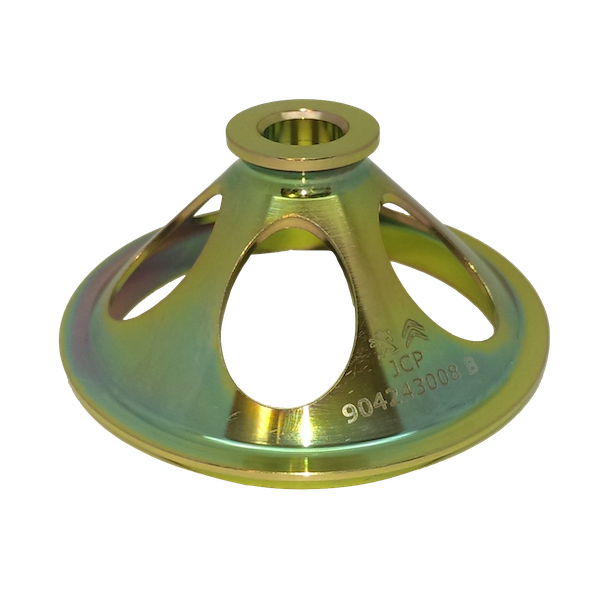

Steel Fixing Flange Rzeppa

1E1324300B

2

€276.00 €339.48
39

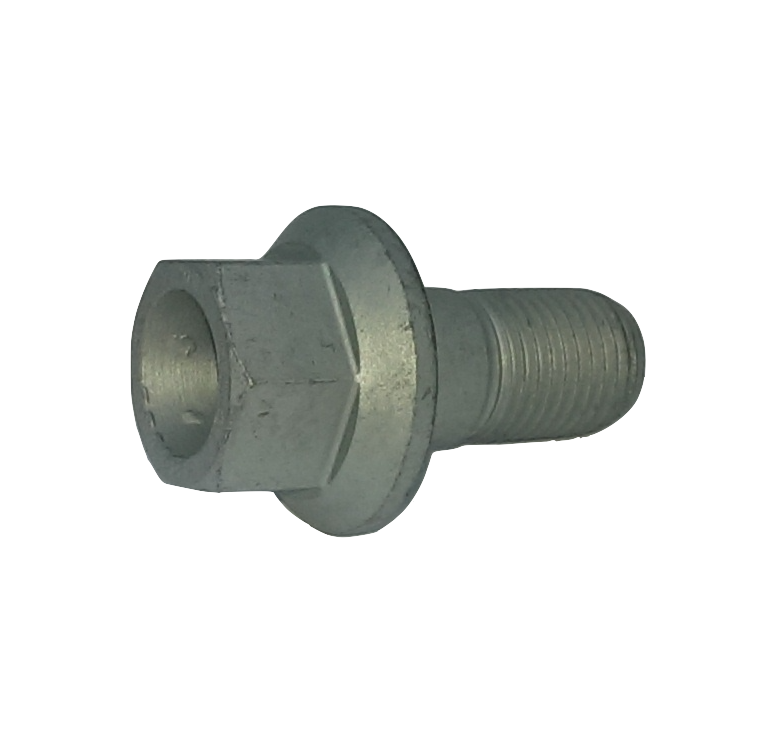

Screw Ø12x125-24

1E1318079B

2

€17.70 €21.77
40
Wheel Nut Ø12x125

1E1318085B

10

€28.56 €35.13
41

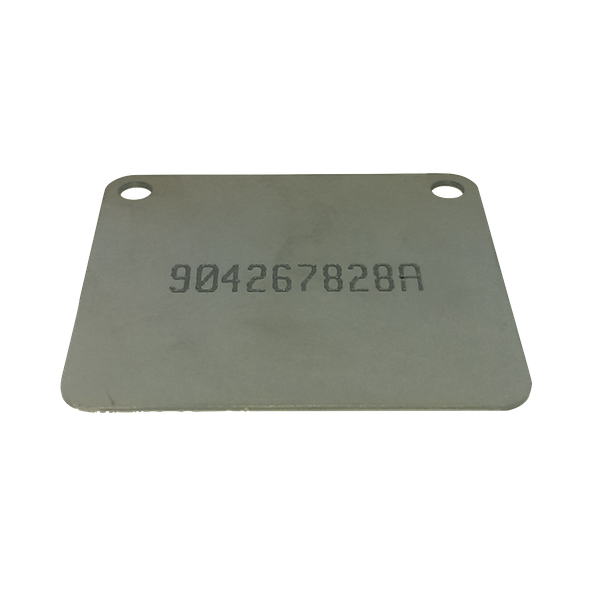

D Point Protecting Plate

1E1326782A

2

€7.97 €9.80
42

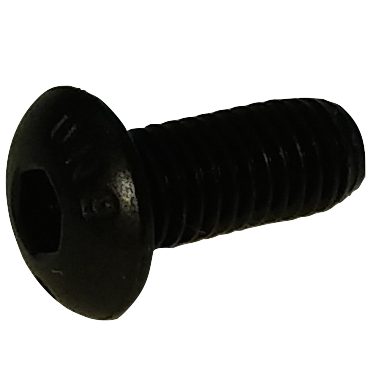

Screw ULS M5x12 cl.12.9

PS82657A10

4

€0.31 €0.38
43

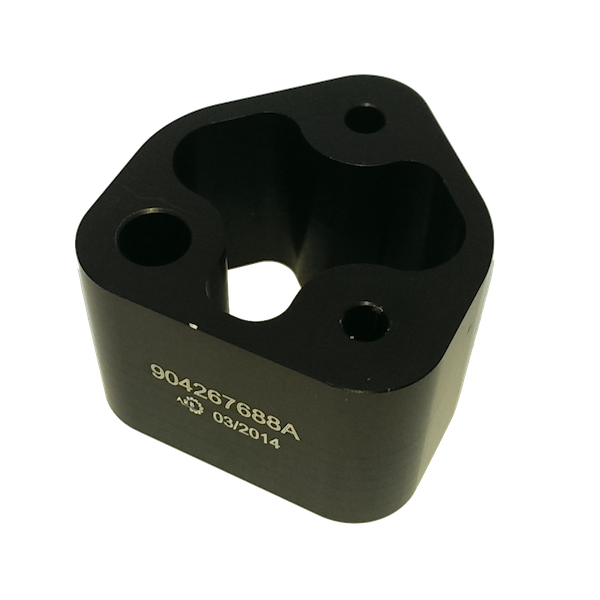

Tarmac lower axis spacer

1E1326768A

2

€44.00 €54.12
44

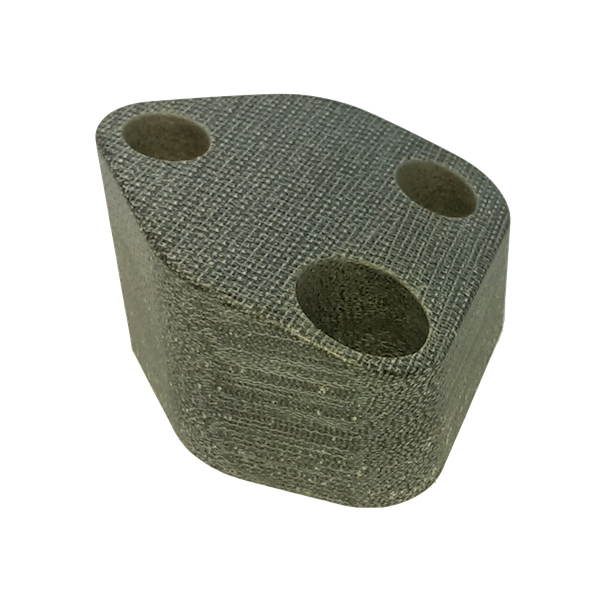

Right lower axis protection

1E1326766C

1

€242.00 €297.66
45

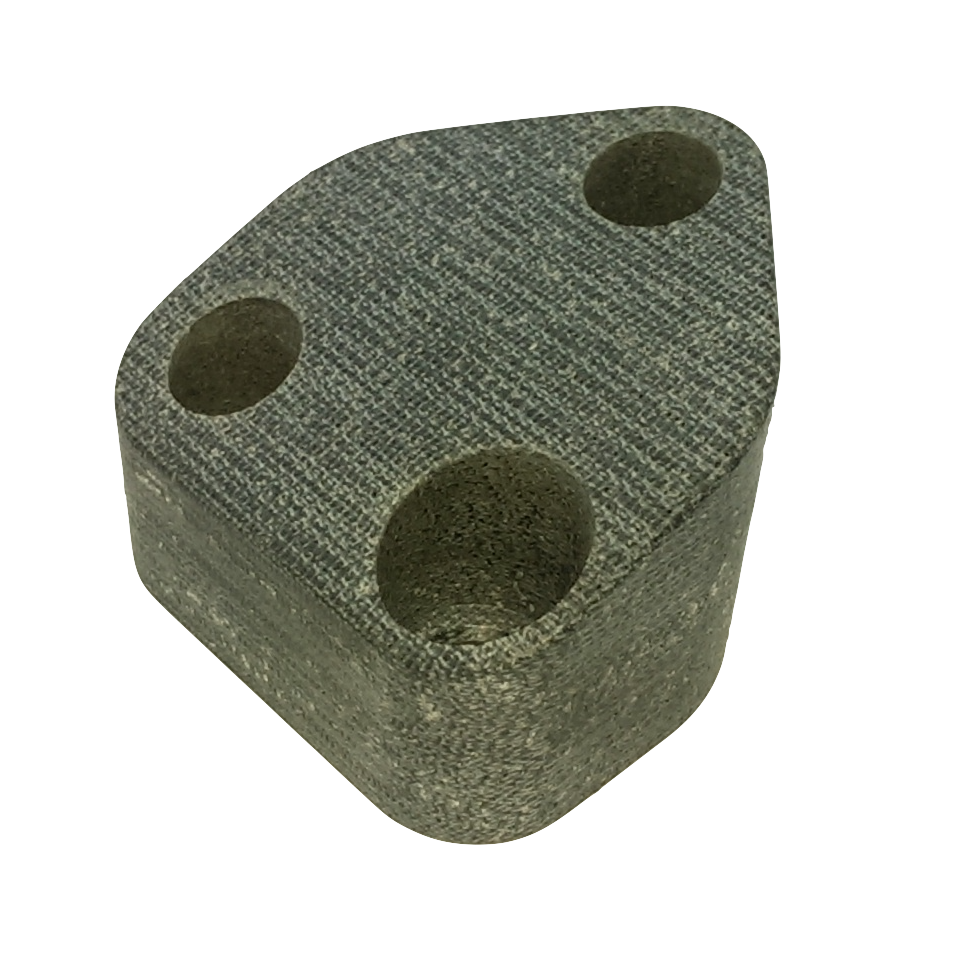

Left lower axis protection

1E1326767C

1

€242.00 €297.66
46
Washer SPS ∅6x10-0.7

PS86098A01

4

€0.18 €0.22
47
Screw M6 L55

PS82056A10

4

€1.20 €1.48
48

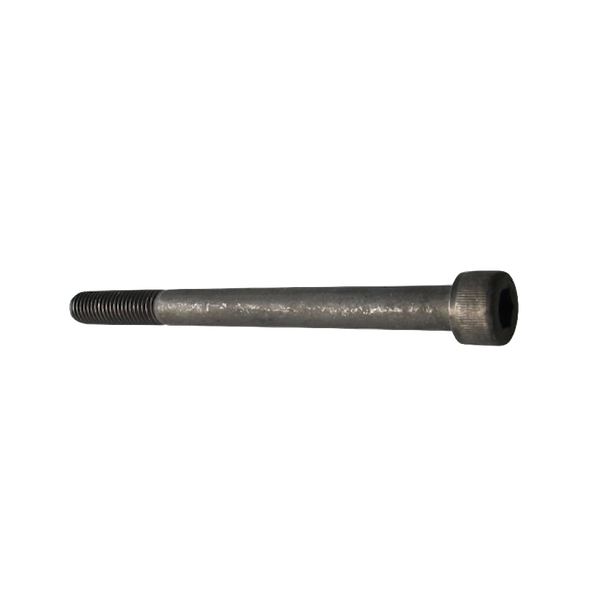

Screw CHC M10x120

PS82151A10

2

€2.89 €3.55
49

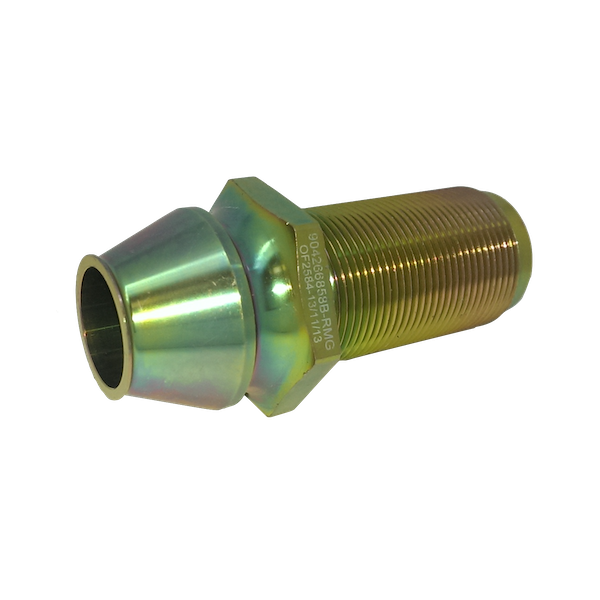

Tarmac D Point Insert - NO LONGER AVAILABLE

1E1326685B

2

Sold Out

€61.63 €75.80
50

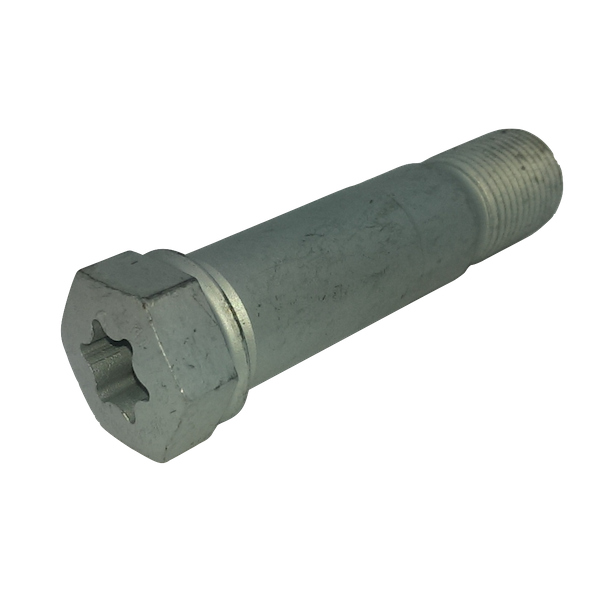

D point Ø18x150 Axle - No Longer Available

1E1326395A

2

Sold Out

€39.83 €48.99
51

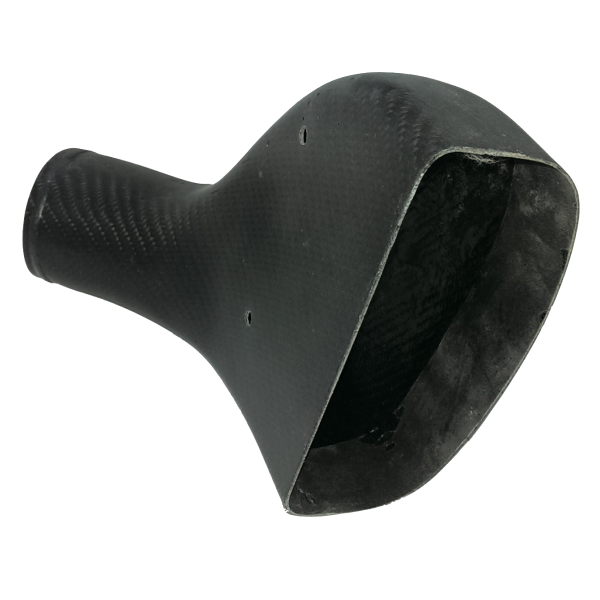

Right brake cooling duct

1E1326606C

1

€493.00 €606.39
52

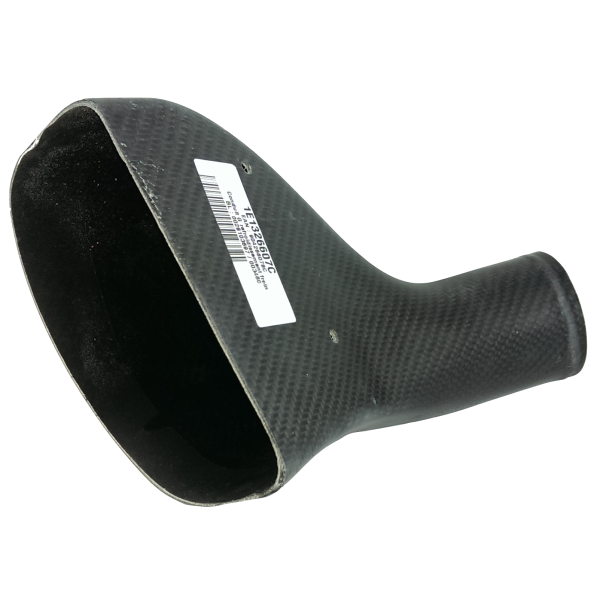

Left brake cooling duct

1E1326607C

1

€493.00 €606.39
54
Screw CHC M5x12 cl.12.9

PS82027A10

4

€0.25 €0.31
55

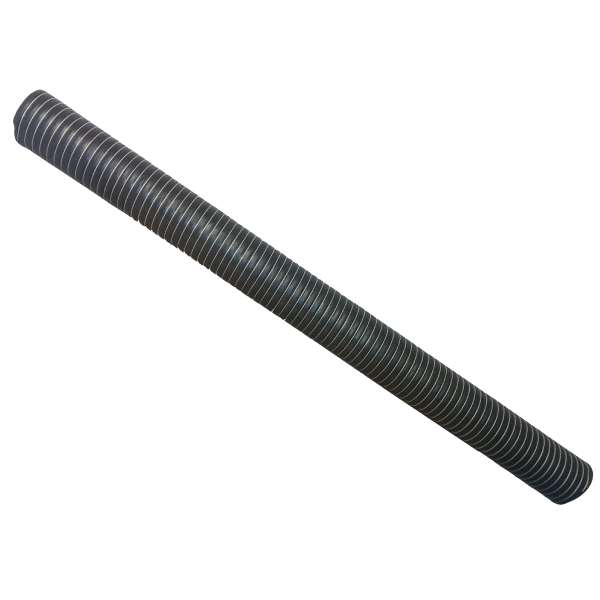

Air ducting Ø80 L1m

1F2064708A

2

€36.72 €45.17
56

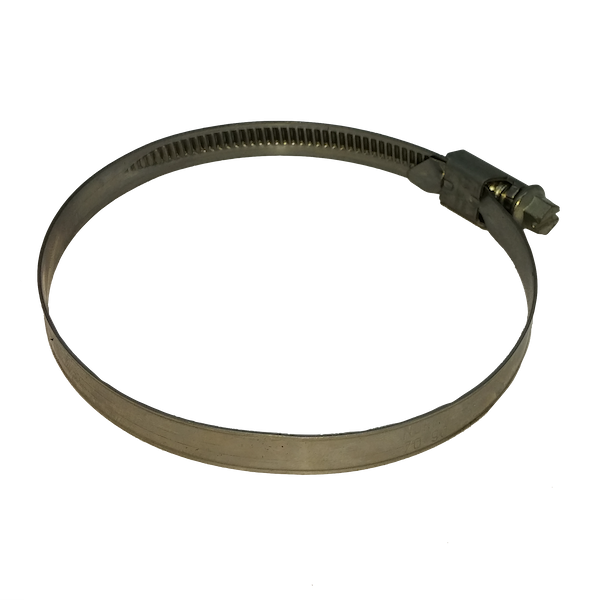

Metal collar Ø70-90

6981J8

2

€2.38 €2.93
57
Camber washer Ø10 ép 6.45

1E1327417B

4

€2.89 €3.55
58
Camber washer Ø10 ép 6.90

1E1327418B

4

€2.89 €3.55
59
Camber washer Ø10 ép 7.35

1E1327419B

4

€2.89 €3.55
60
Camber washer Ø10 ép 7.80

1E1327420B

4

€2.89 €3.55
61
Camber washer Ø10 ép 8.25

1E1327421B

4

€2.89 €3.55
62
Camber washer Ø10 ép 8.70

1E1327422B

4

€2.89 €3.55
63
Camber washer Ø10 ép 9.15

1E1327423B

4

€2.89 €3.55
64
Camber washer Ø10 ép 9.60

1E1327424B

4

€2.89 €3.55
65
Camber washer Ø10 ép 10.05

1E1327425B

4

€2.89 €3.55
66
Camber washer Ø10 ép 10.50

1E1327426B

4

€2.89 €3.55
67
Camber washer Ø10 ép 10.95

1E1327427B

4

€2.89 €3.55
68
Camber washer Ø10 ép 11.40

1E1327428B

4

€2.89 €3.55
69
Camber washer Ø10 ép 11.85

1E1327429B

4

€2.89 €3.55
70
Camber washer Ø10 ép 12.30

1E1327647A

4

€5.84 €7.18
71
Camber washer Ø10 ép 12.75

1E1327648A

4

€5.84 €7.18
72
Camber washer Ø12 ép 6.45

1E1327431B

2

€3.36 €4.13
73
Camber washer Ø12 ép 6.90

1E1327432B

2

€3.36 €4.13
74
Camber washer Ø12 ép 7.35

1E1327433B

2

€3.36 €4.13
75
Camber washer Ø12 ép 7.80

1E1327434B

2

€3.36 €4.13
76
Camber washer Ø12 ép 8.25

1E1327435B

2

€3.36 €4.13
77
Camber washer Ø12 ép 8.70

1E1327436B

2

€3.36 €4.13
78
Camber washer Ø12 ép 9.15

1E1327437B

2

€3.36 €4.13
79
Camber washer Ø12 ép 9.60

1E1327438B

2

€3.36 €4.13
80
Camber washer Ø12 ép 10.05

1E1327439B

2

€3.36 €4.13
81
Camber washer Ø12 ép 10.50

1E1327440B

2

€3.36 €4.13
82
Camber washer Ø12 ép 10.95

1E1327441B

2

€3.36 €4.13
83
Camber washer Ø12 ép 11.40

1E2427442B

2

€3.36 €4.13
84
Camber washer Ø12 ép 11.85

1E1327443B

2

€3.36 €4.13
85
Camber washer Ø12 ép 12.30

1E1327649A

2

€8.82 €10.85
86
Camber washer Ø12 ép 12.75

1E1327650A

2

€8.50 €10.46
87

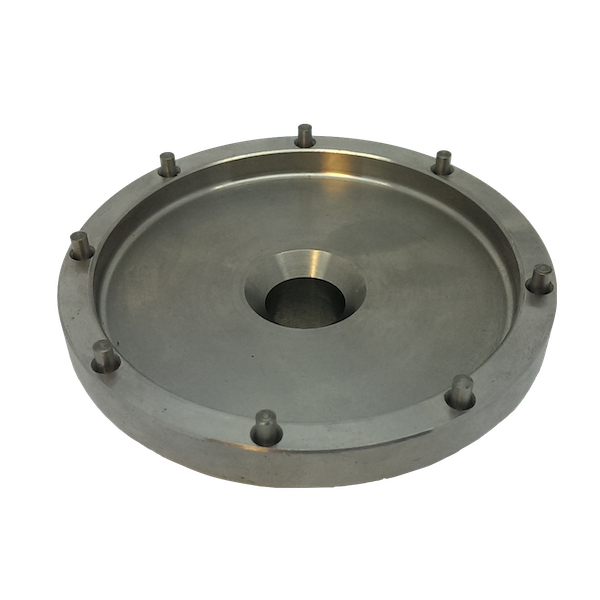

Hub nut tightening tool

1E1324231A-OUT

€220.50 €271.22
88

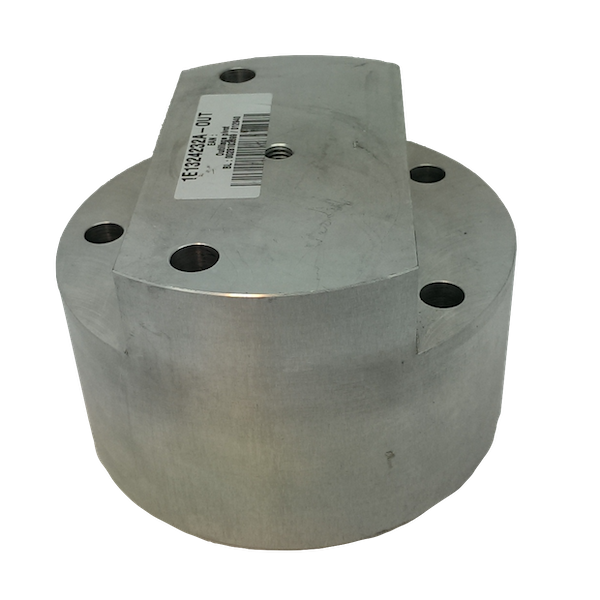

Upright tool

1E1324232A-OUT

€264.31 €325.10
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
