E14 - Front Suspension - OR4

E14 - Front Suspension - OR4

View Docs
Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Forged strut modified

904666898A

2

€660.71 €812.67
2
Front tarmac damper

904640938B

2

€2129.00 €2618.67
3
Front gravel damper

904640948B

2

€2129.00 €2618.67
4
Guide Ring 52-49-20

1E1421382A

2

€28.86 €35.50
5
Guide ring 53-50-20

1E1422101A

2

€14.88 €18.30
6
Wiper seal 50 D58 E4

PS75592A10

2

€25.78 €31.71
7
Silencer G3/8

1E1420433A

2

€10.73 €13.20
8
HSH Screw M6X100 L22 CL12.9

PS82584A10

16

€0.53 €0.65
9
Washer SPS ∅6x10-0.7

PS86098A01

16

€0.18 €0.22
10
Upper ball joint gxsw 22

1E1421687A

2

€56.61 €69.63
11
Top Strut Bearing - Bottom Spacer

1E1421380A

2

€12.18 €14.98
12
RLX Screw M6x100 L12

6924C3

8

€2.33 €2.87
13
Top strut bearing - top spacer

1E1421381A

2

€15.37 €18.91
14
Nut M16 X 150-8

380505

2

€5.70 €7.01
15
Front Rebound Setup Tool Ohlins

1E1421287A-OUT

1

Sold Out

€62.70 €77.12
15

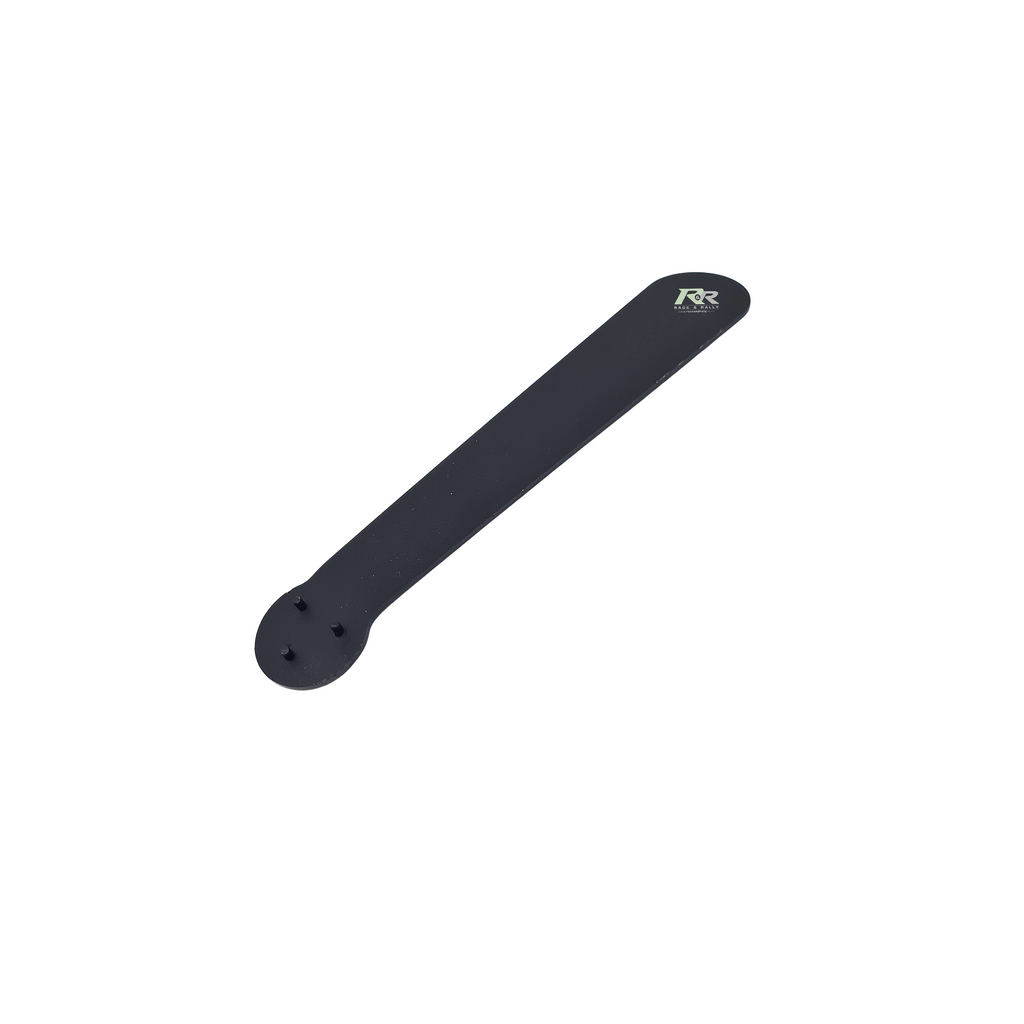

Front Rebound Setup Tool Ohlins (New Version)

904984001B

1

€64.67 €79.54
16
Bottom adjustable spring cup

1E1420993A

2

€66.53 €81.83
17
Gravel Front Spring 31 N/mm

904659378A

2

€93.90 €115.50
18
Gravel front Spring 35.5 N/mm

1E1420810A

2

€89.70 €110.33
19
Gravel Front Spring 40 N/mm - Base

1E1420809A

2

€169.59 €208.60
20
Tarmac Front Spring 46 N/Mm

1E1420807A

2

€94.17 €115.83
21
Tarmac Front Spring 51 N/mm - Base

1E1420806A

2

€60.44 €74.34
22
Tarmac Front Spring 56.5 N/mm

1E1420805A

2

€103.65 €127.49
23
Retaining ring Ø70

CS060151ST

2

€2.76 €3.39
24
Intermediate spring cup

1E1420786C

2

€30.71 €37.77
25
Front Helper Spring

1E1463020A

2

€68.44 €84.18
26
Top Spring Cup

1E1420785C

2

€104.40 €128.41
27
Stop end washer 65x90x1

1E1420826A

4

€9.00 €11.07
28
Axial needle bearing 65x90x3

1E1420827A

2

€22.33 €27.47
29
Top spring cup mounting

1E1420780A

2

€38.57 €47.44
30
O-ring A84 T2.00 Nitrile 70SH

CS360189ST

2

€0.58 €0.71
31
Ring Lock AEP 50

CS060009ST

2

€1.33 €1.64
32
Screw Chc M4X30 Cl.10.9

CS530270ST

2

€0.18 €0.22
33
Washer SPS Ø4,2x7-0,5

PS86597A10

2

€0.63 €0.77
34
Screw M8 L25

PS82091A10

8

€0.78 €0.96
35
Tooth Spring Washer Ø8x16-1,4

6962-61

8

€0.79 €0.97
36
Camber setting interface

1E1420015C

2

€74.24 €91.32
37
Front camber spacer 1mm

1E1420231C

4

€43.50 €53.51
38
Front camber spacer 1.5mm

1E1420226C

4

€43.50 €53.51
39
Front camber spacer 1.6mm

1E1420225C

2

€43.50 €53.51
40
Front camber spacer 1.7mm

1E1420224C

2

€43.50 €53.51
41
Front camber spacer 1.8mm

1E1420223C

2

€43.50 €53.51
42
Front camber spacer 1.9mm

1E1420222C

2

€43.50 €53.51
43
Front camber spacer 2.0mm

1E1420221C

4

€29.00 €35.67
44
Front camber spacer 4.0 mm

904664288A

2

€43.50 €53.51
45
FRONT CAMBER SPACER 5.0 mm

904669978A

2

€43.50 €53.51
46
FRONT CAMBER SPACER 6.0 mm

904669988A

2

€43.50 €53.51
47
Screw upright/strut

1E1420174C

4

€20.06 €24.67
48
Plain Washer Ø12x27-2,5

6949-44

8

€1.34 €1.65
49
Collar Nut M12x175

693977

4

€2.25 €2.77
50
Graisse Kluber-Isoflex Topas NCA 51

CS290001ST

1

€206.47 €253.96
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
