• E14 - Front Suspension - Tarmac - Race and Rally
1 1

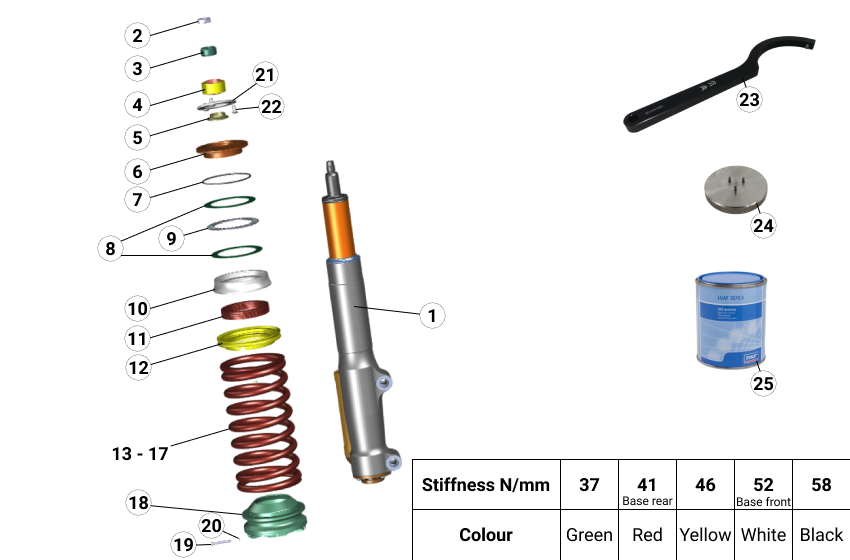

E14 - Front Suspension - Tarmac

E14 - Front Suspension - Tarmac

Item Image Description Chapter Qty Select Qty Price Add to Basket
1

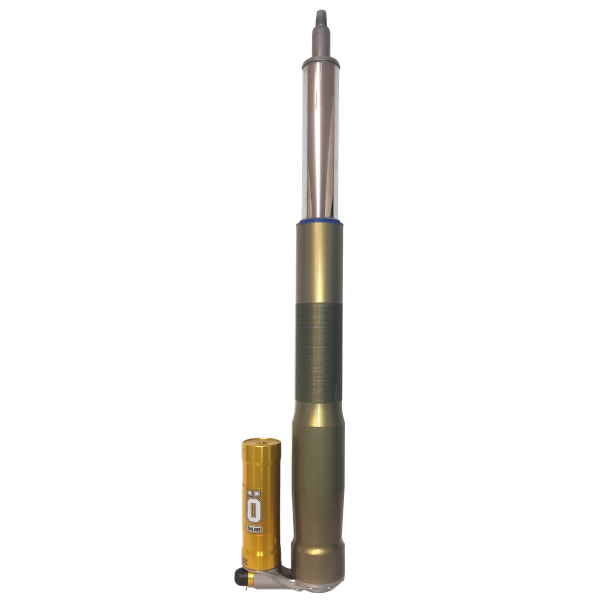

Front tarmac shock absorber

1E1426558C

2

€3104.00 €3817.92
2
Nut M16 X 150-8

380505

2

€5.70 €7.01
3
Point C upper spacer

1E1423877A

2

€21.39 €26.31
4
Bearing

PS88742A10

€298.26 €366.86
5
Point C lower spacer

1E1423878A

2

€30.06 €36.97
6
Spring support

1E1426737A

2

€26.26 €32.30
7
O-ring

PS77031A10

2

€0.77 €0.95
8
Thin washer

CS100004ST

4

€13.14 €16.16
9
Needle thrust bearing

CS100003ST

2

€40.71 €50.07
10
Spring cup

1E1422402B

2

€30.98 €38.11
11
Front Helper Spring

1E1463020A

2

€68.44 €84.18
12
Intermediate cup

1E1422401C

2

€38.06 €46.81
13
Spring 3.7 daN/mm Tarmac - Green

1E1427132A

€57.75 €71.03
14
Spring 4.1 daN/mm Tarmac - Red

1E1427133A

€52.51 €64.59
15

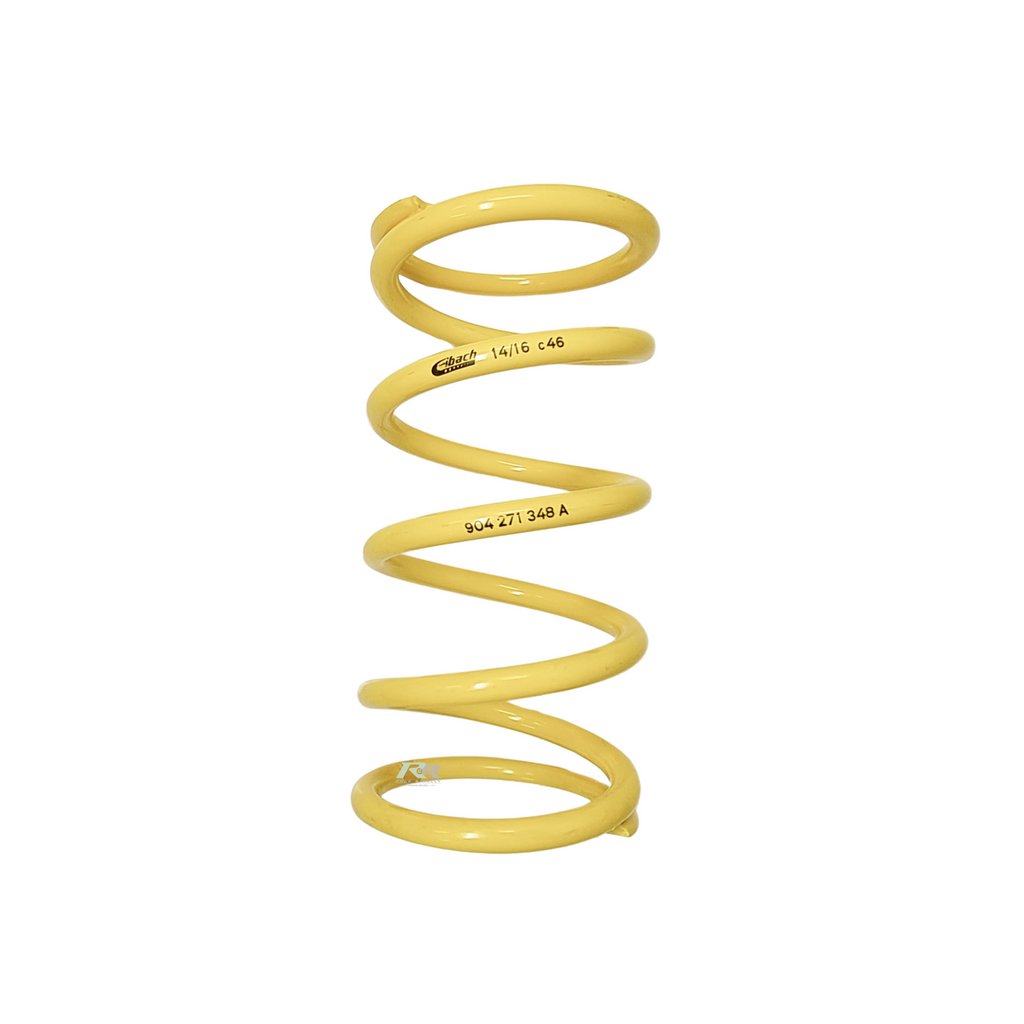

Spring 4.6 daN/mm Tarmac - Yellow

1E1427134A

€69.31 €85.25
16
Spring 5.2 daN/mm Tarmac - White

1E1427135A

2

€52.51 €64.59
17
Spring 5.8 daN/mm Tarmac - Black

1E1427136A

€57.75 €71.03
18
Spring nut

1E1426738A

2

€79.75 €98.09
19
Screw M4

PS82099A10

2

€0.36 €0.44
20
Washer SPS Ø4,2x7-0,5

PS86597A10

2

€0.63 €0.77
21
Pt C bearing holder spacer

2K9A26999A

€31.86 €39.19
22
Screw CHC M6x10

PS85070A10

€0.76 €0.93
23
Spring tool

1E1426456A-OUT

€190.18 €233.92
25
Anti-fretting agent - LGAF 3E/0.5

PS59502A10

€75.40 €92.74
