• E25 - Rear Suspension - Gravel - Race and Rally
1 1

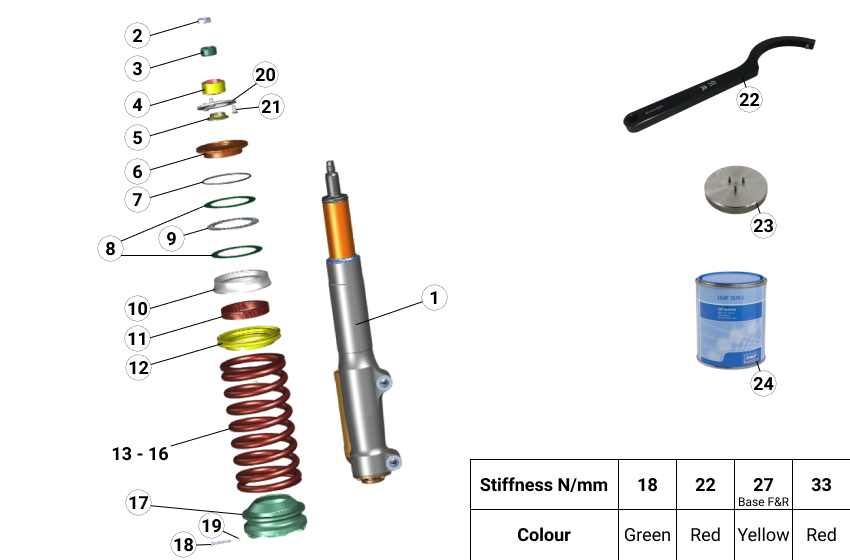

E25 - Rear Suspension - Gravel

E25 - Rear Suspension - Gravel

Item Image Description Chapter Qty Select Qty Price Add to Basket
1

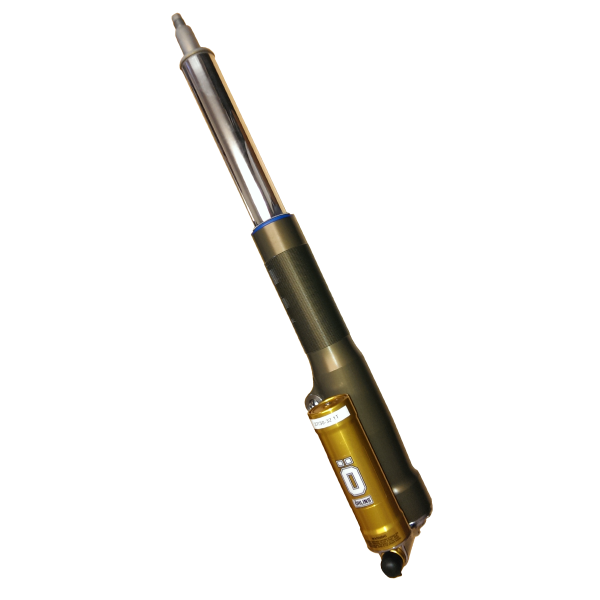

Rear gravel shock absorber

1E2526561C

2

€3308.00 €4068.84
2
Nut M16 X 150-8

380505

2

€5.70 €7.01
3
Point C upper spacer

1E1423877A

2

€21.39 €26.31
4
Bearing

PS88742A10

4

€298.26 €366.86
5
Point C lower spacer

1E1423878A

2

€30.06 €36.97
6
Spring support

1E1426737A

2

€26.26 €32.30
7
O-ring

PS77031A10

2

€0.77 €0.95
8
Thin washer

CS100004ST

4

€13.14 €16.16
9
Needle thrust bearing

CS100003ST

2

€40.71 €50.07
10
Spring cup

1E1422402B

2

€30.98 €38.11
11
Front Helper Spring

1E1463020A

2

€68.44 €84.18
12
Intermediate cup

1E1422401C

2

€38.06 €46.81
13
Spring 3.3 daN/mm Gravel - Red

1E1427131A

2

€57.75 €71.03
14
Spring 2.7 daN/mm Gravel - Yellow

1E1427130A

2

€46.32 €56.97
15
Spring 2.2 daN/mm Gravel - Red

1E1427129A

2

€57.75 €71.03
16
Spring 1.8 daN/mm Gravel - Green

1E1427128A

2

€57.75 €71.03
17
Spring nut

1E1426738A

2

€79.75 €98.09
18
Screw M4

PS82099A10

2

€0.36 €0.44
19
Washer SPS Ø4,2x7-0,5

PS86597A10

2

€0.63 €0.77
20
Pt C bearing holder spacer

2K9A26999A

4

€31.86 €39.19
21
Screw CHC M6x10

PS85070A10

12

€0.76 €0.93
22
Spring tool

1E1426456A-OUT

1

€190.18 €233.92
24
Anti-fretting agent - LGAF 3E/0.5

PS59502A10

1

€75.40 €92.74
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
