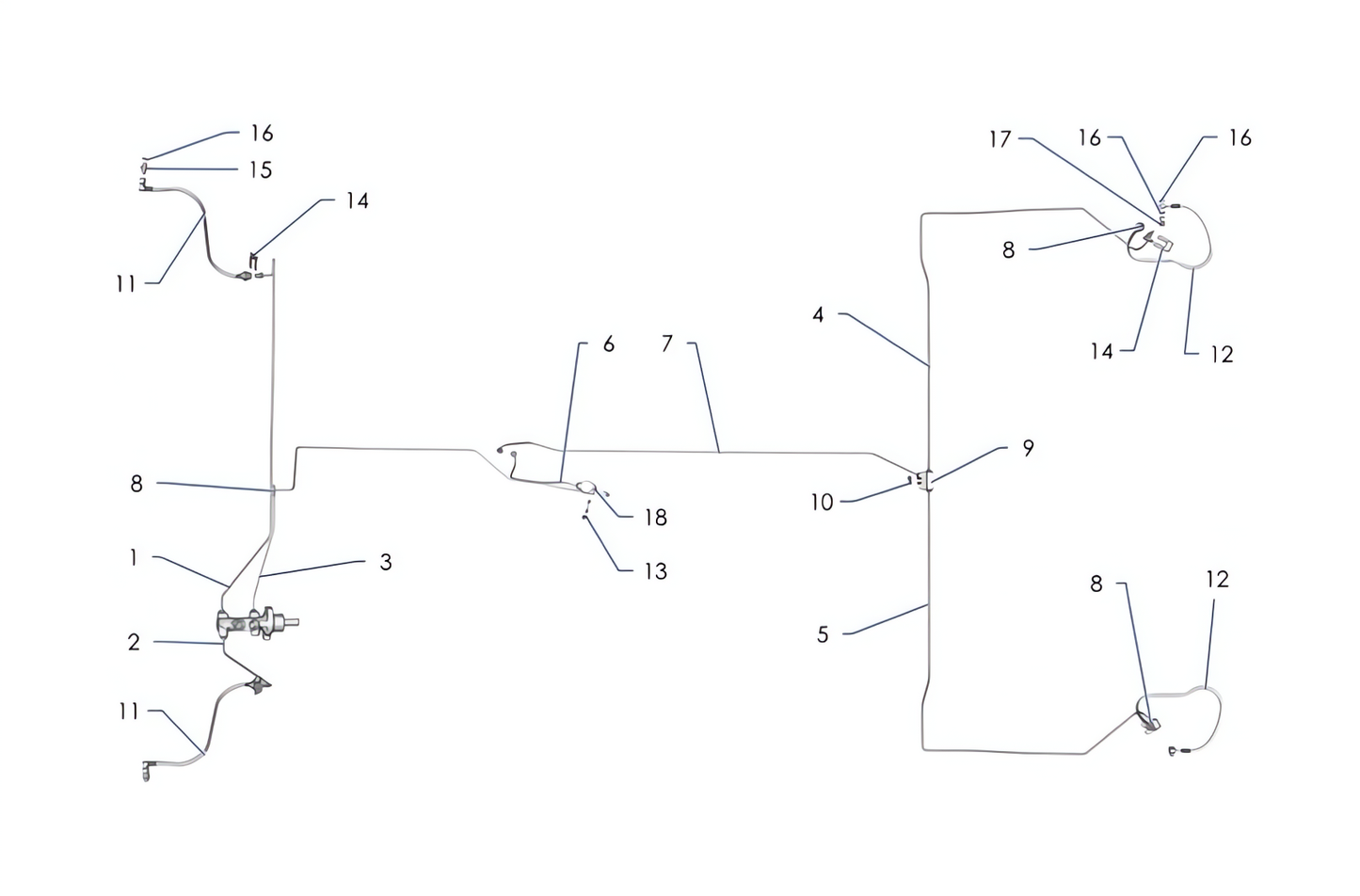

F63 - Braking Circuit

F63 - Braking Circuit

View Docs
Item Image Description Chapter Qty Select Qty Price Add to Basket
1
Brake pipe MC / FR caliper

1F6321786B

1

€55.95 €68.82
2
Brake pipe MC / FL caliper

1F6321787B

1

€45.66 €56.16
3
Brake pipe MC / limitor

1F6321788C

1

€76.79 €94.45
4
Brake pipe T / RR caliper

1F6321789B

1

€68.94 €84.80
5
Brake pipe T / RL caliper

1F6321790B

1

€68.94 €84.80
6
Brake pipe limitor / hand brake

1F6321791C

1

€32.60 €40.10
7
Brake pipe / T

1F6321792B

1

€42.75 €52.58
8
Gromet Ø6x33.5-26

6987-78

3

€1.45 €1.78
9

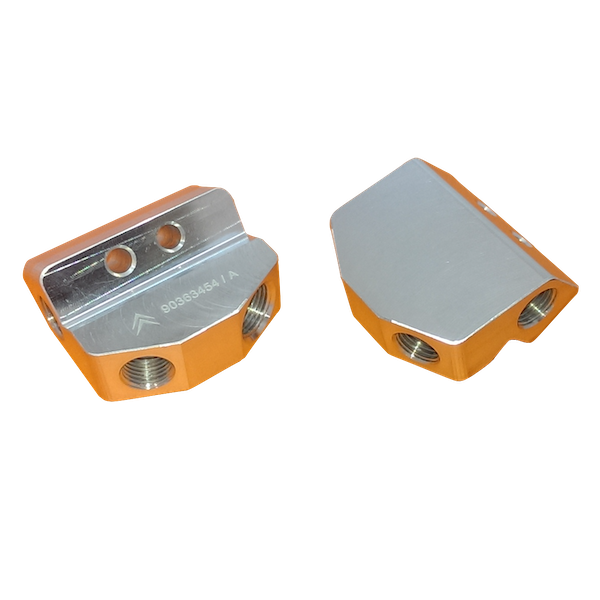

4 Way Coupling

1F6363454A

1

€45.54 €56.01
10
Locking nut M5

693673

2

€0.37 €0.46
11

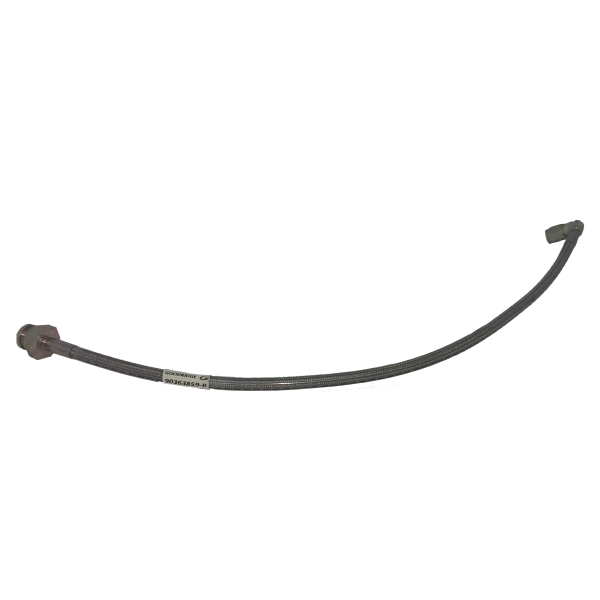

Front Brake Caliper Flexible Hose

1F6363859B

2

€52.47 €64.54
12

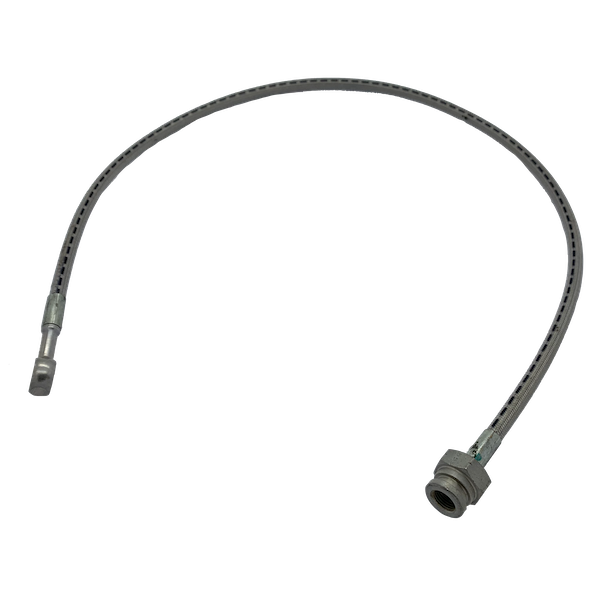

Rear brake caliper flexible hose - 208 R2

1F6321854A

2

€26.61 €32.73
13
Gearbox housing collar screw Ø6X100-35

2579-55

2

€1.28 €1.57
14

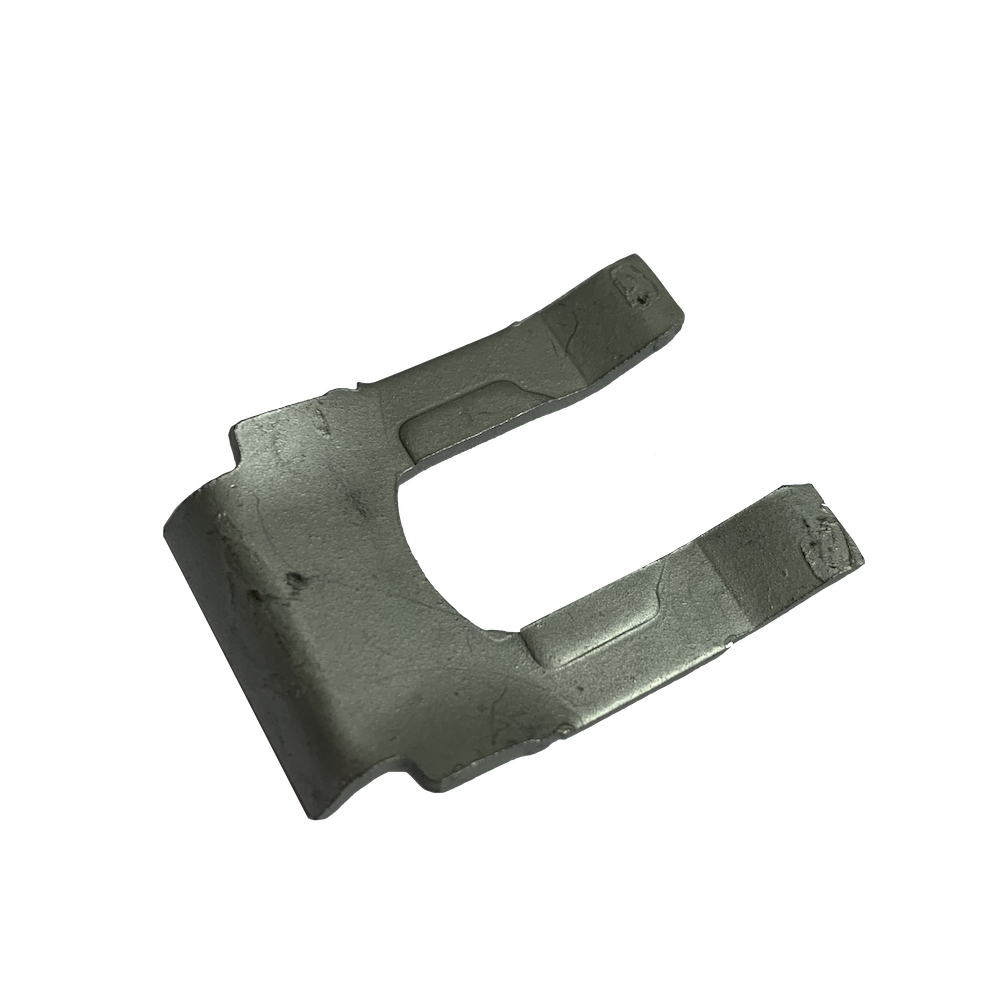

Flexible Brake Hose U Clip

4814G0

4

€7.90 €9.72
15

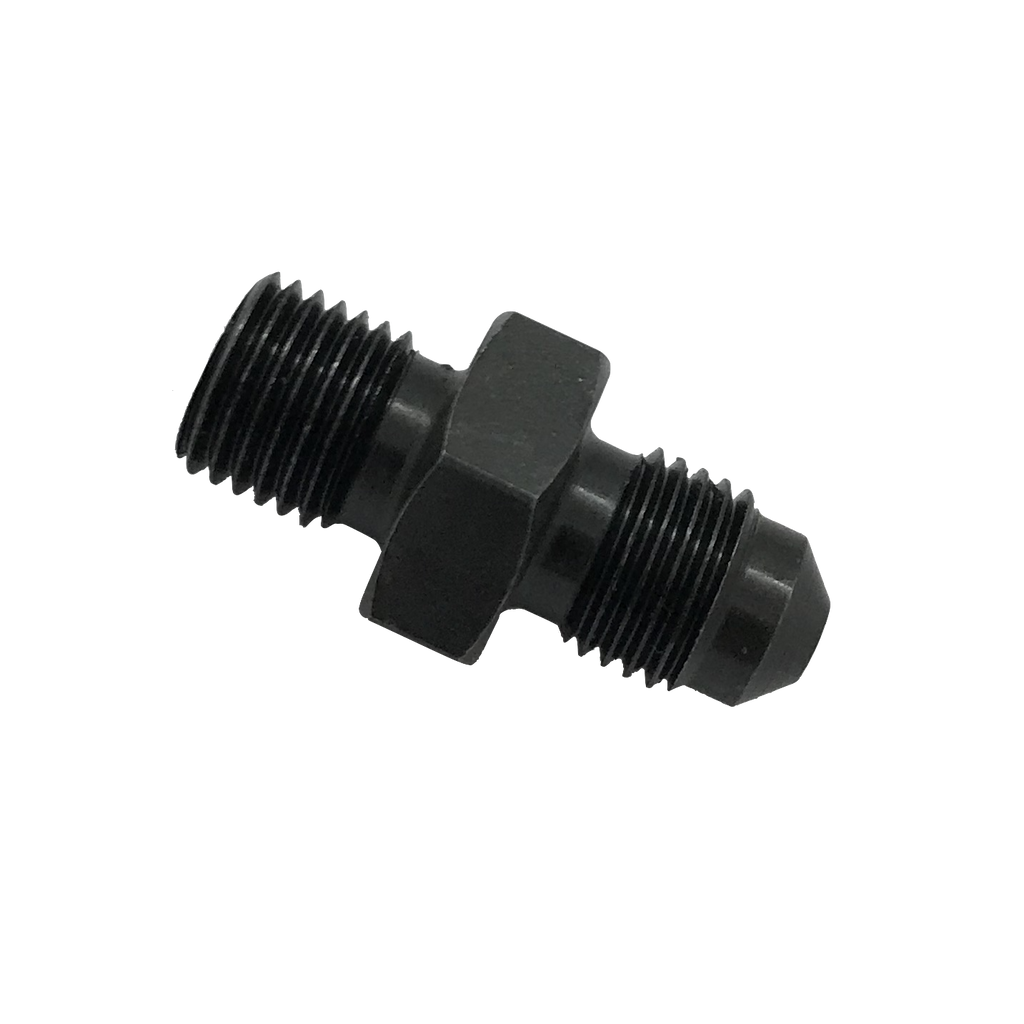

Adaptor Male Dash 3 Plat / Dash 3 Convexe

90404086-A

2

€10.11 €12.44
16

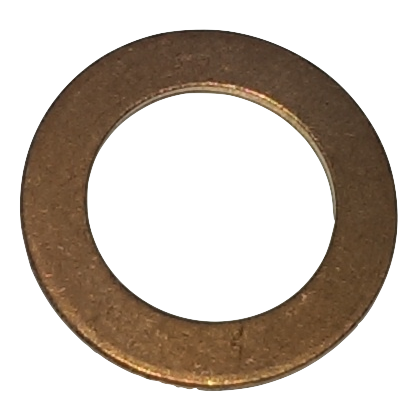

Metal Seal Ø10.35 Ø15,8 E1

PS81535A10

4

€1.55 €1.91
17

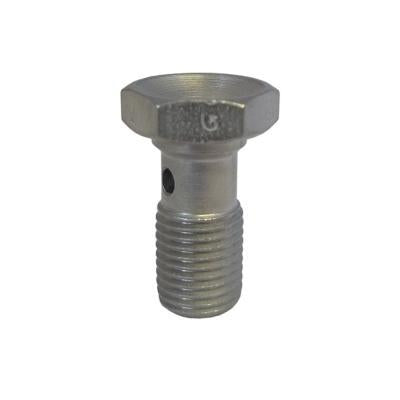

Brakes Banjo Screw 3/8-24

1F6363230A

2

€2.43 €2.99
18
Alcon brake pressure limitor

1F6320696A

1

€60.00 €73.80
View full details

Documentation is available to authorised customers only. Please request by contacting Race & Rally by phone, email or online chat. Thanks.
