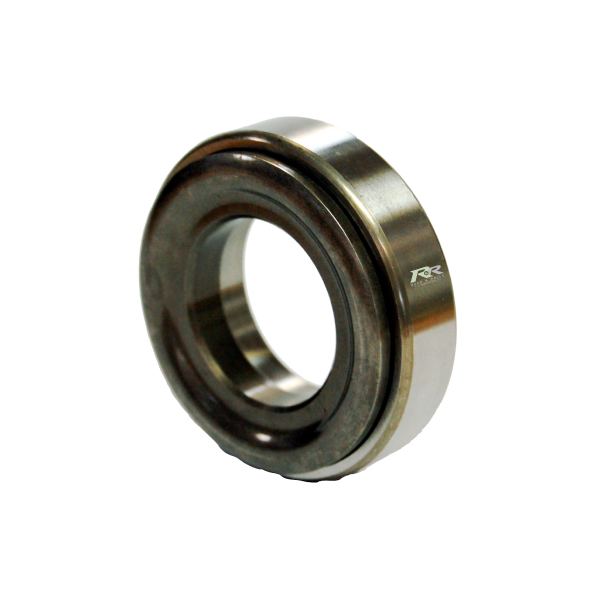

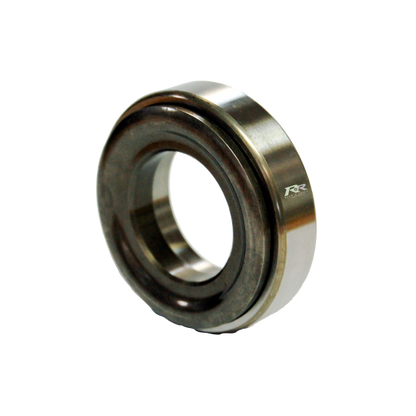

These high quality Release Bearings are designed for use with AP Racing Clutches and are suitable for high loads and countinuos high speed high temperature operations, making them ideal for use in motorsport situations where high performance is expected. A steel cage with hardened steel shell construction adds durability while a special high temperature grease ensures that the bearings operate at their maximum capability even in demanding situations. They offer a greater release load capability and superior performance under ardous racing conditions compared to standard production bearings.

FEATURES:

• High Speed release Bearing
• 32.75mm Inner Diameter
• Inner Race Rotates

Release Mechanism

As the spring rate and clamp load of the clutch increases, so does the release bearing load required to release the clutch. The release bearing used is a highquality steel caged radius contact ball bearing; either 38mm, 45mm, 50mm or 54mm in diameter. The release mechanism should be arranged so that the bearing is free of the spring fingers when the clutch is fully engaged. The release travel should be limited by means of an external stop to avoid damage to the diaphragm spring.

CP3457-11:

• Release Bearing Fulcrum Diameter 'A' = 50mm
• Suitable with most; Ø115mm, Ø127mm & Ø140mm racing clutches

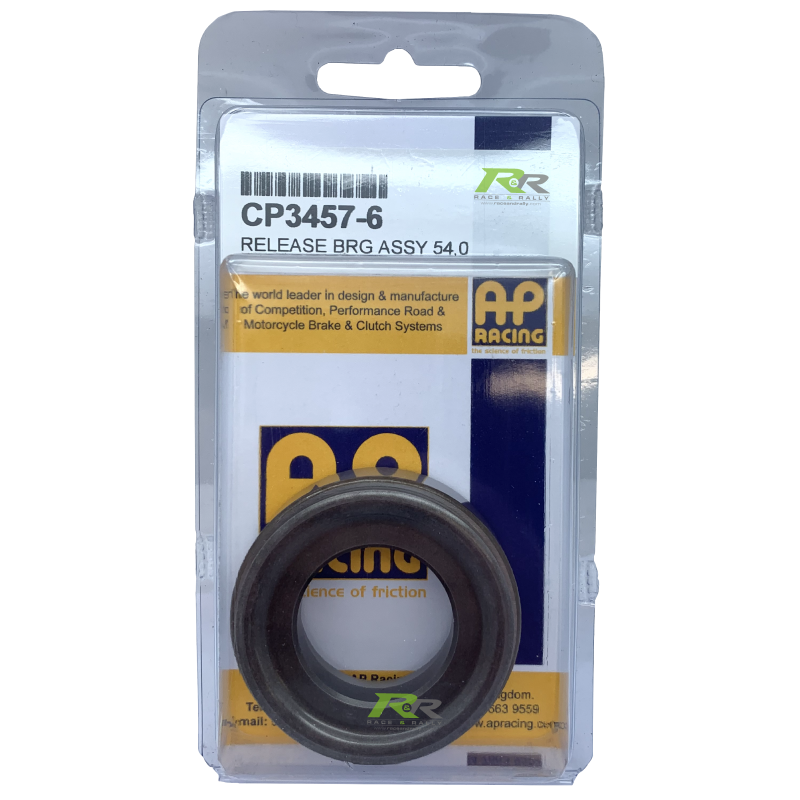

CP3457-6:

• Release Bearing Fulcrum Diameter 'A' = 54mm
• Suitable with most; Ø184mm, Ø200mm & Ø215mm racing clutches

CP3457-16:

• Release Bearing Fulcrum Diameter 'A' = 38mm
• Suitable for some Ø115mm racing clutches and clutches from other manufacturers.

CP3457-26:

• Release Bearing Fulcrum Diameter 'A' = 45mm
• Suitable with most; Ø115mm, Ø127mm & Ø140mm racing clutches

INSTALLATION:

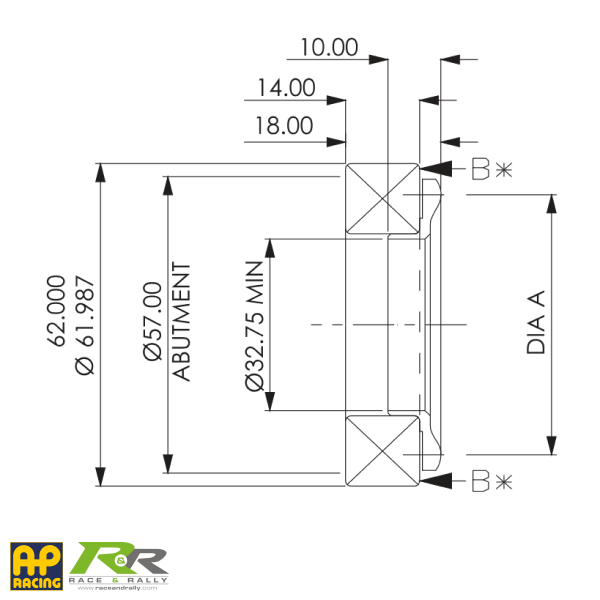

To prevetn internal damage to ball races when fitting bearings onto release mechanism, use only the minimum force necessary on the surfaces marked 'B' only. These bearings are filled with Kluber Asonic HQ72-102 grease.
