New Powersports batteries have been engineered to meet the rugged demands of their respective motorcycle, ATV, UTV and watercraft applications while providing a precise fit for “drop in” replacement.
Like all ODYSSEY powersports batteries, these new units feature a non-spillable Absorbed Glass Mat (AGM) design that’s built to take the pounding delivered by powersport vehicles—whether it’s on land, sea, or snow.
- Thin Plate Pure Lead (TPPL) technology, contributing to twice the overall power and three times the life of conventional batteries
- A sealed design, resulting in a virtually maintenance-free battery
- The ability to resist extreme vibration, protecting against high-impact shock vibrations that often lead to premature failure

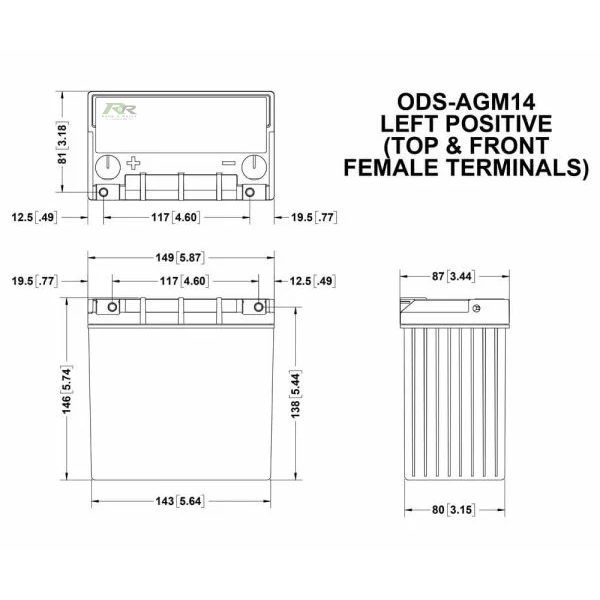

Dimensions:
- Length - 150mm
- Width - 86mm
- Height (terminals included) - 145mm
- Height (container) - 145mm
- Weight - 4.50 Kg
Specifications:
- Voltage - 12V
- Pulse (5 seconds) Hot Cranking Amps (PHCA) - 565A
- Cold Cranking Amps (CCA) - 220A
- HCA - 320A
- MCA - 300A
- 20Hr Nominal Capacity (Ah) - 14Ah
- 10Hr Nominal Capacity (Ah) - 13Ah
- Reserve Capacity Minutes - 18 mins
- Terminal - M6 Receptacle
- Torque Spec (max) - 5.6 Nm
- Operating Temperature Range - -40°C to +60°C
- Optimum Storage Temperature - +20°C
odyssey battery ods-agm14.pdf
-
Brand:
Odyssey Battery
Manufacturer Part Number:
ODS-AGM14
