CP2399D43 Brake Pad Set - (H) DS2500 Compound
CP2399D43 Brake Pad Set - (H) DS2500 Compound
SKU:CP2399D43-DS2500
Regular price
€123.88
€152.37
70.1mm
58.1mm
14.3mm
43.1mm
Compound Information
Compound Information
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.
DS2500 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature
Relative performance characteristics under heavy-duty race conditions
Suggested applications
Out of stock, contact for leadtime

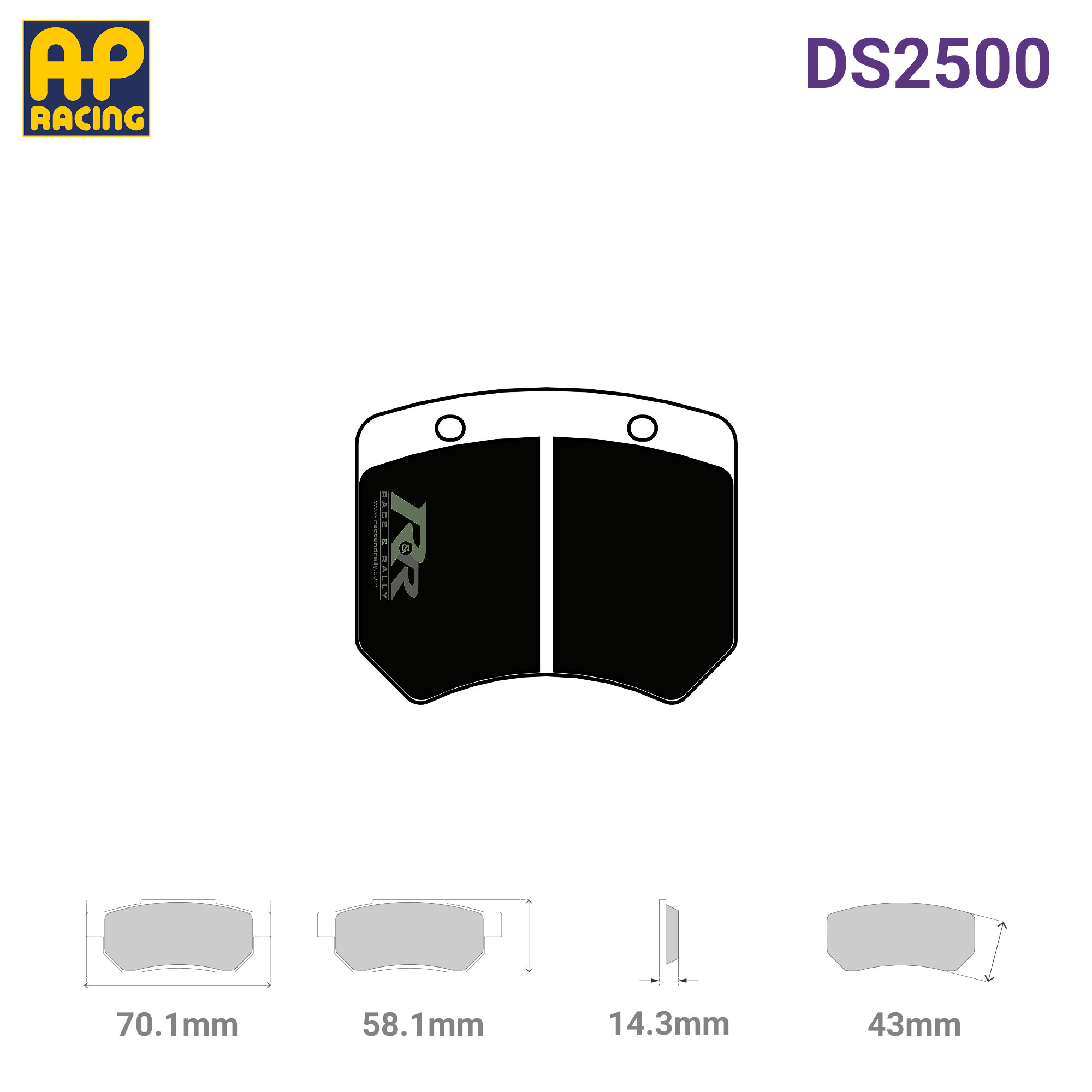

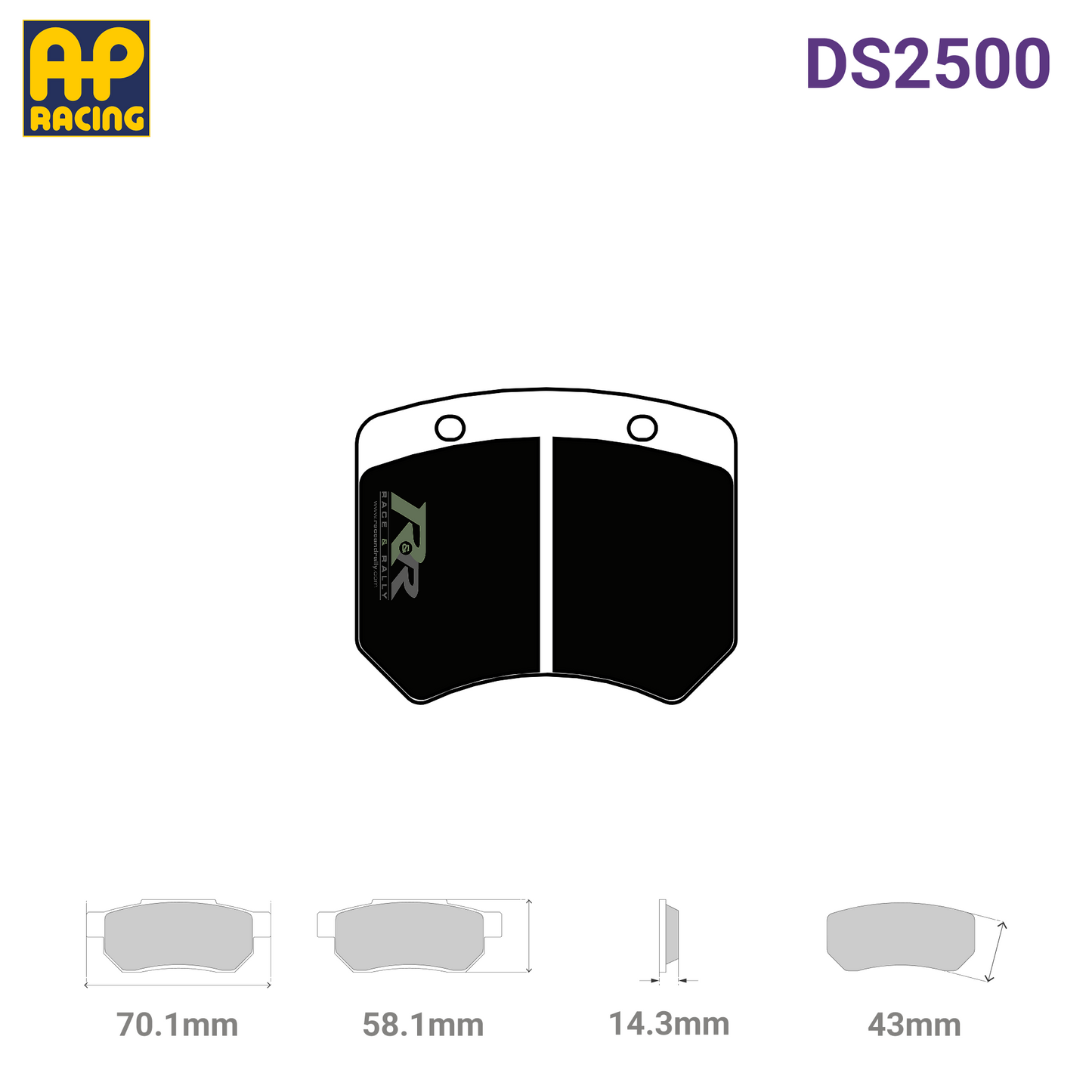

Brake Pad Dimensions:
| Manufacturer | AP Racing |
| Part Number | CP2399D43-DS2500 |
| Pad Width | 70.1mm |
| Pad Height | 58.1mm |
| Radial Depth | 43.1mm |
| Thickness | 14.3mm |
| Compound | (H) DS2500 |
| Barcode |
Brake Pad Compound Information:
DS2500 (H)
These are the amongst the foremost high performance track day pads in the business
Main Applications:
- Track Day
- Light race use
- Rear GT
- Rear rally
- Front Hillclimb
- Low heat events
Main Features:
- Road style refinement but with race material ability to withstand heat with respect to life and friction coefficent.
- Average friction coefficient of 0.41 over working temperature range of 0°C to 500°C
WARNING:
DS2500 does not have R90 certification and so it is not recommended for road use in those countries which require R90.
DS2500 Friction Coefficient (MU) Versus Temperature (°C)
Optimal operating temperature
Relative performance characteristics under heavy-duty race conditions
Suggested applications
Cross References:
| AP Racing | CP2399D43 |
| Carbon Lorraine | 5001W43 |
| Endless | RCP005 |
| Ferodo Racing | FCP825 |
| Mintex | MLB20 |
| Performance Friction | 7720 |
Compatible Calipers:
| AP Racing |
|---|
| CP2485 (14.4mm Thickness) |
| CP2576 (14.4mm Thickness) |
| CP2577 (14.4mm Thickness) |
| CP3176 (14.4mm Thickness) |
| CP3177 (14.4mm Thickness) |
| CP3178 (14.4mm Thickness) |
| CP5211 (14.4mm Thickness) |
| CP5311 (14.4mm Thickness) |
| CP5020 |
