Quaife 60G Hydraulic Slave Cylinder Mount

Quaife 60G Hydraulic Slave Cylinder Mount

CSM-60G

€67.28 €82.75
Sale Sold out
  • Feature Icon Quaife 60G 5-Bolt Pattern
  • Feature Icon Suited for AP CP6859 Slave Cylinder

Optional Extras

In stock
View full details

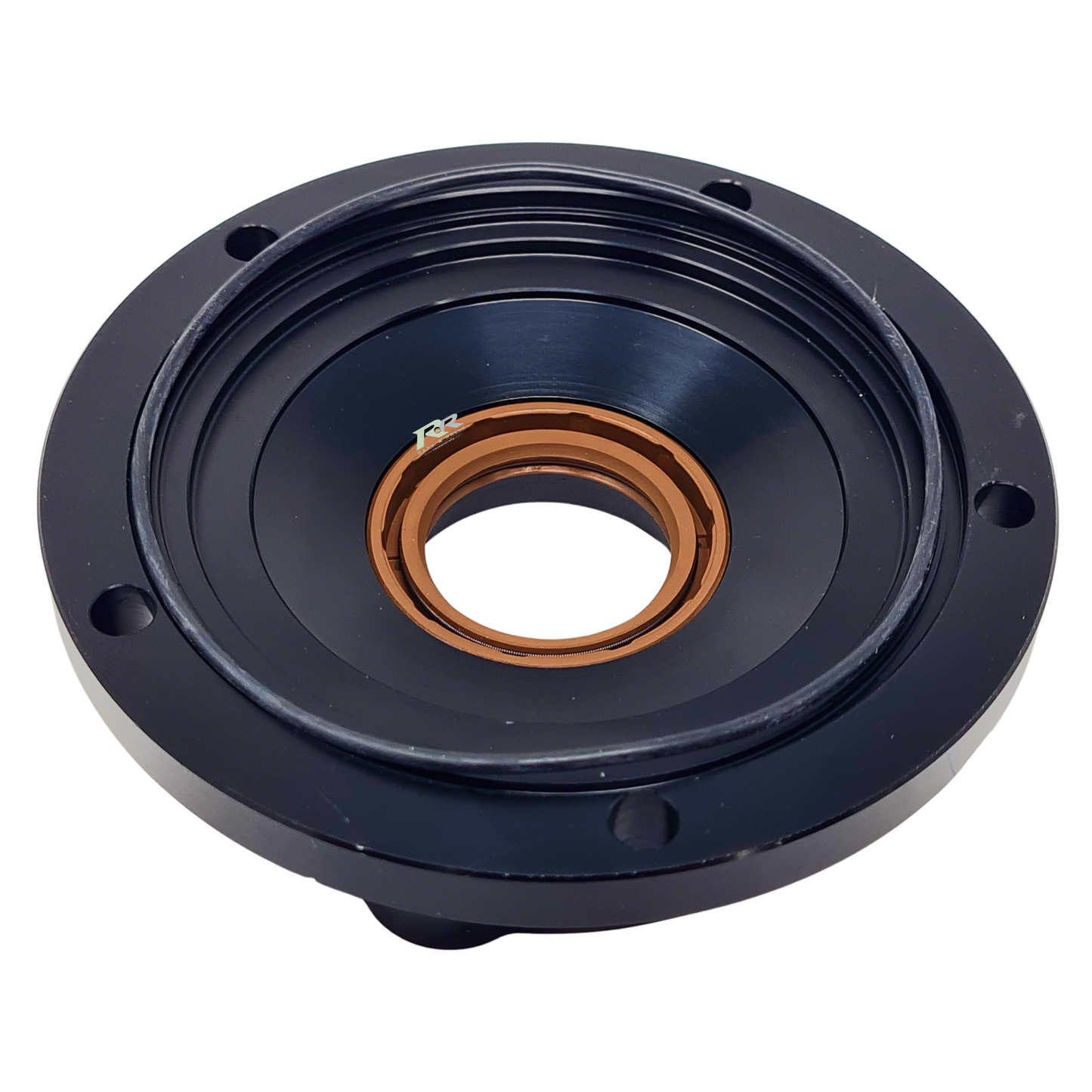

Quaife 60G Hydraulic Slave Cylinder Mount

RandR designed, a concentric slave cylinder mount designed to fit the Quaife 60G gearbox (5-bolt pattern) in conjunction with the AP Concentric slave cylinder model CP6859 to complete the ultimate release bearing assembly.

Technical Specifications:

  • Gearbox Mounting:
    • Direct to Quaife 60G
    • 5-bolt pattern (100mm PCD)
  • Compatible Slave Cylinder (sold separately):
    • CP6859 Family
    • CP6859-54 recommend for MK1 & MK2 Escorts with AP Racing clutches
  • Depth:
    • From gearbox mounting face to slave cylinder face: 28mm
  • Supplied with input shaft seal fitted and o-ring for sealing on face of gearbox

Fully compatible with RandR concentric slave cylinder spacers available in 6mm, 9mm, and 15mm thicknesses

**Please not: this mount fitted with the CP6859-54 (18mm stroke) slave cylinder amounts to 75mm (Bearing face to Gearbox Face)

**Please note: this mount fitted with the CP6859-1254 (slimline - 12mm stroke) slave cylinder amounts to 72mm (Bearing face to Gearbox Face)

Brand RandR
SKU Barcode
CSM-60G
