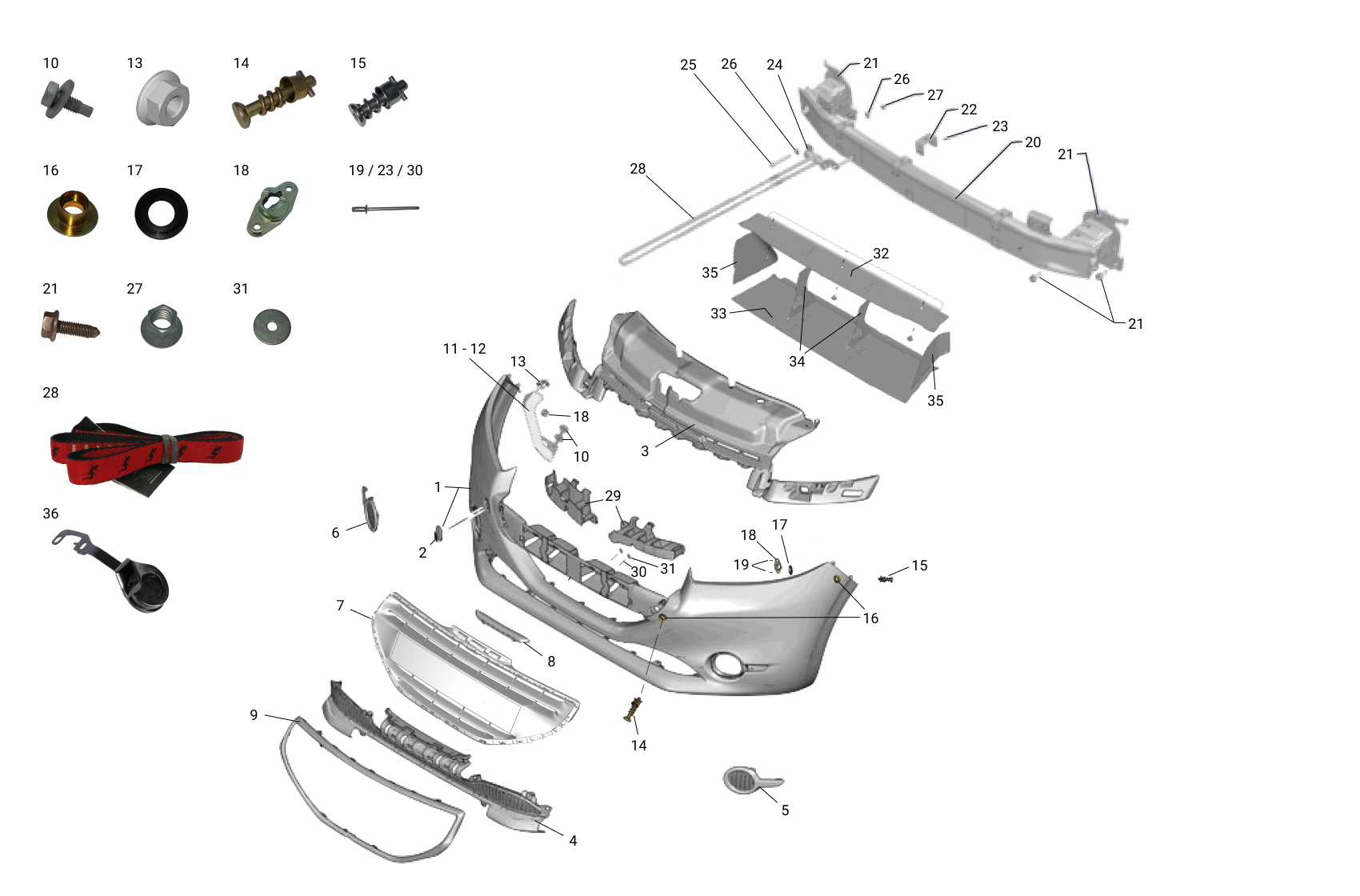

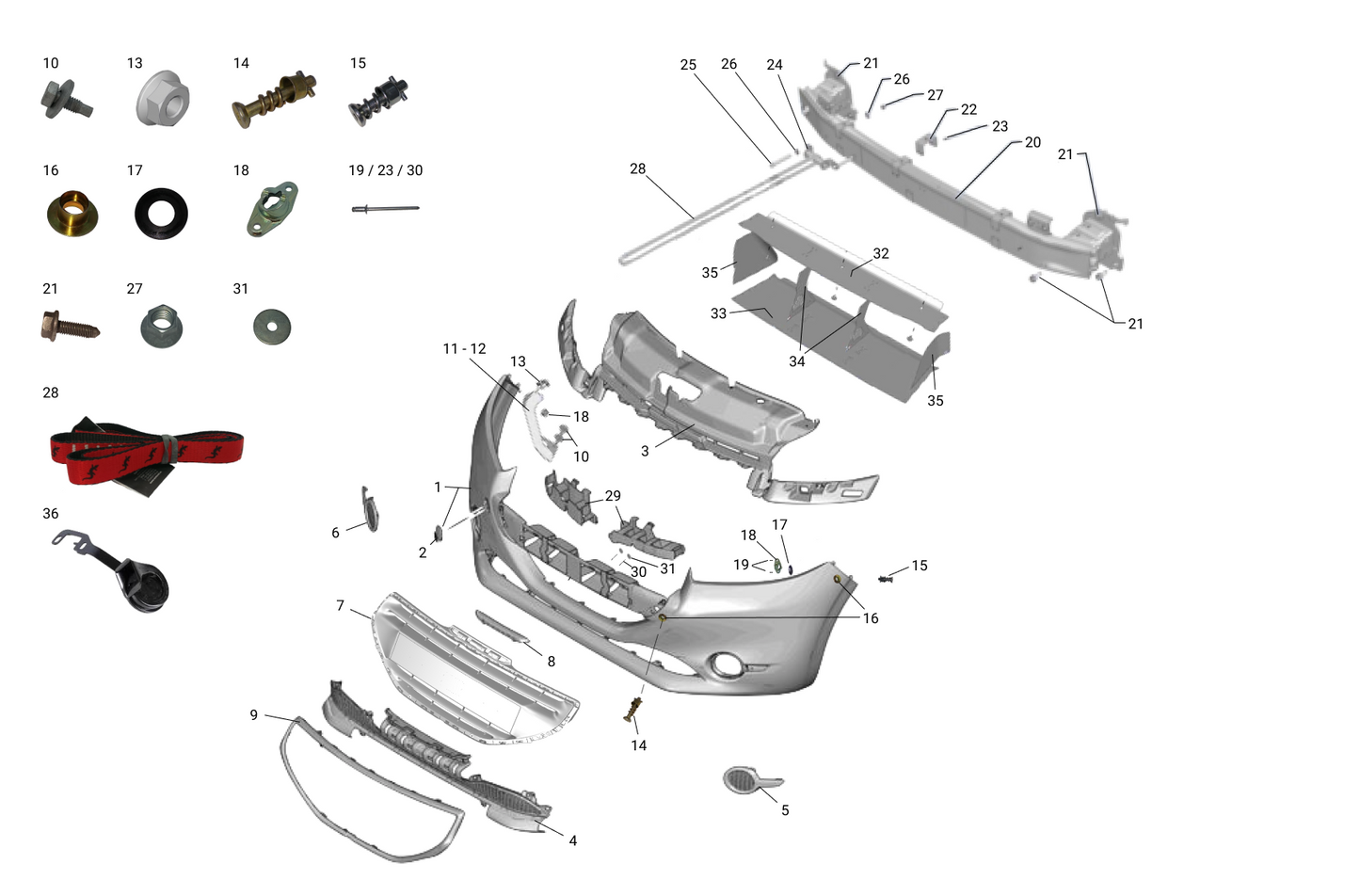

R1A - Front Bumper

R1A - Front Bumper

View Docs
Item Image Description Chapter Qty Select Qty Price Add to Basket
1

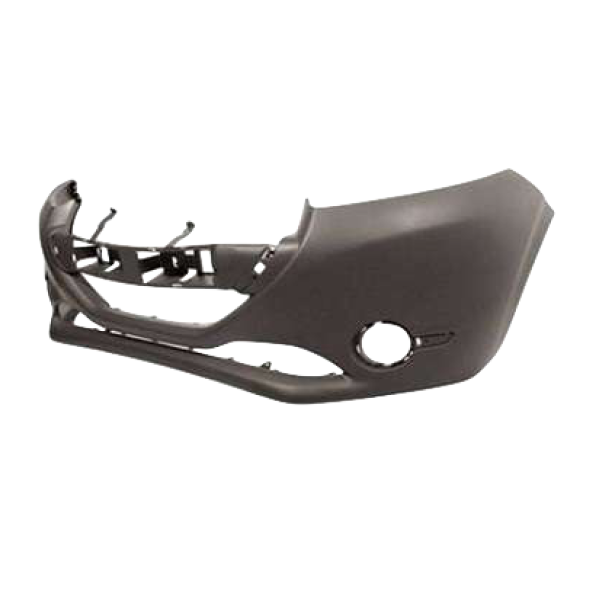

Front bumper

1607397880

1

€449.71 €553.14
2
Recess door

1607397980

1

€24.85 €30.57
3

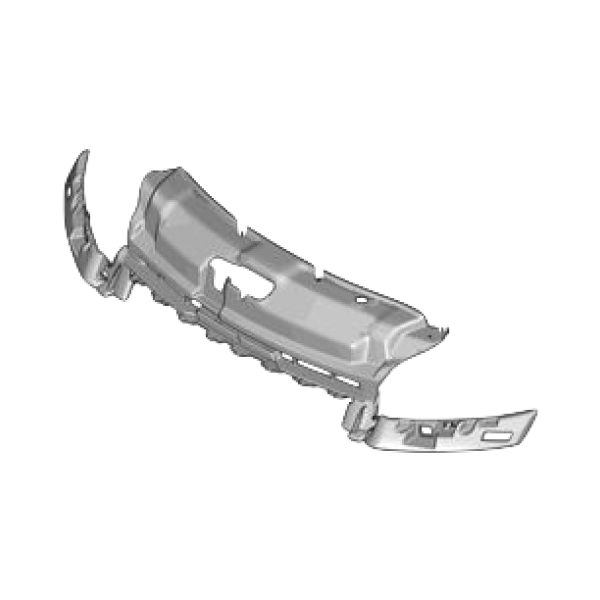

Rumper range

9673855880

1

€73.85 €90.84
4
Guard grille

96738556XT

1

€62.97 €77.45
5

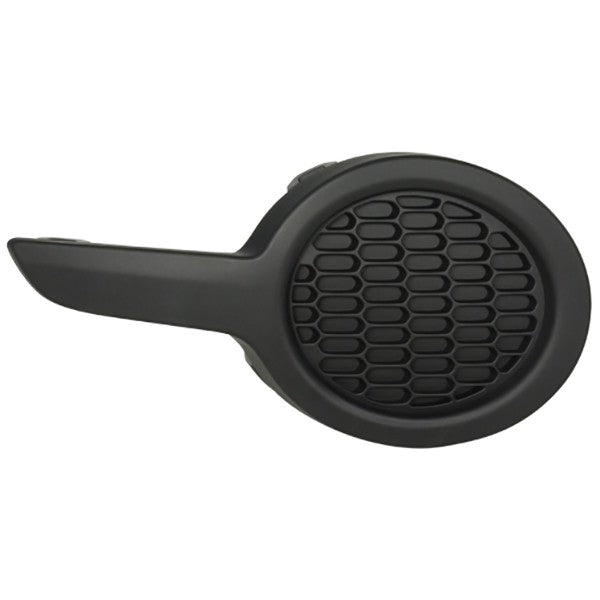

Left bumper plug

9673857080

1

€28.08 €34.54
6

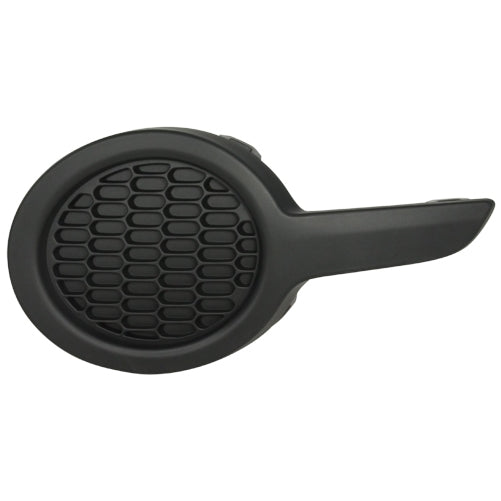

Right bumper plug

9673856980

1

€31.14 €38.30
7

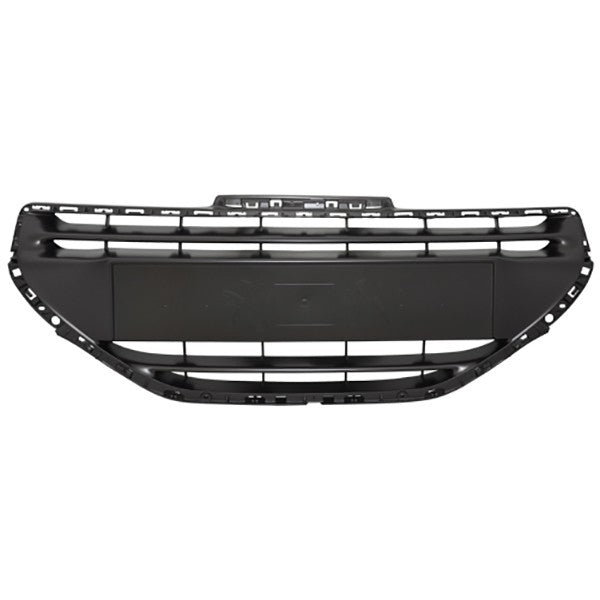

Stone guard grille - Mistral Grey

9808676480

1

€139.49 €171.57
8

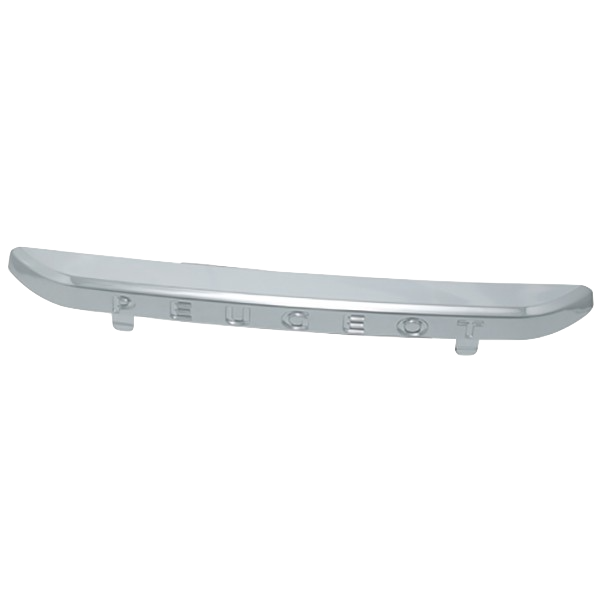

Badge

9673857680

1

€0.00 €0.00
9

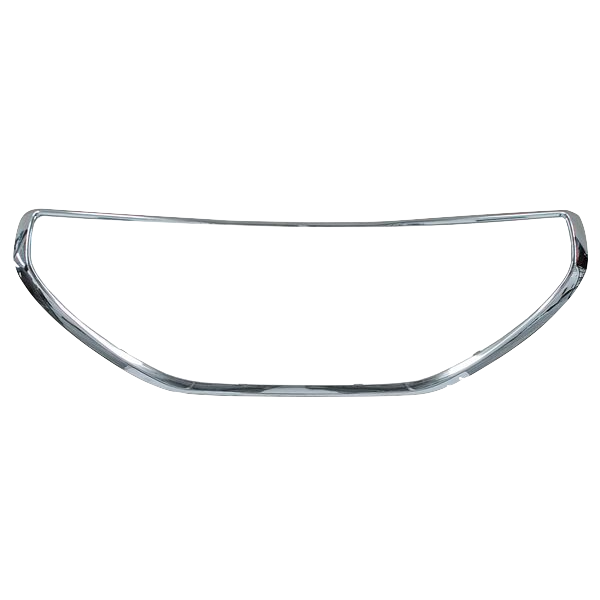

Bumper moulding

1608112180

1

€106.58 €131.09
10
SELF LOCKING SELF-TAP SCREWS M6x16

6923H0

11

€2.56 €3.15
11

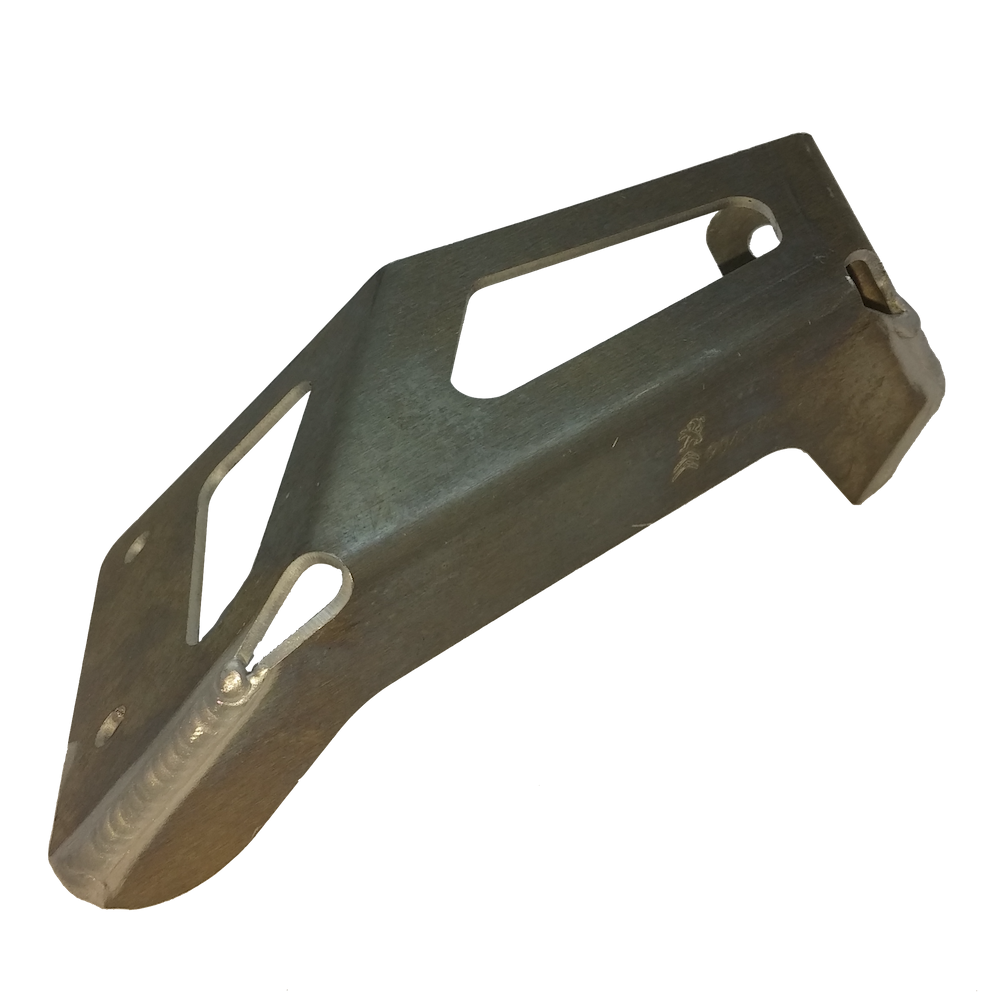

Right front bumper bracket

2K3C21259B

1

€58.50 €71.96
12

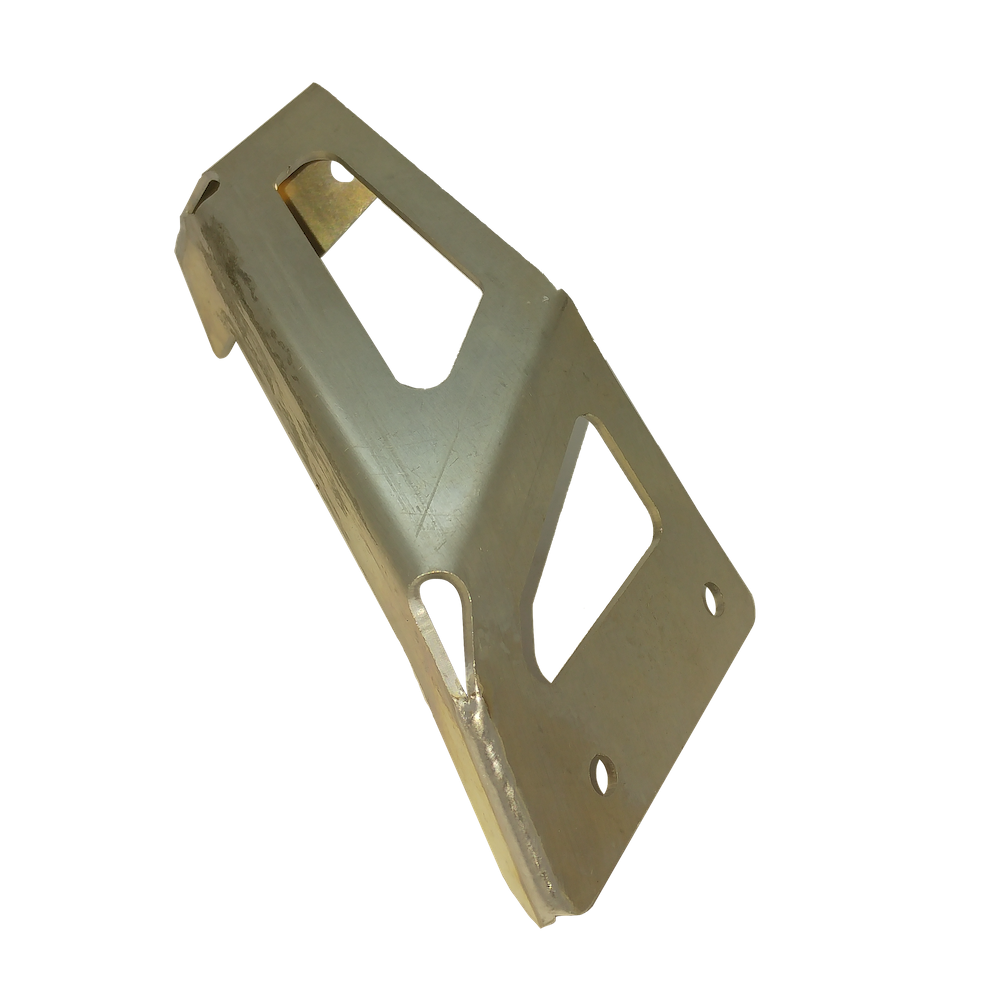

Left front bumper bracket

2K3C21258B

1

€58.50 €71.96
13
Nut with base M6

6935A6

4

€1.18 €1.45
14

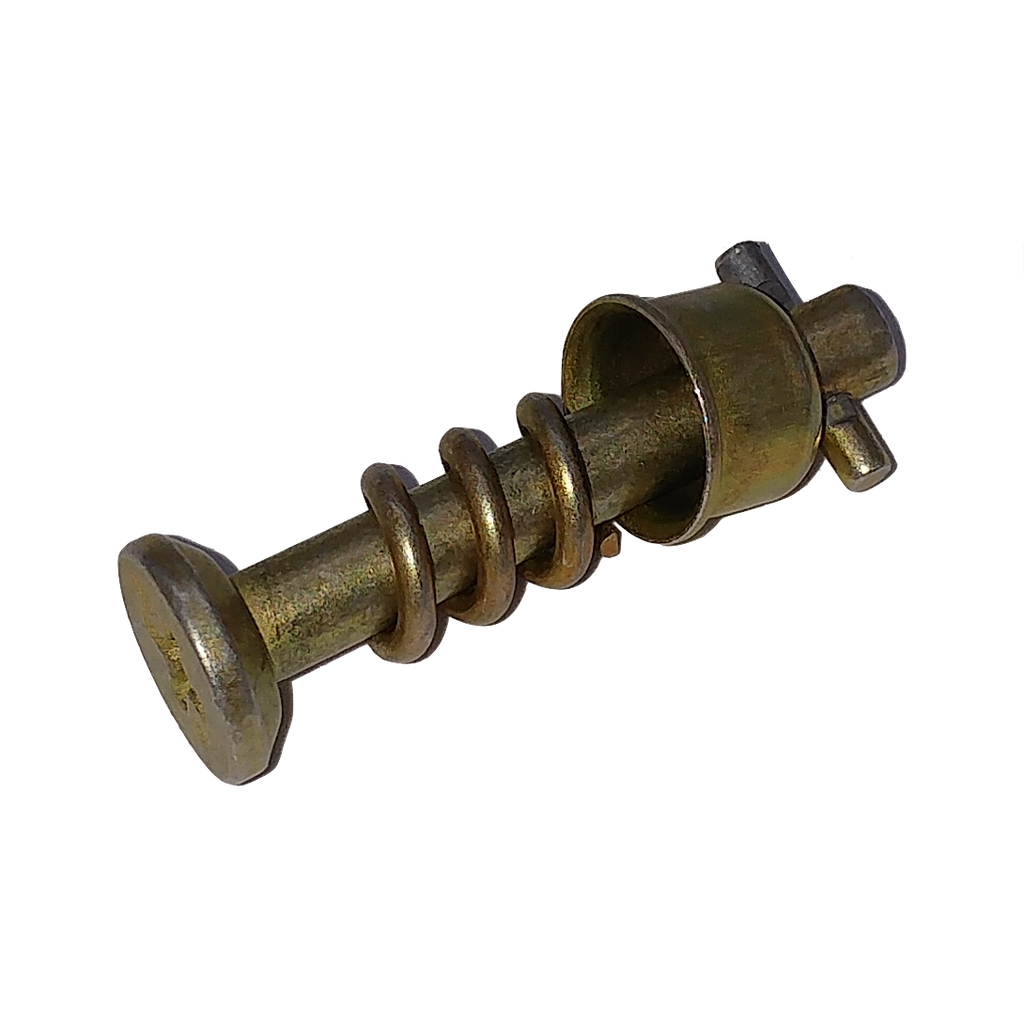

Cruciform axis N°19

PS74003A10

2

€7.11 €8.75
15
Cruciform axis N°9

PS74584A10

2

€26.52 €32.62
16

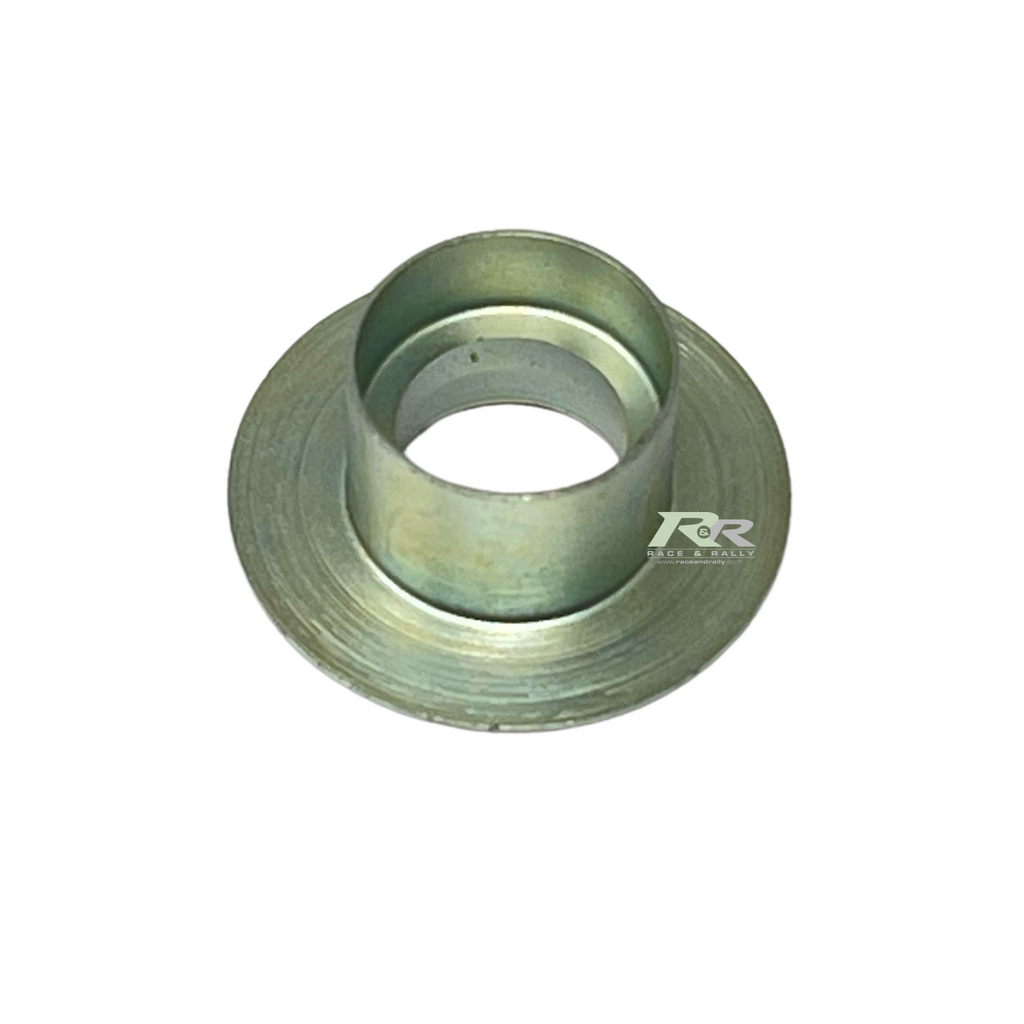

Cambered eye

904905898A

4

€8.65 €10.64
17

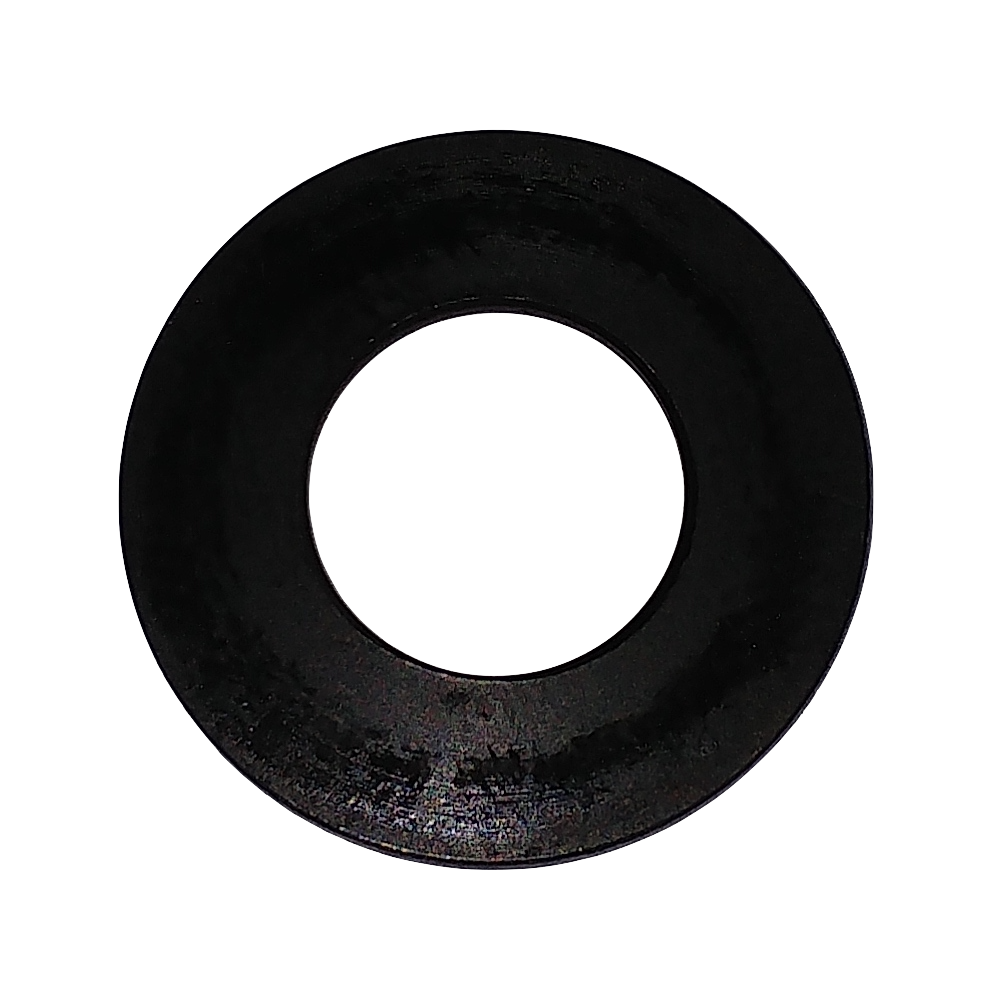

Washer Ø12x24-1,5

PS86068A10

4

€2.19 €2.69
18

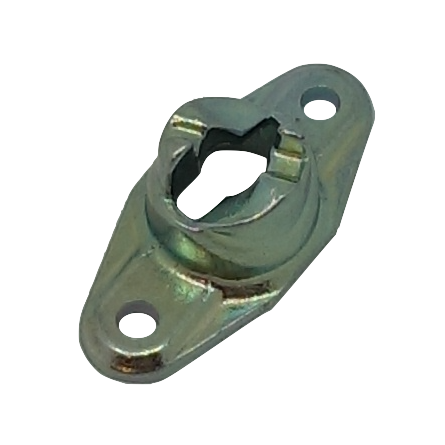

Camloc receptable

PS74128A10

4

€6.51 €8.01
19

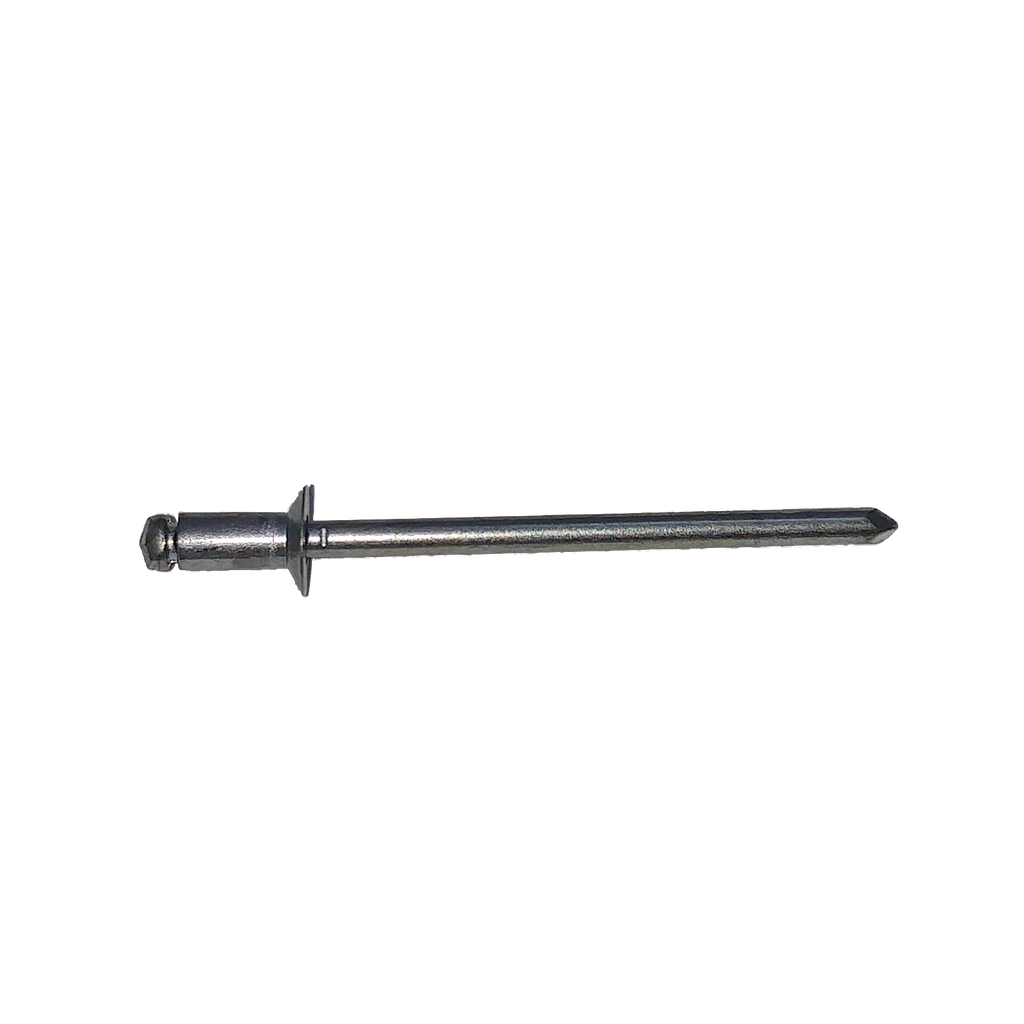

Rivet Ø3.2x8

PS92605A10

8

€0.19 €0.23
20

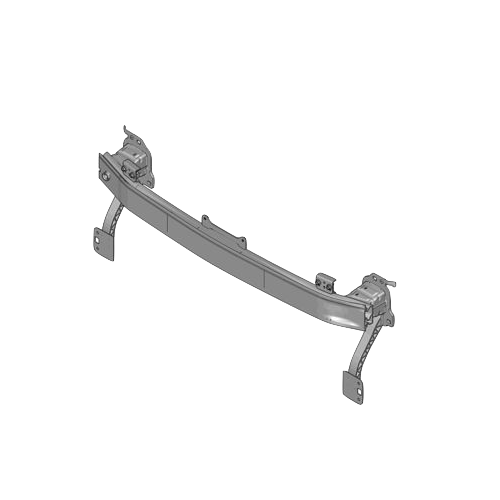

Bumper absorber crash bar

9672807980

1

€195.96 €241.03
21
Screw with washer M8x25 cl8.8

6925P2

6

€3.03 €3.73
22

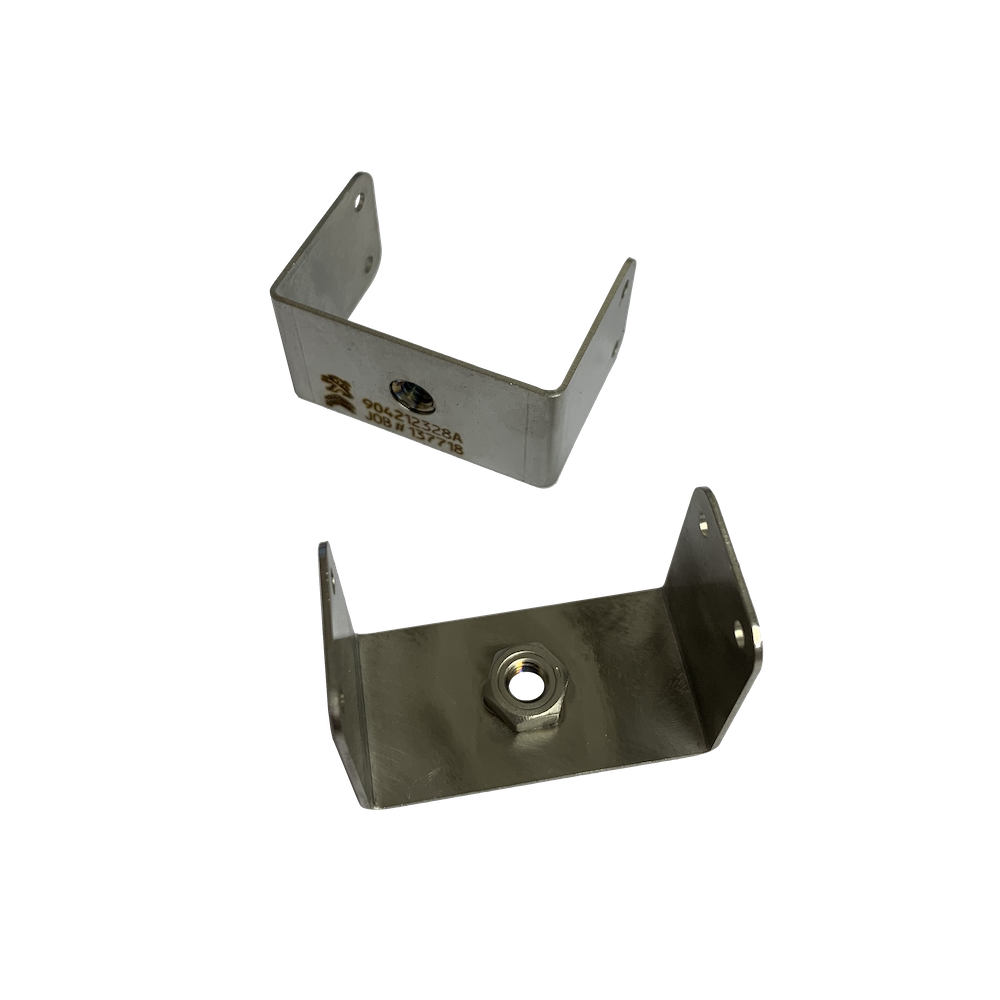

Front bumper fixing on crossmember

3R1A21232A

7

€12.69 €15.61
23
Rivet Ø3,2x7,9

6974A7

28

€0.23 €0.28
24
Tow strap fixing

3R1A21421A

1

€39.84 €49.00
25
Socket cheesehead screw M8x55 cl.10.9 Zn

6913-46

2

€2.00 €2.46
26

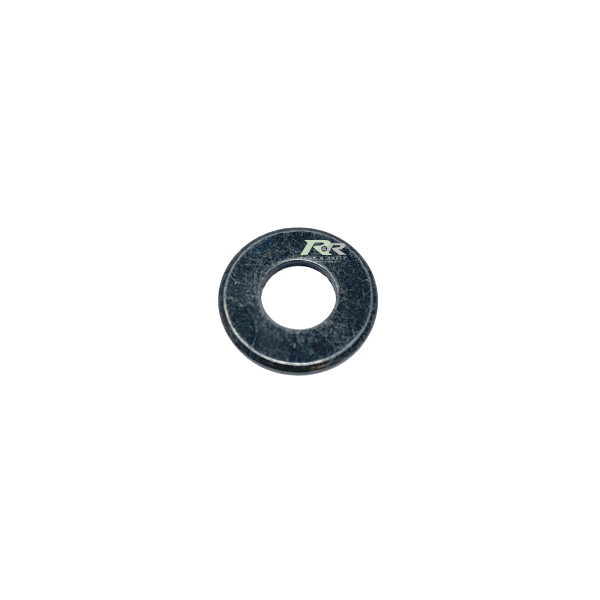

Flat washer Ø8x18-1,5

CS440031ST

4

€0.25 €0.31
27
Nut with washer M8-7-10 cl 10.9

7238ET

2

€1.41 €1.73
28

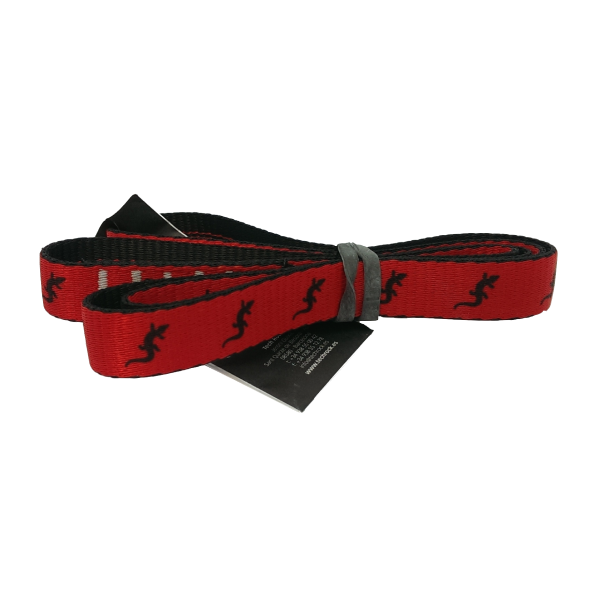

Towing straps

3R1A21762A

1

€9.61 €11.82
29
Bumper absorber - Pair

1607398480

1

€57.60 €70.85
30
Rivet Ø4.8x10

6973C1

4

€0.33 €0.41
31

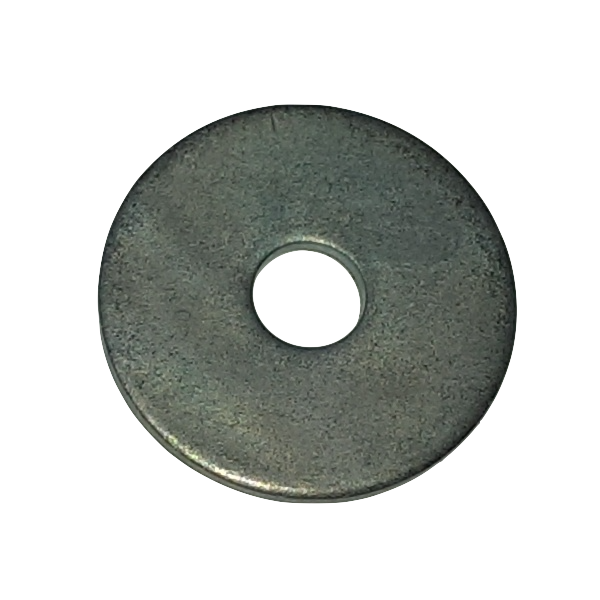

Washer Ø5x20-1.5

694910

4

€2.18 €2.68
32
Radiator air duct top wall

3R1A21473C

1

€38.55 €47.42
33
Radiator air duct bottom wall

3R1A21472C

1

€4.50 €5.54
34

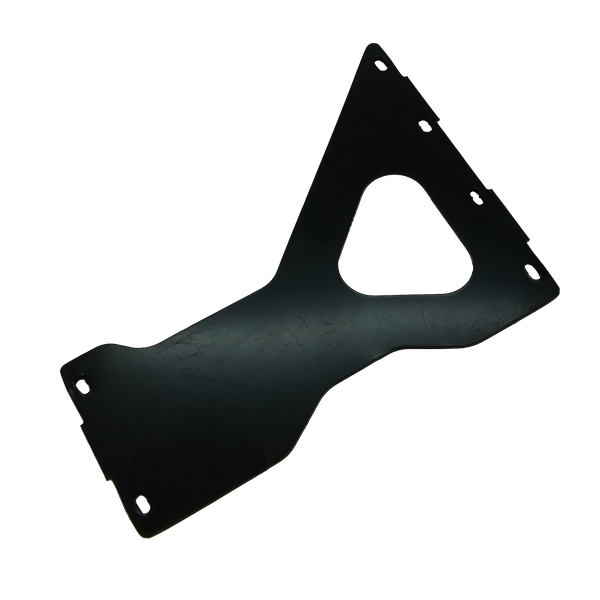

Radiator air duct intermediate wall

3R1A21475C

2

€12.00 €14.76
35

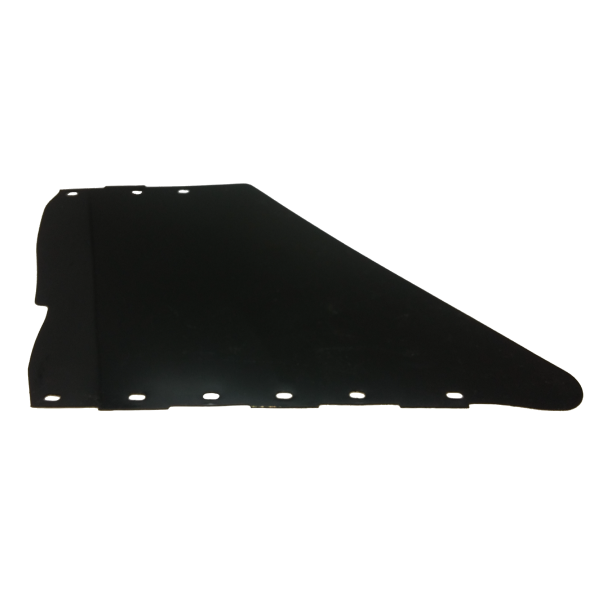

Radiator air duct lateral wall

3R1A21474C

2

€25.20 €31.00
36
Horn

9673824080

1

€69.17 €85.08
